AGIE CHARMILLES CUT 2000 wire EDM machine
Offer details
- Storage Number
- 26003-16
- Machine type
- Wire EDM Machines
- Manufacturer
- AGIE CHARMILLES
- Type
- CUT 2000
- Year of construction
- 2016
- Location
- Mataro, Spain
- Price
- On Request
Technical details
- Dimensions (LxWxH) approx.
- 3760 x 3000 x 2750 mm
- Weight approx.
- 4,500 kg
Description

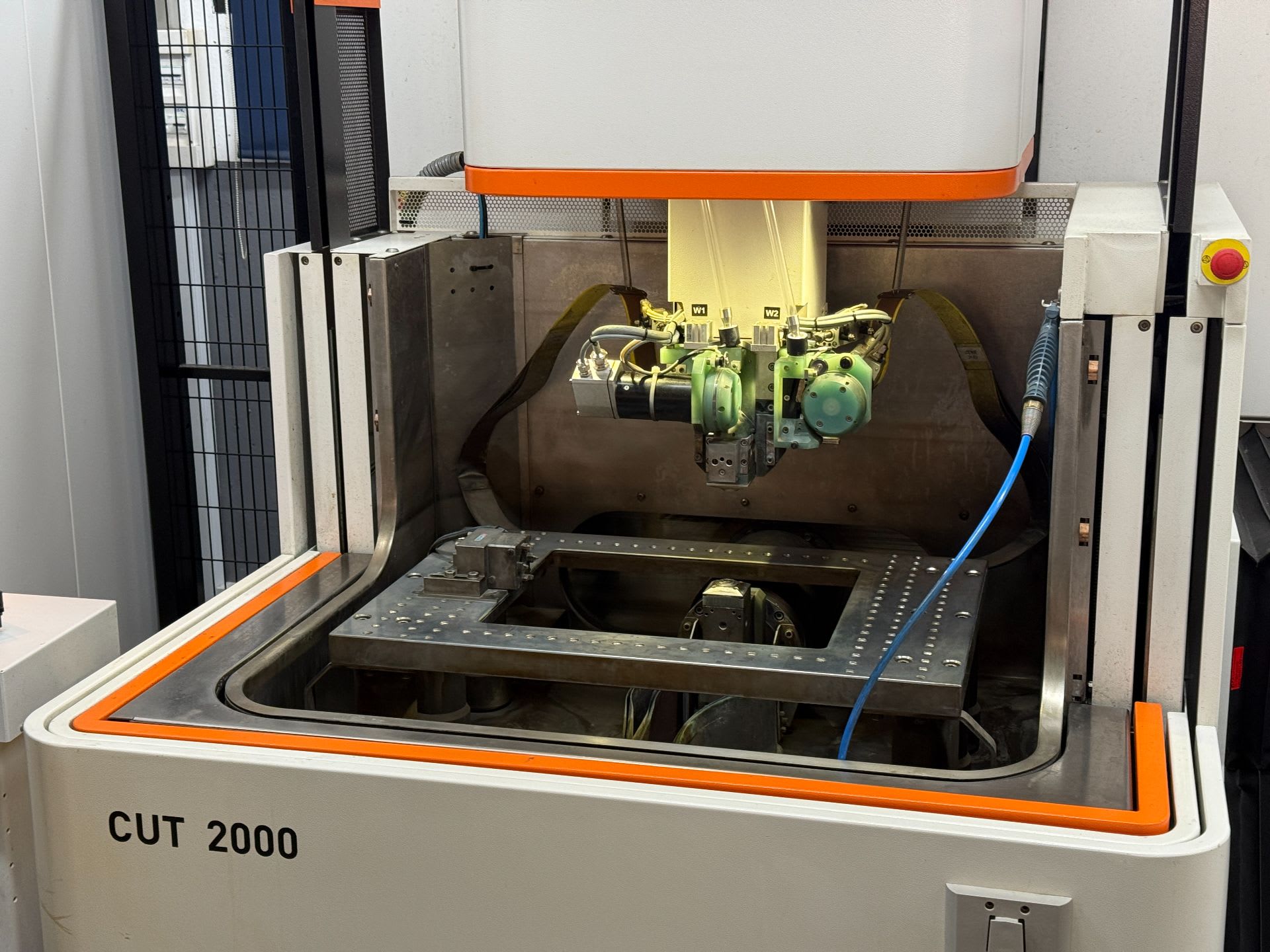

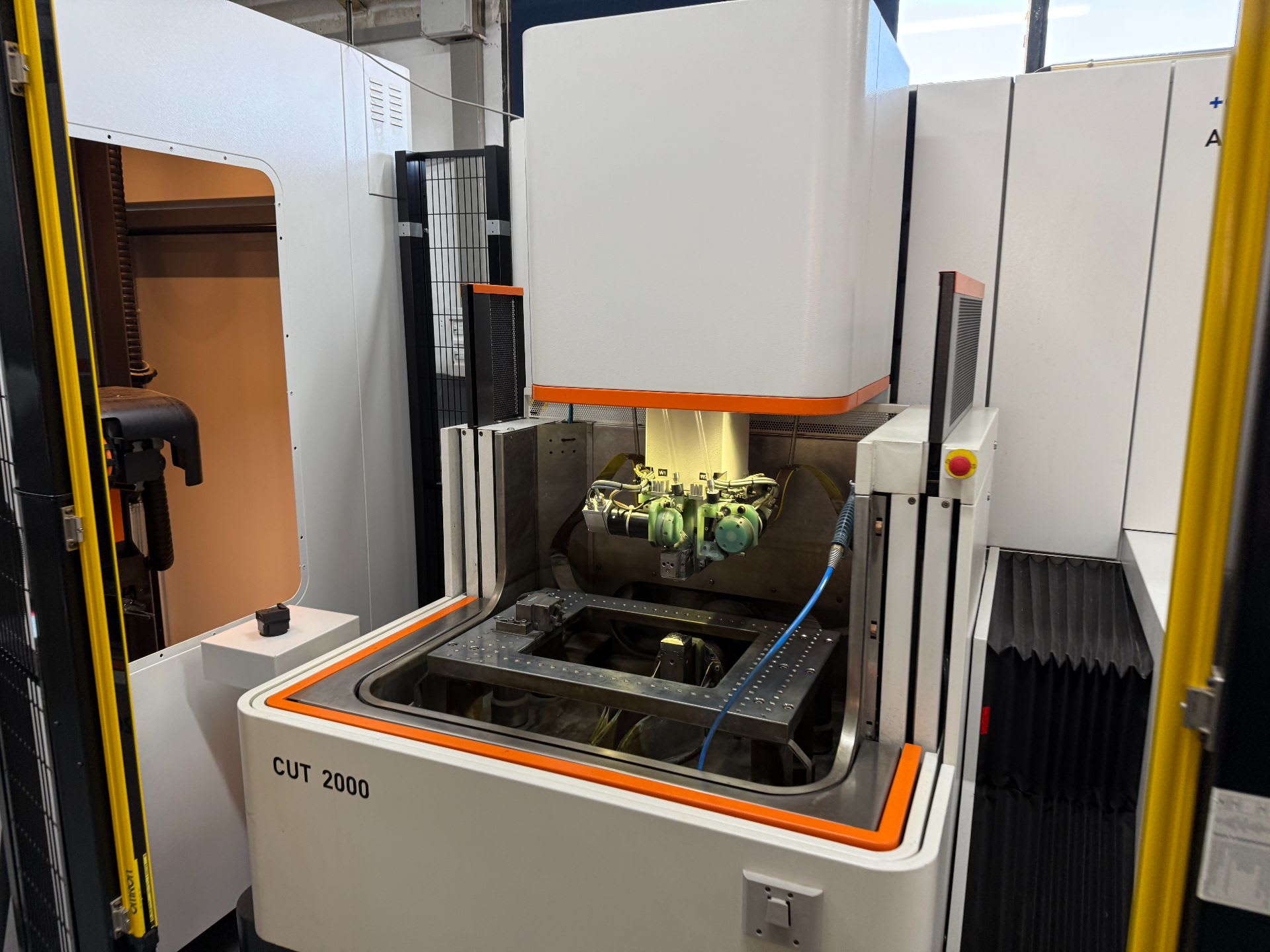

Wire EDM System

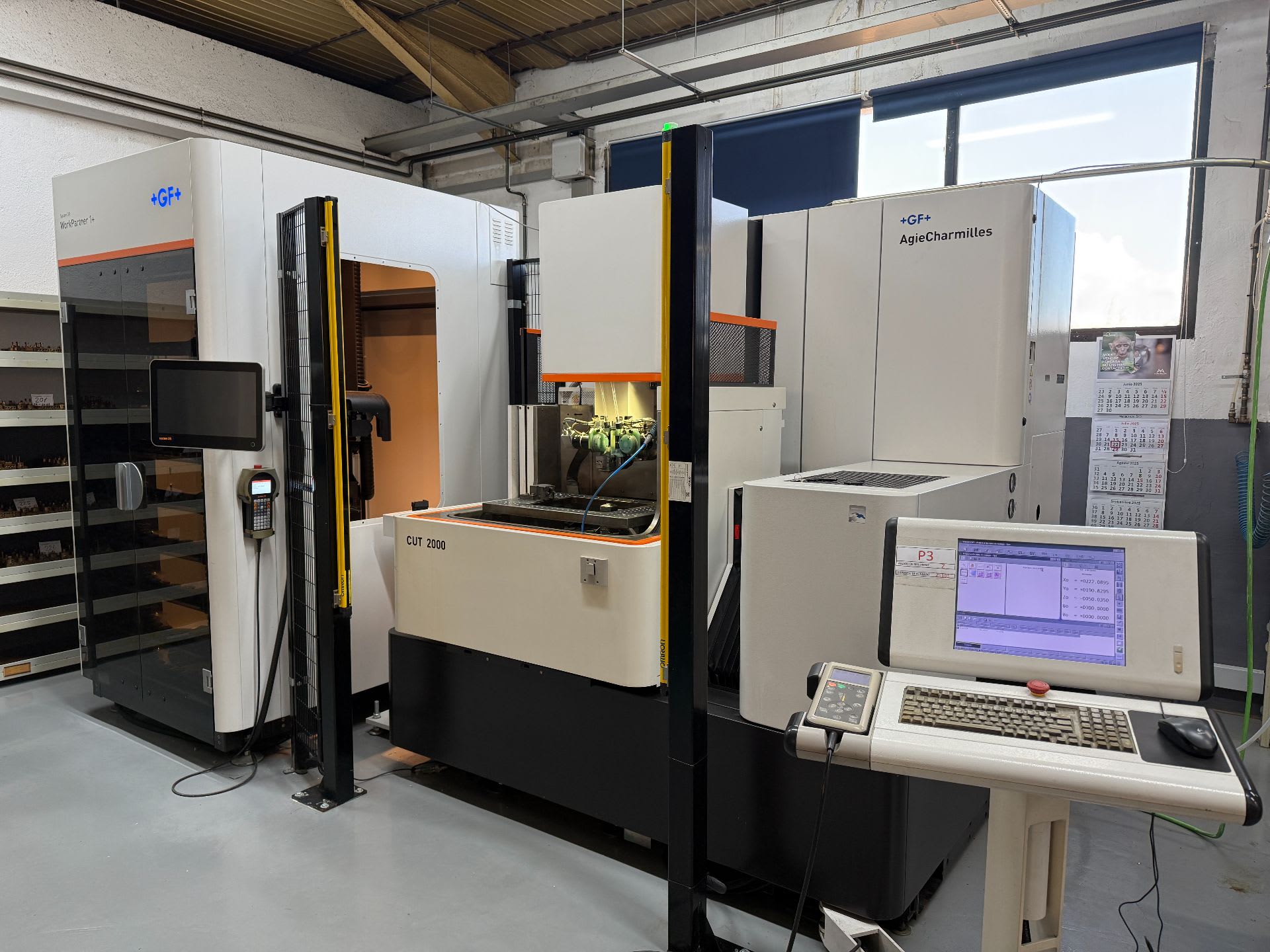

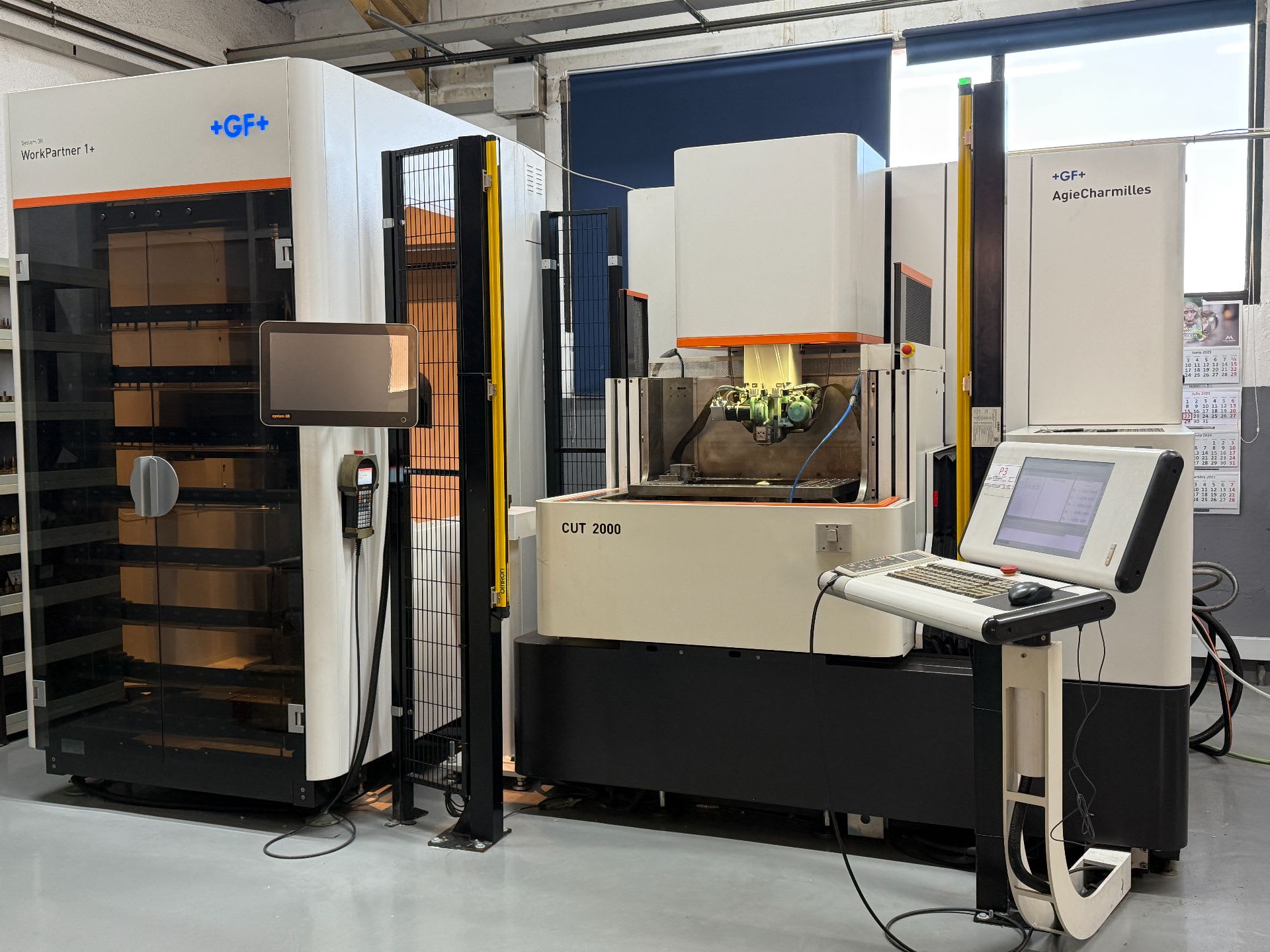

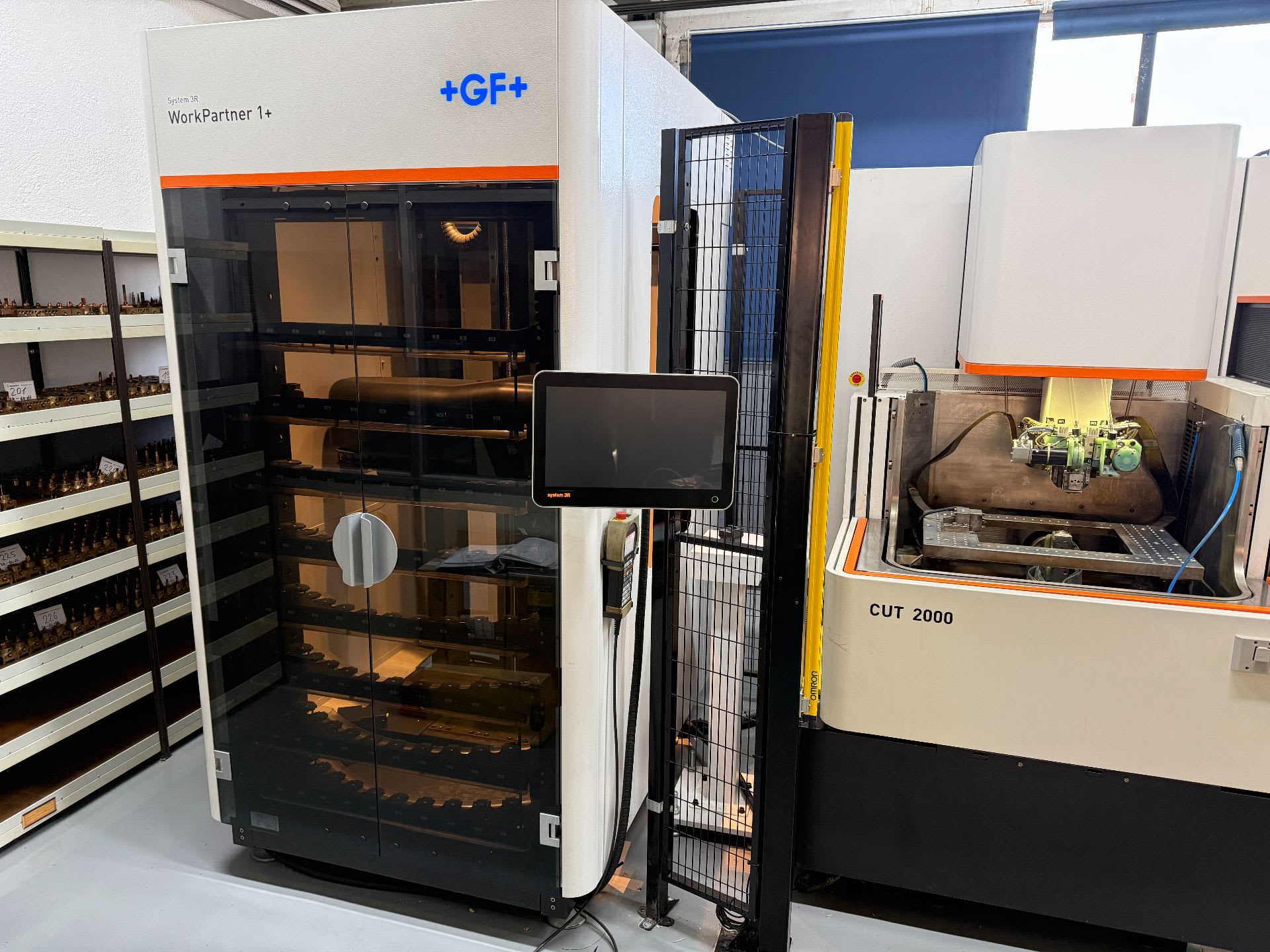

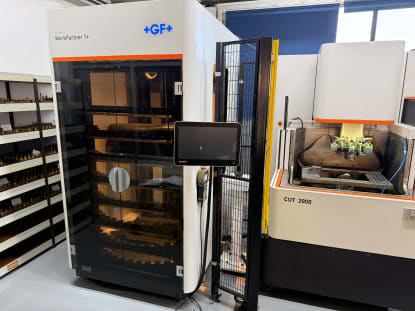

GF AgieCharmilles CUT 2000 with loading robot (WorkPartner)
General Information
Machine type: CNC wire EDM machine with automation
Model: CUT 2000
Automation: GF WorkPartner loading robot

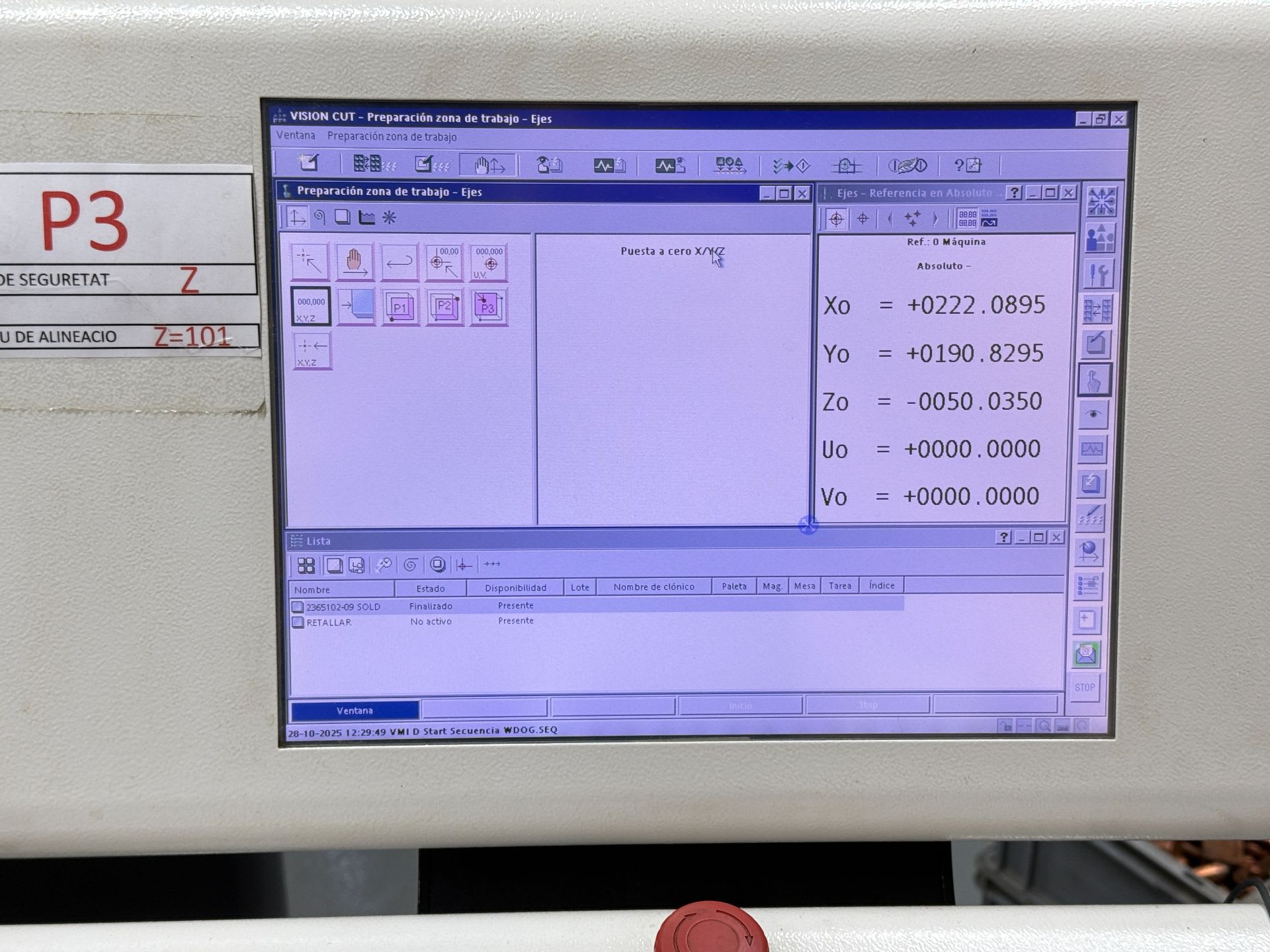

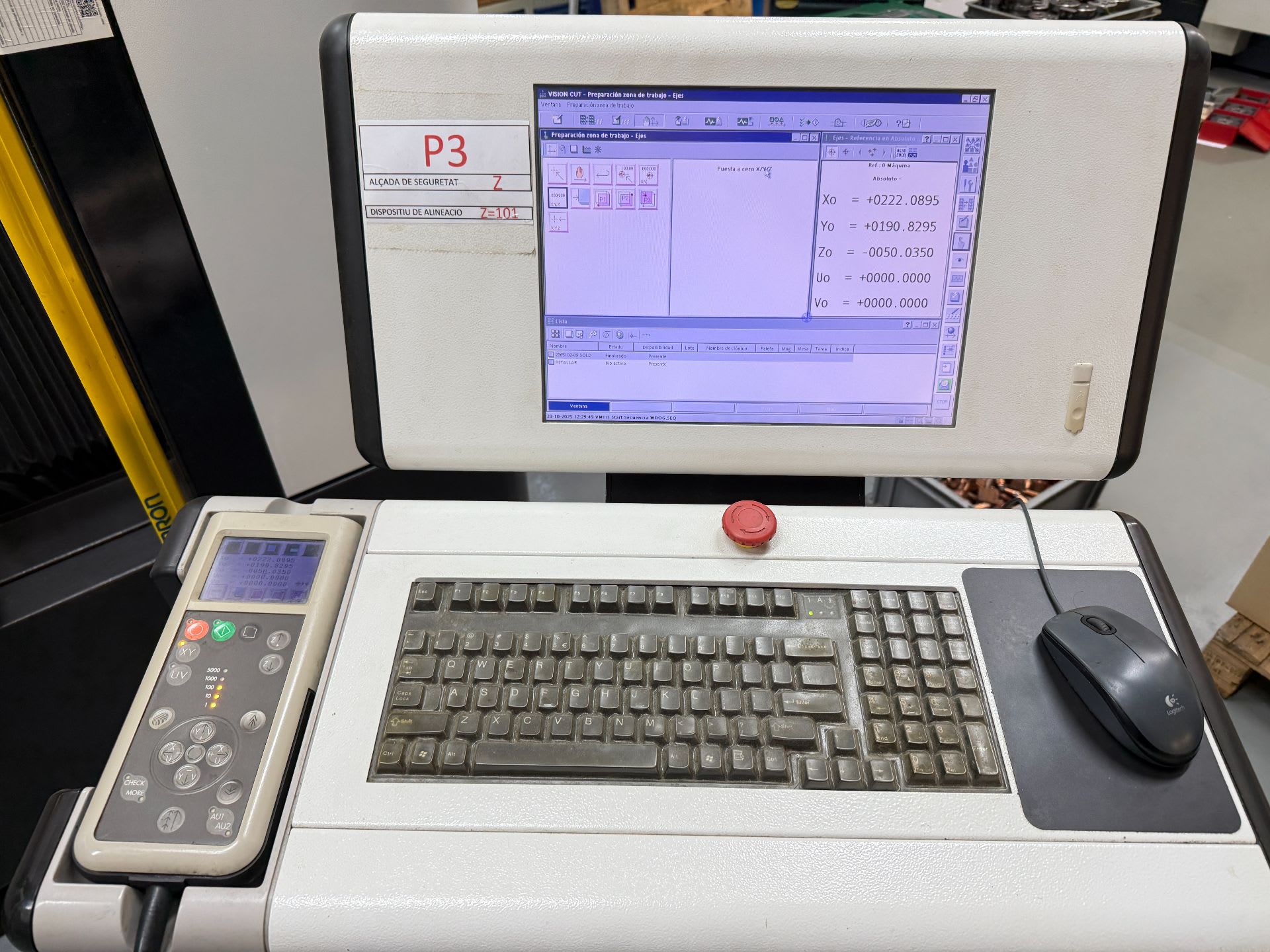

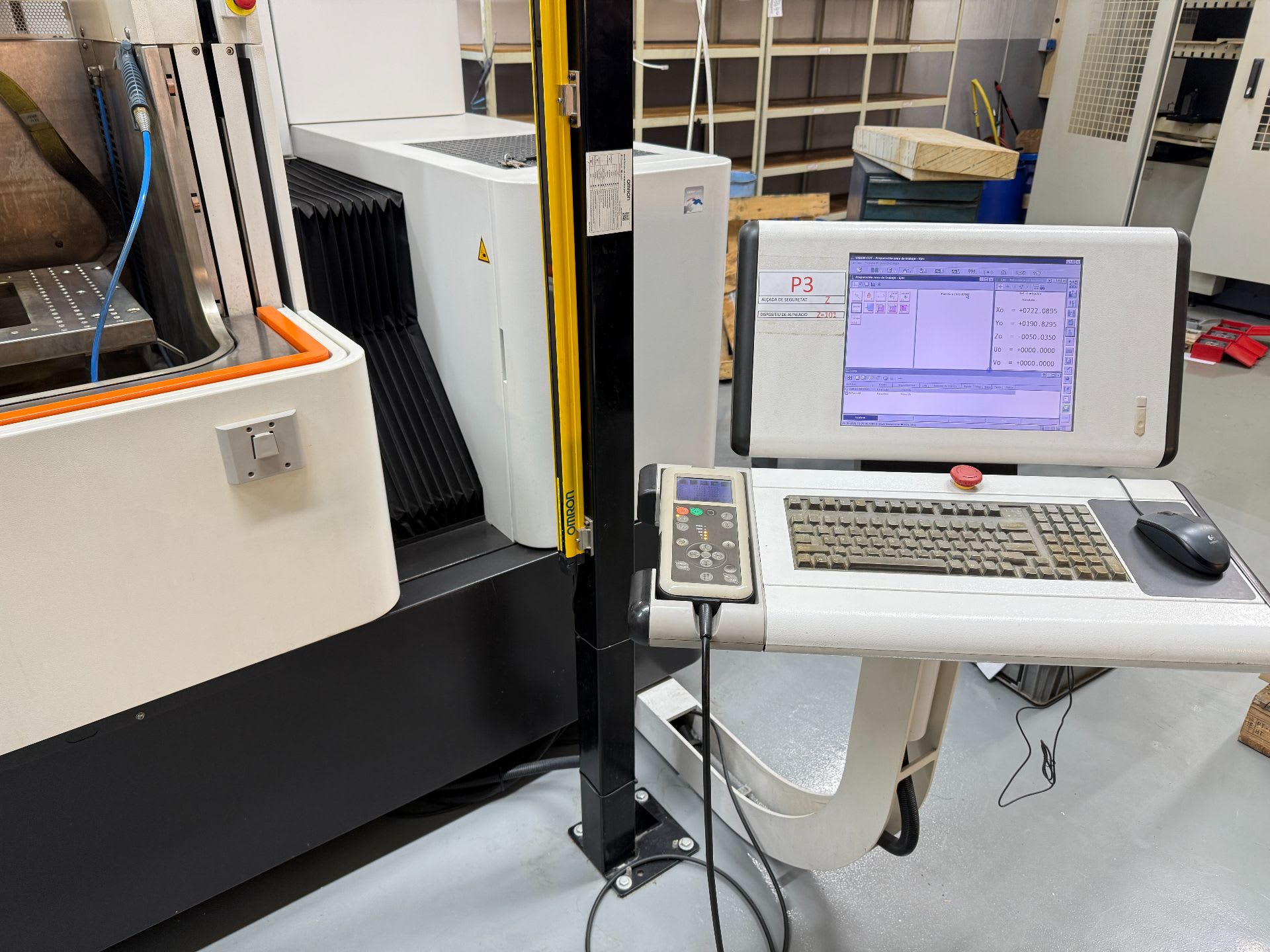

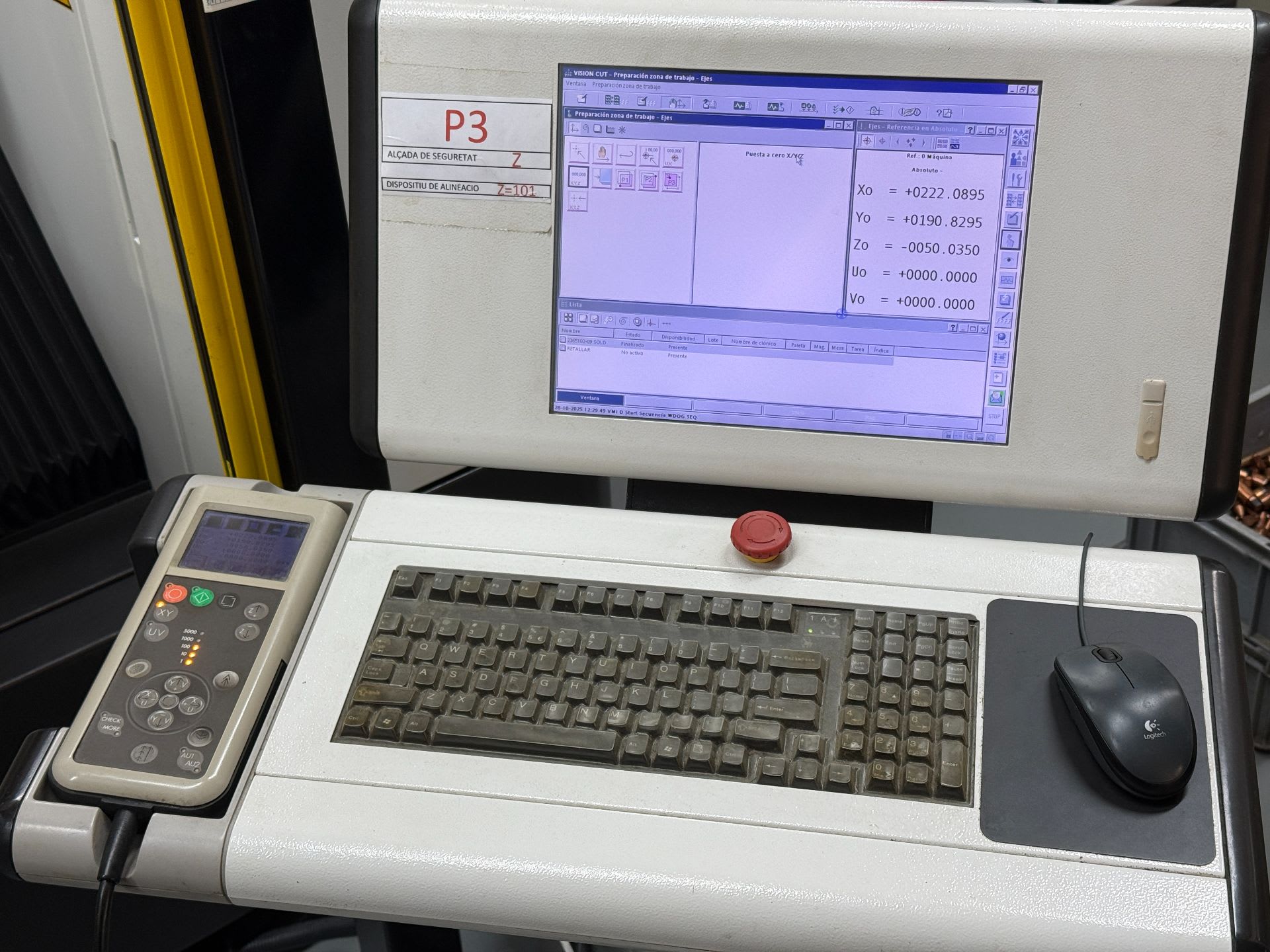

Control: Vision 5 (Windows XP)
Generator: AGIE IPG-V high-performance generator
Operating Hours Power On:
91,716 h Work On: 17,889 h
Working Area / Travels
X-axis: 350 mm Y-axis: 250 mm Z-axis: 256 mm
U/V Axes Travel: ±70 mm
Workpiece Data
Max. workpiece size (W × D × H): 750 × 550 × 250 mm
Max. workpiece weight: 200 kg (standard), 400 kg (optional / bath load)
Working table: 700 × 450 mm
Machining Parameters
Taper: 30° at 100 mm workpiece height
Available wire diameters: 0.10 – 0.30 mm
Best achievable surface finish: Ra 0.05 µm
Wire threading: automatic
Dielectric System
Dielectric capacity: 700 liters
Flushing: coaxial flushing system
Cooling: external cooling required
Automation

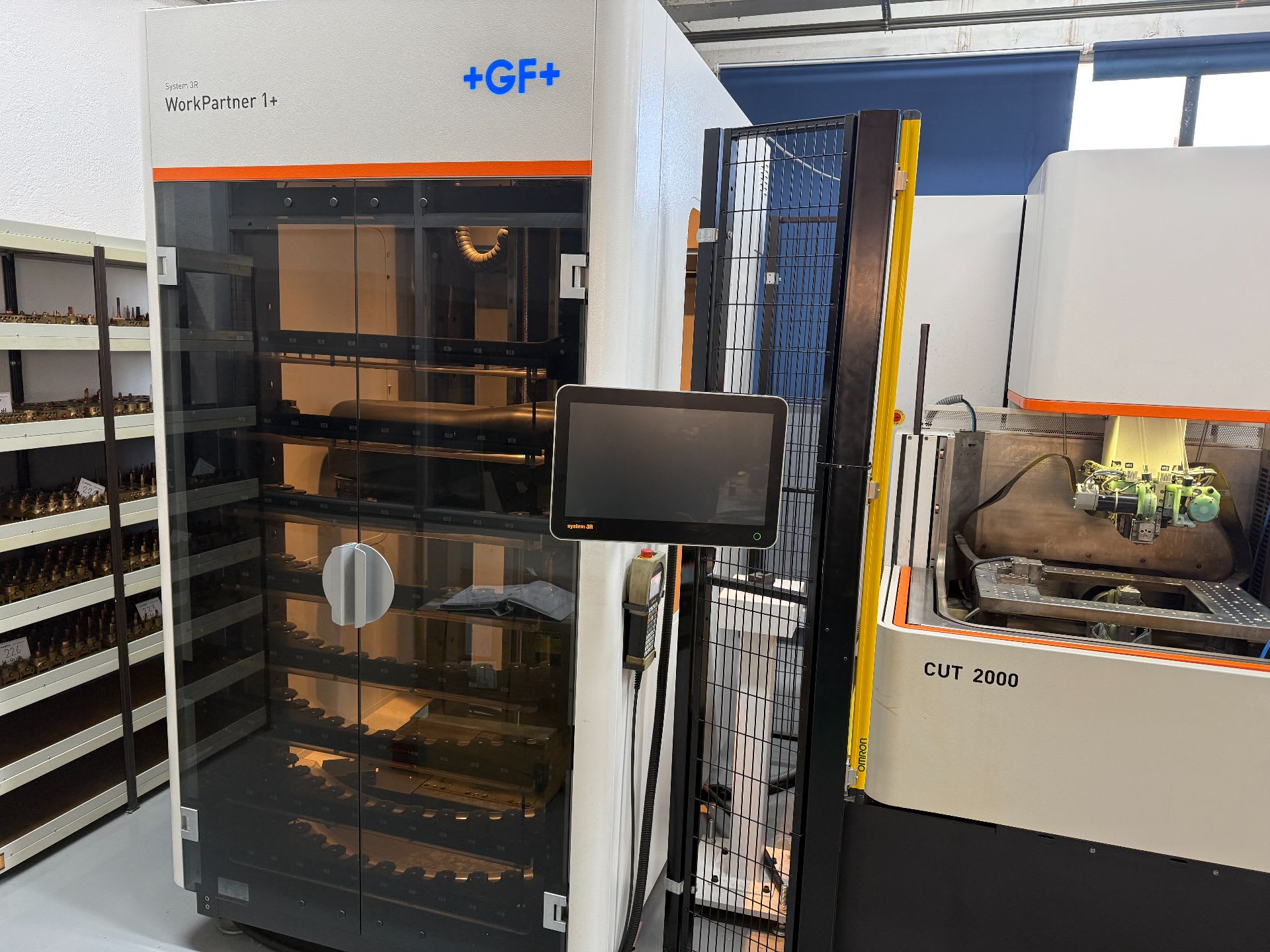

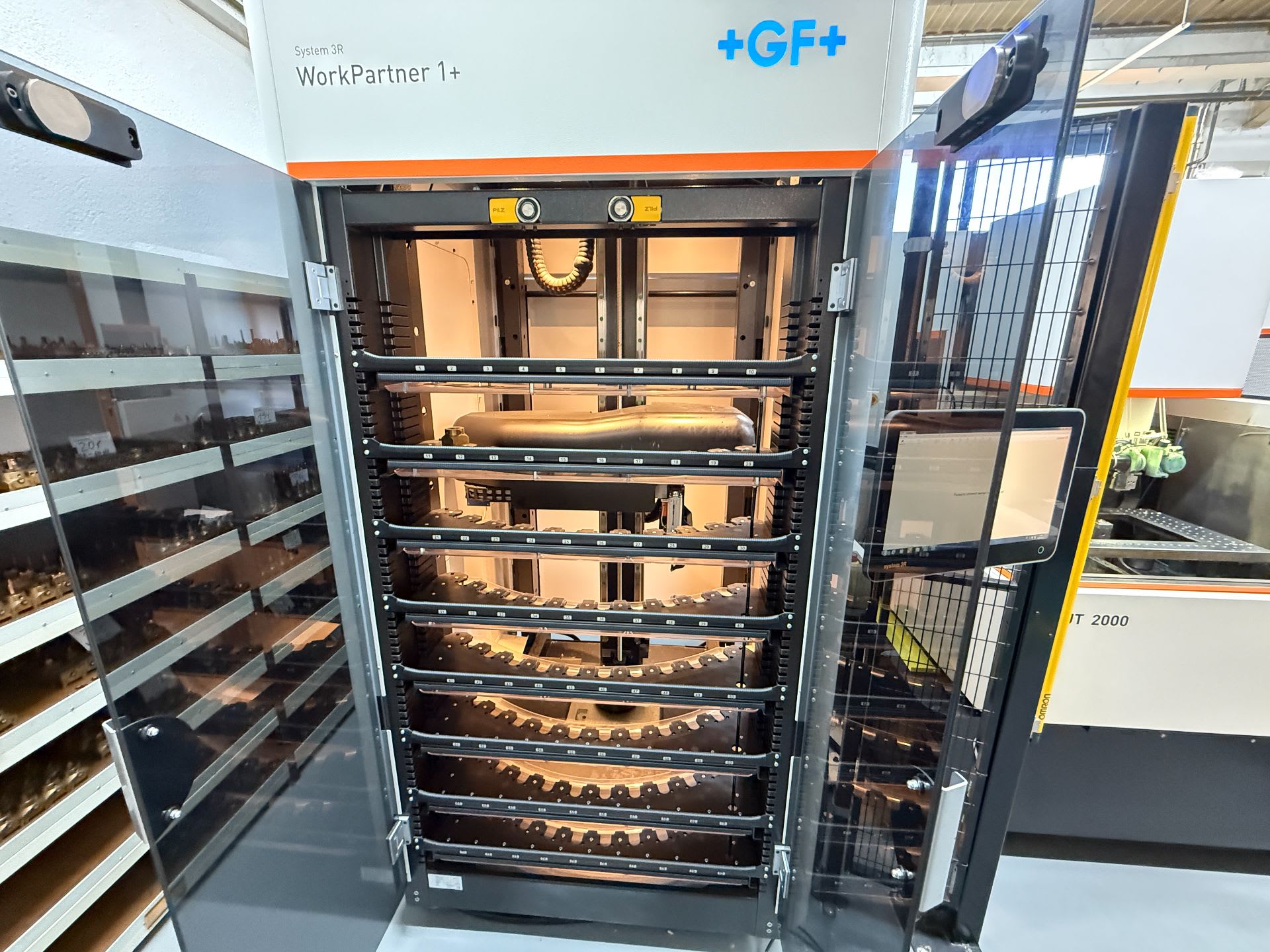

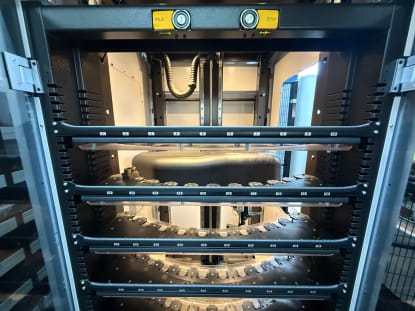

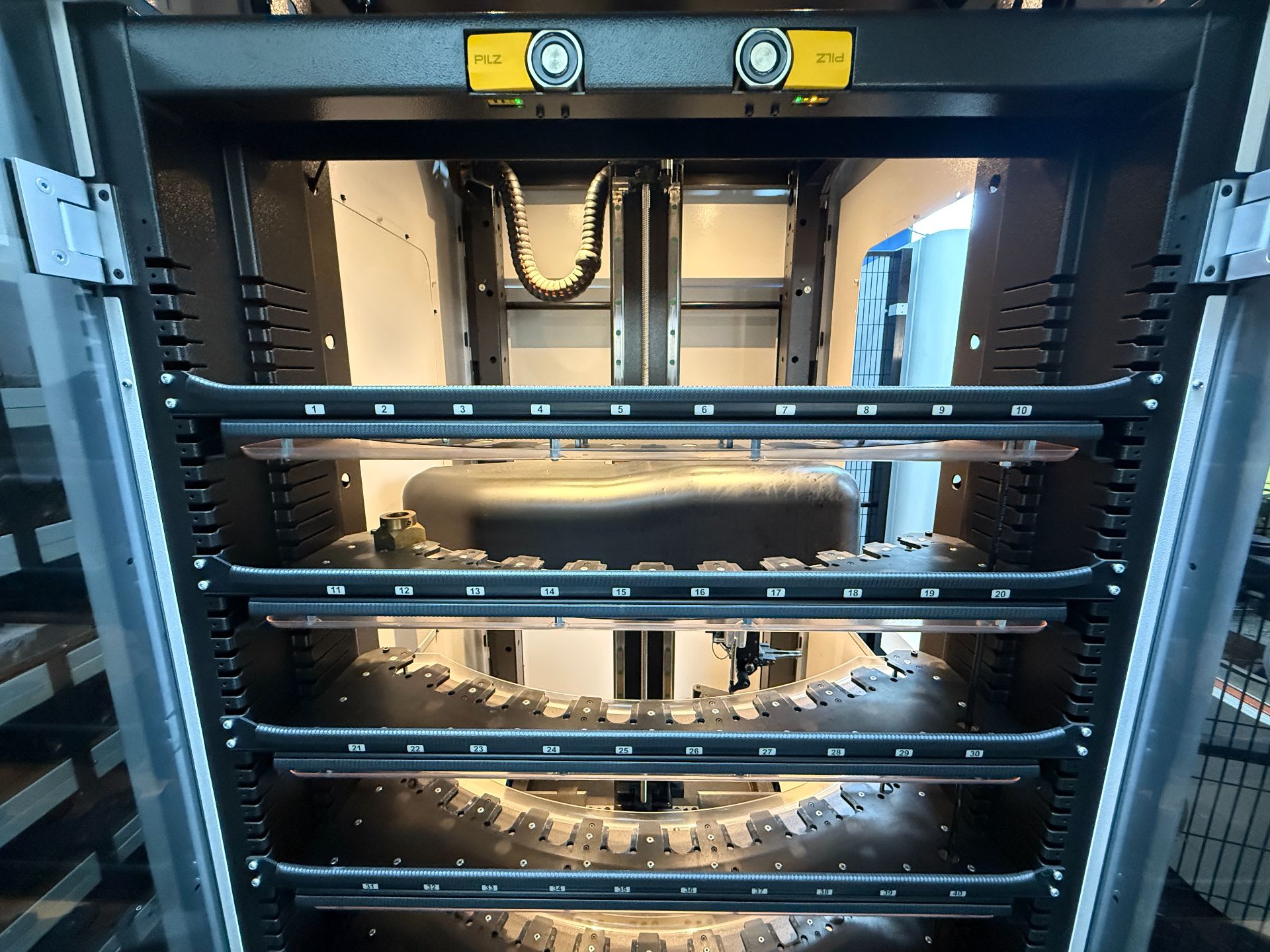

Loading robot: GF WorkPartner
Automatic loading and unloading
Depending on magazine configuration, total handling weight can be approx. 400–800 kg
Description
The system consists of a CNC wire EDM machine GF AgieCharmilles CUT 2000 equipped with an integrated WorkPartner loading robot. The machine is designed for high-precision contour cutting with excellent surface quality and stable process performance. Features such as the automatic wire threading system, integrated dielectric unit and coaxial flushing enable reliable unattended operation. The WorkPartner robot expands the machine into an automated manufacturing cell, allowing longer machining cycles and significantly increased productivity.
Additional information
- Transportation costs
- not included
- Terms of delivery
- Free loading on truck
- Terms of payment
- 100% prepayment before pick-up
