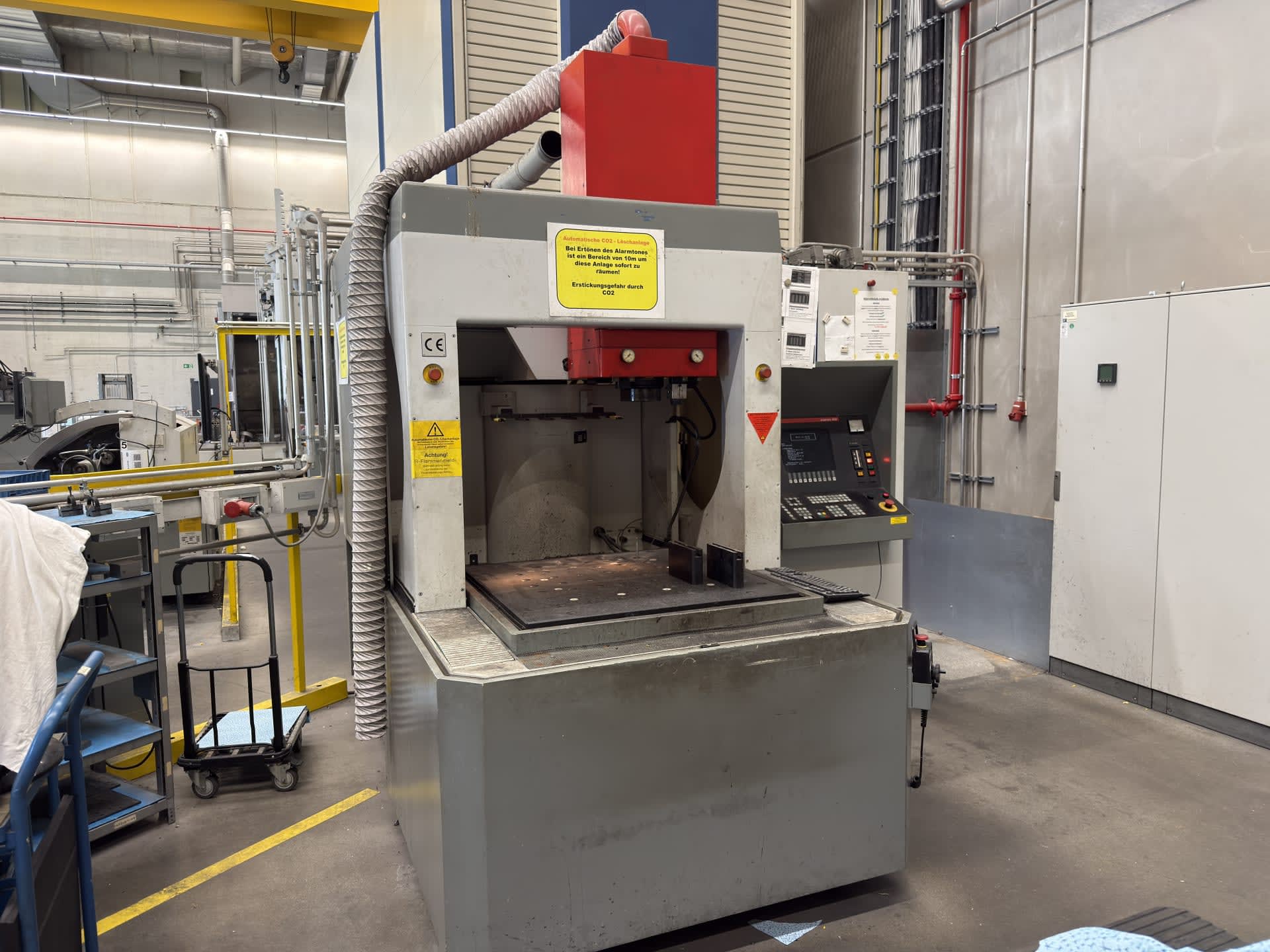

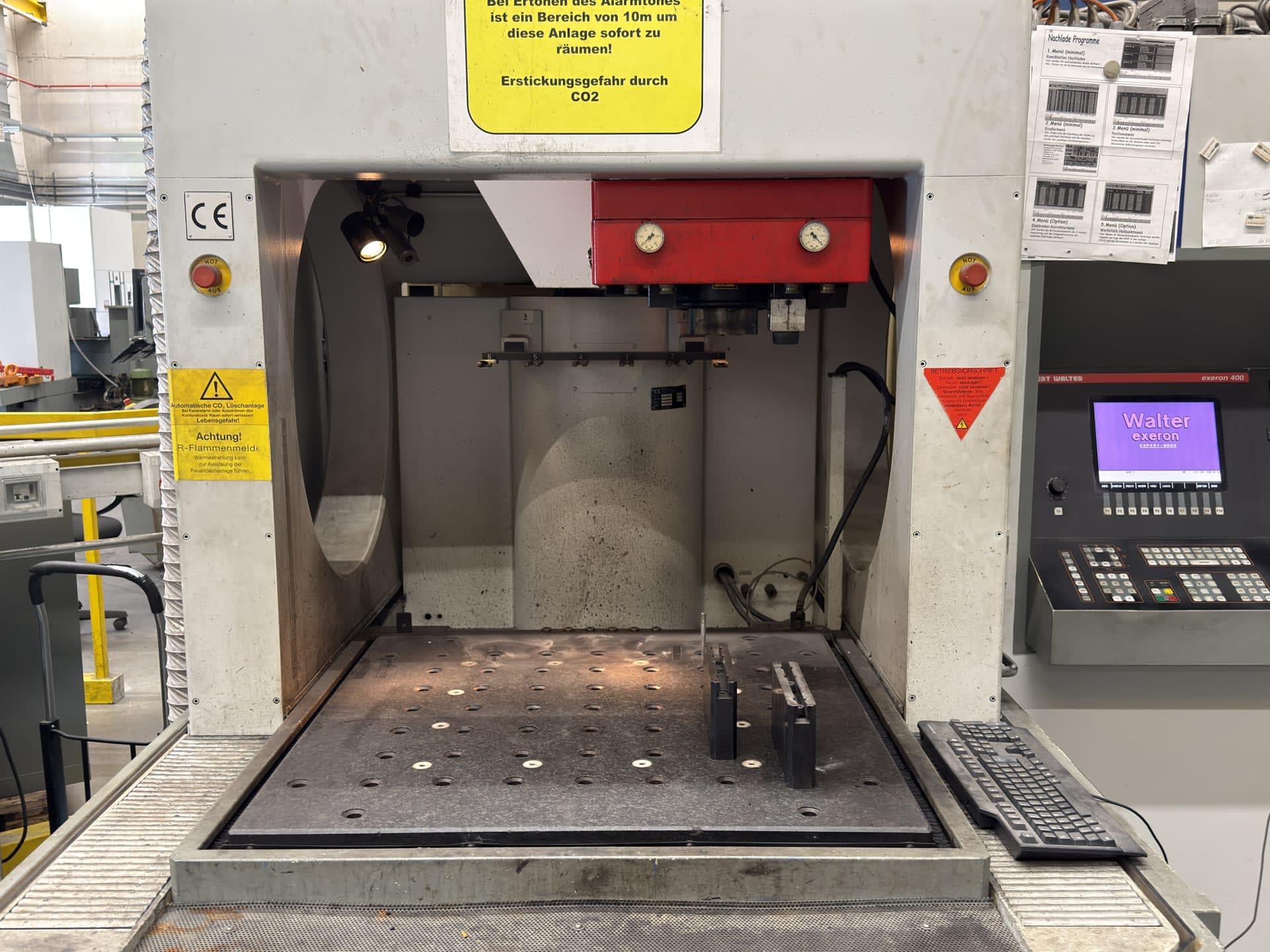

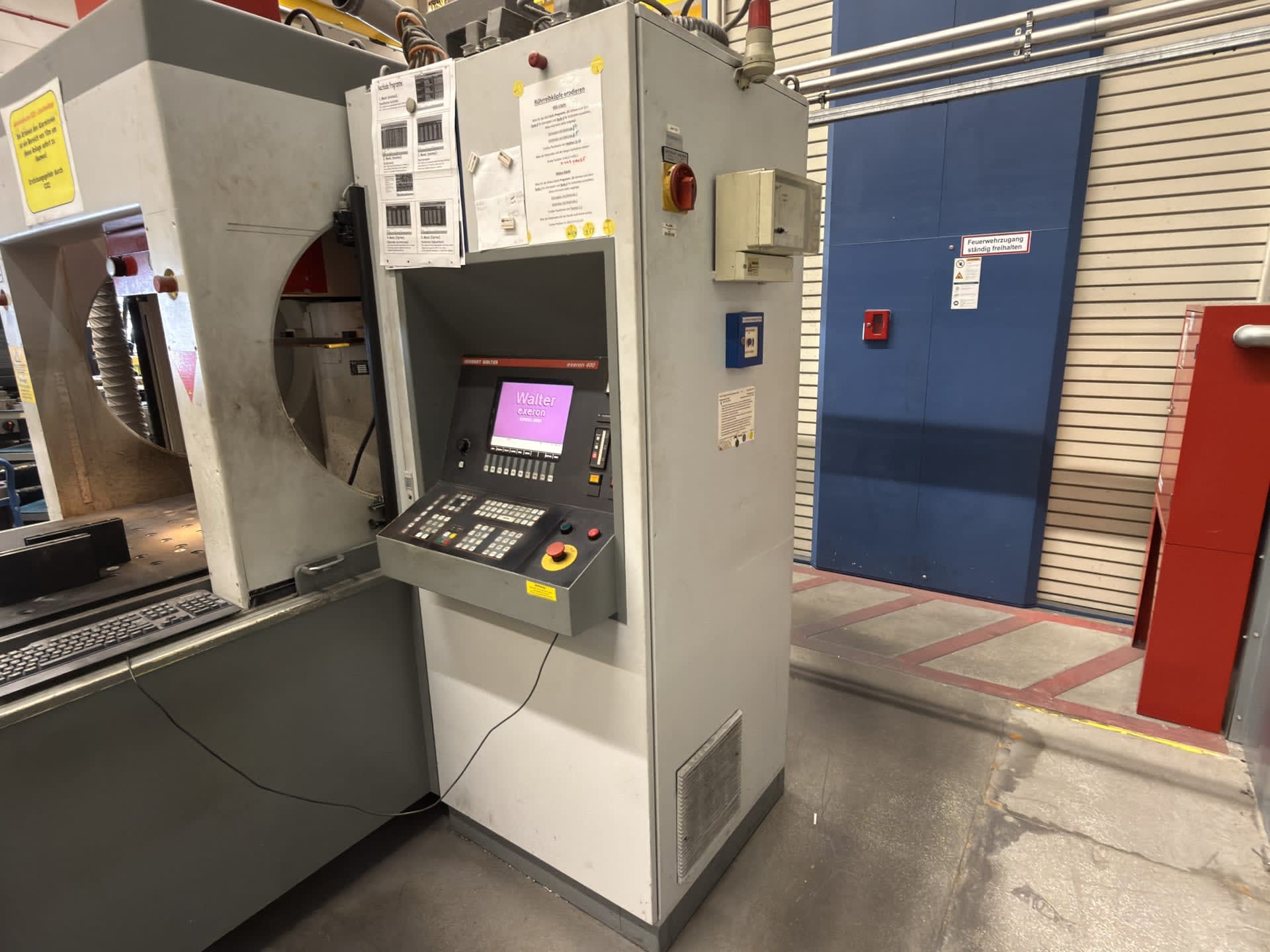

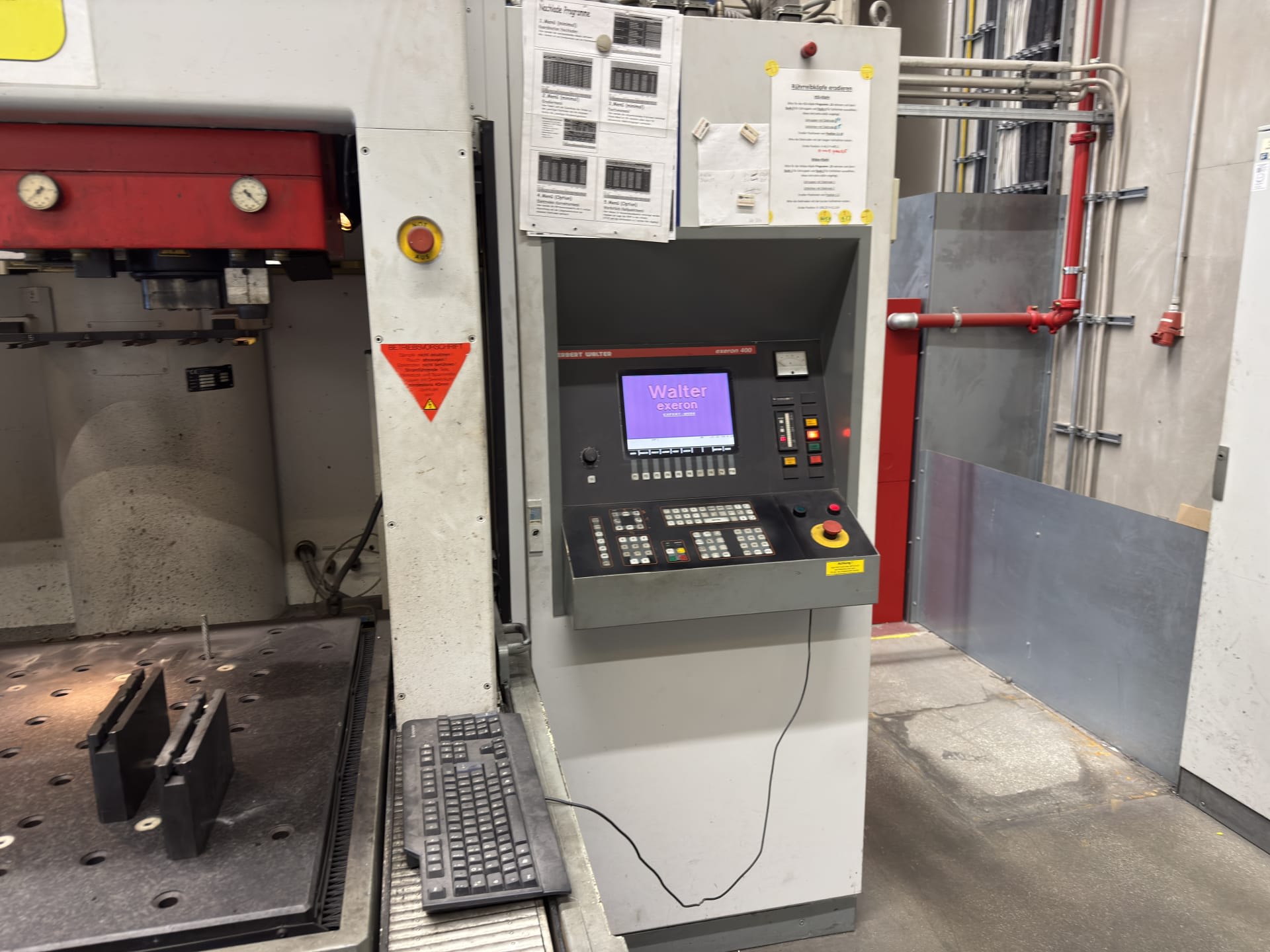

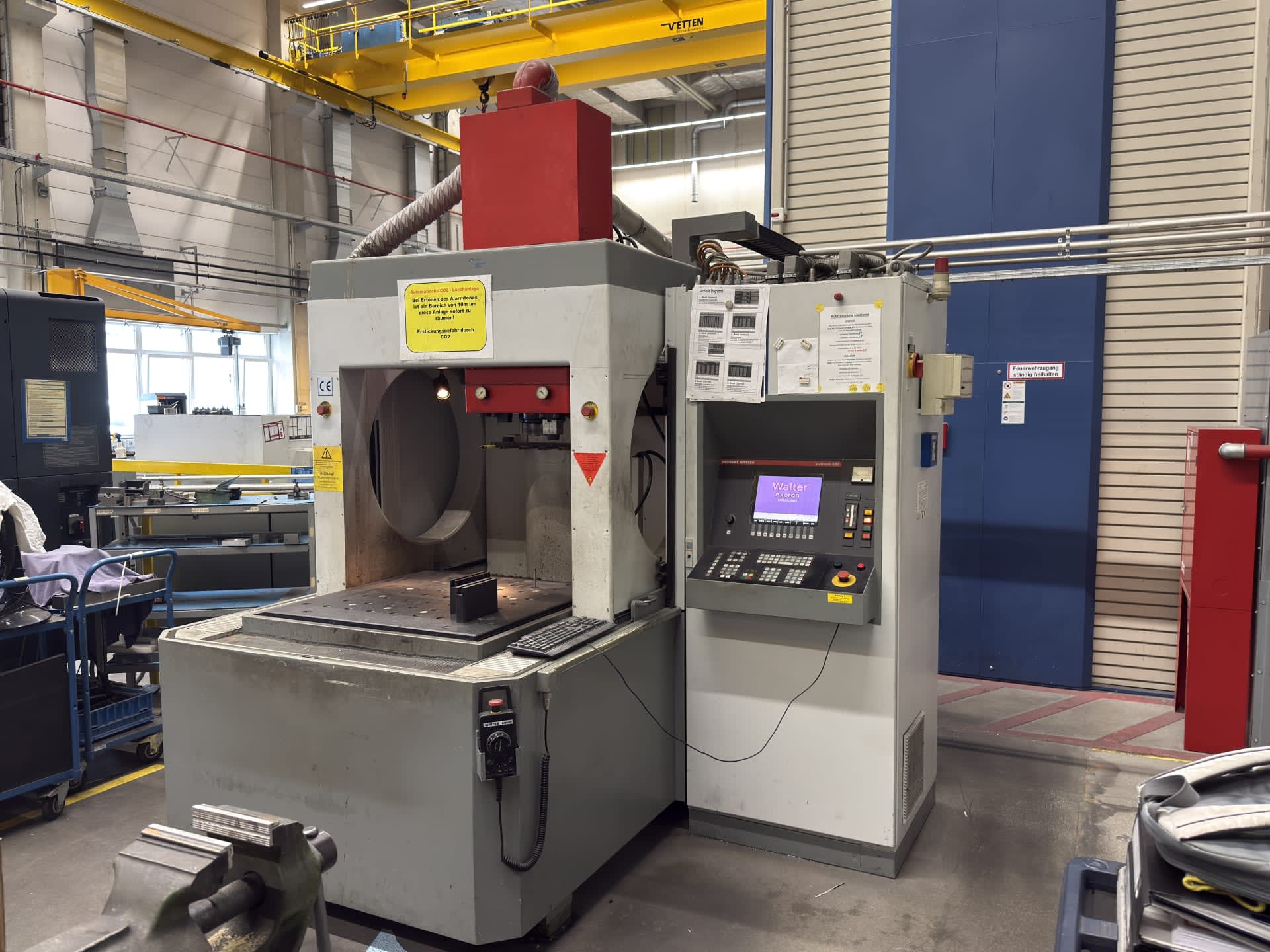

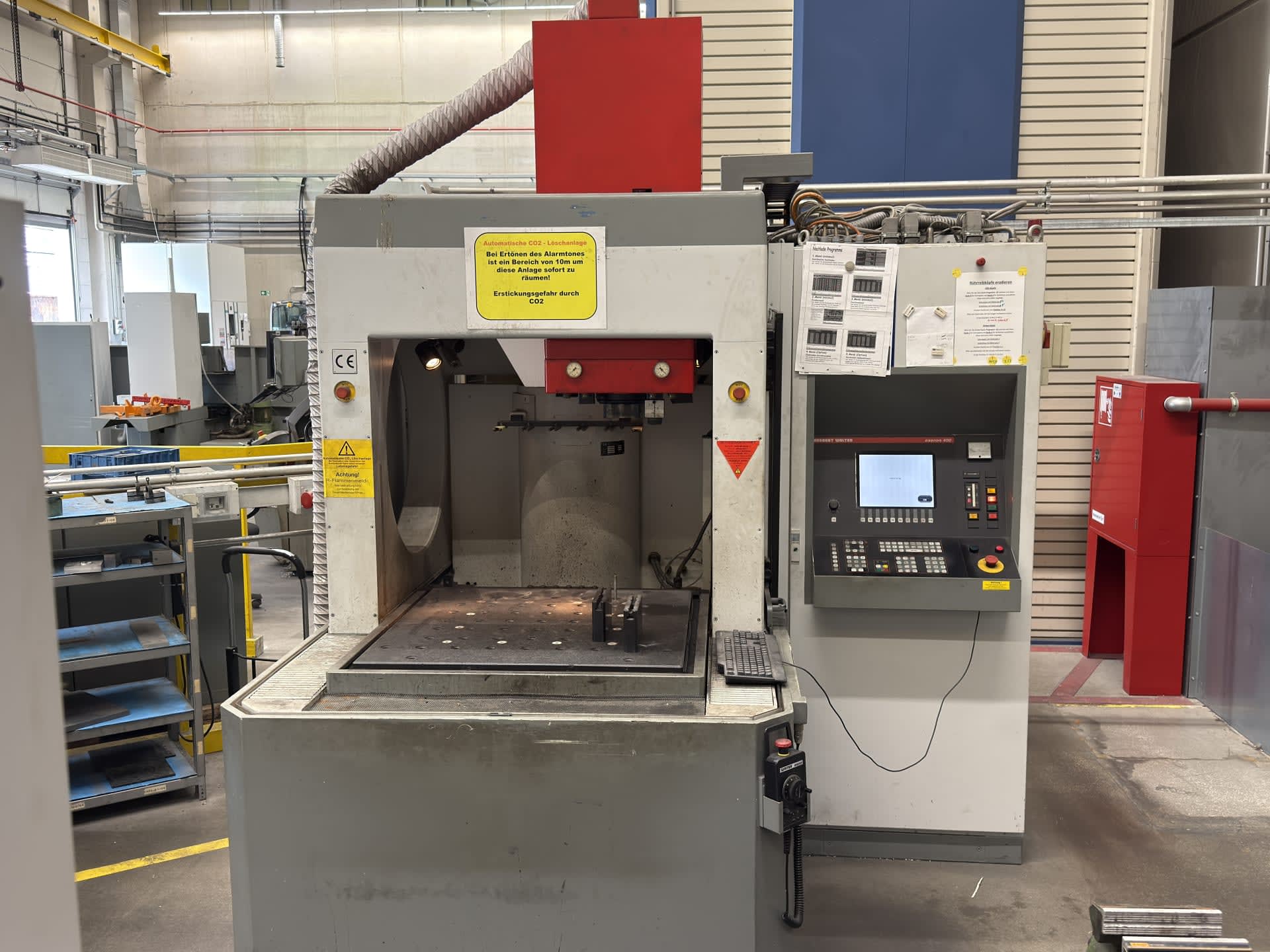

EXERON EDM machine
- Storage Number
- 26011-520
- Machine type
- Sinker EDM Machines
- Manufacturer
- EXERON
- Location
- Neuss, Germany
- Availability
- immediately
- Price
- Auction item
- Dimensions (LxWxH) approx.
- 2900 x 2300 x 3800 mm
- Weight approx.
- 5,500 kg

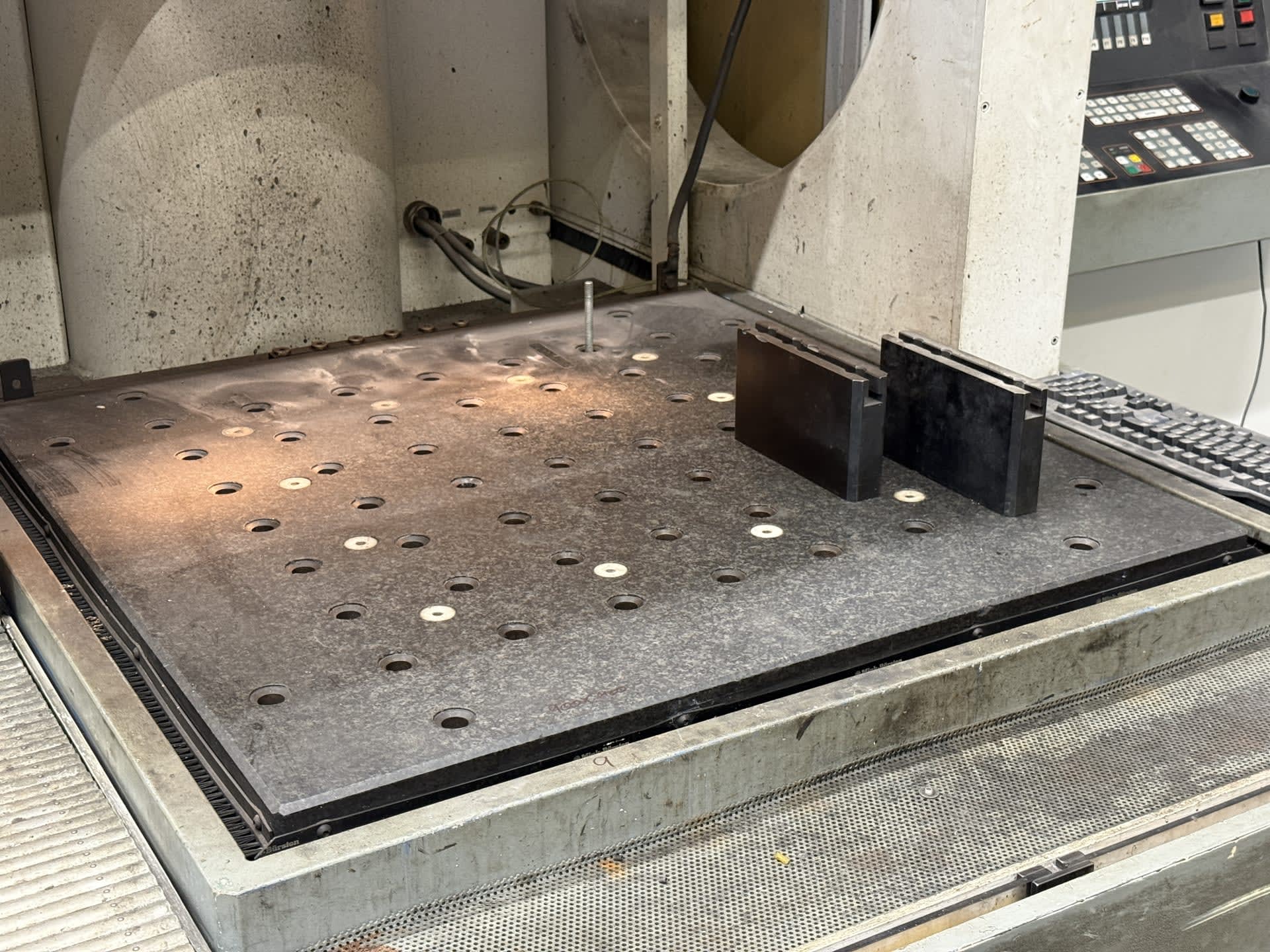

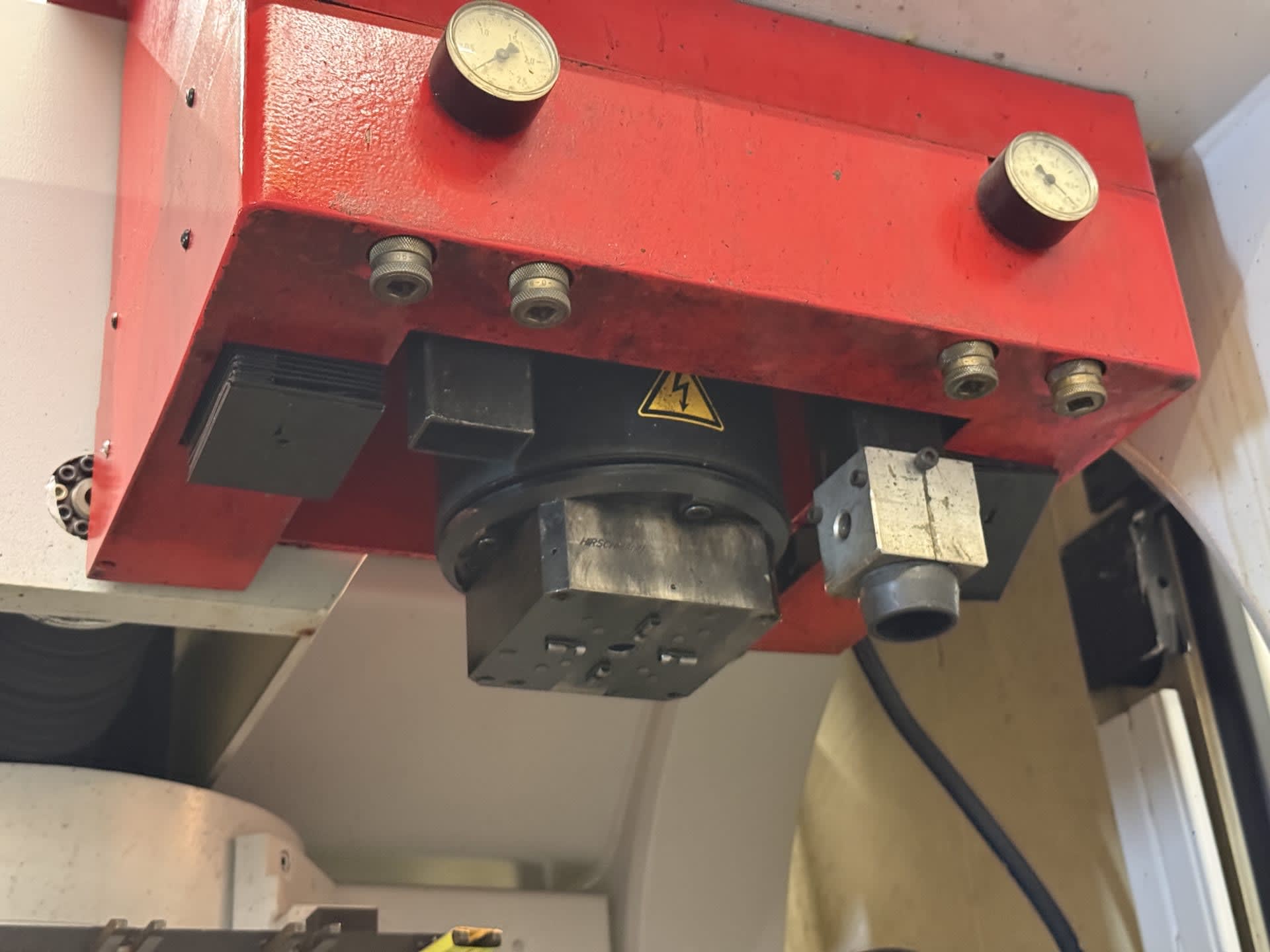

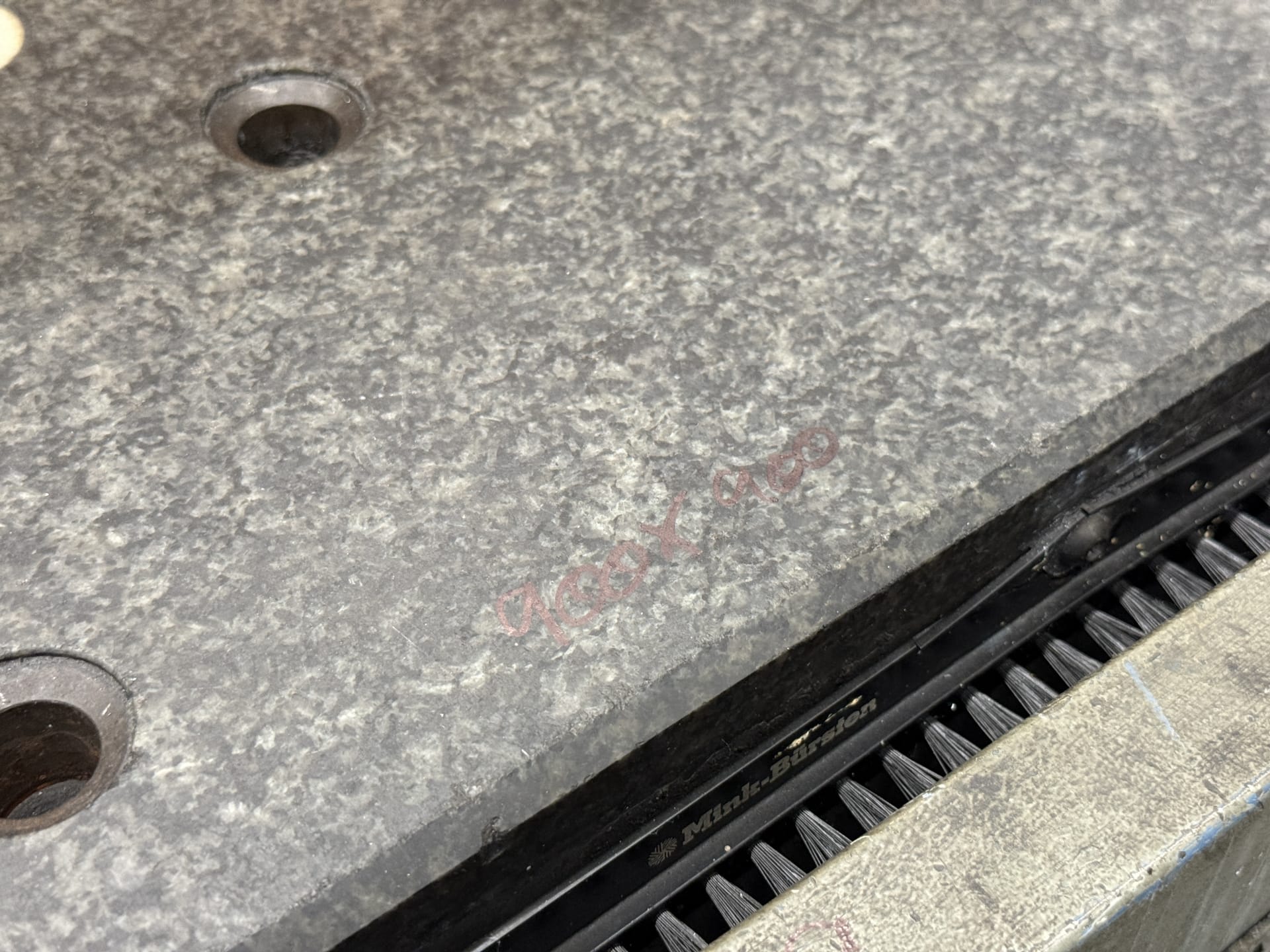

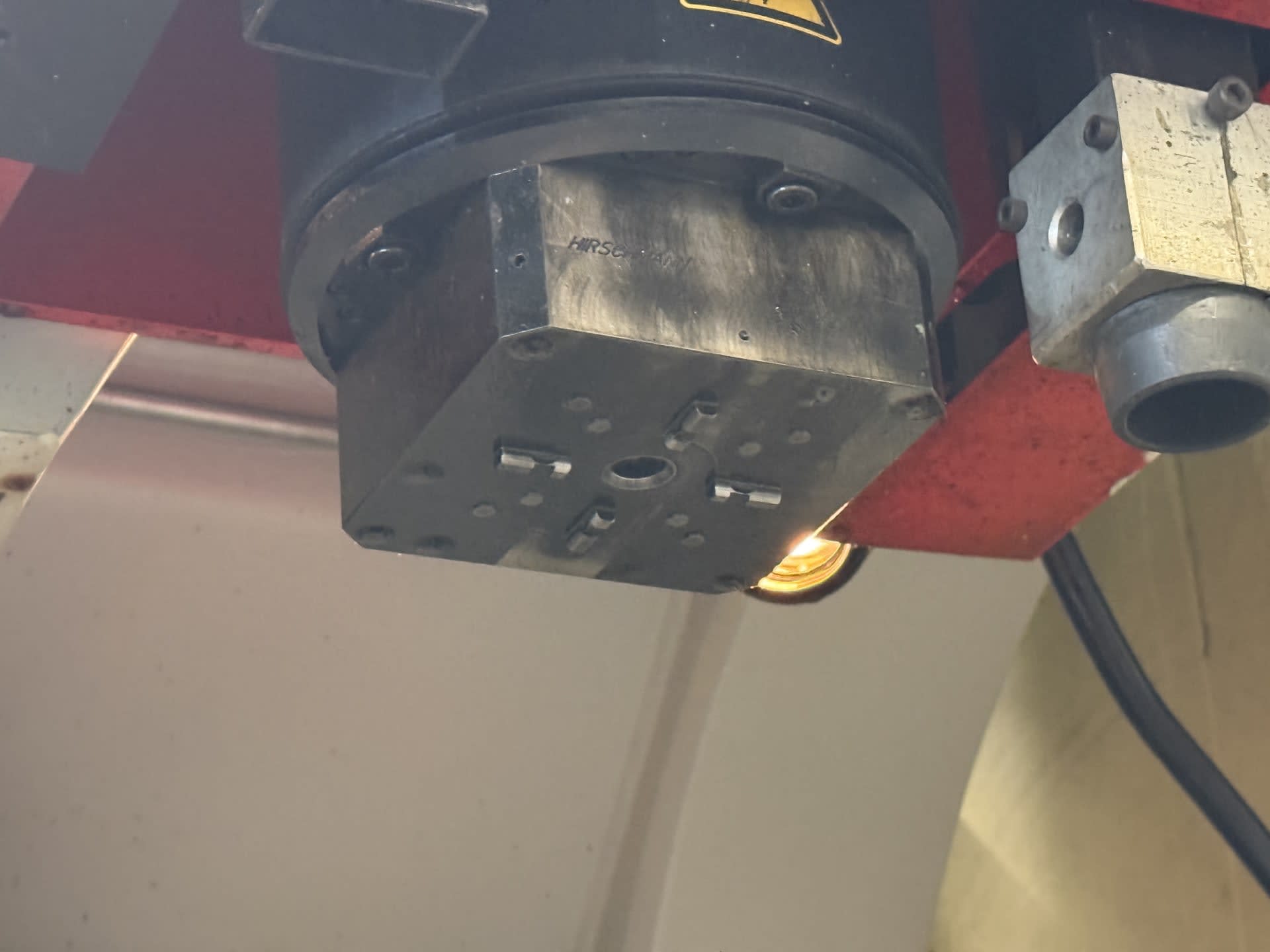

TECHNICAL SPECIFICATIONS – BASIC UNITSystem footprint: 12.3 sq m Length: 3.5 m Width: 3.5 m Height: 3.0 m Total weight including dielectric fluid: 6,500 kg Connected load (45/90 A generator): approx. 6 / 9 kVA Supply voltage: 380 V Connection: RST/MP/S Fuse rating (45/90 A generator): 25 / 35 A Operating current corresponding to the generator: 45 / 90 AWORKPIECE AND ELECTRODEPermissible workpiece dimensions: 900 × 900 mm Workpiece clamping surface: 900 × 900 mm Max. table load: 1,000 kg Max. electrode weight with pneumatic clamp: 100 kg Max. electrode weight directly on the quill: 250 kg Min. distance table – electrode holder: 220 mm Max. distance table – electrode holder: 620 mmWORKING TANKMirror height from table: 450 mm Internal width: 900 mm Internal length: 900 mm Max. capacity: 415 lCLAMPING PLATELength: 900 mm Width: 900 mm Threaded hole size: M10 Threaded hole spacing: 120 mm Number of threaded holes: 44TRAVEL RANGES AND POSITIONINGX-axis travel: 600 mm Y-axis travel: 500 mm Z-axis travel: 400 mm Travel speed: 2,500 mm/min Positioning accuracy: 1 µmCOMPRESSED AIR AND DIELECTRICCompressed air supply: 6 bar Compressed air consumption (slot filter/EROWA): 1,000 l/min Dielectric volume: 1,200 l
Lot No. 59 Item No. 04Q-266
- Dismantling Costs
- €580 - binding
- Transportation costs
- not included
- Terms of delivery
- Free loading on truck
- Terms of payment
- 100% prepayment before pick-up
