HEYLIGENSTAEDT Heynumill 3200-P CNC Portal Milling Machine
- Storage Number
- 26007-22
- Machine type
- Portal Milling Machines
- Manufacturer
- HEYLIGENSTAEDT
- Type
- Heynumill 3200-P
- Year of construction
- 1999
- Location
- Laichingen, Germany
- Availability
- immediately
- Price
- On Request
- Control
- Heidenhain TNC 430
- Dimensions (LxWxH) approx.
- 13000 x 7000 x 6000 mm
- Spindle performance
- 50 kW
- Spindle speed
- ≥ 5000 rpm
- Travel X-axis
- ≥ 6000 mm
- Travel Y-axis
- ≥ 5000 mm
- Travel Z-axis
- ≥ 1500 mm
- Weight approx.
- 120,000 kg
HEYLIGENSTAEDT HEYMUNILL 3200-P in heavy-duty portal design with fixed crossrail, suitable for machining large and heavy workpieces.
Large working area with travels of X 6,000 mm / Y 5,000 mm / Z 1,500 mm, as well as a table size of approx. 5,000 x 3,000 mm and a table load capacity of approx. 50,000 kg.
Portal clearance approx. 3,220 mm width / 2,050 mm height.
5-axis machining / milling heads
A- and B-axis (swivel axes in the milling head)
C-axis (360° rotation)
Simultaneous 5-axis machining possible (with fork head)

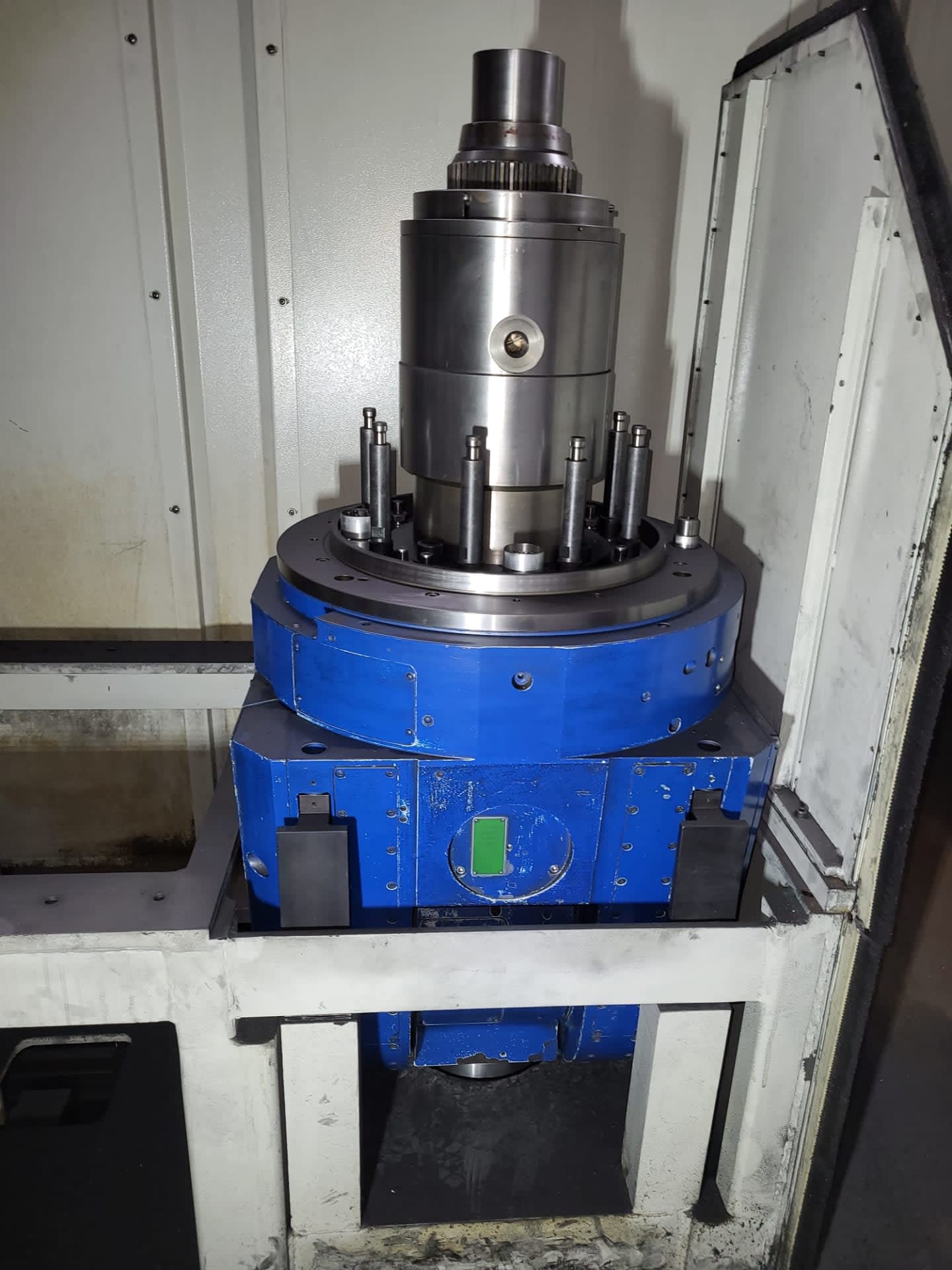

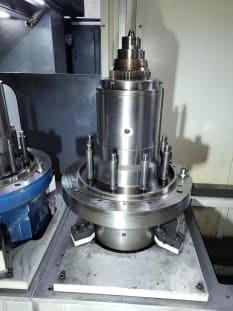

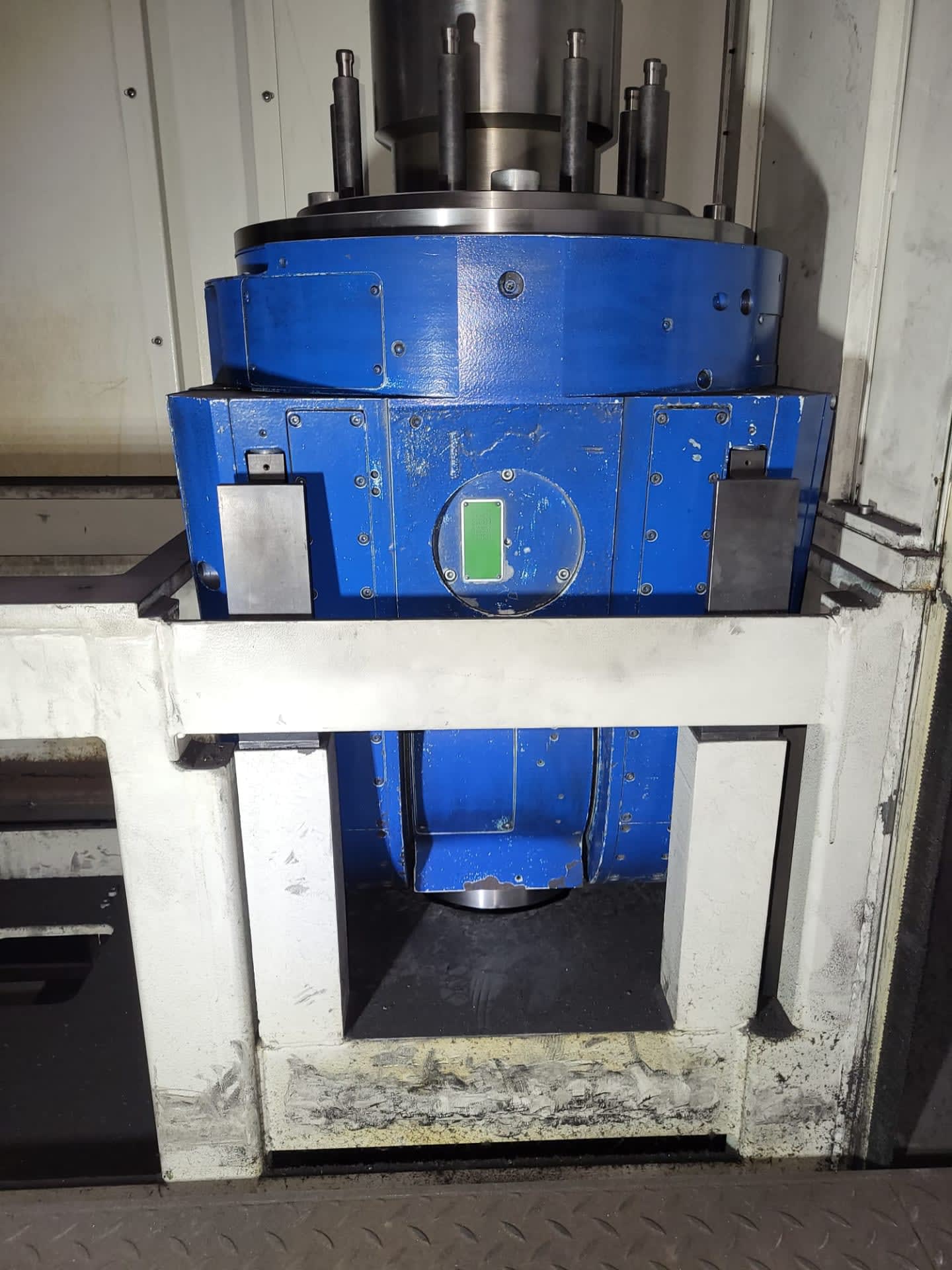

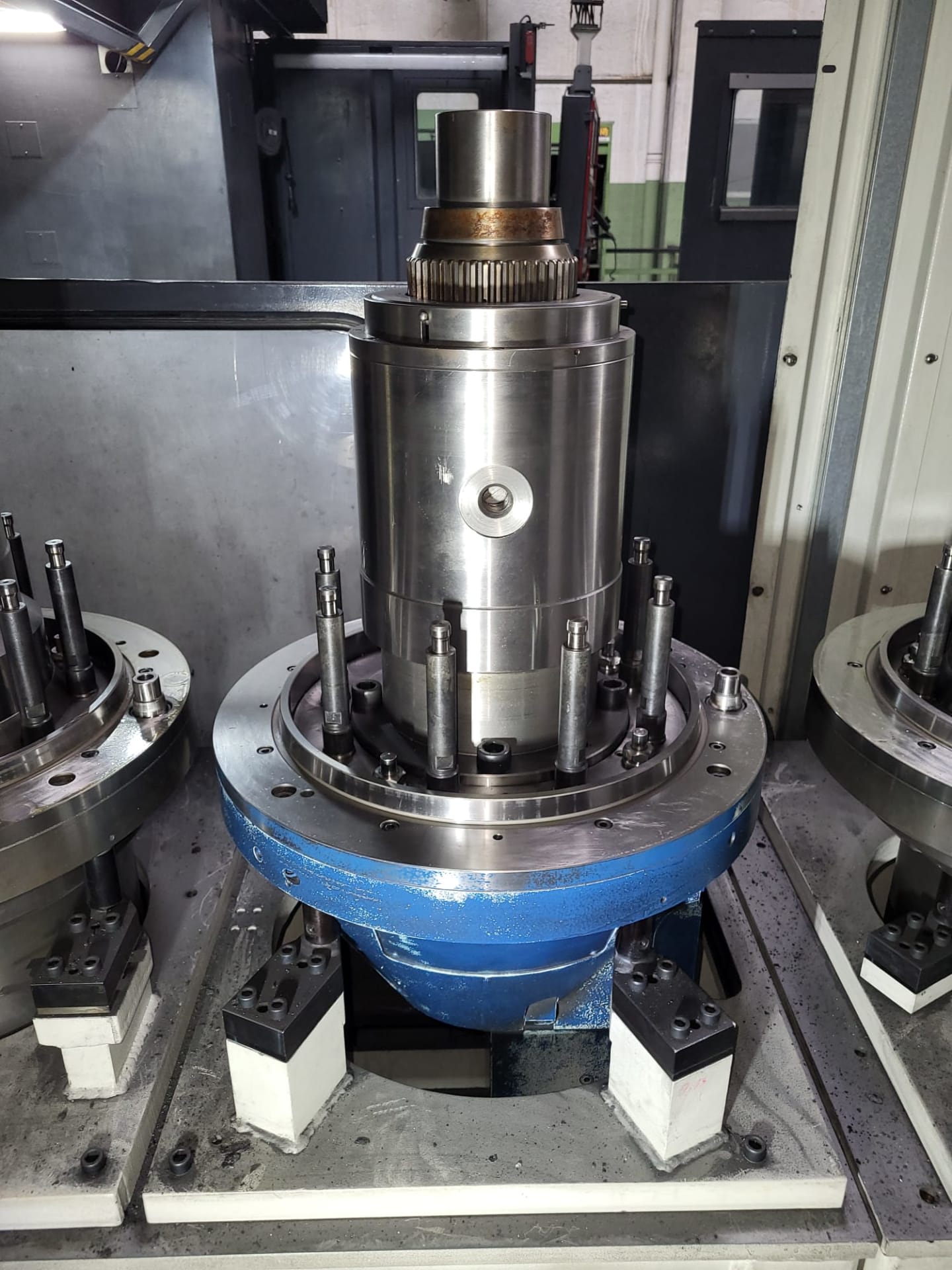

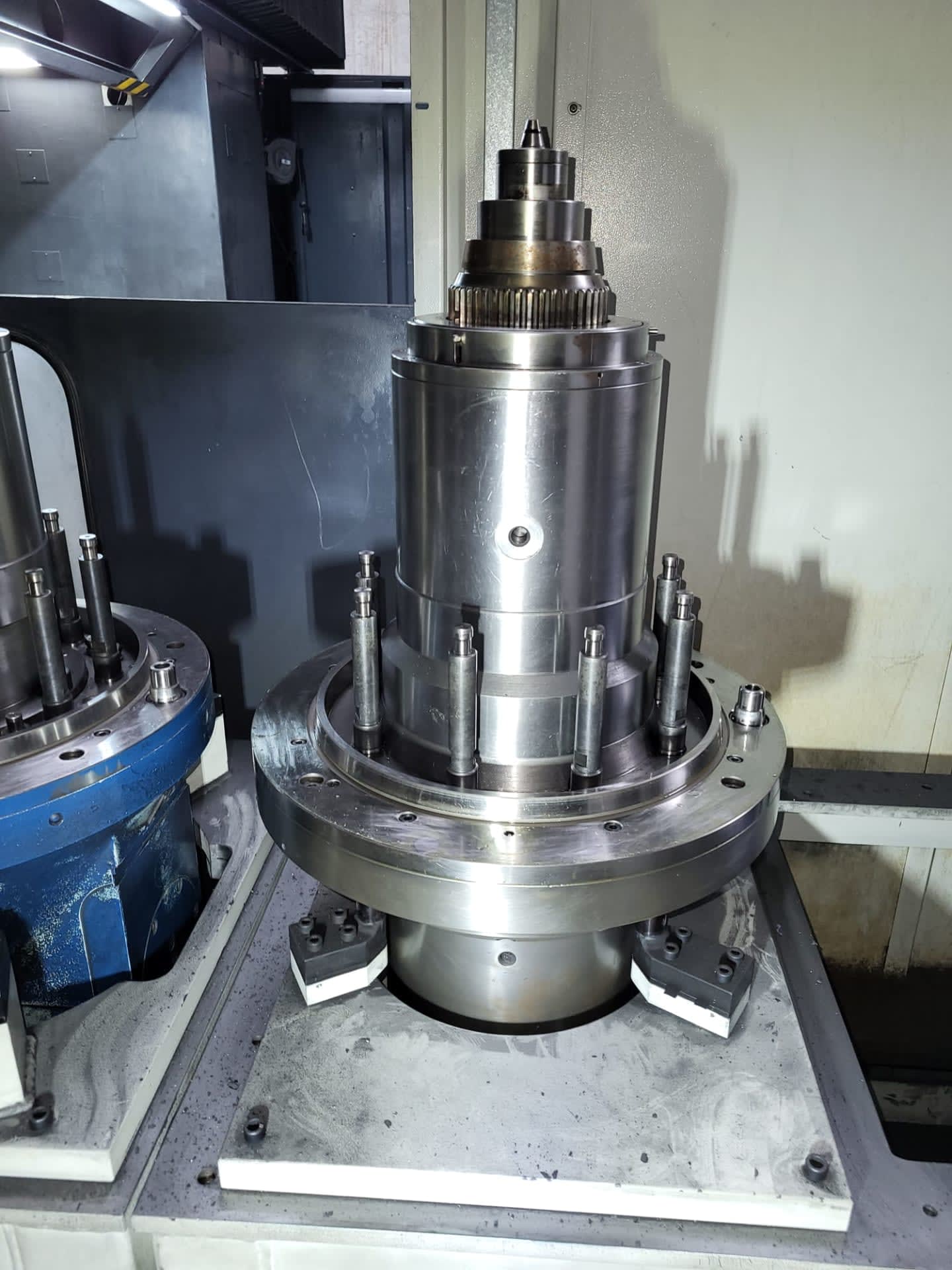

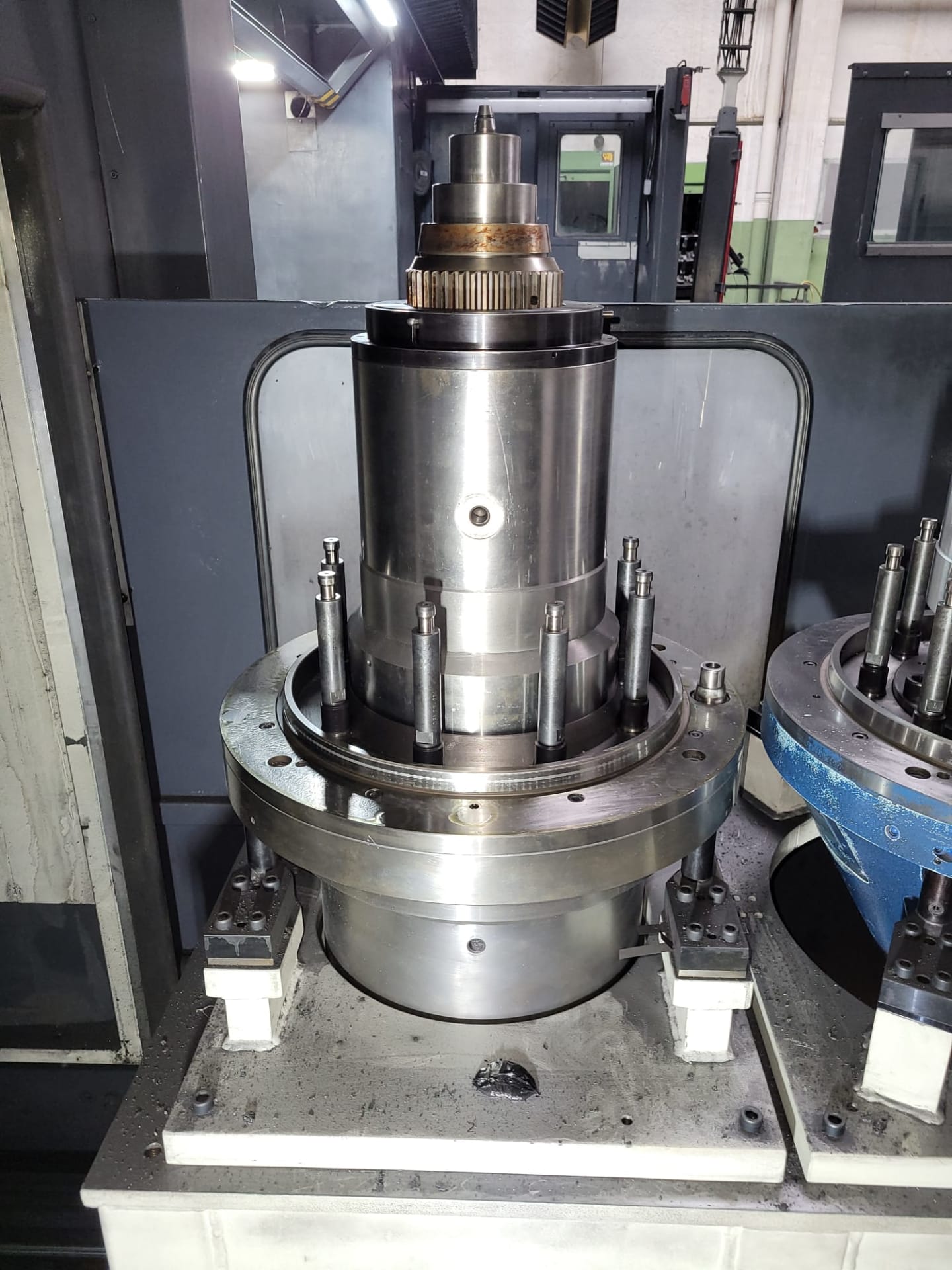

Milling heads:

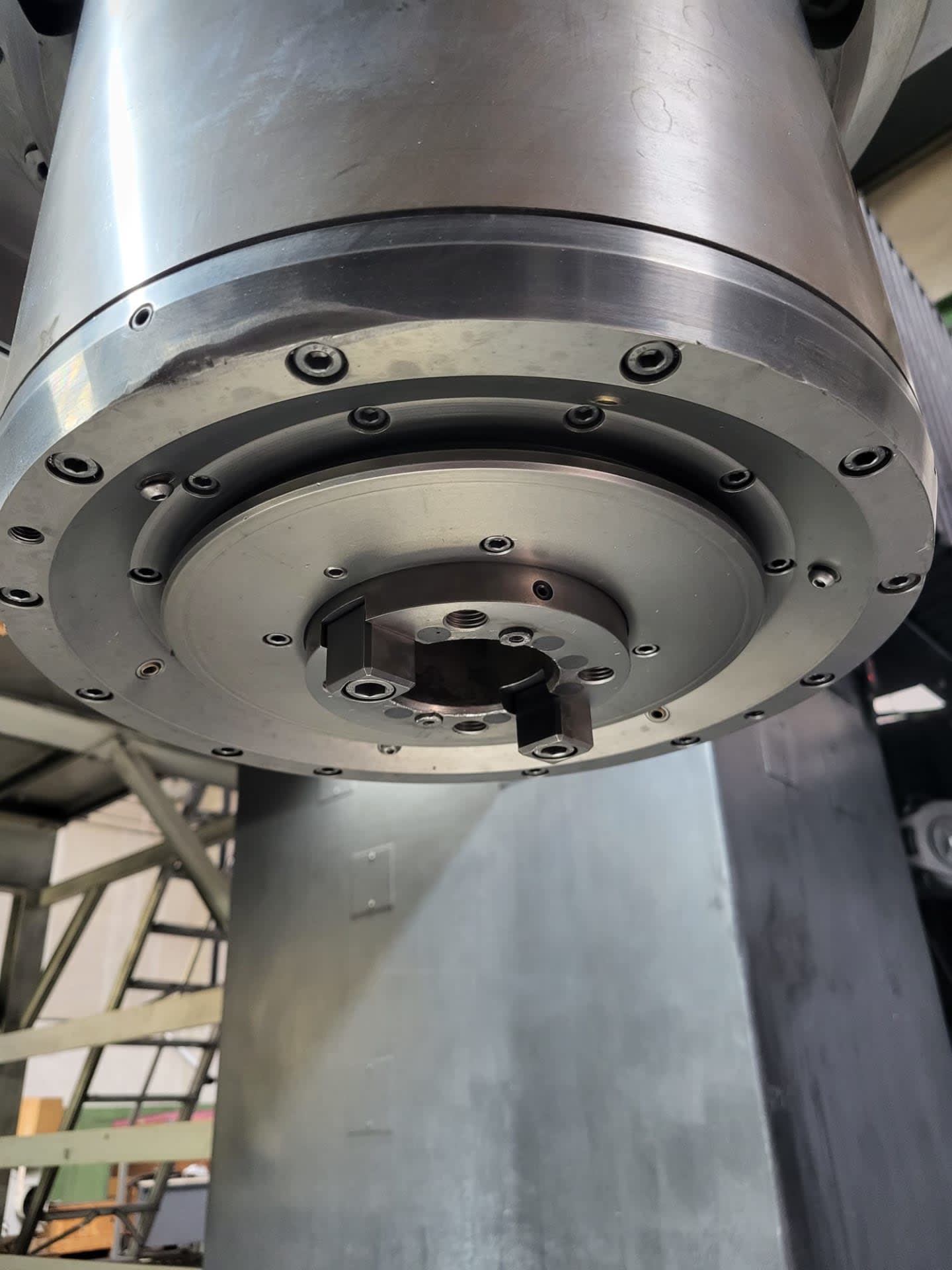

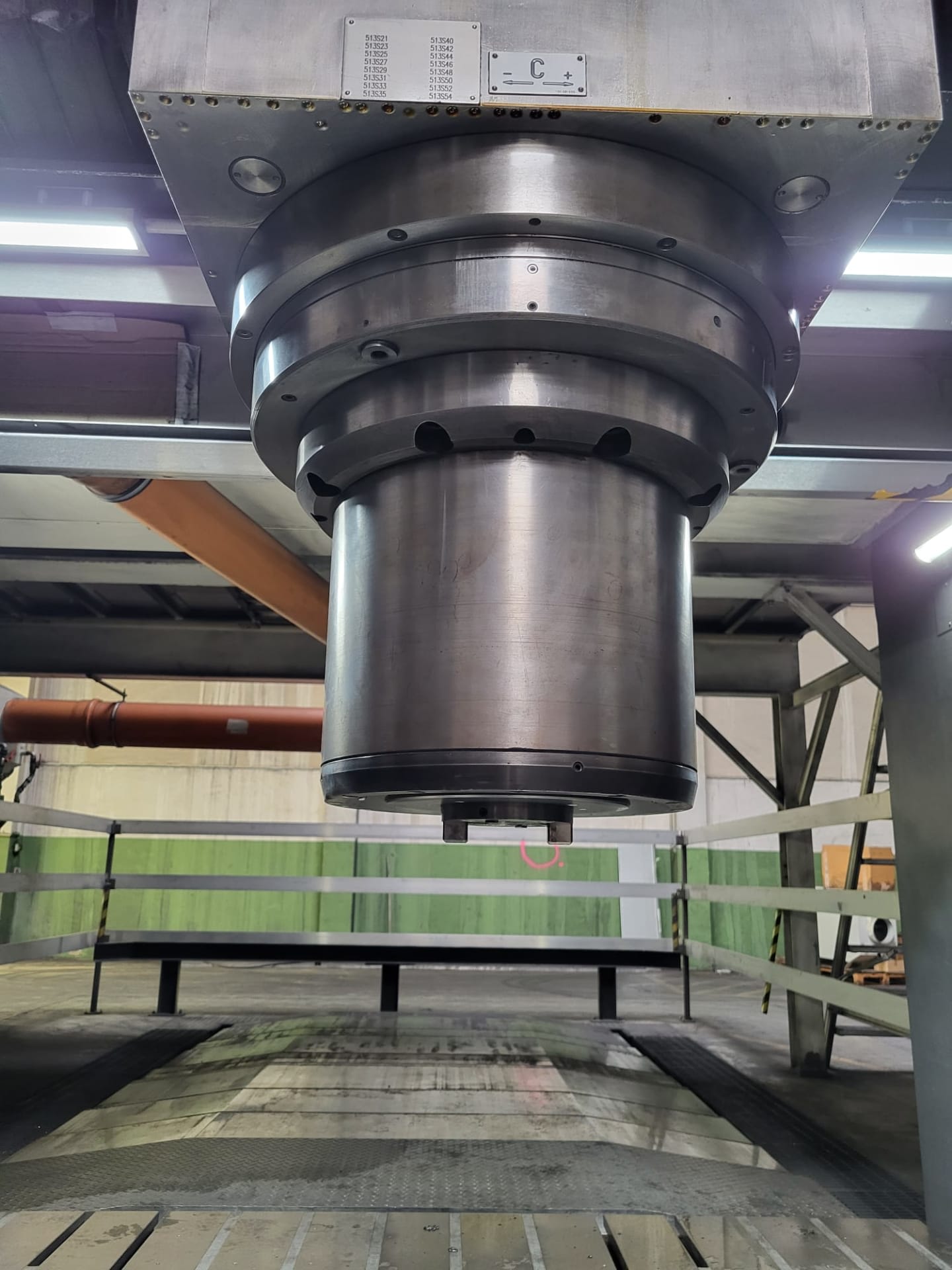

Straight milling head FK 120/340
90° angle head WFK 100/750M
Fork head FK 100/2D

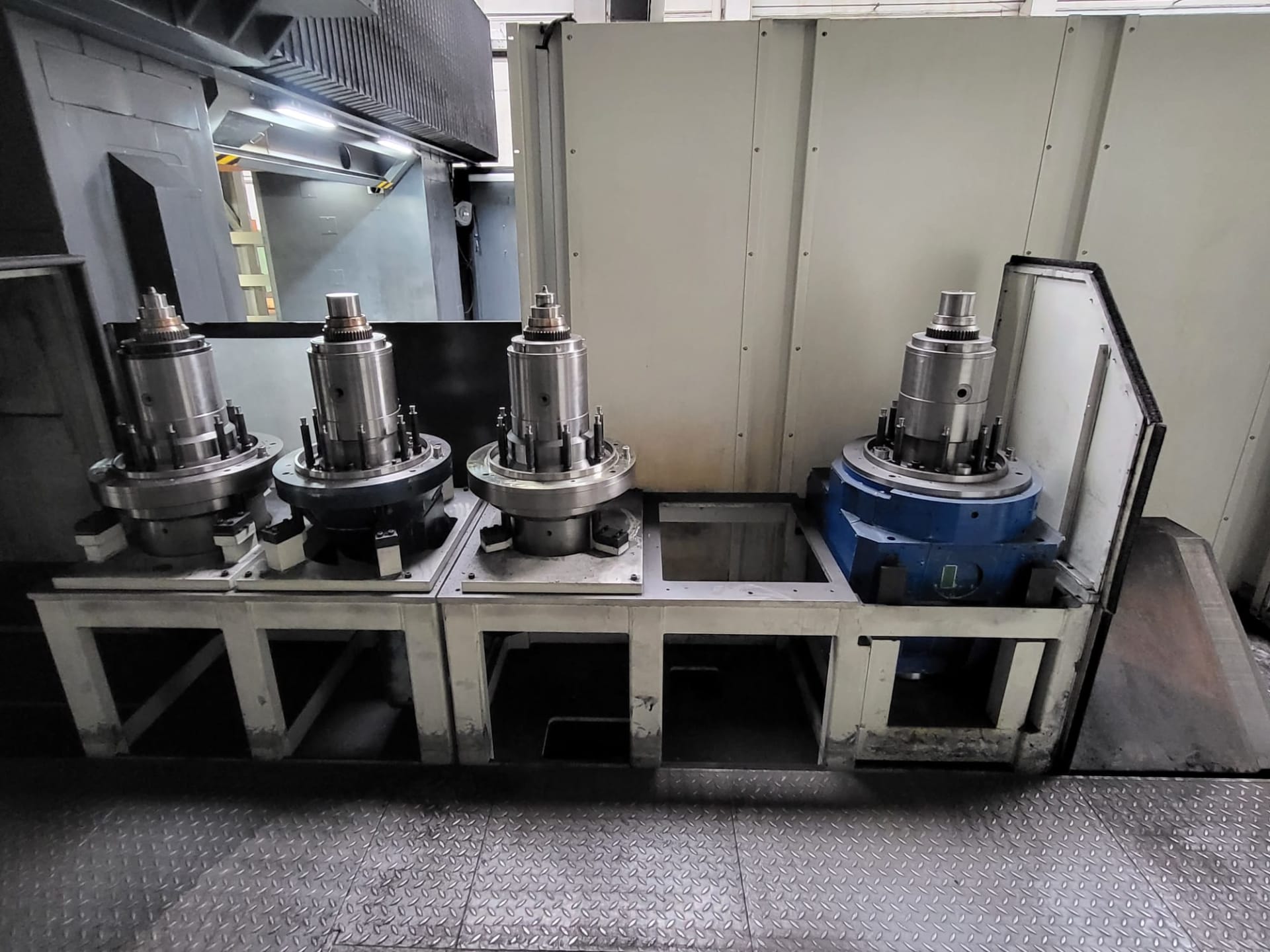

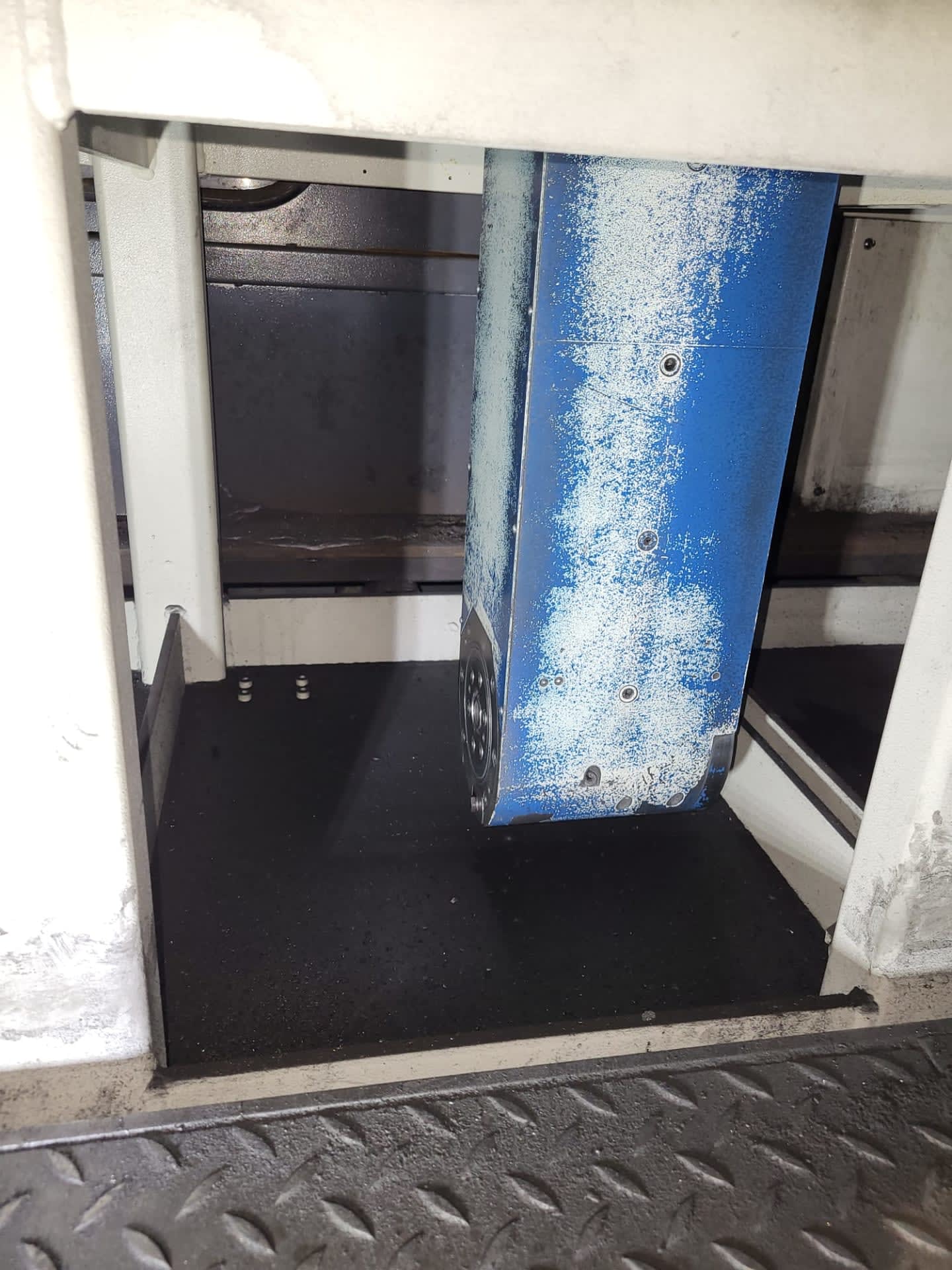

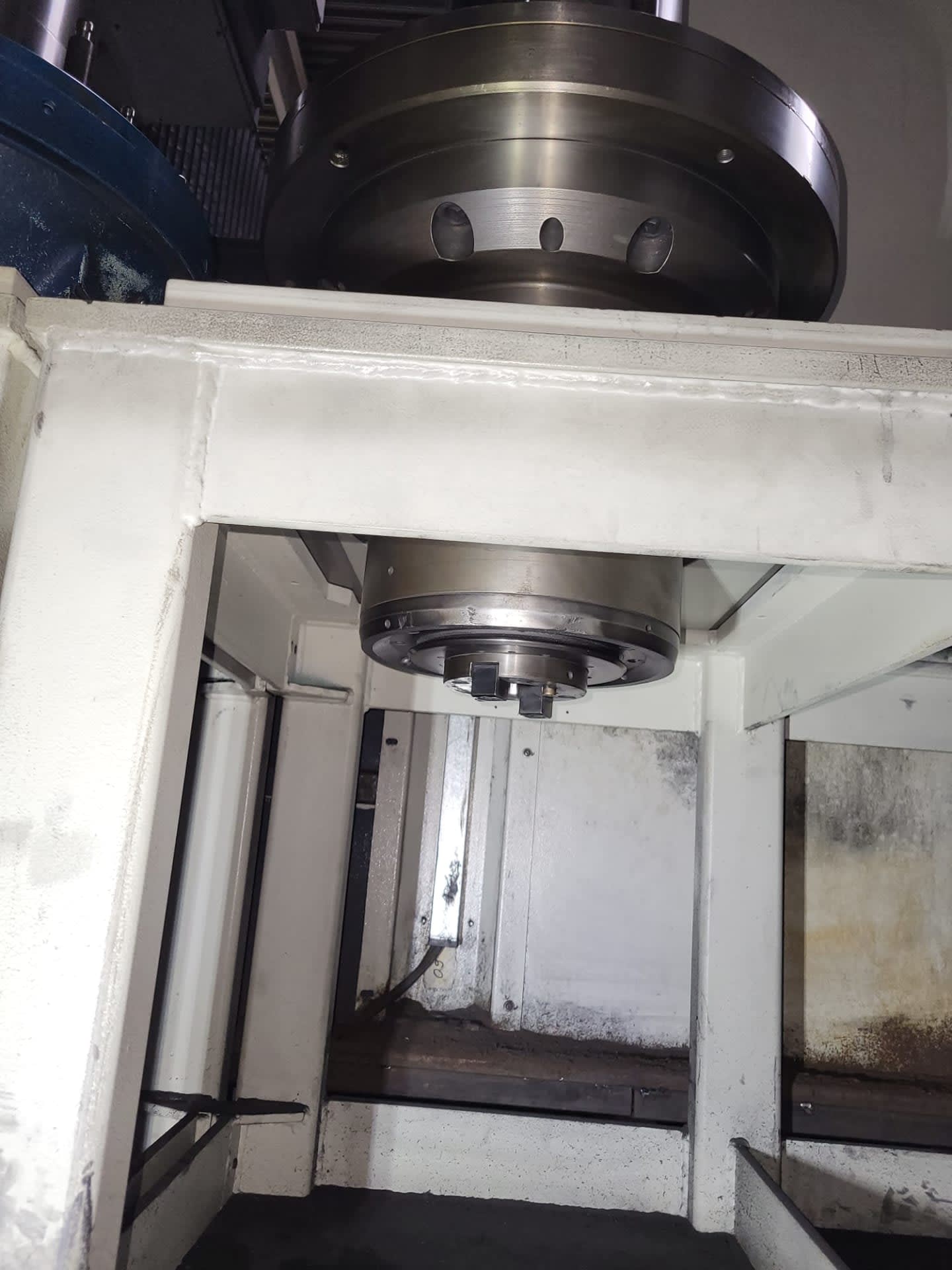

Milling head magazine:
5 positions

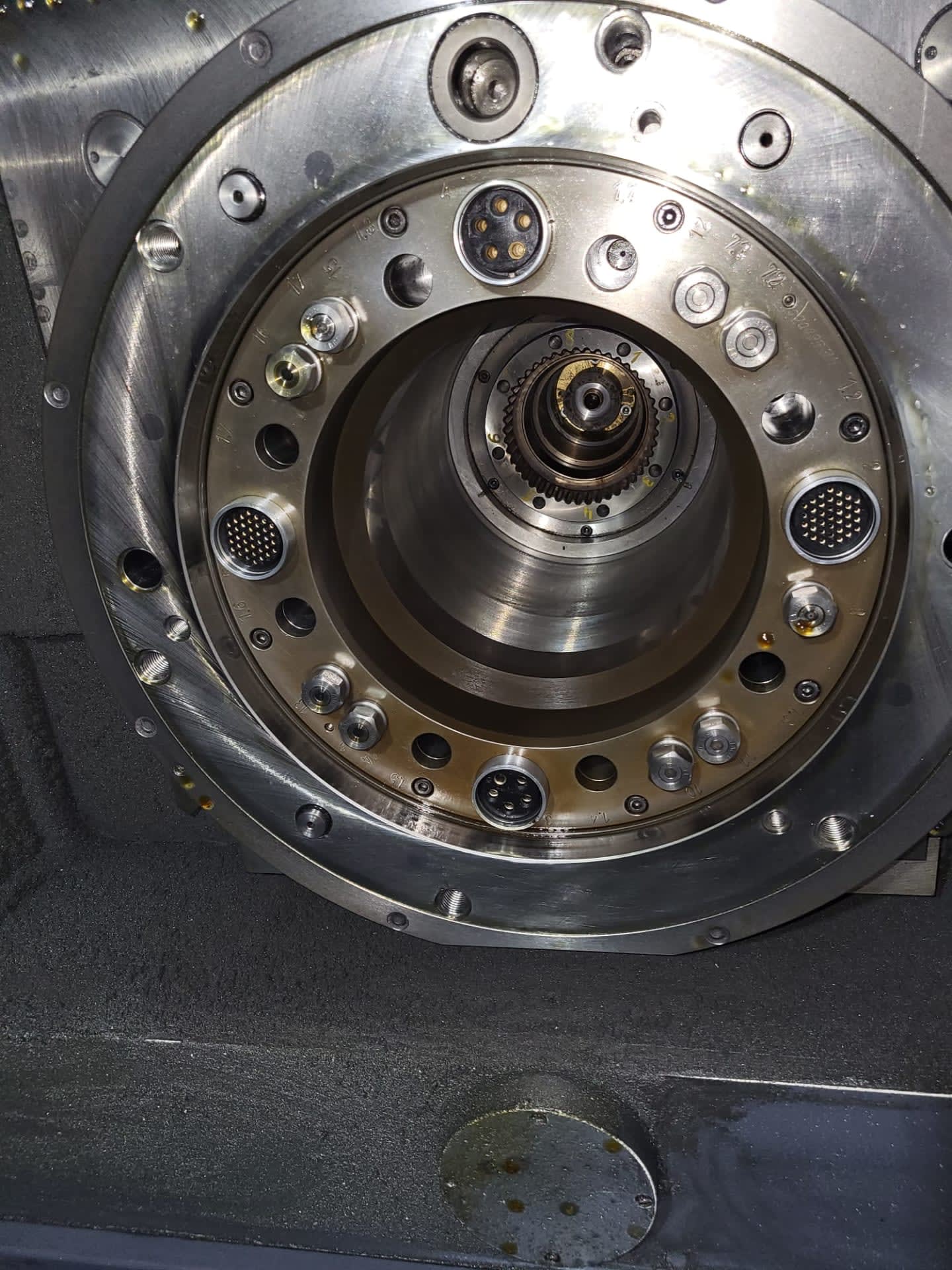

Automatic milling head change
Additional equipment:
Internal cooling (IKZ) approx. 7 bar
Tool changer 32 positions (SK50, Fibro ATC 32/50)
Tool holder SK50 (DIN 69871)
Tool measuring system (laser)
Chip conveyor
Coolant system
Adaptive feed control
Heidenhain linear scales X/Y/Z
- Dismantling Costs
- €45,000 - optional
- Transportation costs
- not included
- Terms of delivery
- From foundation
- Terms of payment
- 100% prepayment before pick-up
Transportation costs are not included in the used milling machine price; terms of delivery and payment are stated under "Additional information" in each listing. You should also budget for installation and commissioning at the new site. In most cases, the buyer is responsible for organizing the transport; upon request, ReMach can check whether transport can be arranged or supported. ReMach also helps with dismantling, loading and export paperwork.
Choose the control your operators already know and that is compatible with your existing programs and CAM post-processors. On European machines the most common controls are Heidenhain (TNC, conversational Klartext programming), Siemens SINUMERIK and FANUC. The control version determines the available functions, such as 5-axis cycles, and the availability of spare parts.
The five axes are three linear axes, X, Y and Z, plus two rotary axes, usually two of A, B or C depending on the machine design. In 3+2 machining the rotary axes tilt the part to the required angle before the linear axes cut; in simultaneous 5-axis machining all five move together for complex freeform surfaces. A swivel head suits large, heavy parts, while a swivel-rotary table limits part size and weight to the table.
Choose by the size, weight and shape of your parts. A vertical machining centre suits small and medium parts in series; a portal milling machine handles large, heavy parts such as moulds and machine beds; a bed-type milling machine, with its table on a fixed bed, offers the rigidity for long parts and heavy cutting. A 5-axis machine is for complex parts machined on several sides with few set-ups, while a horizontal boring mill suits large prismatic parts with precise bores on several faces.
A machining centre is a CNC milling machine with a tool magazine and an automatic tool changer. This lets it perform milling, drilling, tapping and boring in one set-up without manual tool changes. The number of magazine positions in the listing shows how many tools a part can use.
