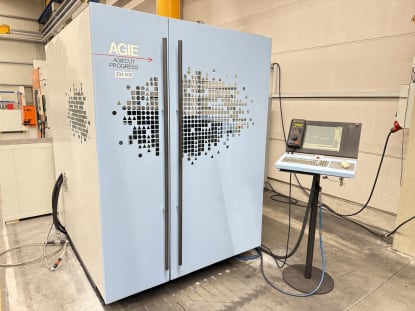

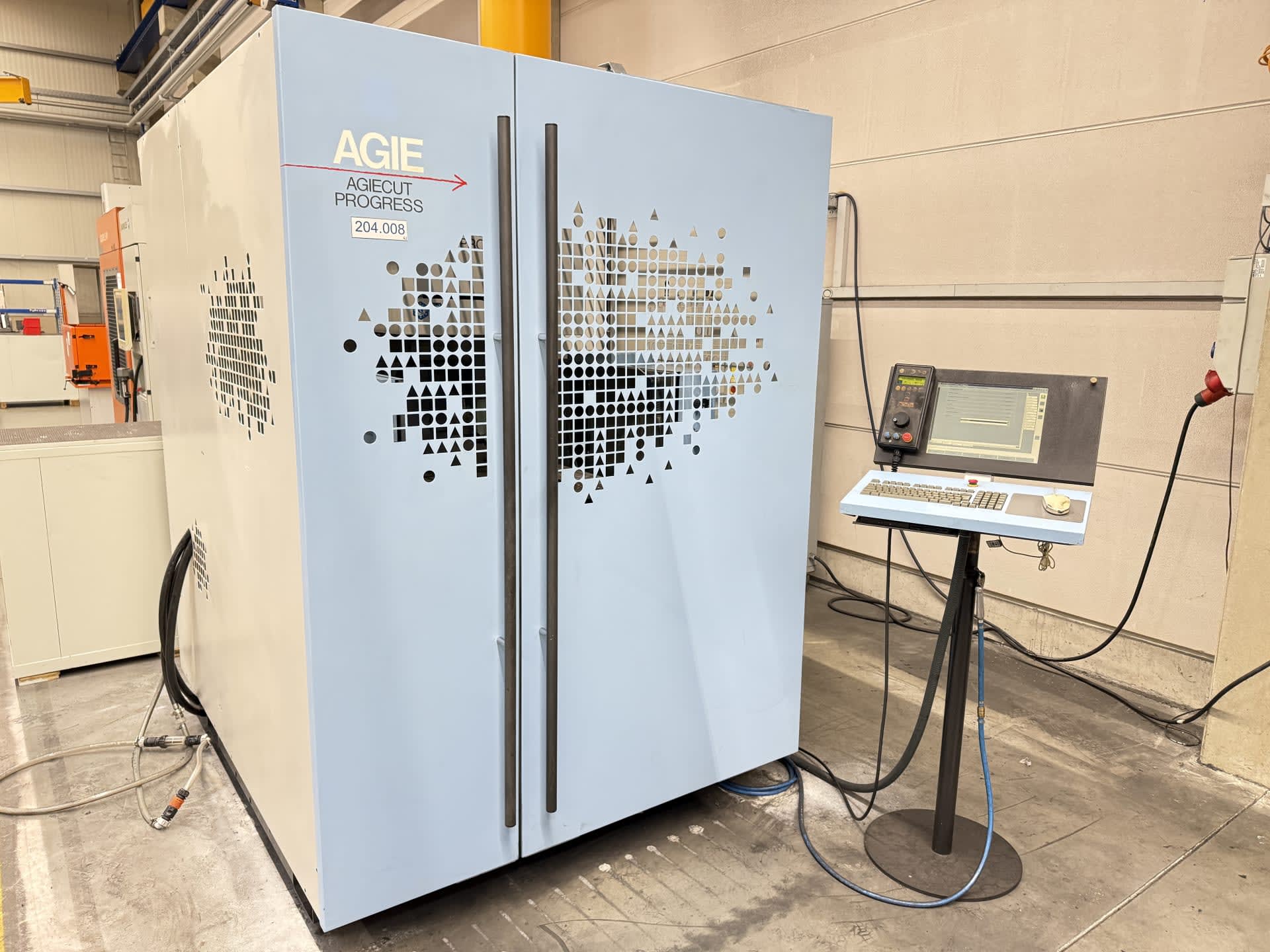

AGIE AGIECUT PROGRESS 2 Wire EDM Machine
Offer details
- Storage Number
- 26007-118
- Machine type
- Wire EDM Machines
- Manufacturer
- AGIE
- Type
- AGIECUT PROGRESS 2
- Year of construction
- 2004
- Location
- Laichingen, Germany
- Availability
- immediately
- Price
- On Request
Technical details
- Control
- CNC/SPS
- Dimensions (LxWxH) approx.
- 2200 x 1650 x 2250 mm
- Travel X-axis
- ≥ 350 mm
- Travel Y-axis
- ≥ 250 mm
- Travel Z-axis
- ≥ 256 mm
- Weight approx.
- 2,580 kg
Description

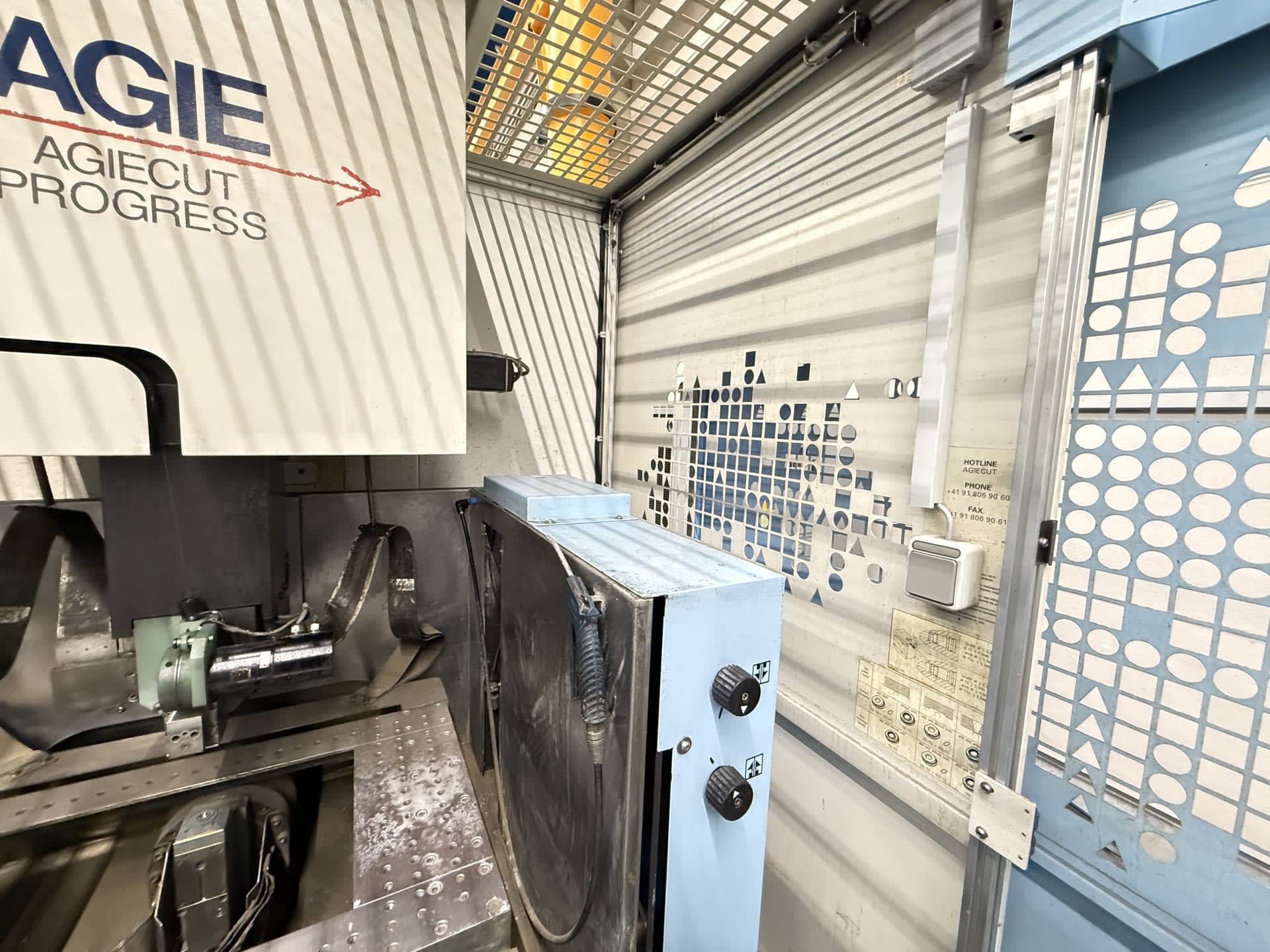

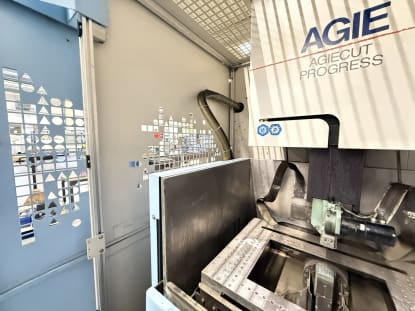

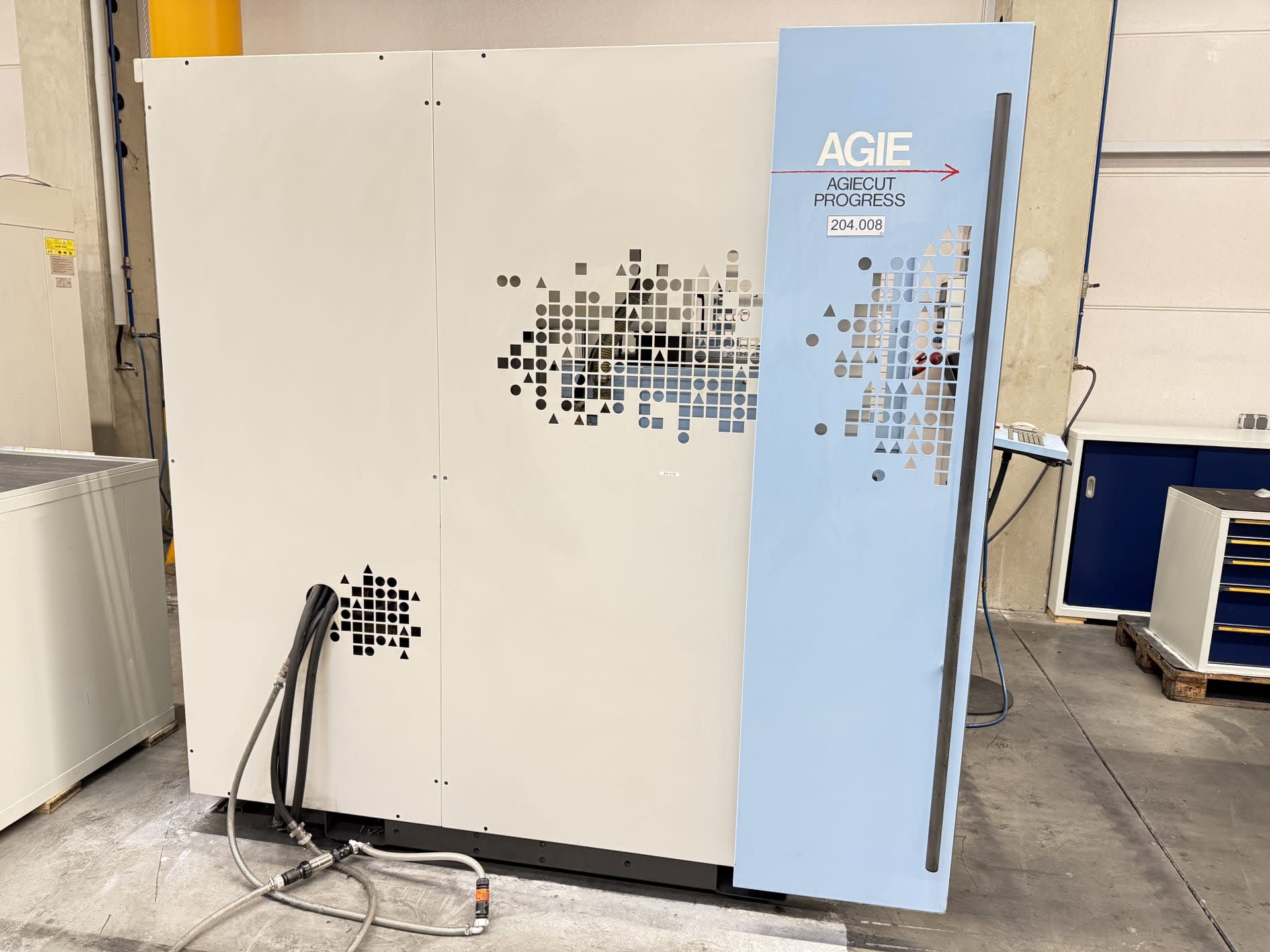

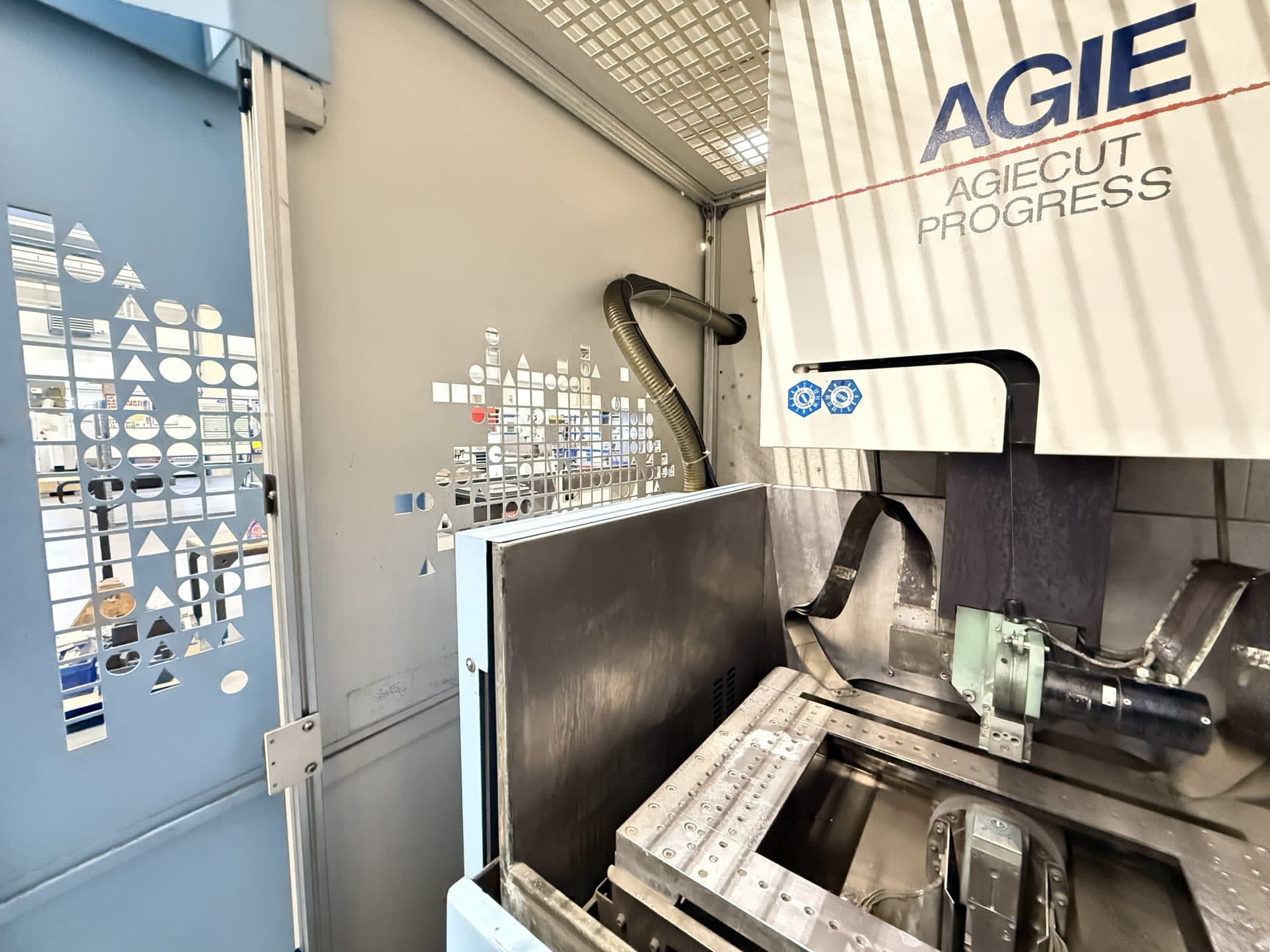

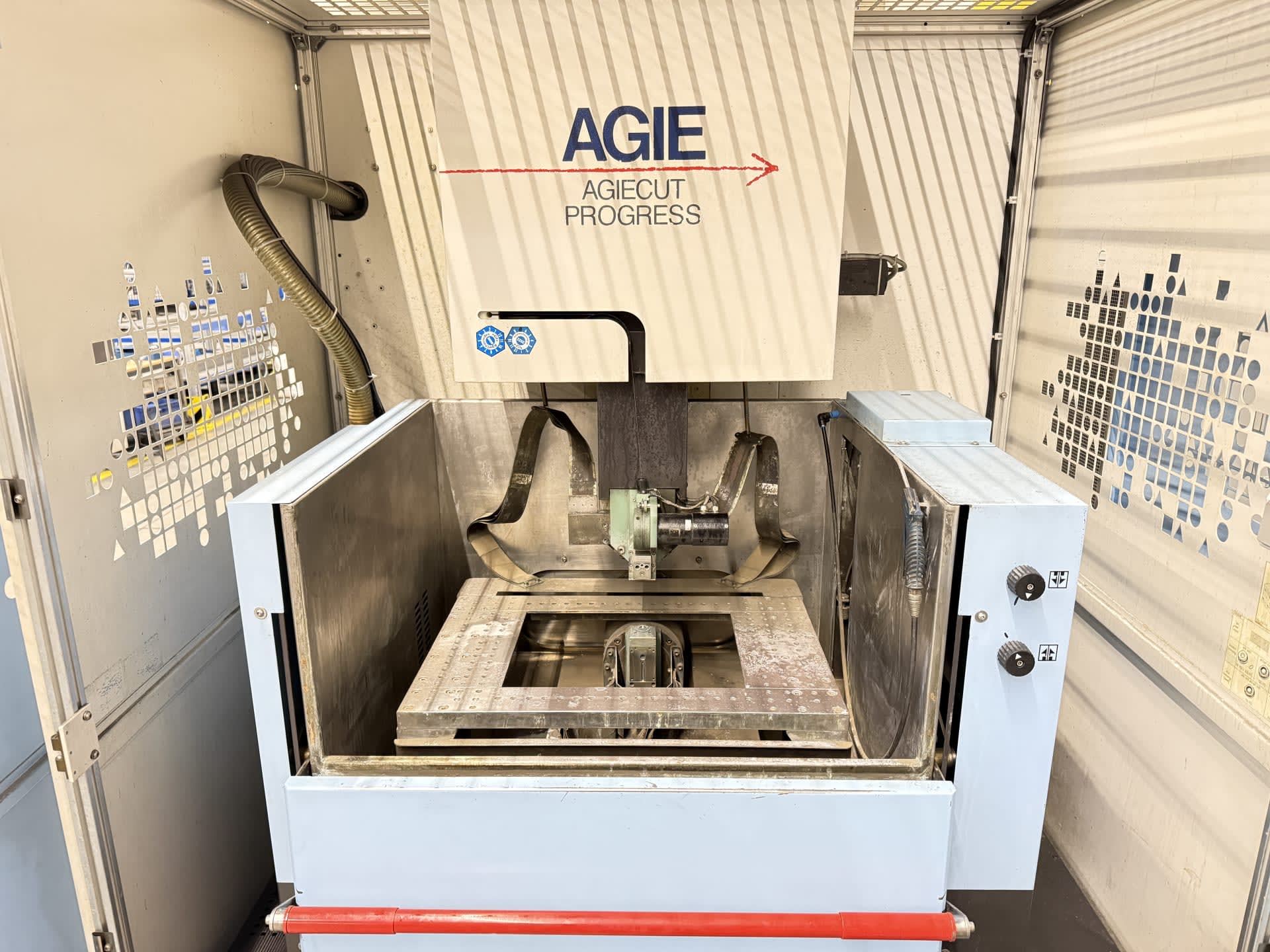

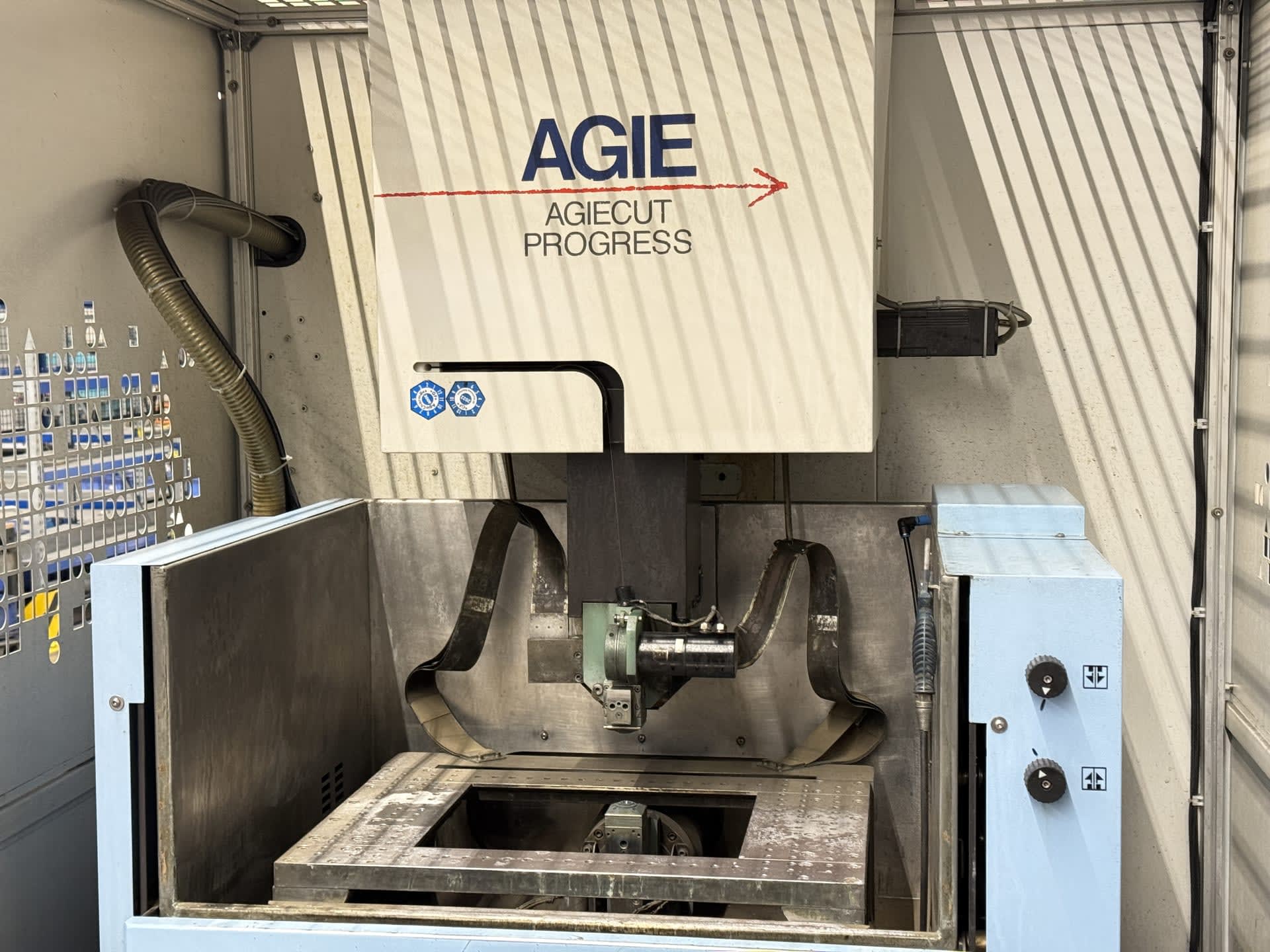

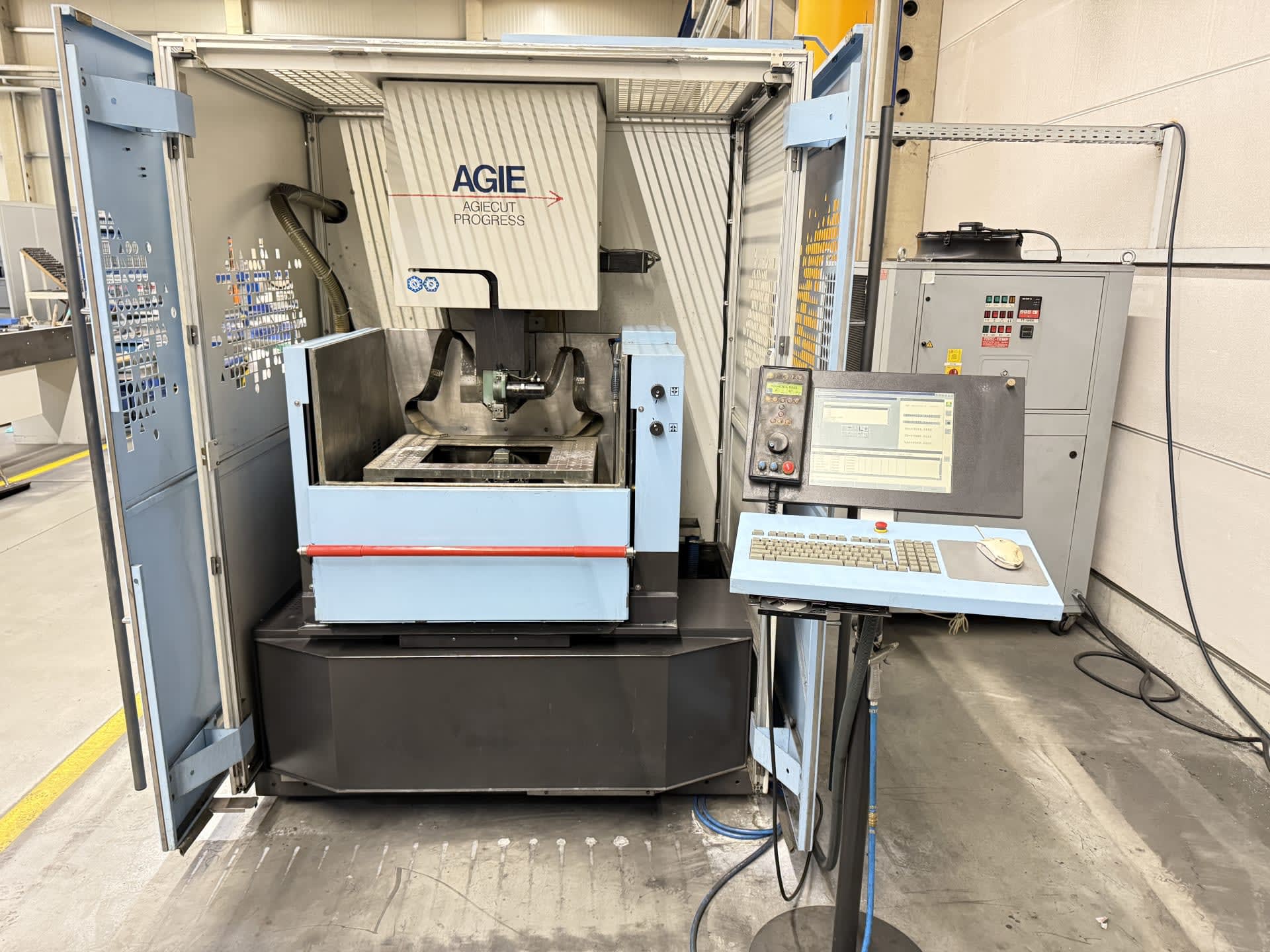

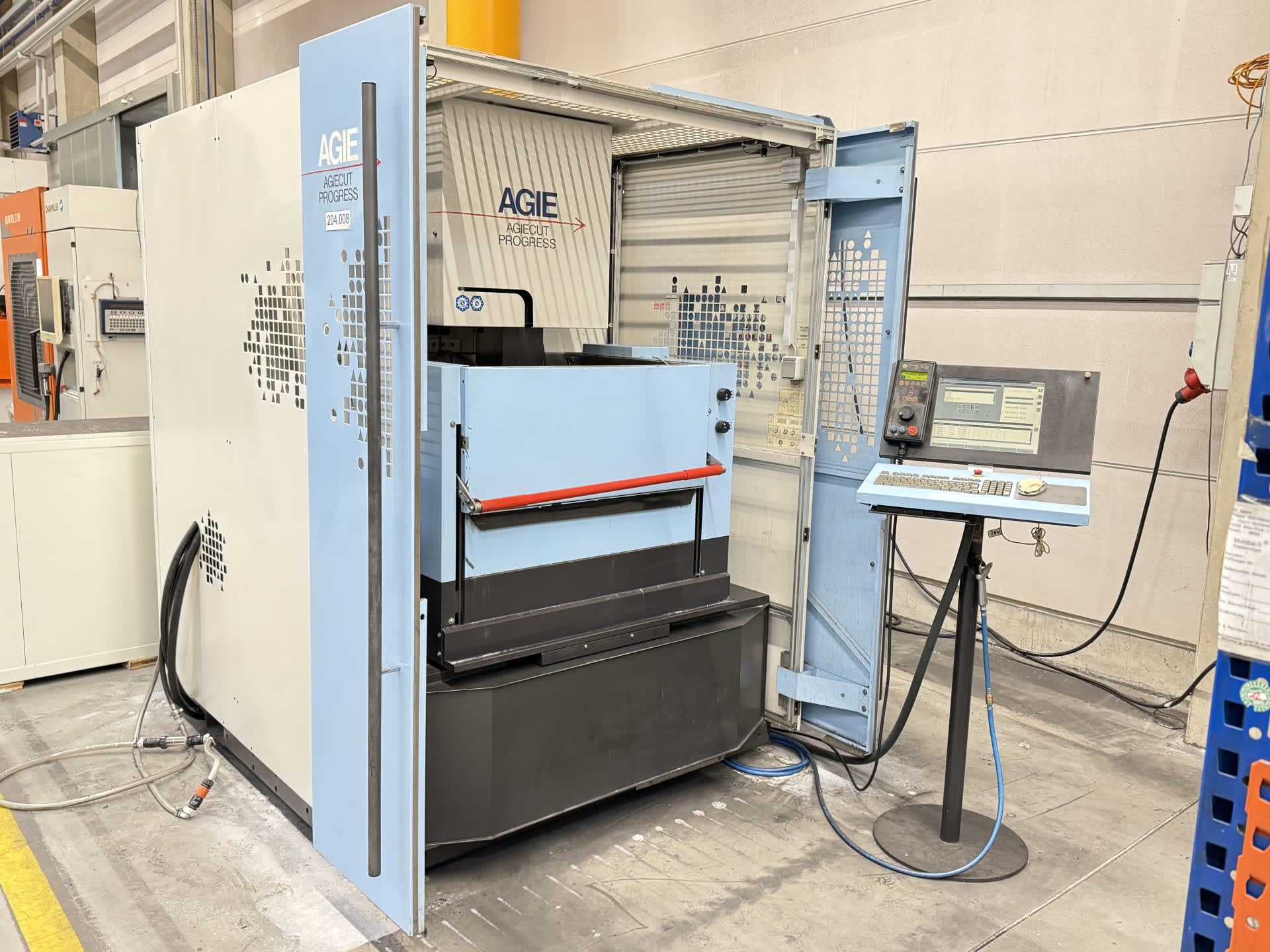

AGIE AGIECUT PROGRESS 2
Wire EDM machine
Workpiece height: approx. 250 mm
Workpiece weight: approx. 400–500 kg

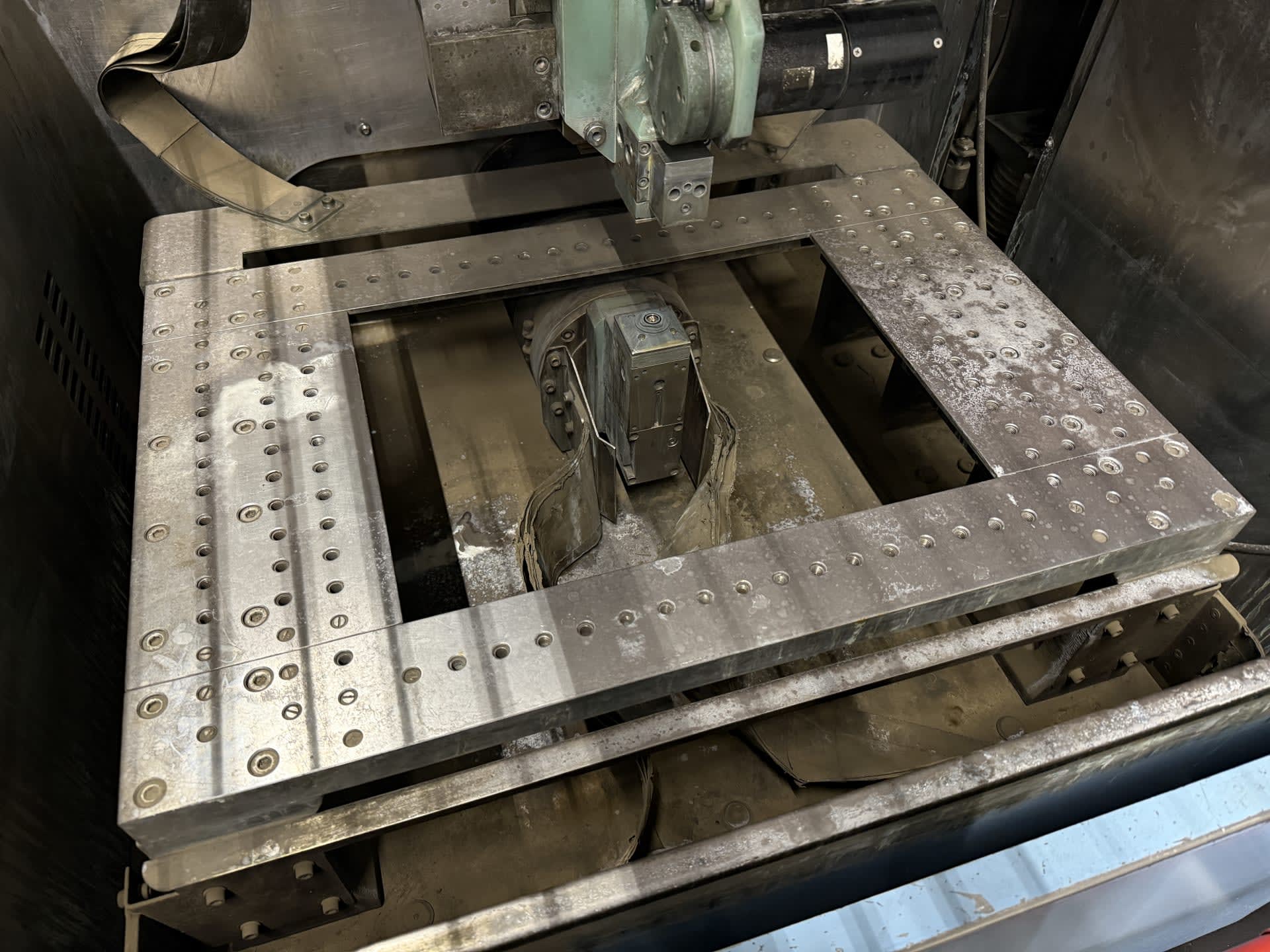

Table size: approx. 600 x 400 mm

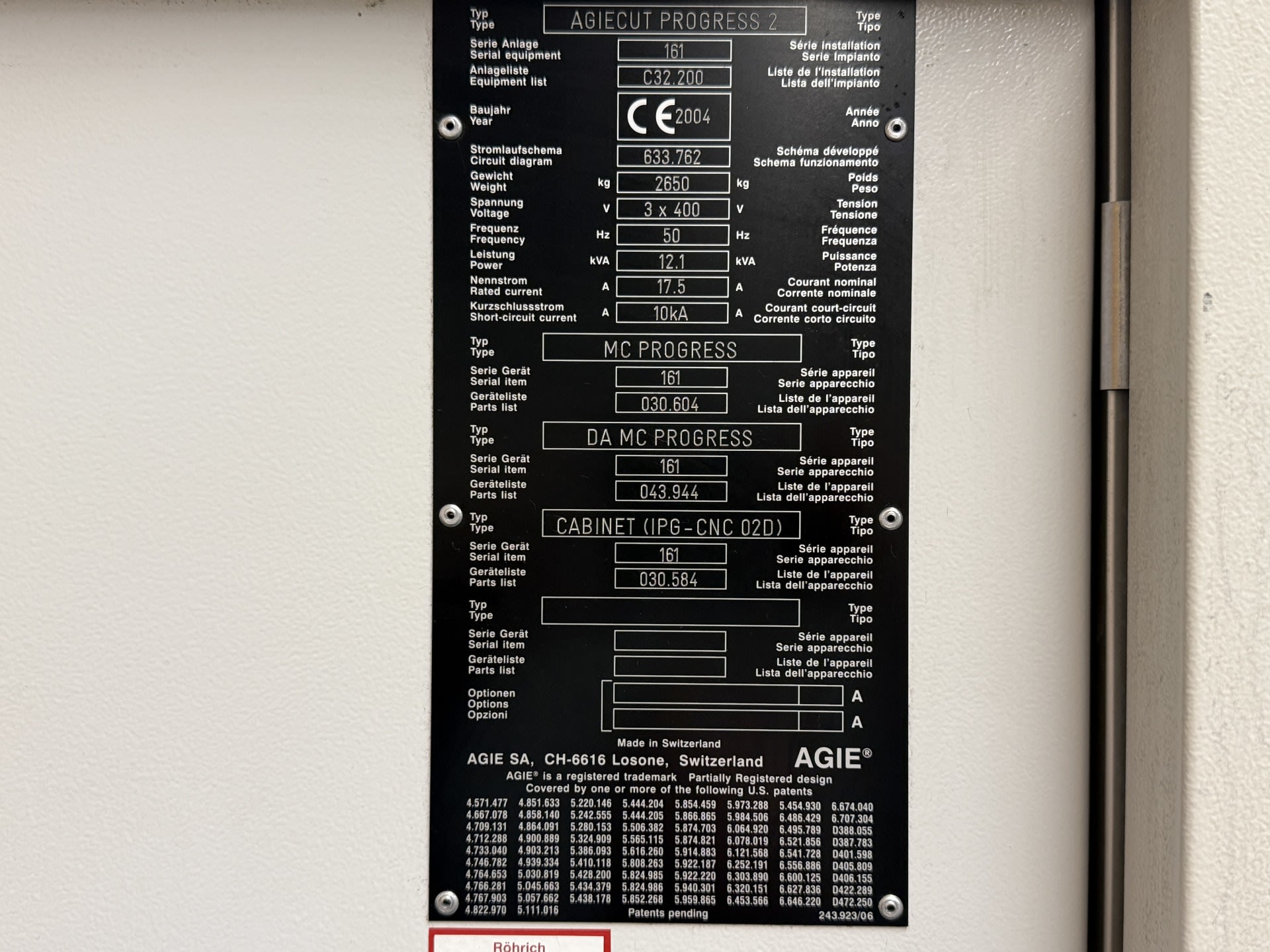

Supply voltage 3 × 400 V, frequency 50 Hz, power 12.1 kVA, rated current 17.5 A, short-circuit current 10 kA.

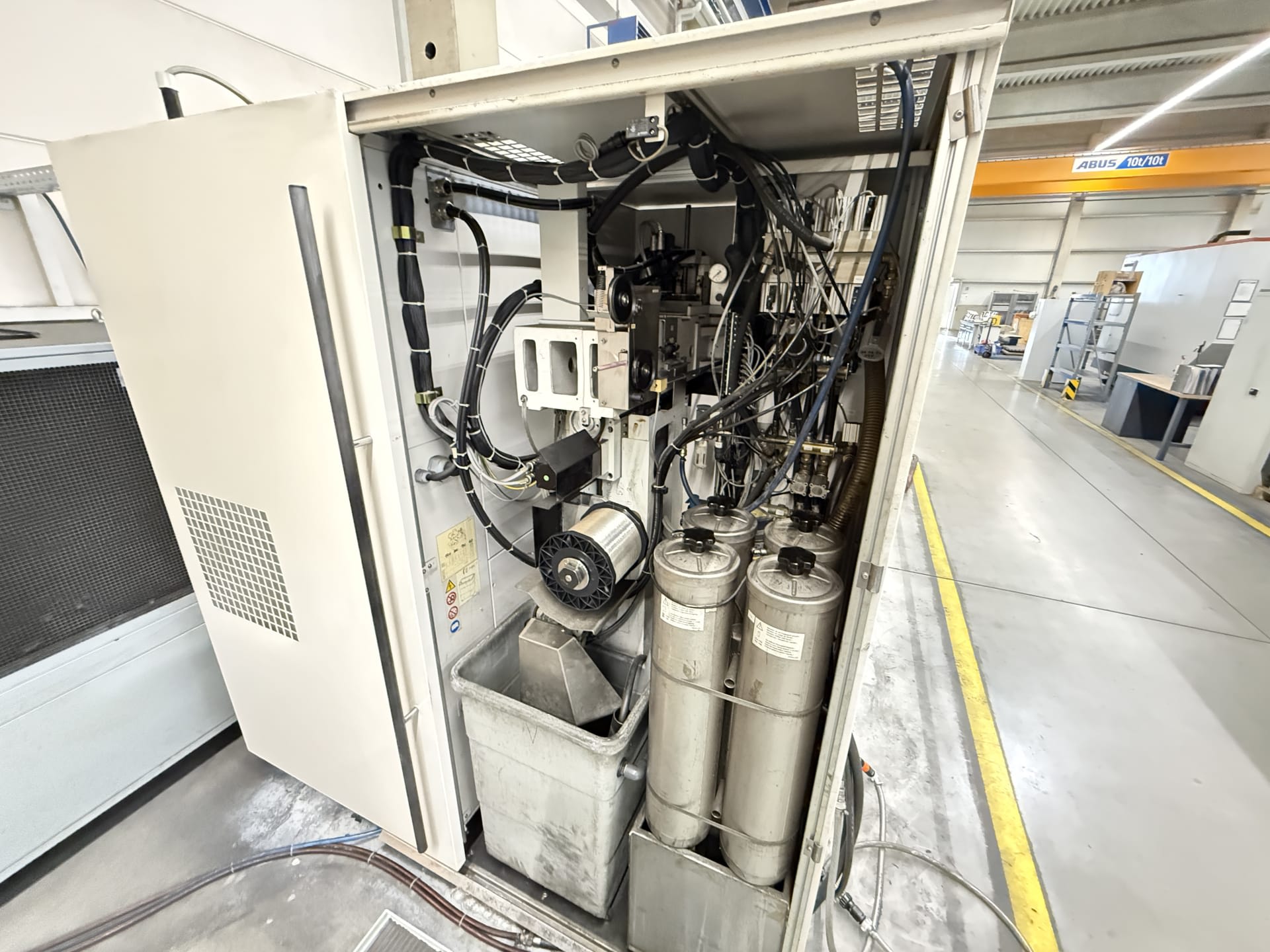

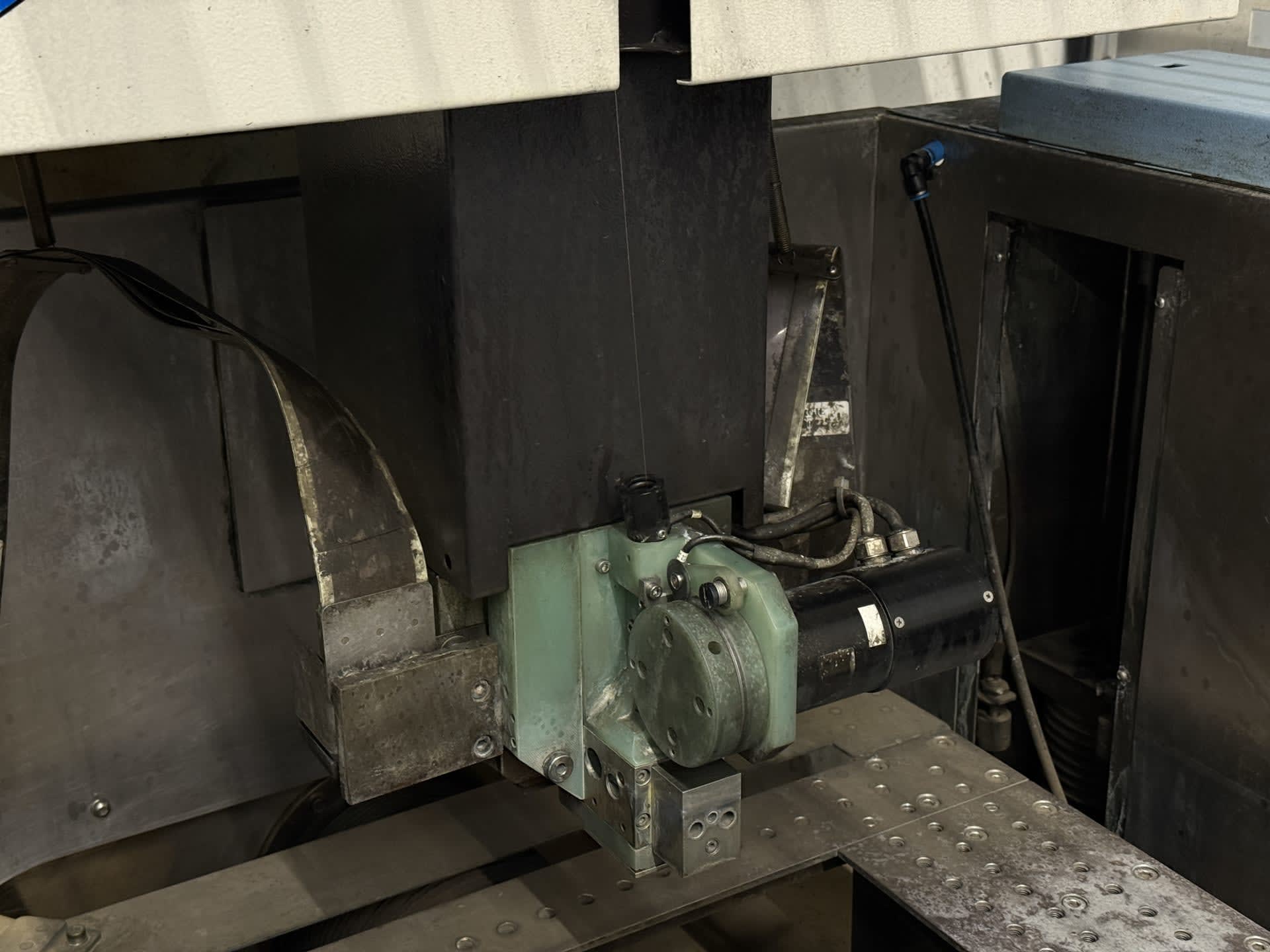

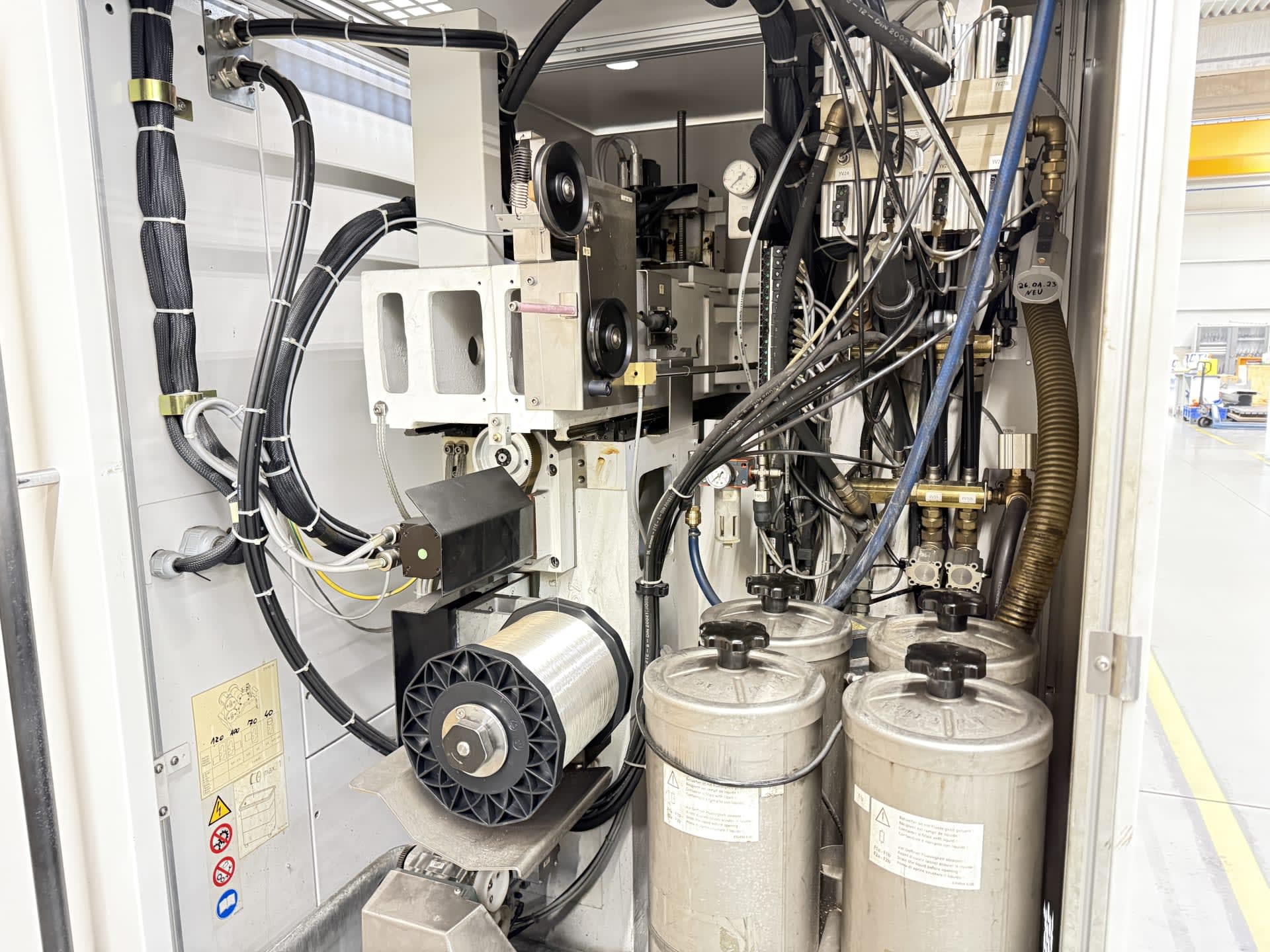

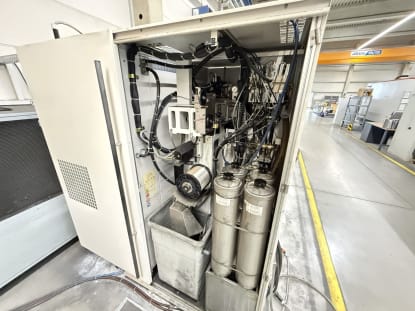

Wire EDM technology, automatic wire feed, hydraulic systems, robust construction.

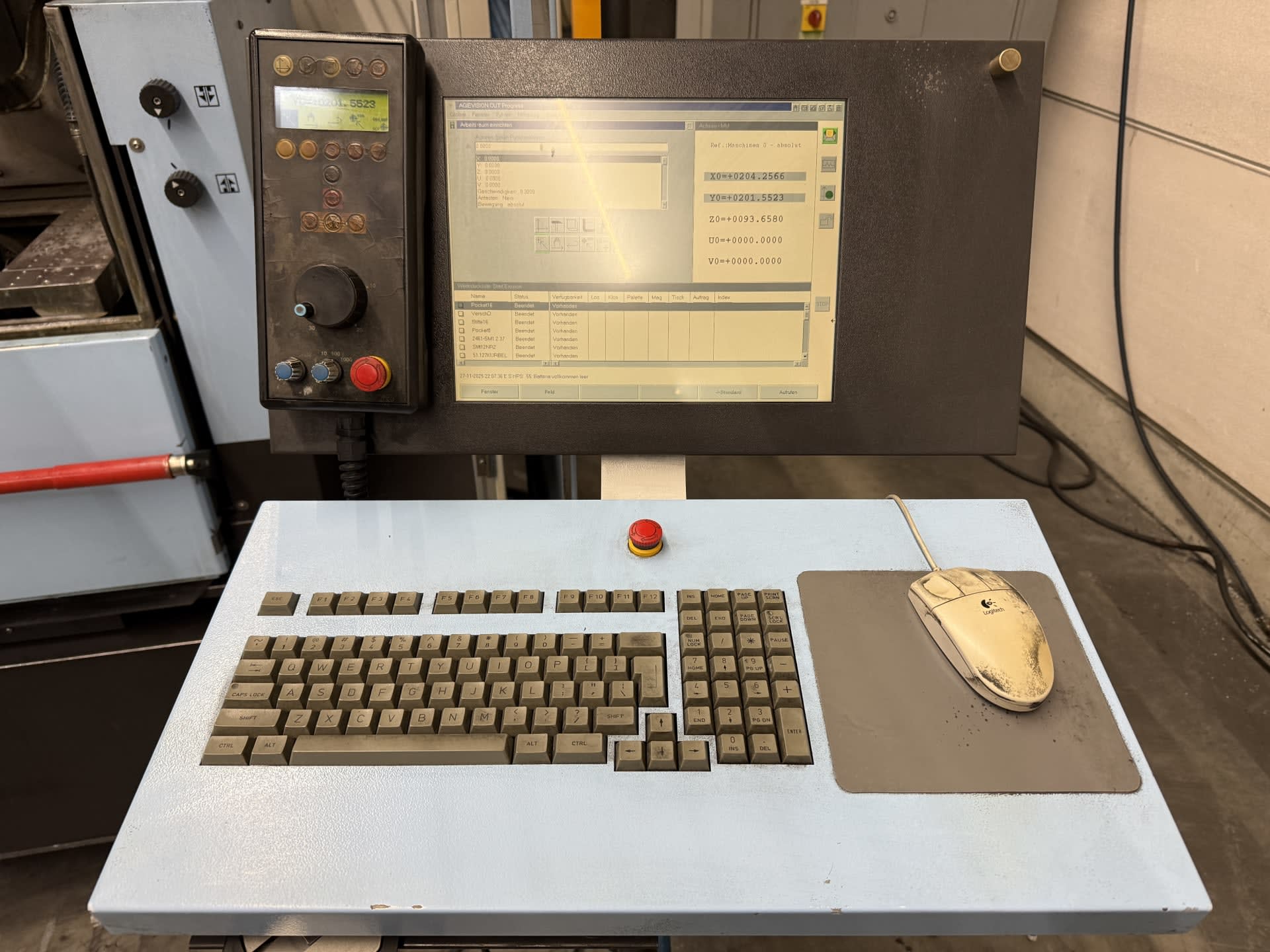

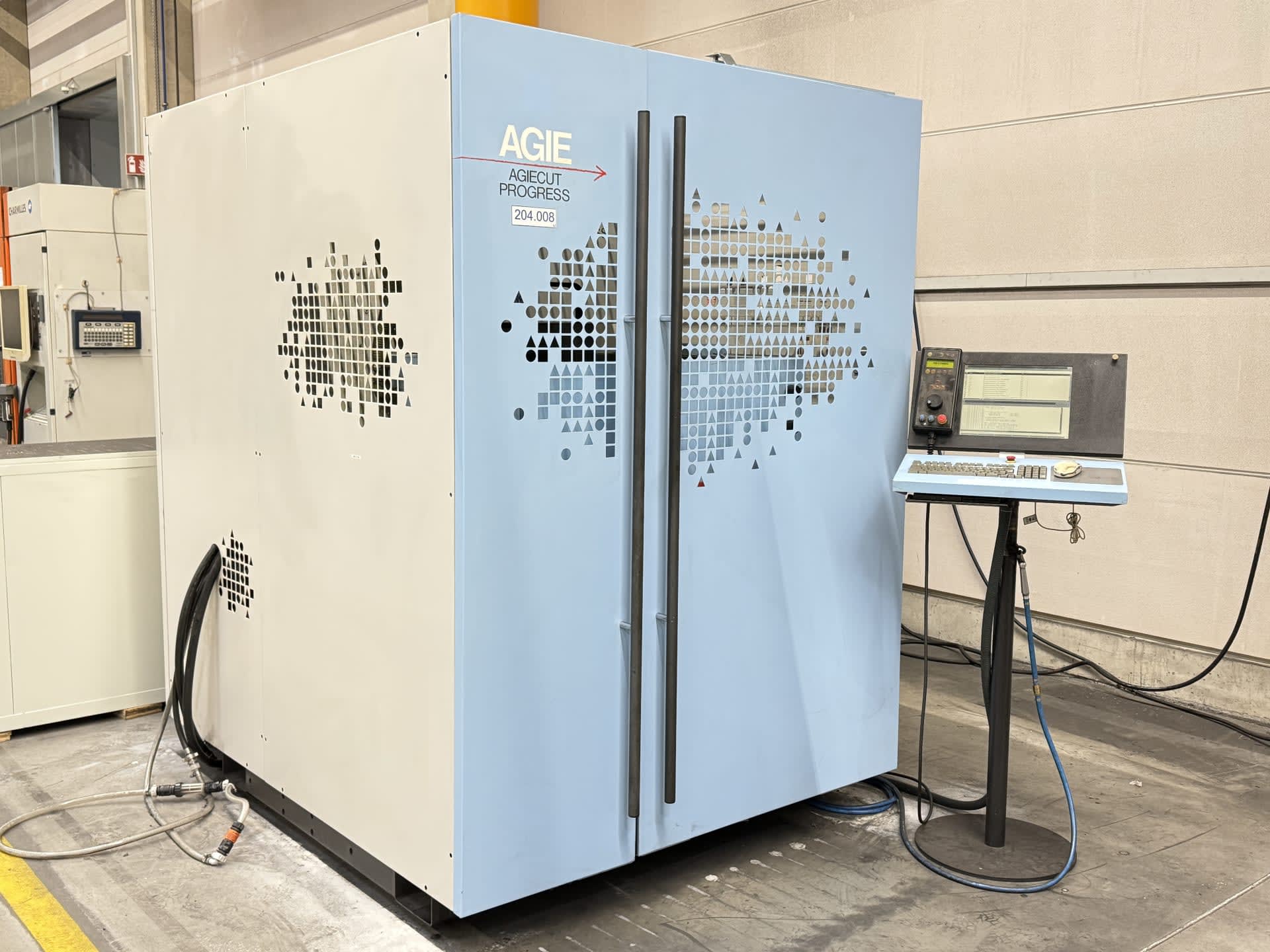

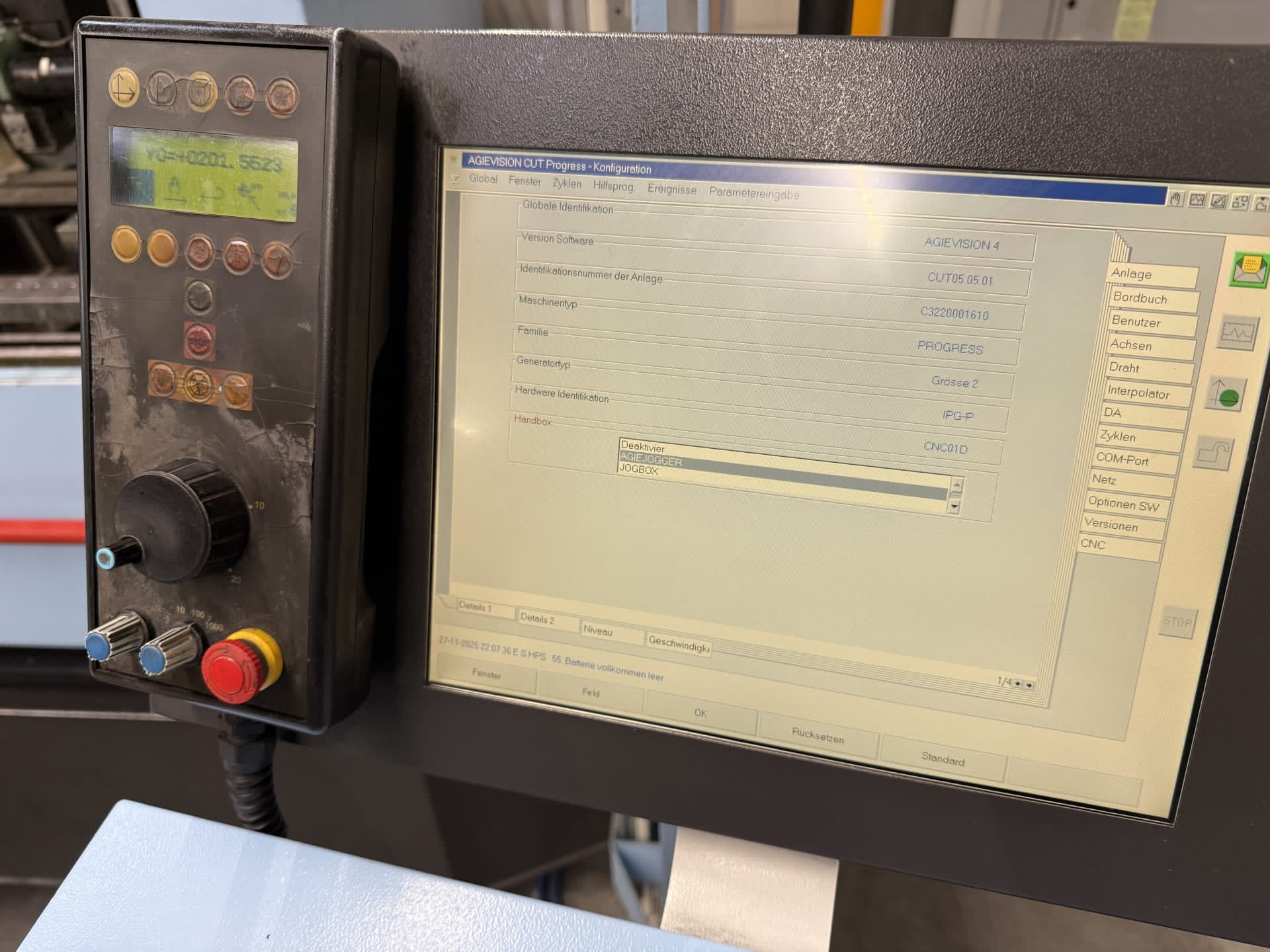

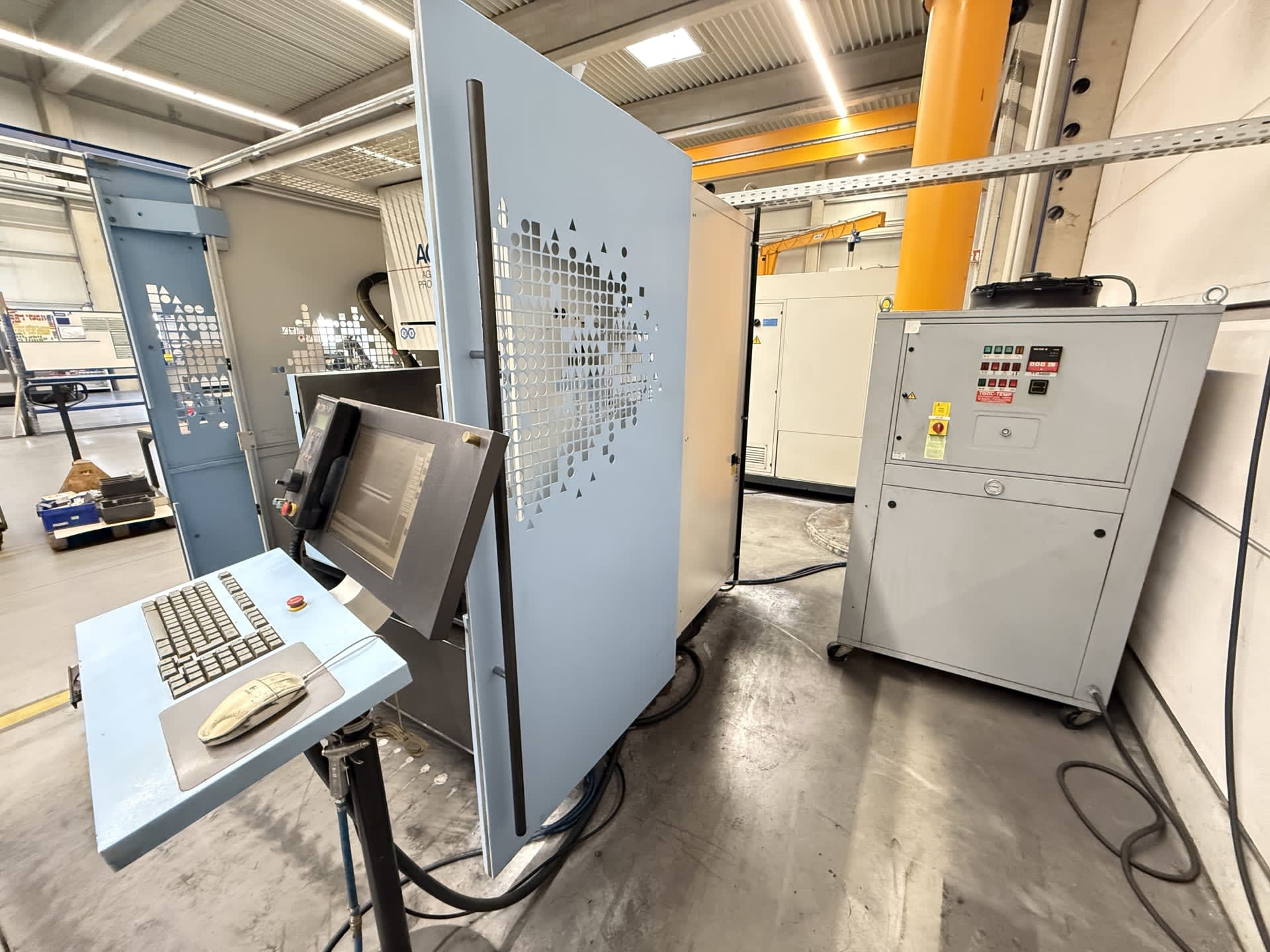

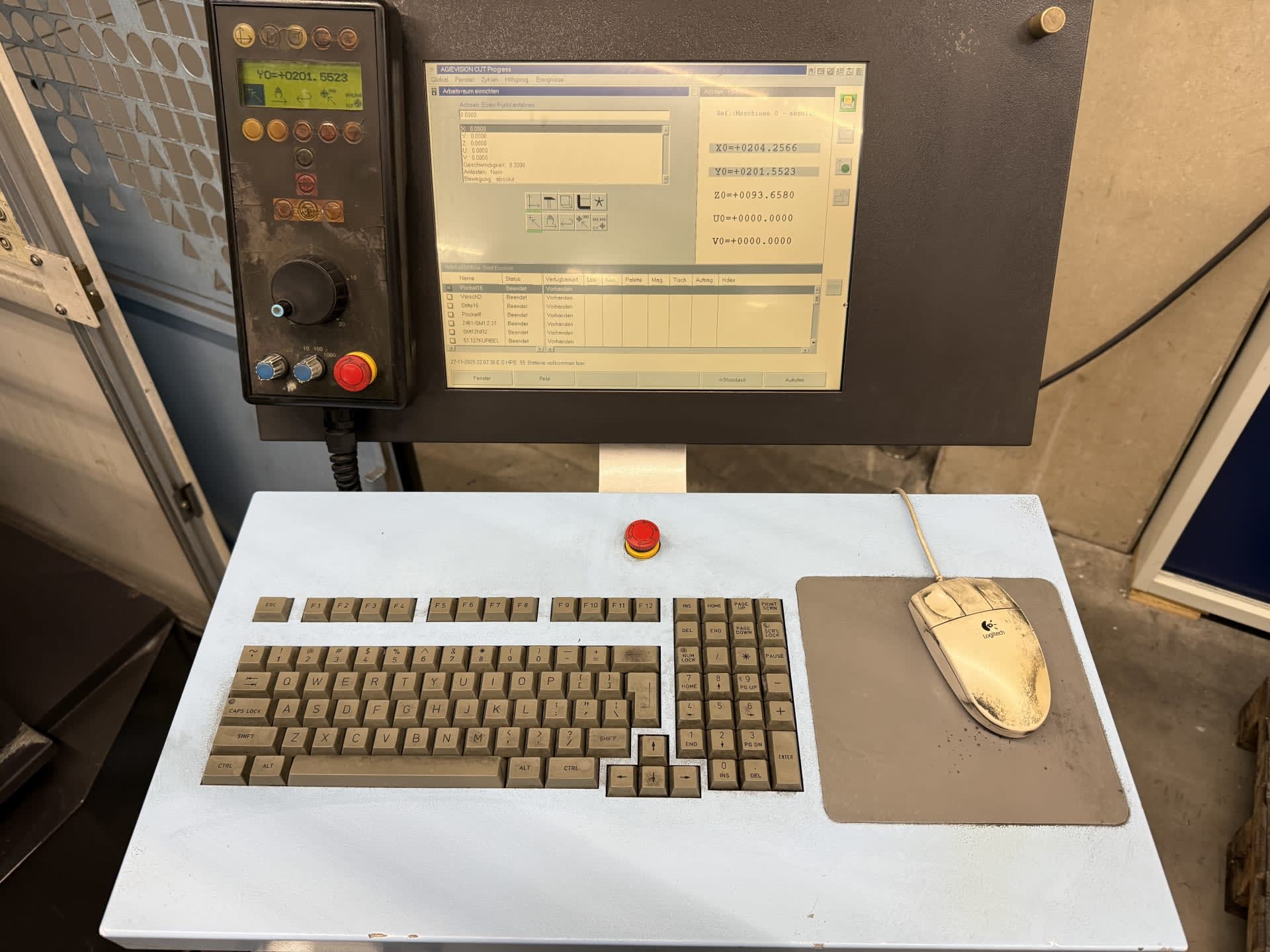

Control panel, emergency stop, sensor monitoring.
Additional information
- Transportation costs
- not included
- Terms of delivery
- From foundation
- Terms of payment
- 100% prepayment before pick-up
Our Services
- Inspection & report
- Disassembly & installation
- Global logistics
- Customs & paperwork
- Sourcing & valuation
- Personal consultation
Related items
1. Wire EDM Machines: Precision Cutting Explained
- Cuts complex, highly precise shapes and structures into metal with exceptional accuracy
- Material is removed from a workpiece using a conductive wire and high-intensity electrical current
- Operation requires specialist training and should only be carried out by qualified experts
2. Wire EDM: Creative Metal Cutting with Electric Sparks
The first wire EDM machine became commercially available in 1969, and the technology has since become a standard piece of equipment in industrial workshops and tool manufacturing facilities worldwide.
ONA Wire EDM machine in use
3. Wire EDM: Precision Material Removal Explained
Wire EDM (electrical discharge machining) is essentially the opposite of build-up welding. Rather than adding material to a workpiece, the process removes it using a wire electrode and high electrical current. Material is extracted through electrical evaporation within a precisely controlled gap – and while this generates visible sparks, they have no damaging effect on the workpiece surface.
The wire and workpiece carry opposite electrical charges. Material removal occurs wherever the gap between anode and cathode is smallest, which is what allows highly precise contours to be machined. To prevent burn damage to both the wire and the workpiece, the entire erosion process takes place in a conductive liquid medium.
Operating a wire EDM machine demands considerable expertise. Producing accurately eroded components requires operators with several years of specialist training or extensive hands-on experience – this is not a process suited to untrained personnel.
4. Wire EDM Manufacturing Process Explained
The cutting wire can be fixed onto a 5-axis head, enabling the erosion of highly complex forms. This makes wire EDM machines well suited to mass production of intricate, technically demanding components.
Despite the complexity involved and the specialist knowledge required, wire EDM machines offer greater efficiency than CNC milling machines for toolmaking applications. A key advantage is the contact-free erosion process – no wear and tear occurs on the machining equipment beyond the cutting wire itself. This also means that workability depends entirely on the material properties of the workpiece, particularly its hardness.
5. Wire EDM Machines: Leading Manufacturers & Suppliers
Wire EDM machines are produced by some of the most respected names in precision manufacturing. The most well-known manufacturers include FANUC, Charmilles, Mitsubishi, and AGIE – each offering a range of machines renowned for their accuracy, reliability, and advanced cutting capabilities.
