DMG 210 P - 5 axis universal machining center

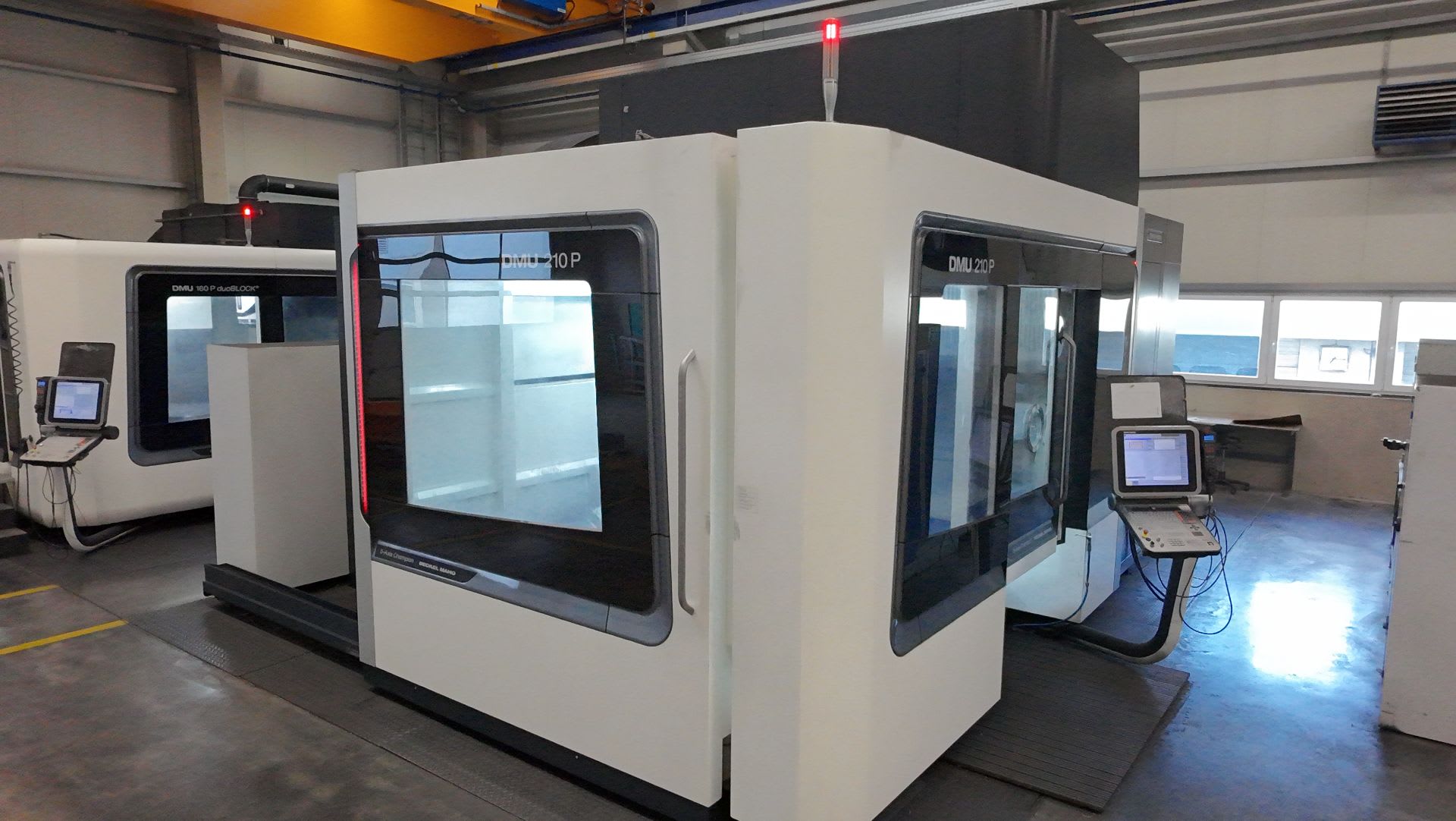

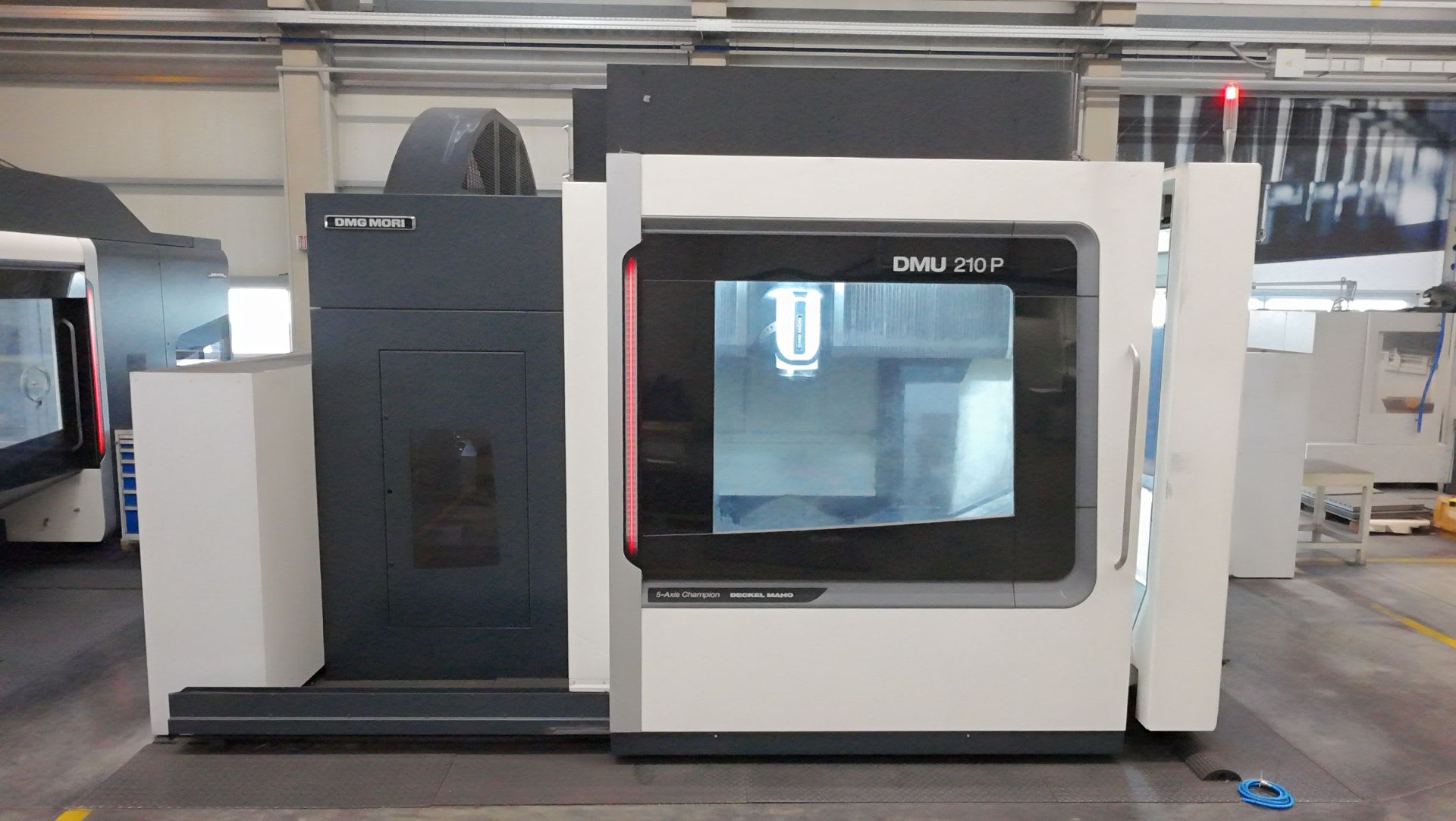

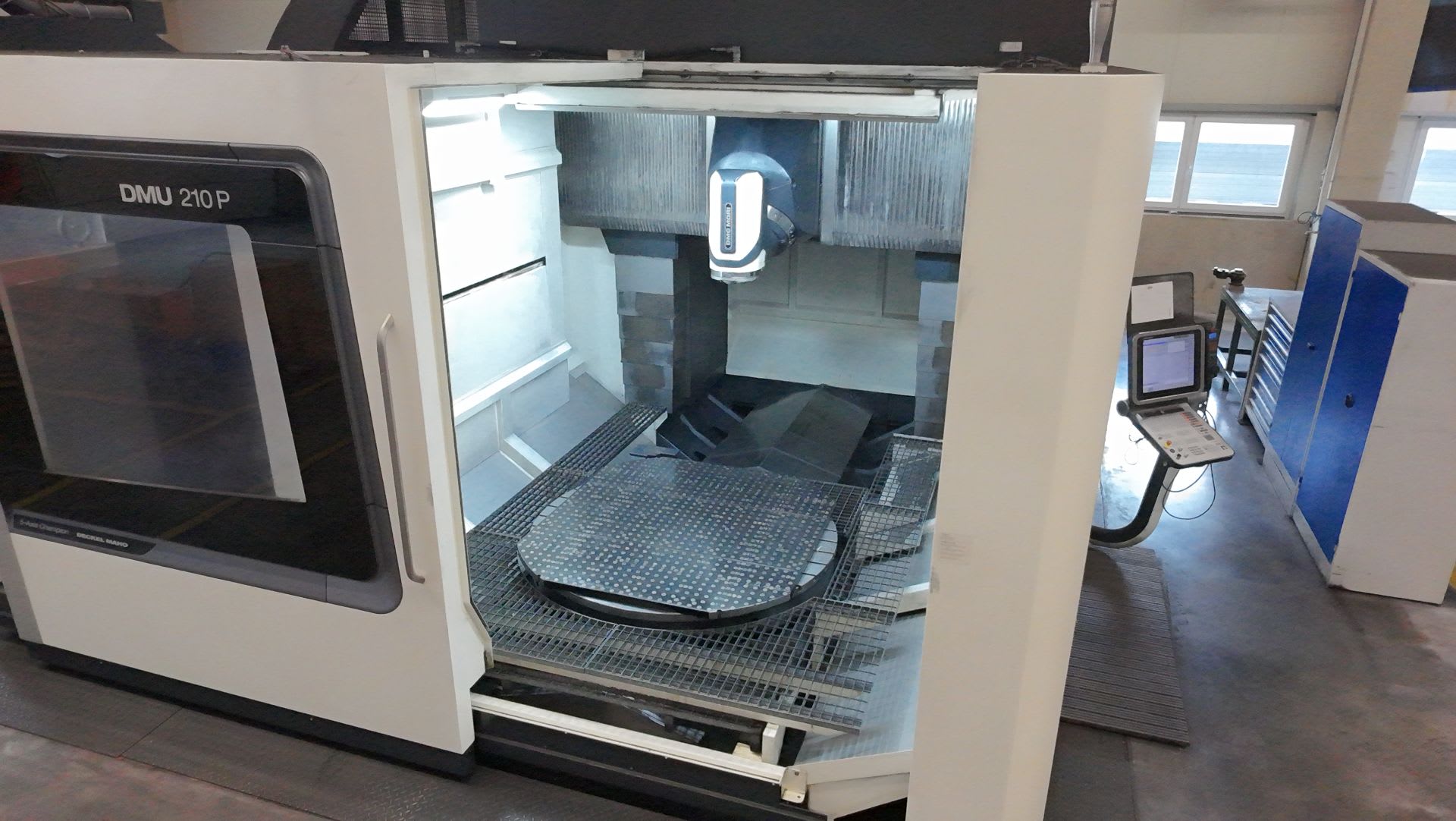

DMG MORI DMU 210 P Universal Machining Center in heavy-duty duoBLOCK design for 5-axis positioning and simultaneous machining.

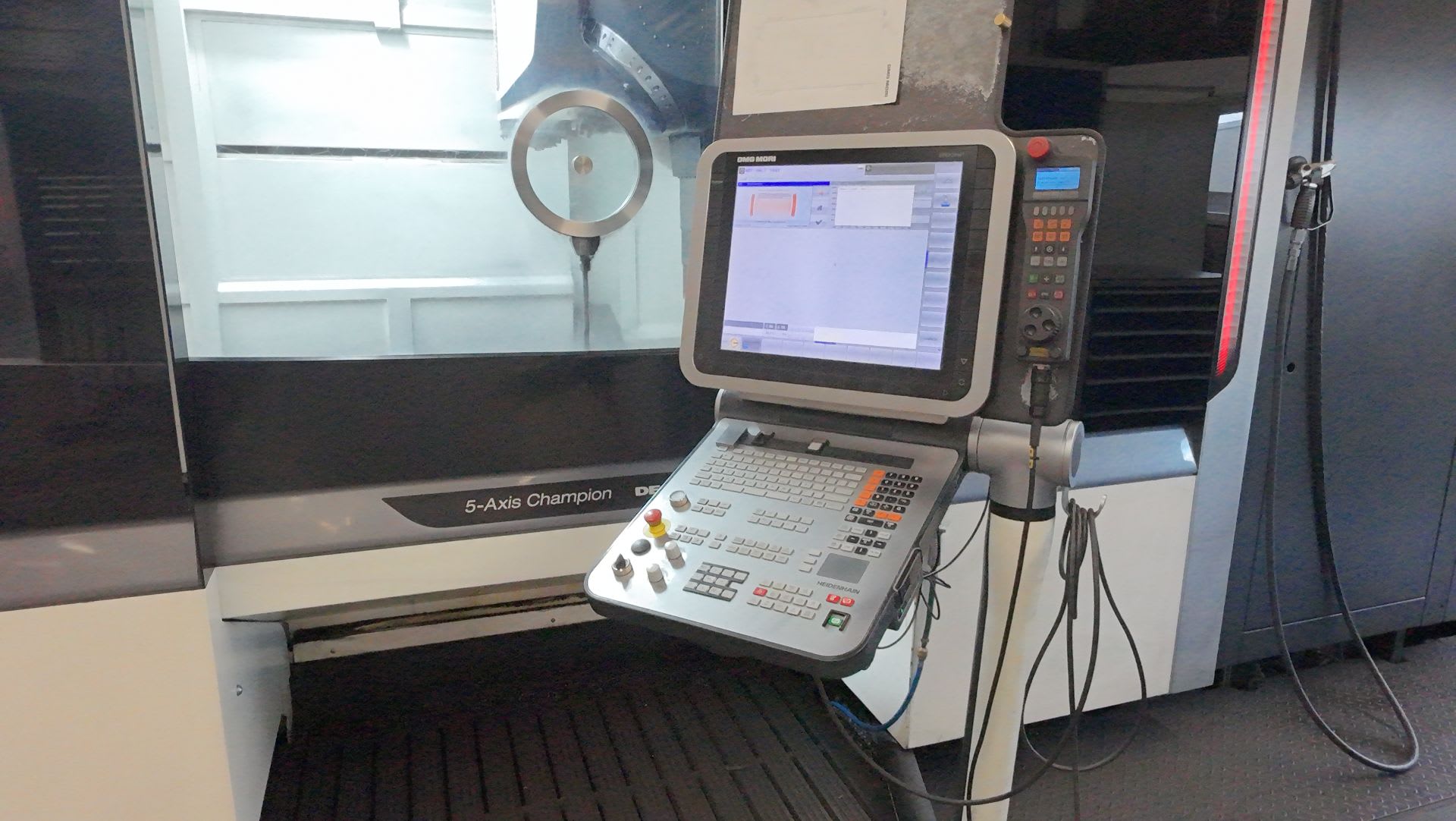

The machine features a Heidenhain TNC 640 3D control system and a large working area of X 2,100 mm / Y 2,100 mm / Z 1,250 mm.

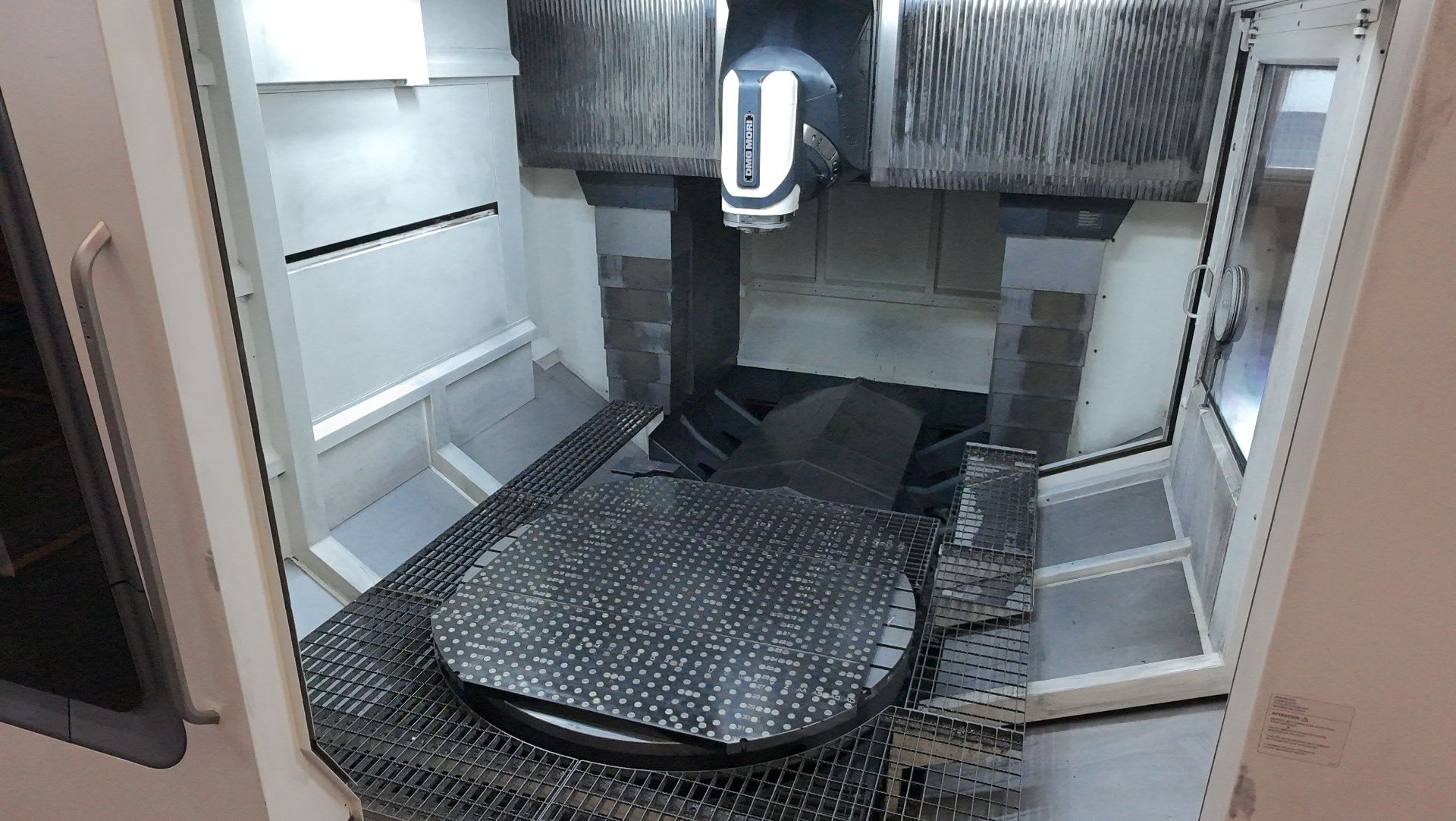

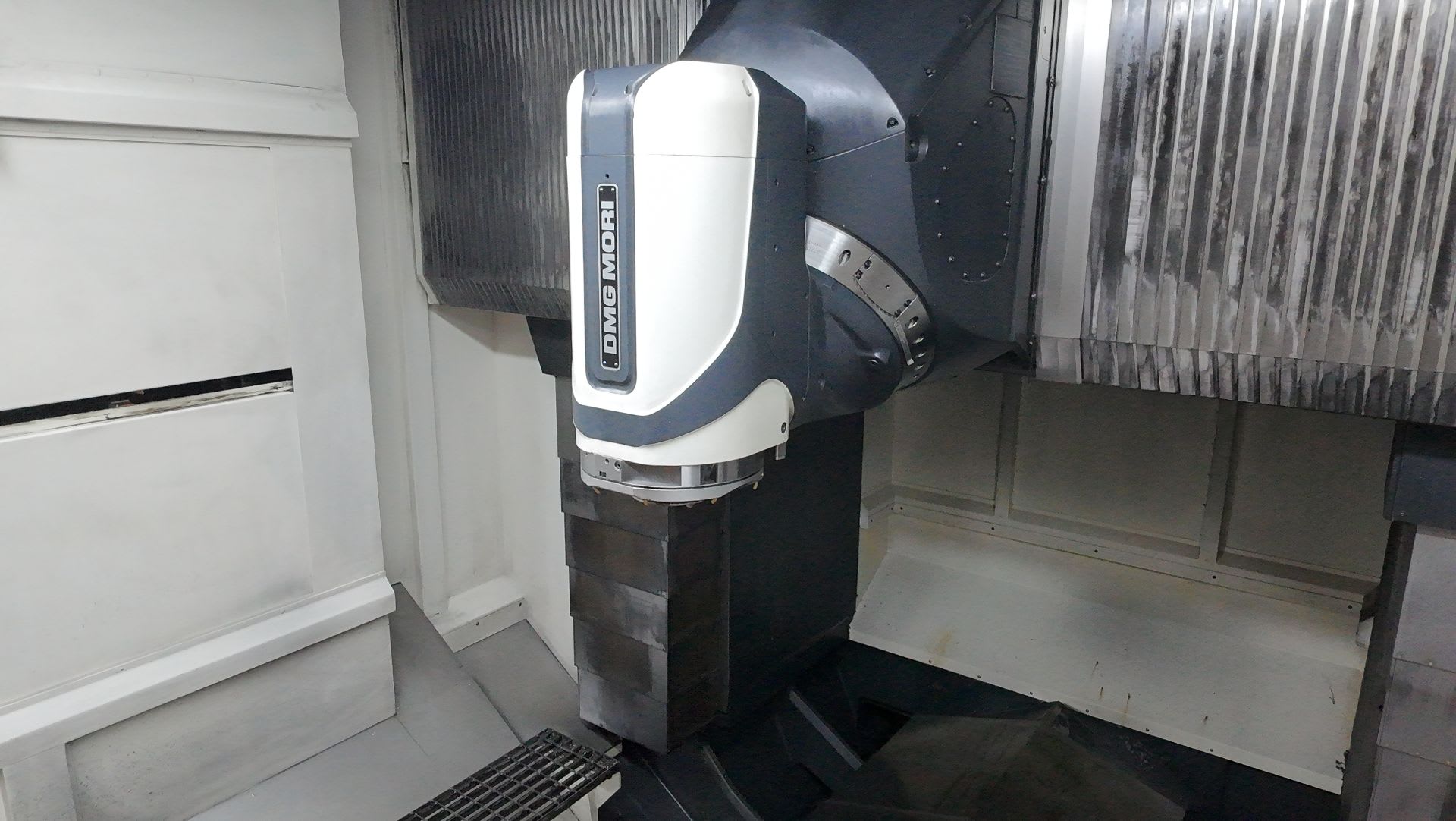

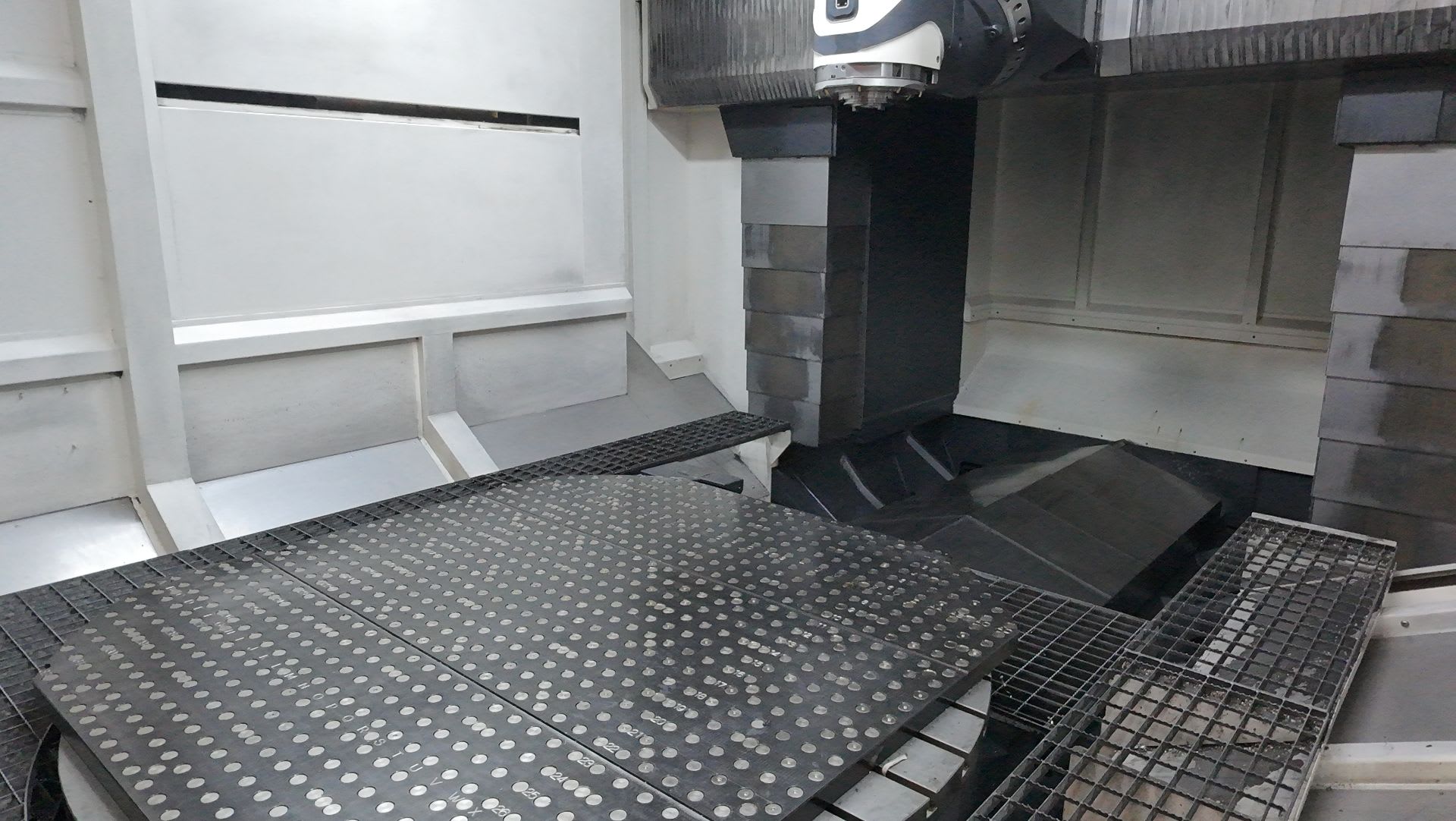

The machining center is equipped with a continuously positioning universal milling head with a controlled B-axis and an integrated motor spindle. The swivel range extends from the horizontal position to a maximum of 250°. Additionally, the machine is equipped with an NC rotary table Ø 1,700 mm with direct path measurement system and 360° positioning. The permissible table load is approximately 8,000 kg.

The SK50 motor spindle reaches speeds from 20 – 12,000 rpm with a power output of 52 kW / 42 kW and a torque of up to 430 Nm.

Tool magazine as a wheel magazine with 63 tool positions and double gripper.

Equipment includes, among others:

• IKZ high-pressure system 80 bar, frequency controlled

• Blow air through spindle center

• Blum Laser NT Hybrid tool measurement

• M&H infrared measuring probe

• 3D quickSET expansion package

• ACC active chatter suppression

• MPC Machine Protection Control

• Application Tuning Cycle ATC

• Oil and emulsion mist separator

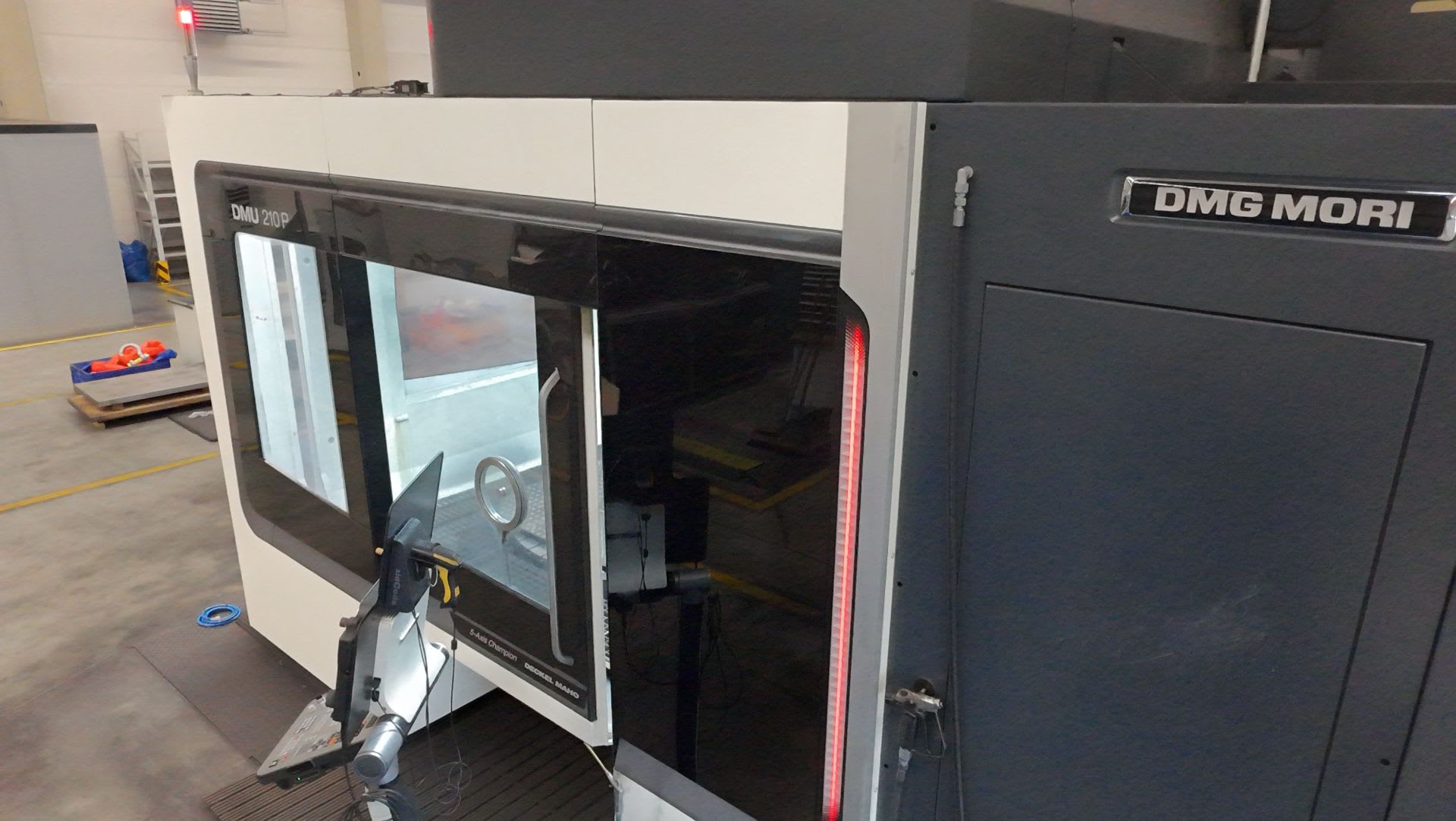

• Full protective cabin

• Chip conveyor

• 4-color signal lamp

• Virtual axis for TNC640

• RMS Relocation Machine Security

Machine design for installation in a pit (depth approx. 780 mm).

Feed rates up to 60,000 mm/min and rapid traverses up to 60 / 40 / 40 m/min.

Machine from industrial use with extensive equipment for demanding applications in tool, mold, and mechanical engineering.

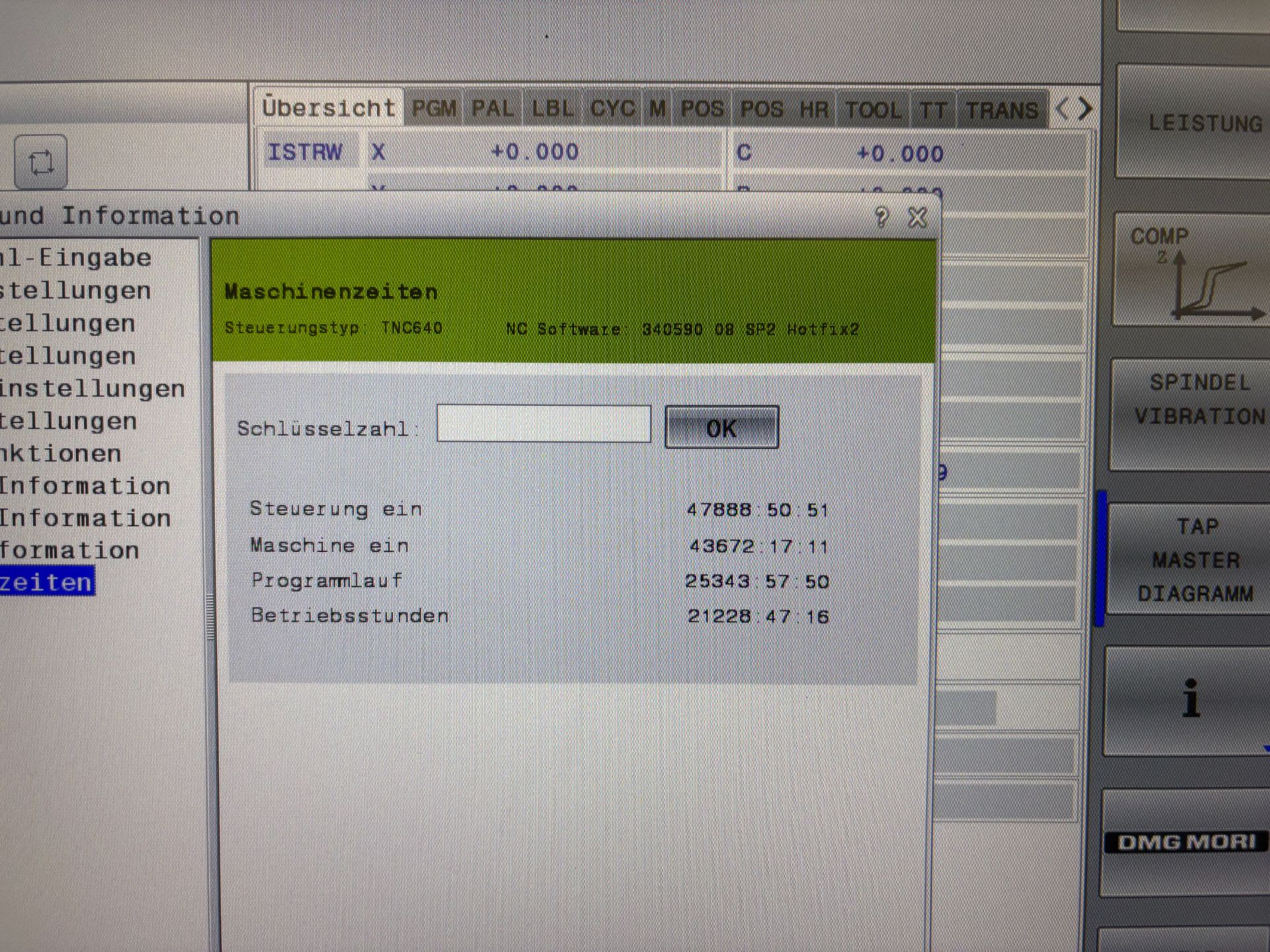

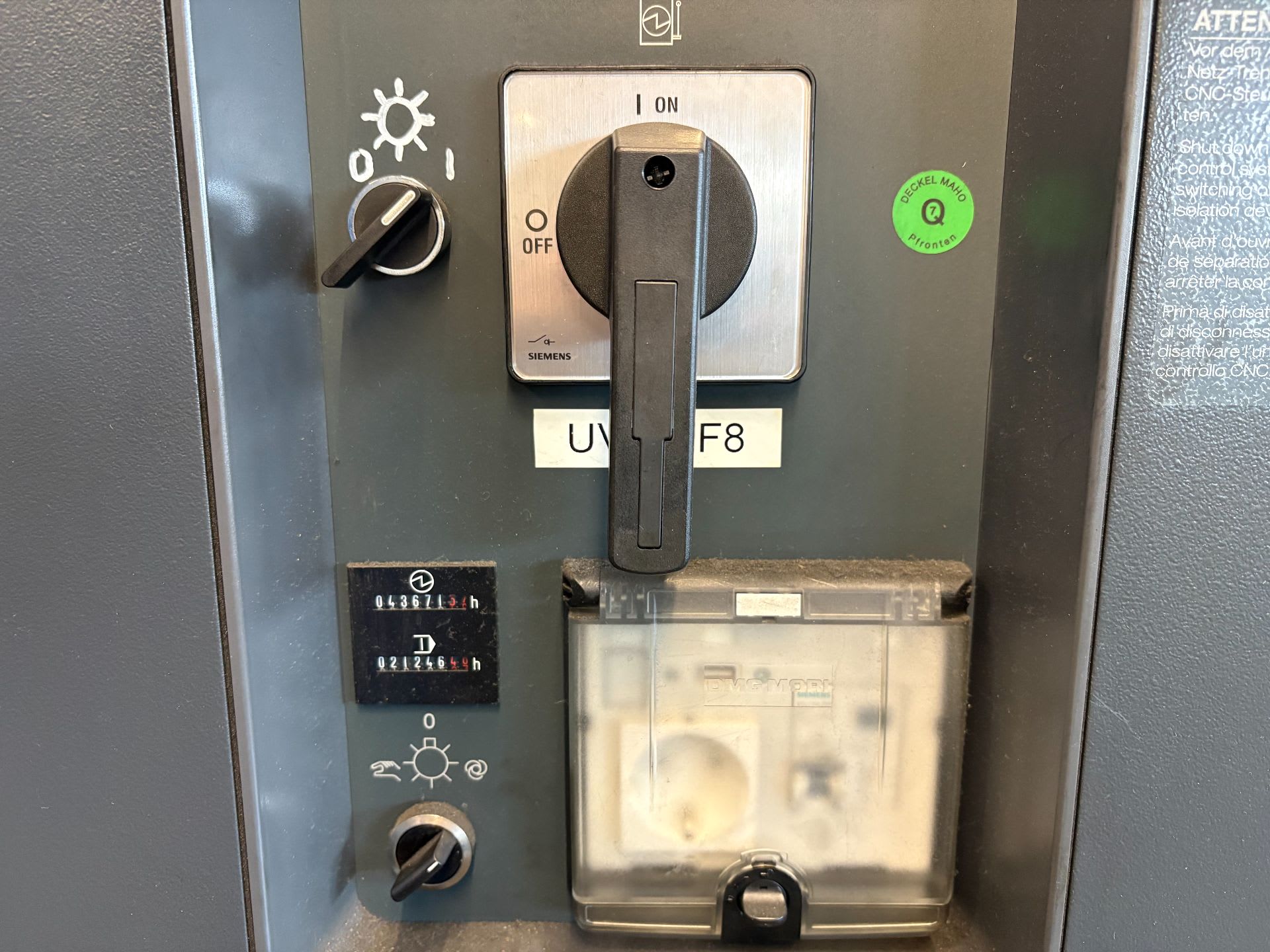

Control ON: 47,888 h - Operating hours: 21,228 h
