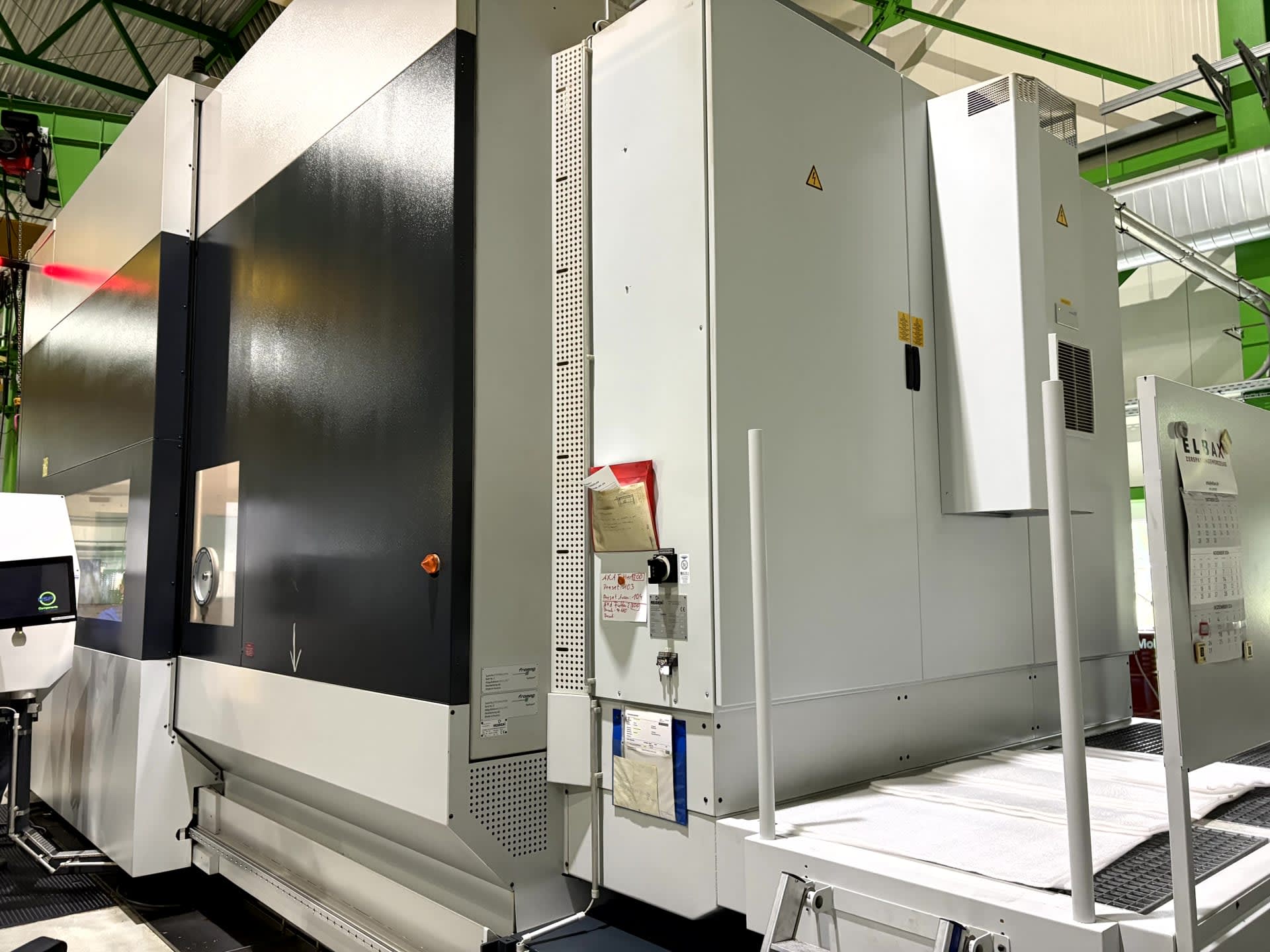

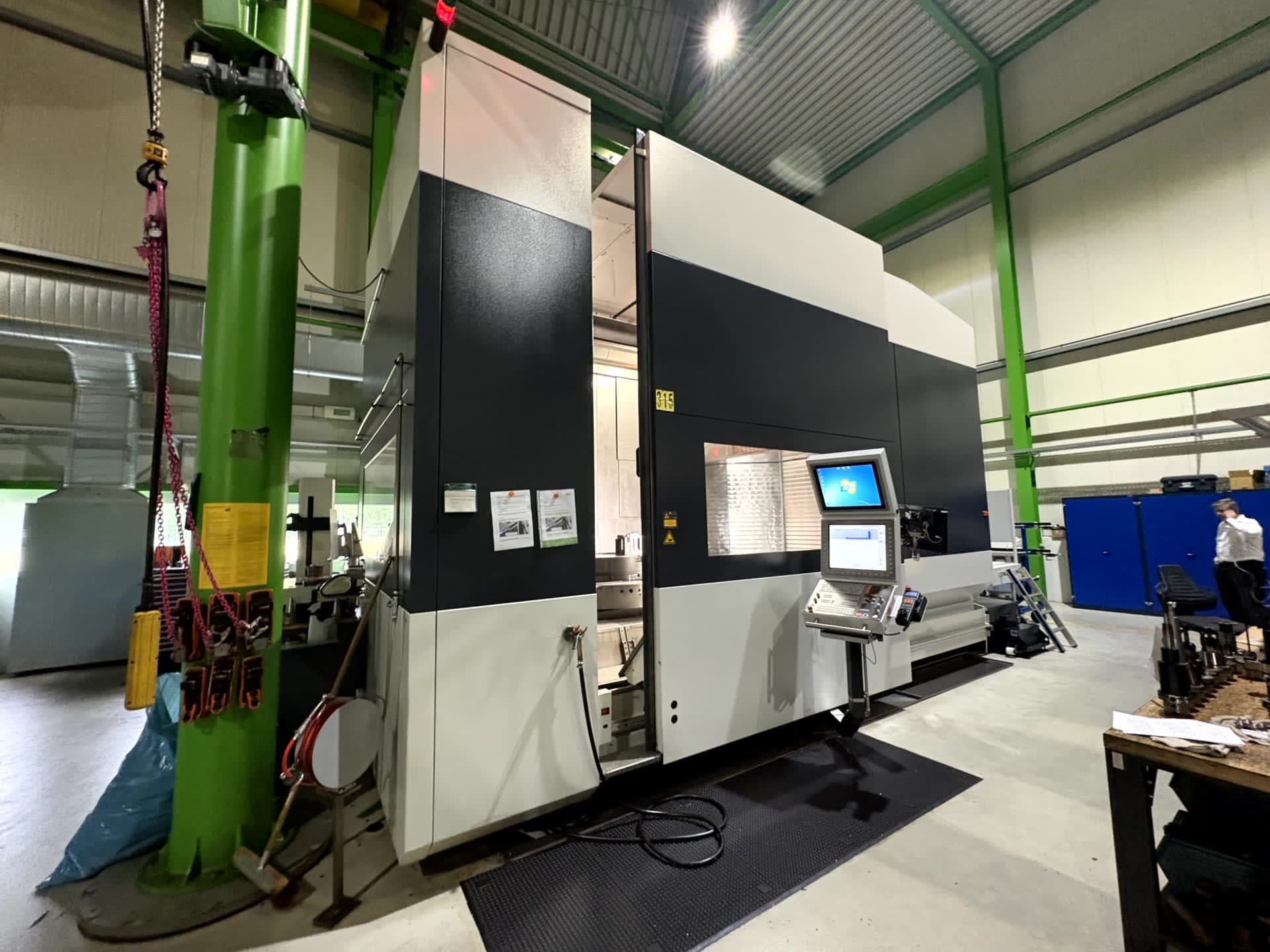

REIDEN RX18 CNC 5-Axis Machining Centre
Offer details
- Storage Number
- 26019-872
- Machine type
- 5-Axis Machining Centres
- Manufacturer
- REIDEN
- Type
- RX18
- Year of construction
- 2018
- Location
- Langenfeld, Germany
- Availability
- by arrangement
- Price
- On Request
Technical details
- Dimensions (LxWxH) approx.
- 10000 x 7500 x 5000 mm
- Movement A-axis
- 15 - 105 °
- Movement C-axis
- ≥ 360 °
- Tool holder type
- HSK A 100
- Travel X-axis
- ≥ 2200 mm
- Travel Y-axis
- ≥ 2200 mm
- Travel Z-axis
- ≥ 1610 mm
- Weight approx.
- 55,000 kg
Description

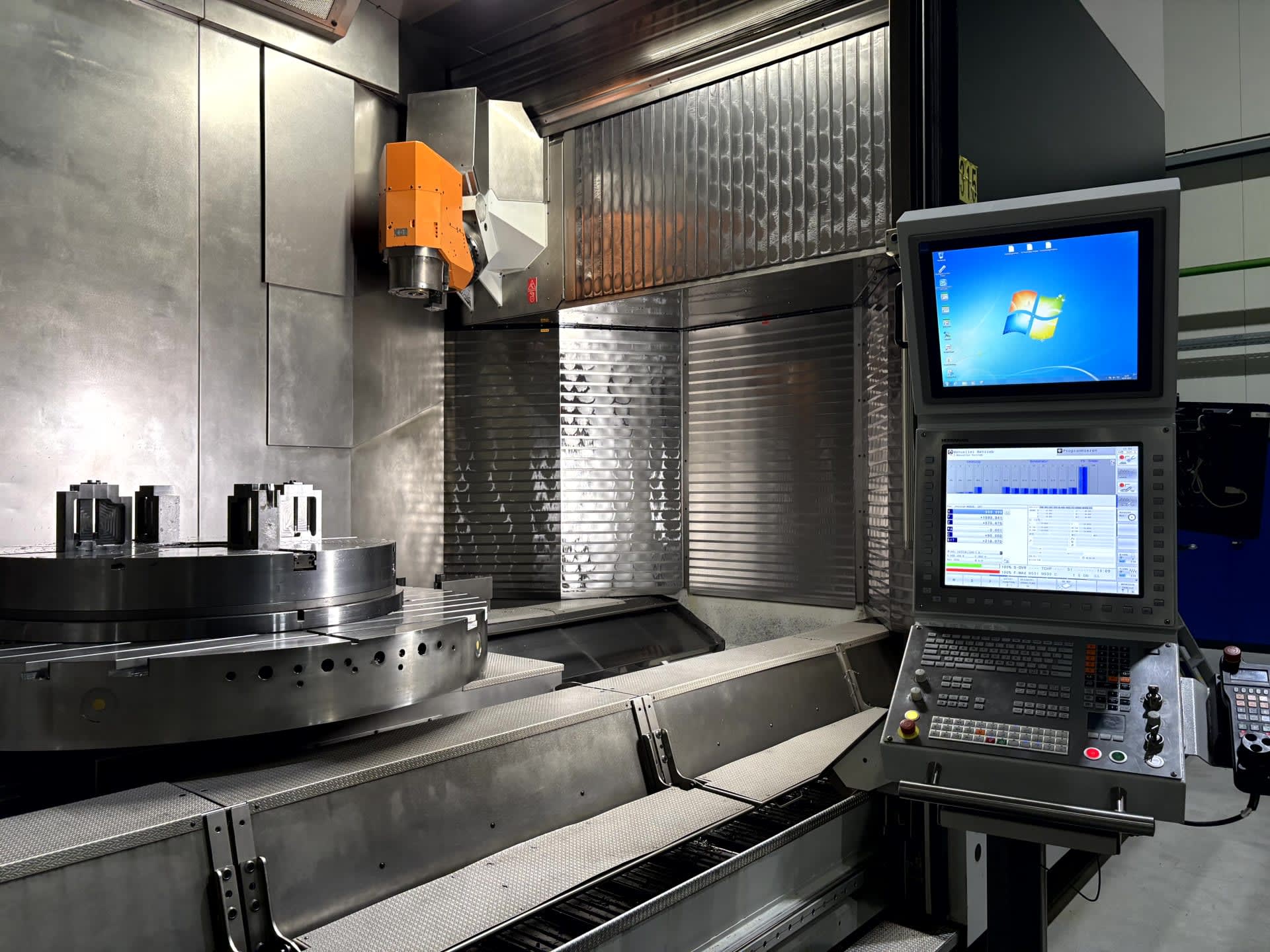

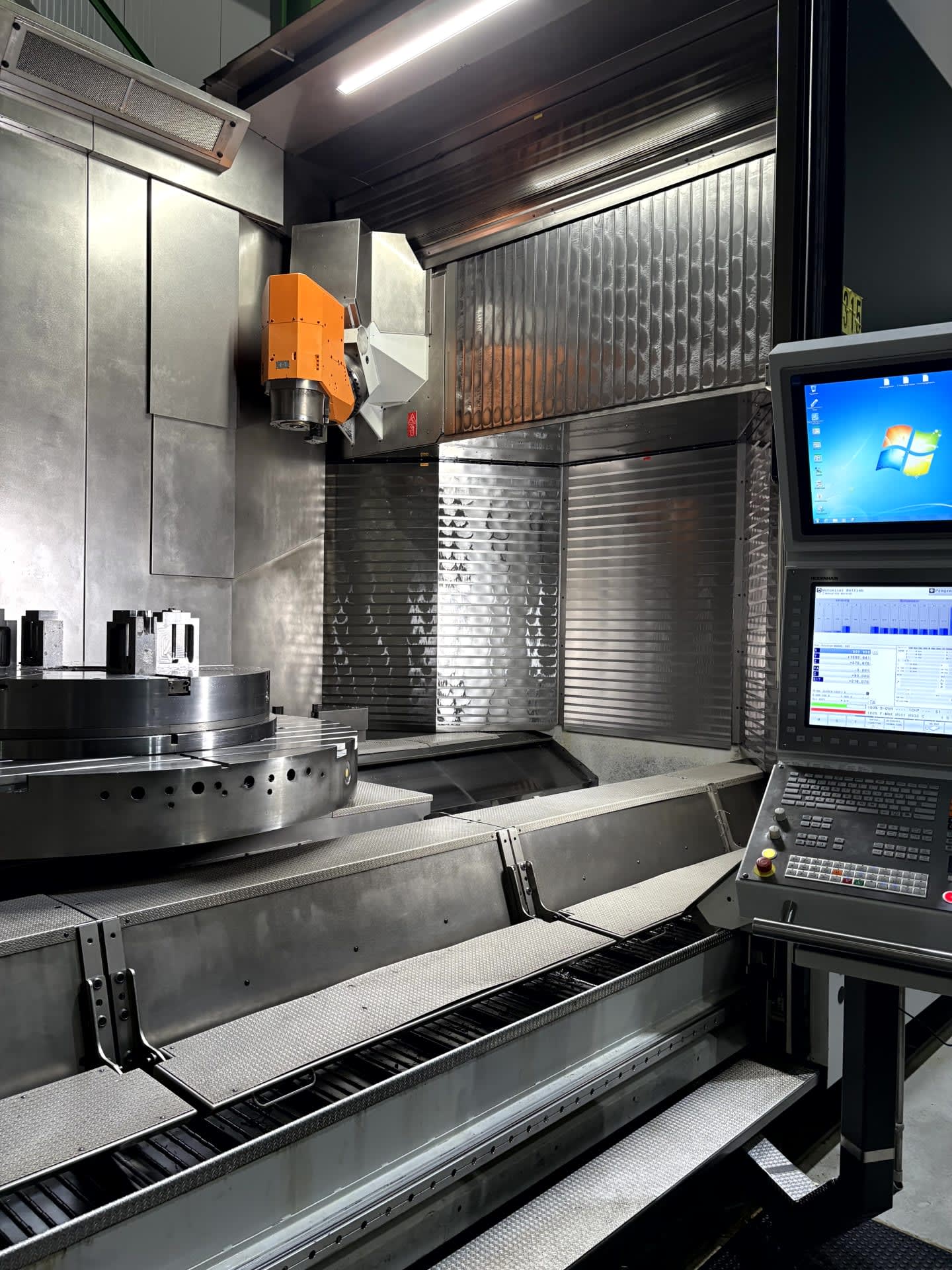

The REIDEN RX18 is a high-precision 5-axis CNC machining center with a trigon head and a NC rotary table Ø 1,800 mm. The swivel range of the milling head from -15° to +105° allows for the machining of complex workpieces in a single setup. The trigon head supports horizontal machining with constant load conditions on the linear axes, achieving high machining accuracy. In combination with the NC rotary table, milling and turning operations can be performed on one machine, reducing the need for repositioning.
X-axis travel: 2,200 mm
Y-axis travel: 2,200 mm
Z-axis travel: 1,610 mm
A-axis: -15° to +105° (Trigon head)
C-axis: 360° NC rotary table
Table diameter: 1,800 mm
Maximum table load: 8,000 kg
Maximum spindle speed: 15,000 rpm
Spindle power: 63 / 73 kW
Automatic tool changer (ATC): 200 positions
Tool interface: HSK-A100
Through-spindle coolant (TSC): 80 bar
Tool measuring: BLUM laser
Workpiece probing: m&h wireless probe

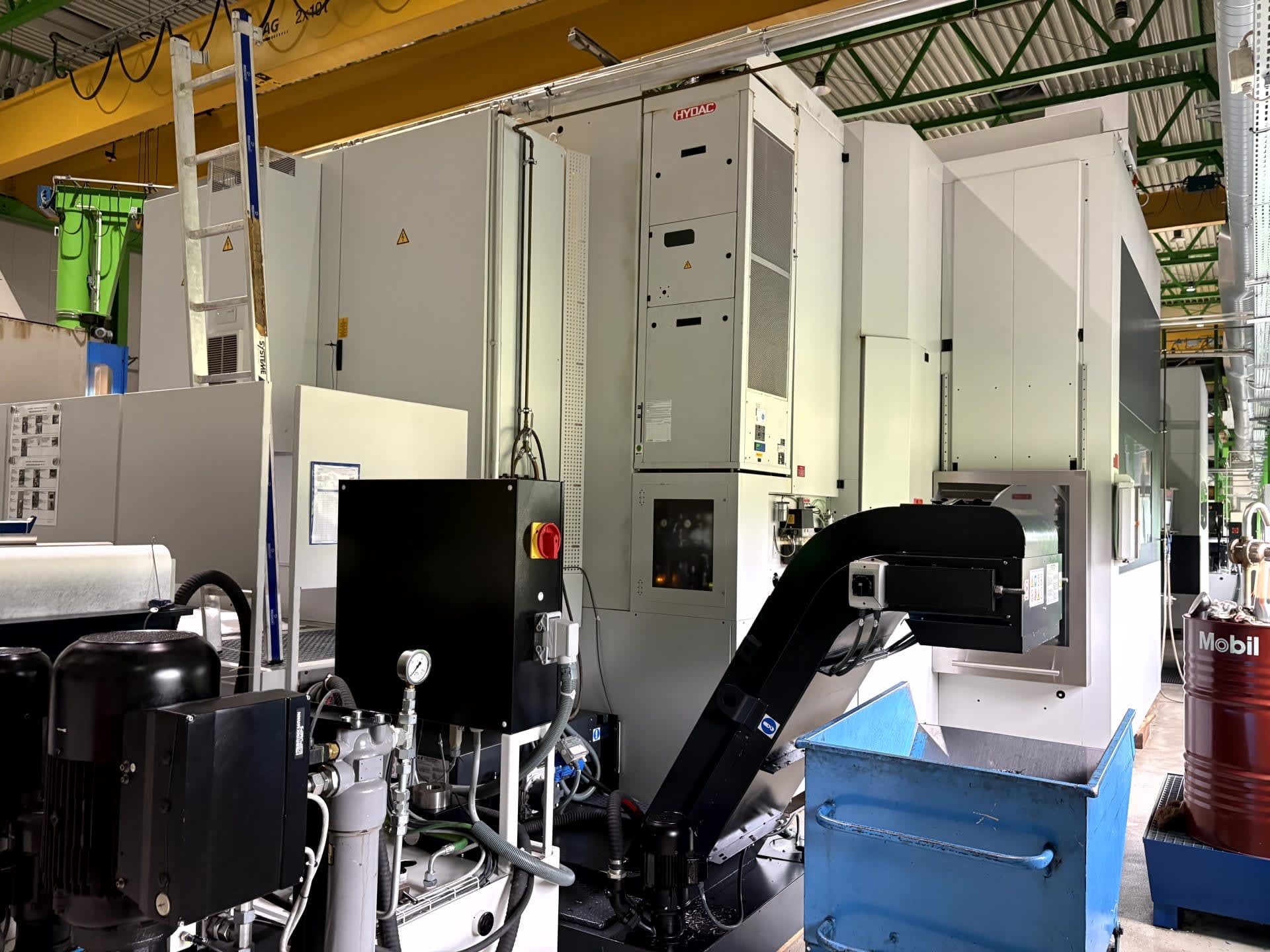

Chip conveyor: 4 plate-type chip conveyors
CNC control: HEIDENHAIN TNC 640
Control ON: 29,174 hrs
Machine ON: 26,880 hrs
Program Run Time: 13,916 hrs
Axis Active Time: 9,369 hrs
Spindle Running Time: 9,801 hrs
Additional information
- Transportation costs
- not included
- Terms of delivery
- EXW EX Works
- Terms of payment
- 100% prepayment before pick-up
