WALDRICH COBURG 17 S – 10 FP 300 CNC Portal Milling Machine
- Storage Number
- 26013-525
- Machine type
- Portal Milling Machines
- Manufacturer
- WALDRICH COBURG
- Type
- 17 S – 10 FP 300 CNC
- Year of construction
- 2016
- Location
- Rüsselsheim, Germany
- Availability
- immediately
- Documents
- Price
- This item is sold
- 5-axis machining
- yes
- Dimensions (LxWxH) approx.
- 16000 x 9000 x 8000 mm
- Movement B-axis
- ≤ 180 °
- Passage between the uprights
- 3,500 mm
- Tool holder type
- ISO 50
- Travel W-axis
- ≥ 800 mm
- Travel X-axis
- ≥ 5700 mm
- Travel Y-axis
- ≥ 3500 mm
- Travel Z-axis
- ≥ 2050 mm
- Weight approx.
- 300,000 kg
Waldrich Coburg 17 S-10 FP 300 NC / 5 m – CNC Gantry Milling Machine
Machine: 17-10 FP 300 NC / 5 m

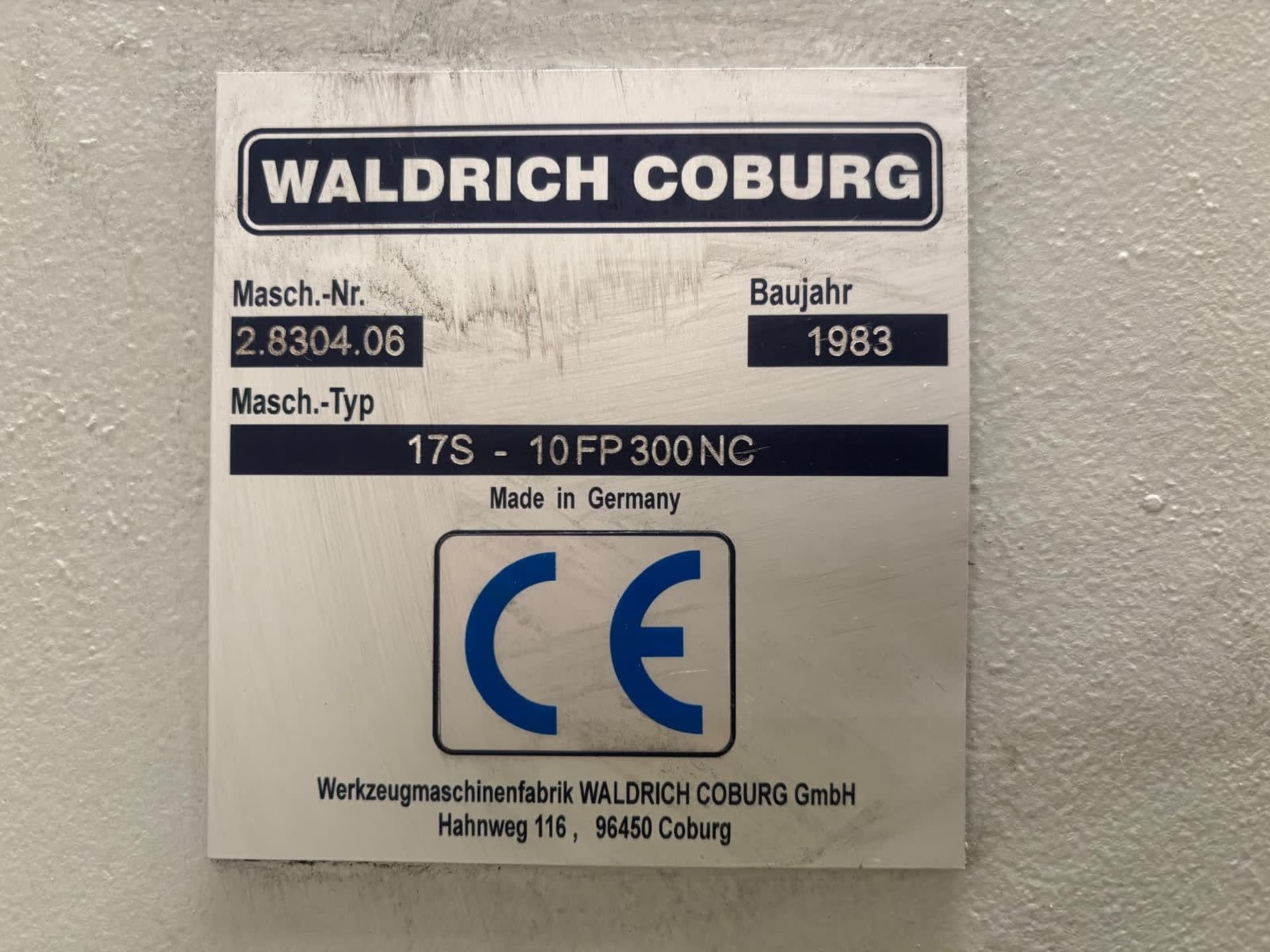

Serial Number: 2.8304.06
Original Year of Manufacture: 1983
In 2016, it was comprehensively overhauled and modernized by the manufacturer Waldrich Coburg. The machine is equipped with a modern Siemens SINUMERIK 840D sl control system and is ideally suited for heavy-duty machining of large and complex workpieces in machine, tool, mold, and power plant construction.

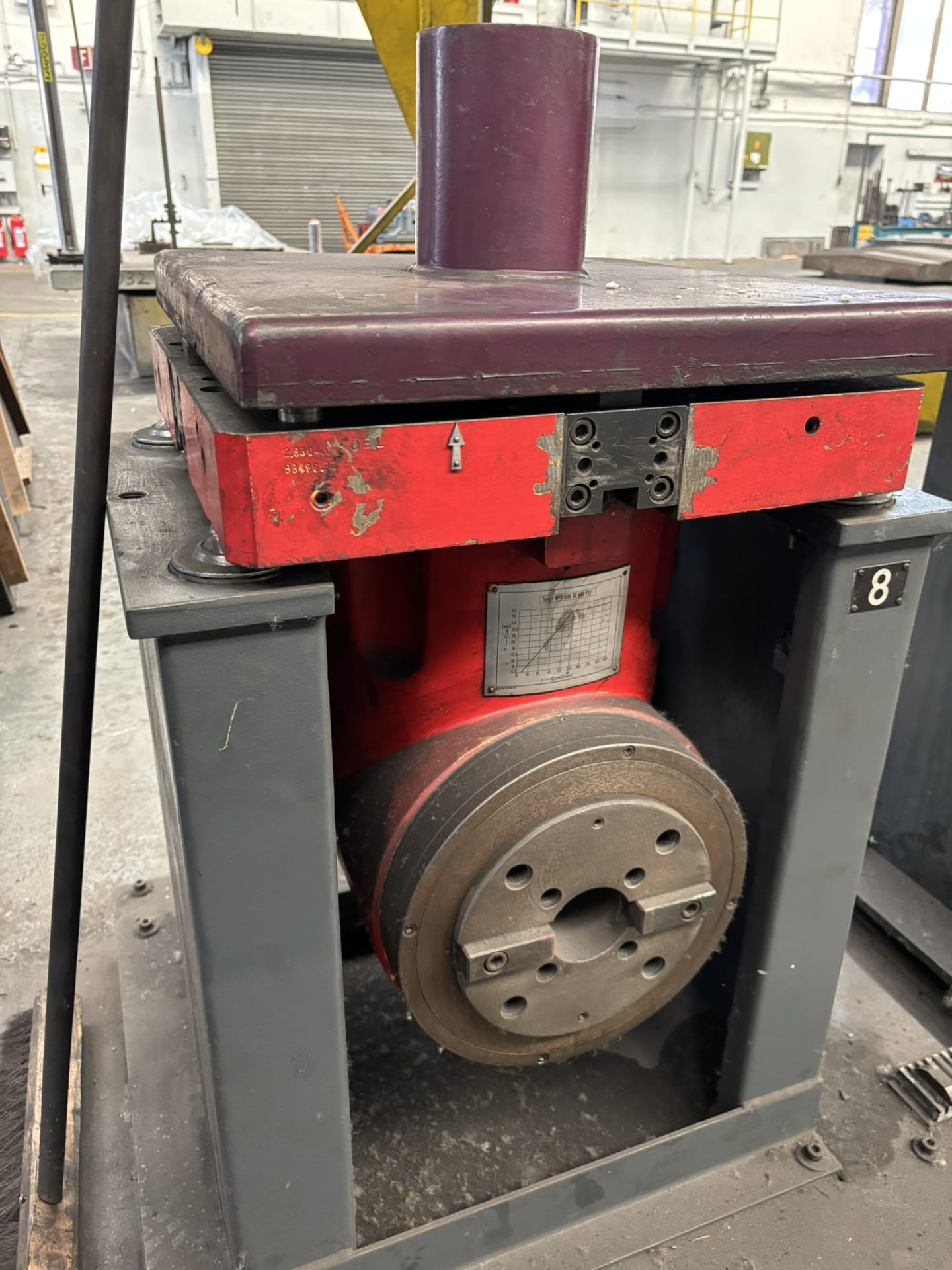

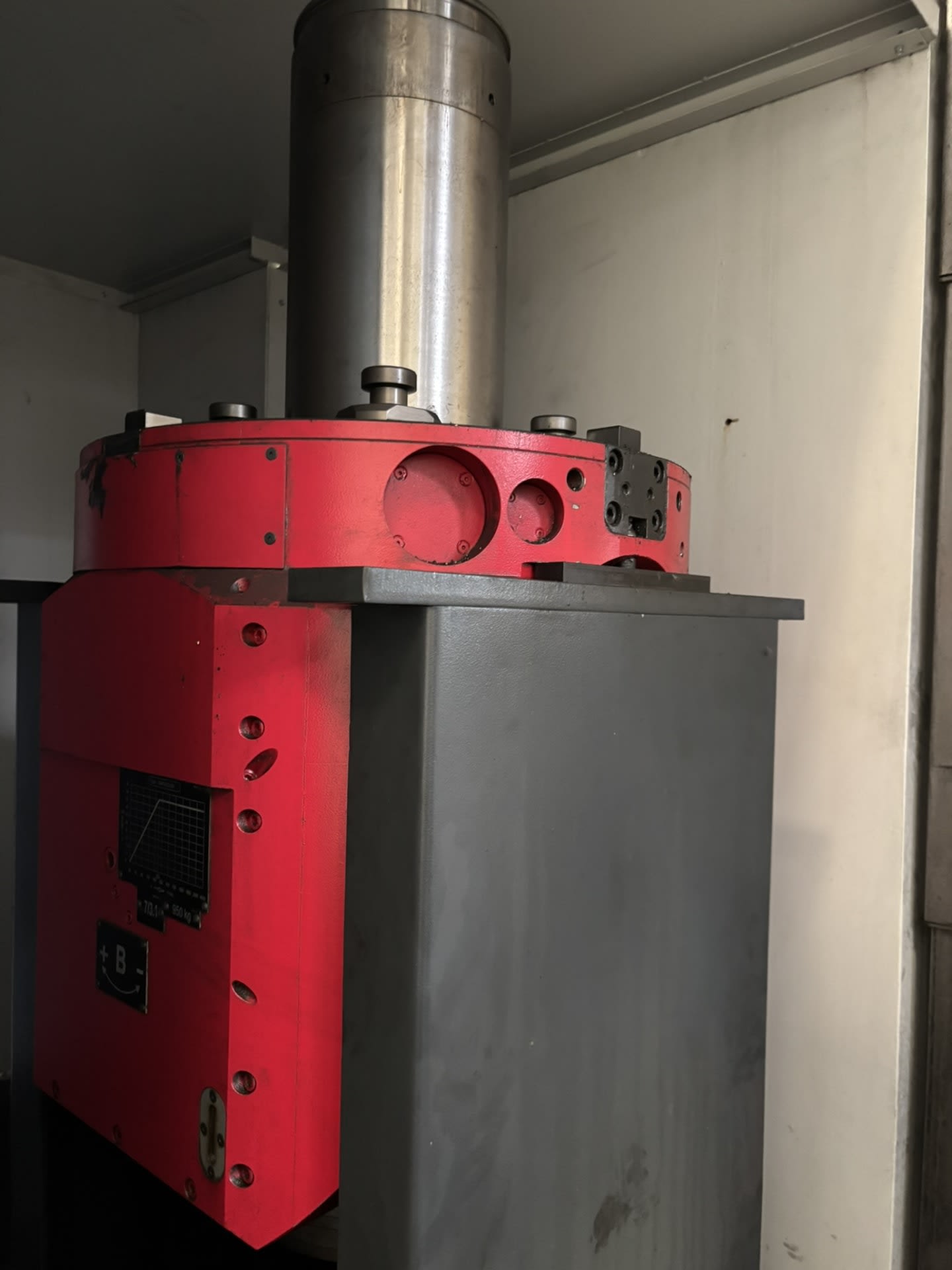

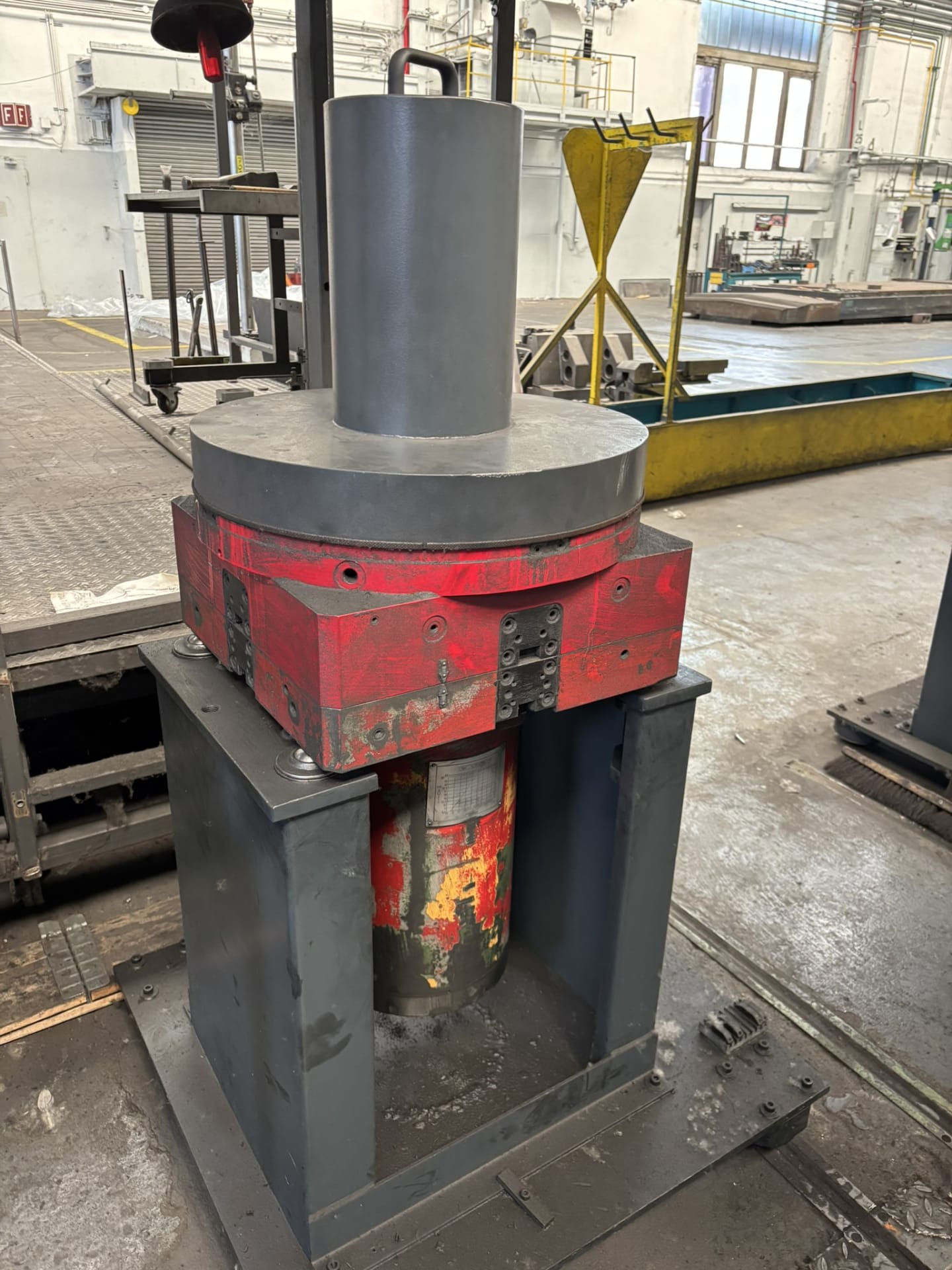

The delivery includes a Universal Fork Milling Head USP 300 C 350 with B-axis as well as an additional Angle Milling Head WFU 500 SZ 400 F17, ensuring versatile machining capabilities for demanding milling tasks.

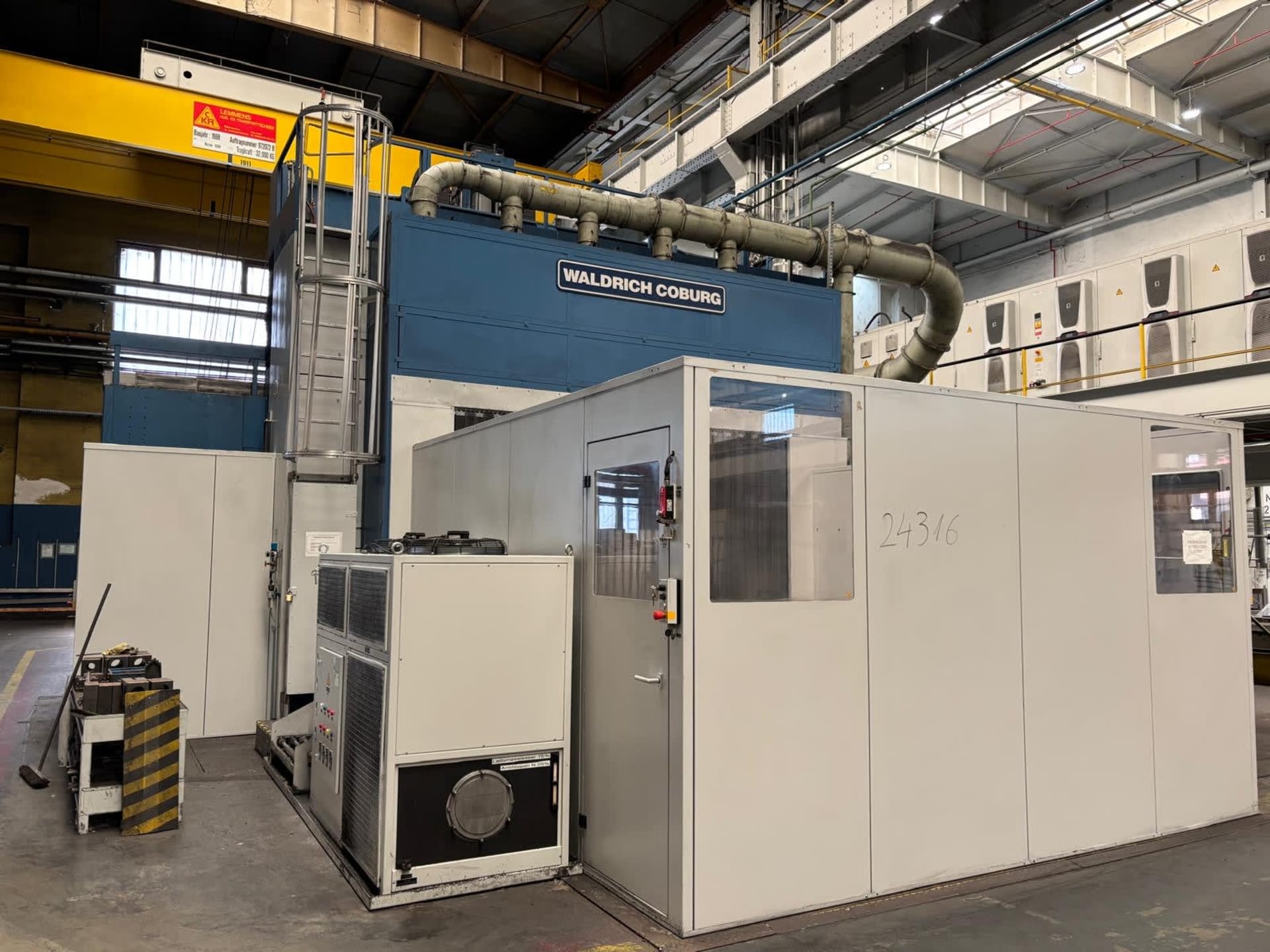

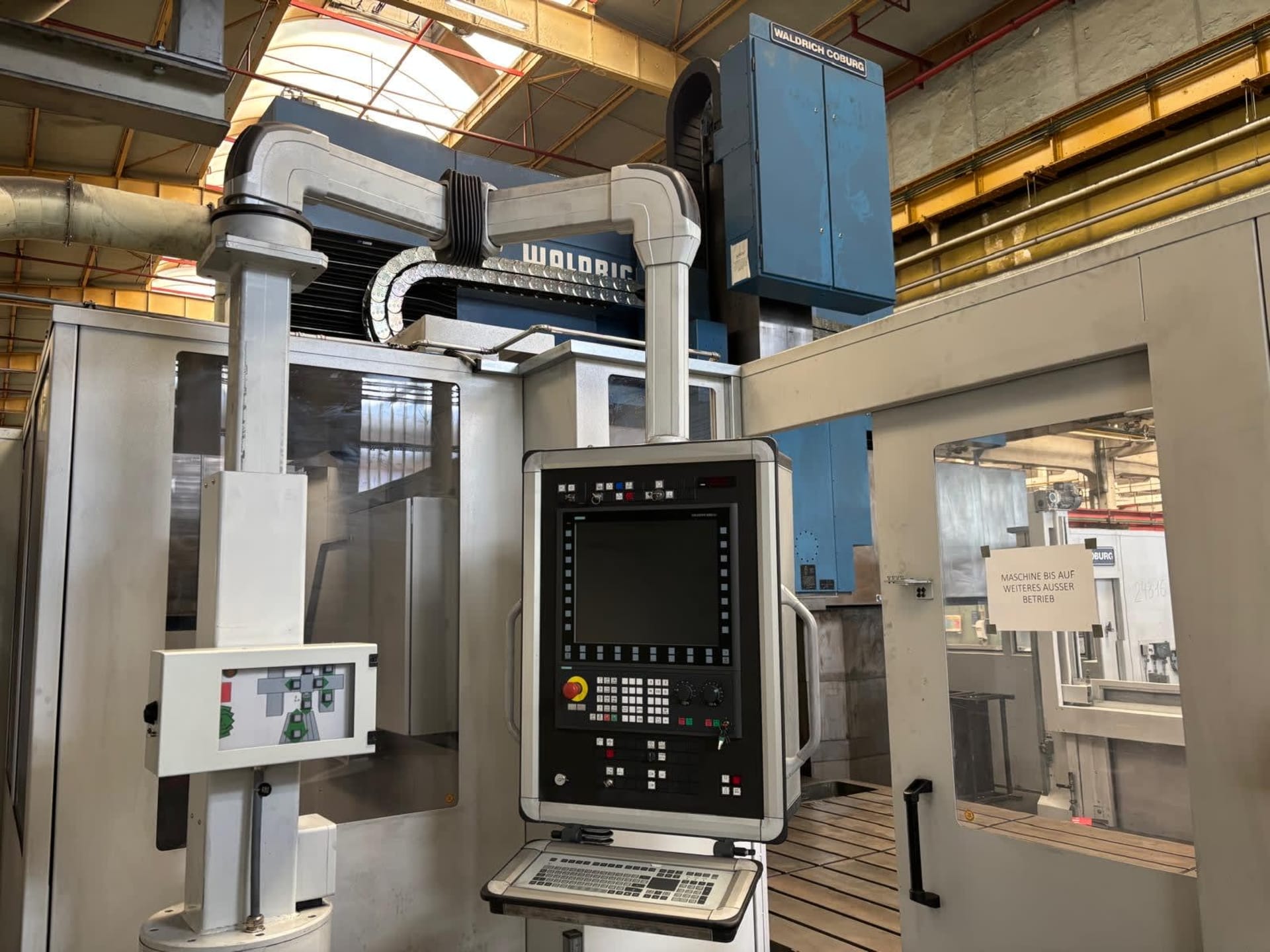

The machine features a modern full protective enclosure, coolant system, chip conveyor technology, and extensive technical documentation including circuit diagrams and overhaul documentation.
The system has been professionally dismantled and packed in containers.
It is located at the Port of Hamburg and is immediately available and ready for worldwide shipment.
Manufacturer: Waldrich Coburg
Overhauled by Waldrich Coburg (2016)

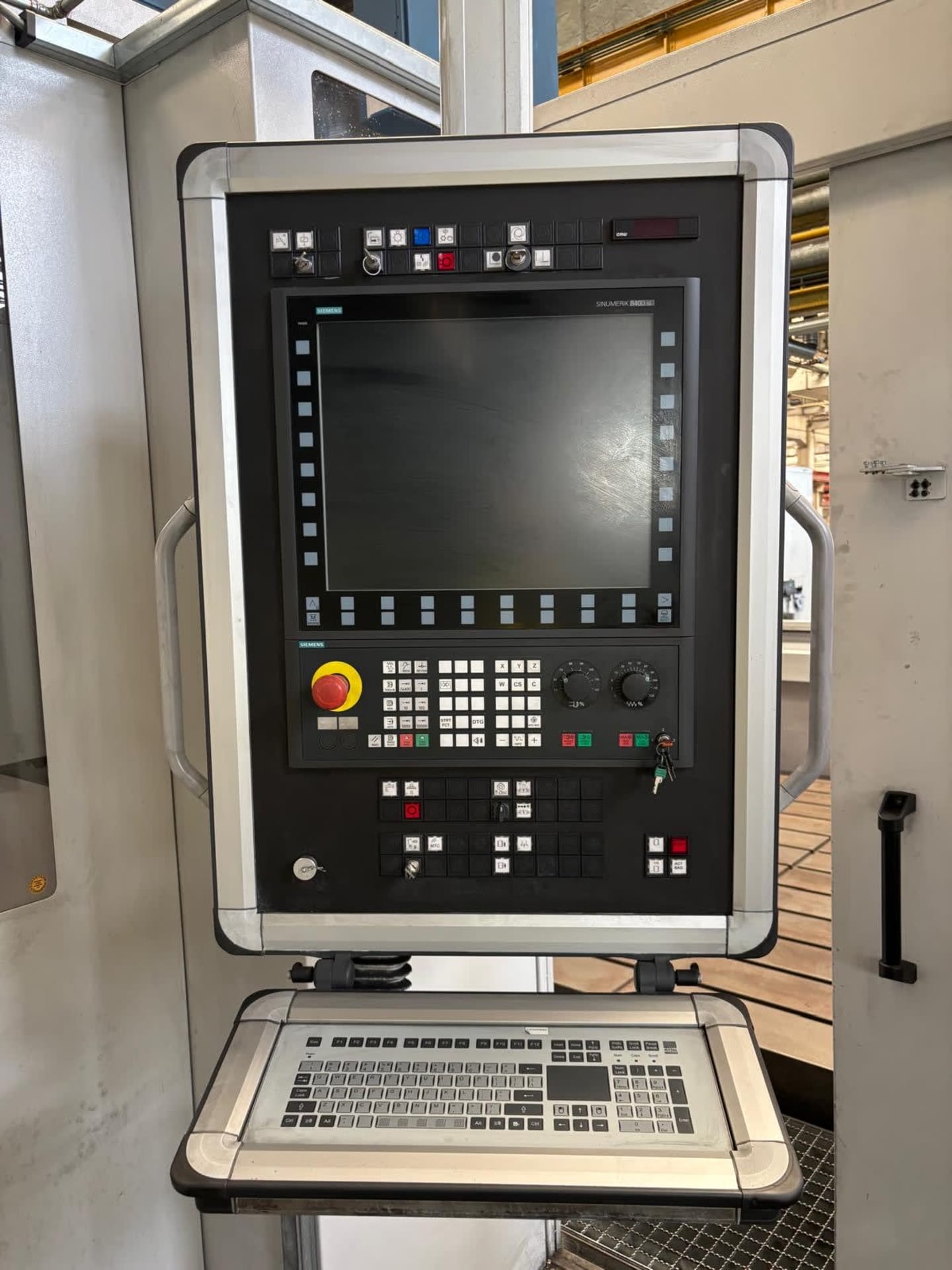

Siemens SINUMERIK 840D sl

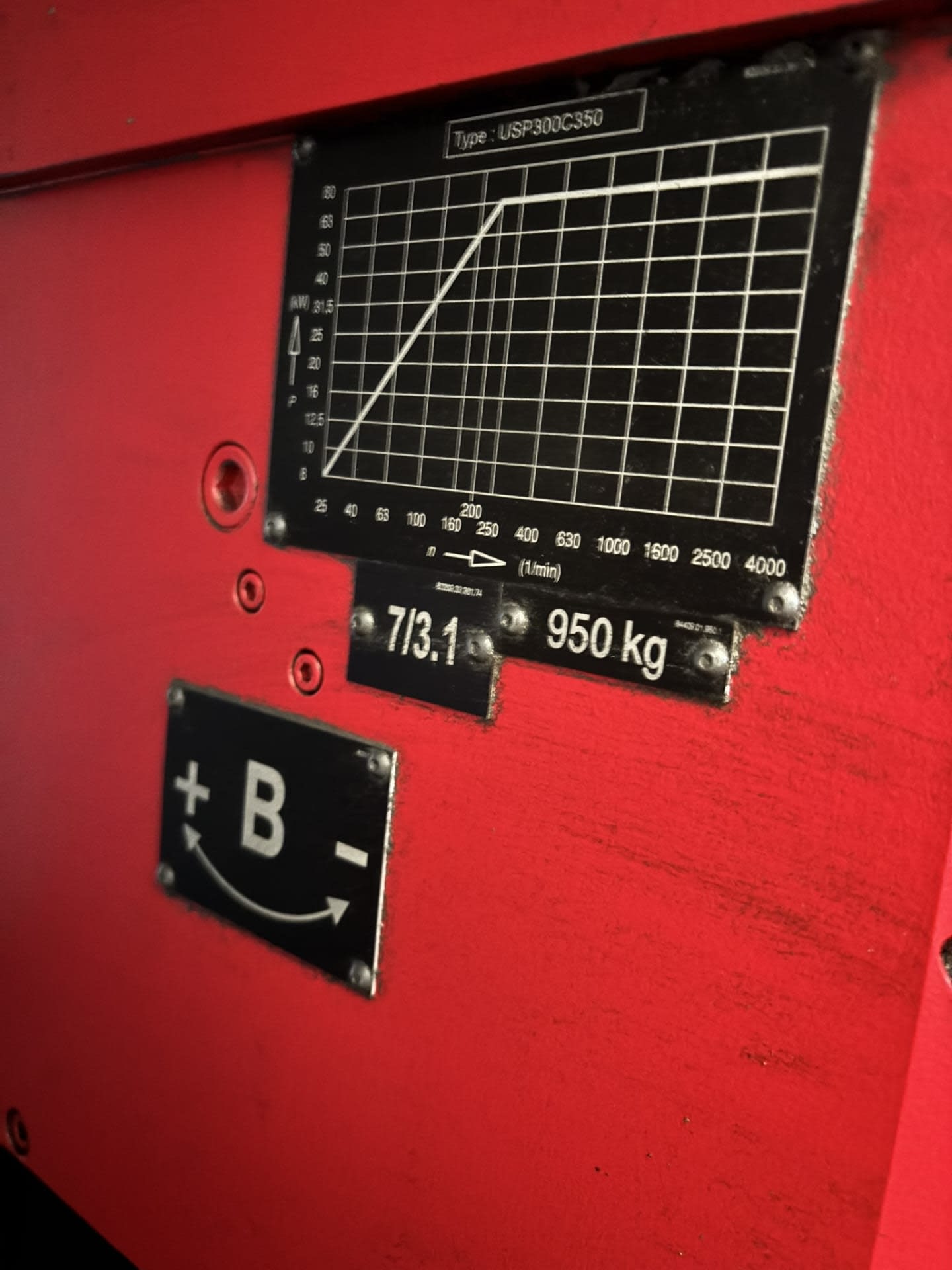

Universal Fork Milling Head USP 300 C 350

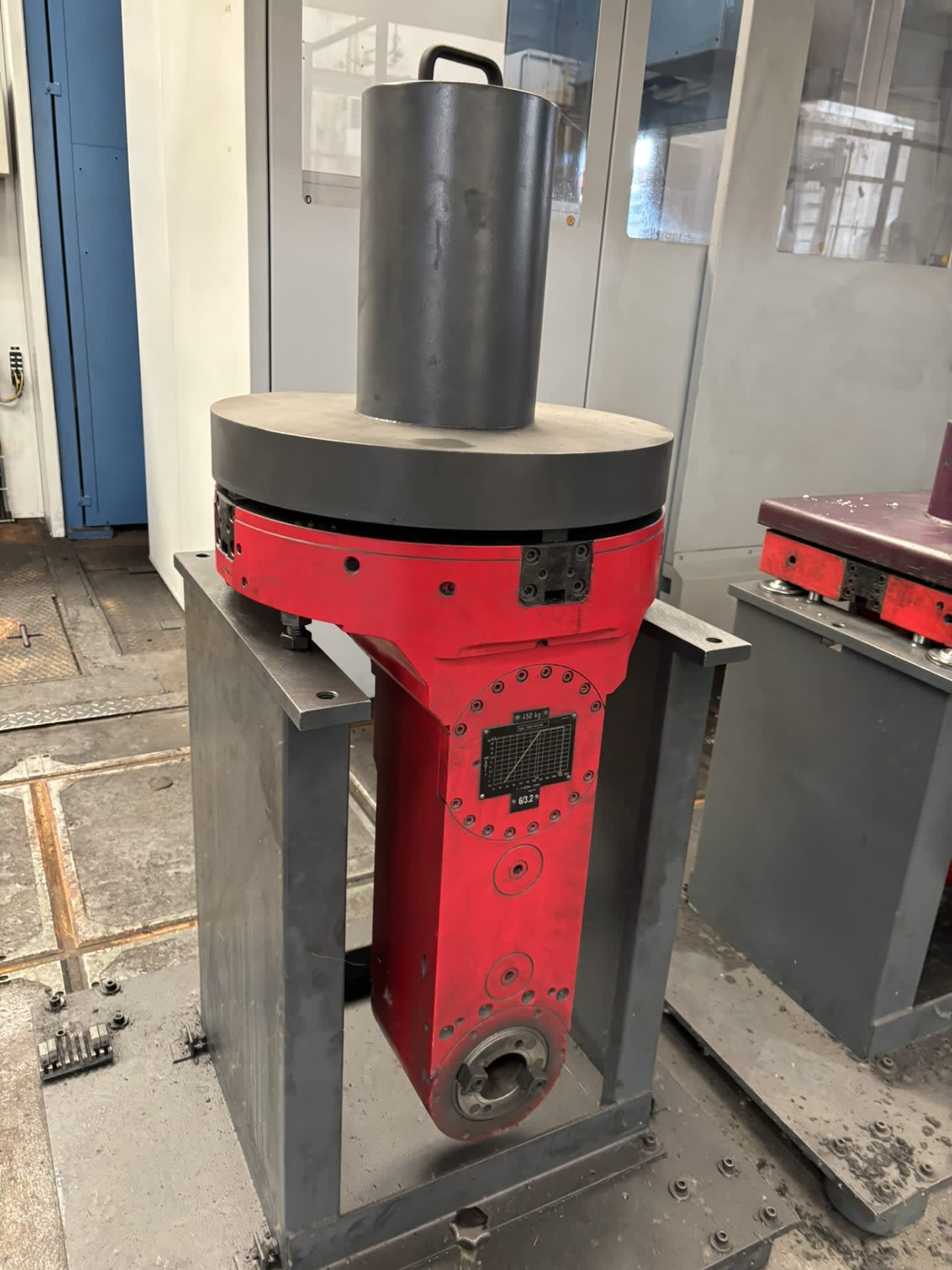

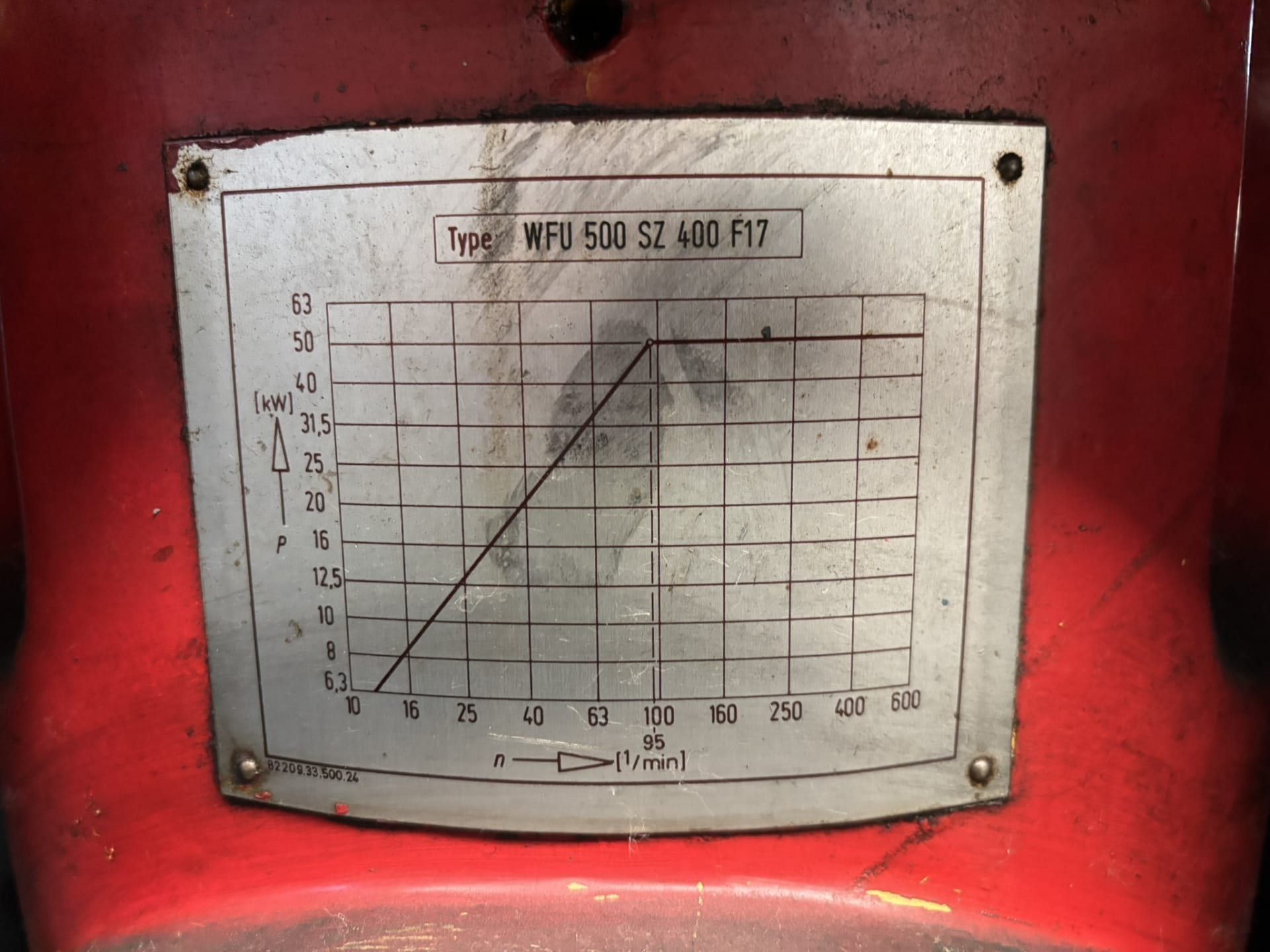

Additional Angle Milling Head WFU 500 SZ 400 F17
Workpiece weight up to 100 t
Full protective enclosure
Extensive technical documentation available
Dismantled and ready for loading
Location: Port of Hamburg, Germany
Immediately available
- Transportation costs
- not included
- Terms of delivery
- FOB Free On Board
- Terms of payment
- 100% prepayment before pick-up
Transportation costs are not included in the used milling machine price; terms of delivery and payment are stated under "Additional information" in each listing. You should also budget for installation and commissioning at the new site. In most cases, the buyer is responsible for organizing the transport; upon request, ReMach can check whether transport can be arranged or supported. ReMach also helps with dismantling, loading and export paperwork.
Choose the control your operators already know and that is compatible with your existing programs and CAM post-processors. On European machines the most common controls are Heidenhain (TNC, conversational Klartext programming), Siemens SINUMERIK and FANUC. The control version determines the available functions, such as 5-axis cycles, and the availability of spare parts.
The five axes are three linear axes, X, Y and Z, plus two rotary axes, usually two of A, B or C depending on the machine design. In 3+2 machining the rotary axes tilt the part to the required angle before the linear axes cut; in simultaneous 5-axis machining all five move together for complex freeform surfaces. A swivel head suits large, heavy parts, while a swivel-rotary table limits part size and weight to the table.
Choose by the size, weight and shape of your parts. A vertical machining centre suits small and medium parts in series; a portal milling machine handles large, heavy parts such as moulds and machine beds; a bed-type milling machine, with its table on a fixed bed, offers the rigidity for long parts and heavy cutting. A 5-axis machine is for complex parts machined on several sides with few set-ups, while a horizontal boring mill suits large prismatic parts with precise bores on several faces.
A machining centre is a CNC milling machine with a tool magazine and an automatic tool changer. This lets it perform milling, drilling, tapping and boring in one set-up without manual tool changes. The number of magazine positions in the listing shows how many tools a part can use.
This item is sold
