AXA VPC 2800 U CNC Gantry machining centre
- Storage Number
- 26019-874
- Machine type
- Portal Milling Machines
- Manufacturer
- AXA
- Type
- VPC 2800 U
- Year of construction
- 2011
- Location
- Langenfeld, Germany
- Documents
- Price
- On Request
- 5-axis machining
- yes
- Control
- HEIDENHAIN iTNC 530 HSCI
- Dimensions (LxWxH) approx.
- 9500 x 8000 x 5200 mm
- Movement B-axis
- ≥ 90 °
- NC rotary table
- yes
- Travel X-axis
- ≥ 3900 mm
- Travel Y-axis
- ≥ 2940 mm
- Travel Z-axis
- ≥ 1100 mm
- Weight approx.
- 50,000 kg
Working Area
X-axis travel 3,900 mm
Y-axis travel 2,940 mm
Z-axis travel 1,100 mm

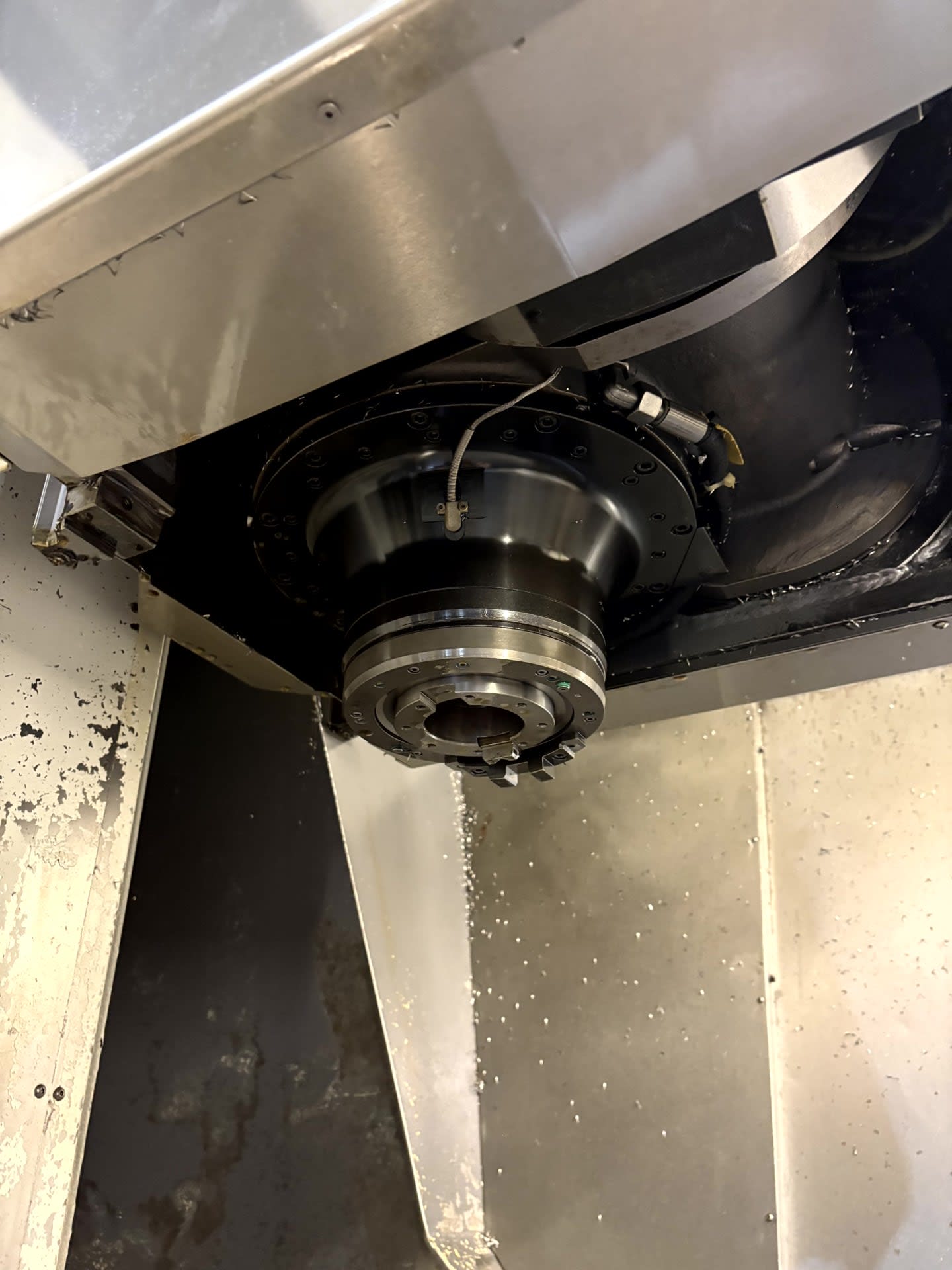

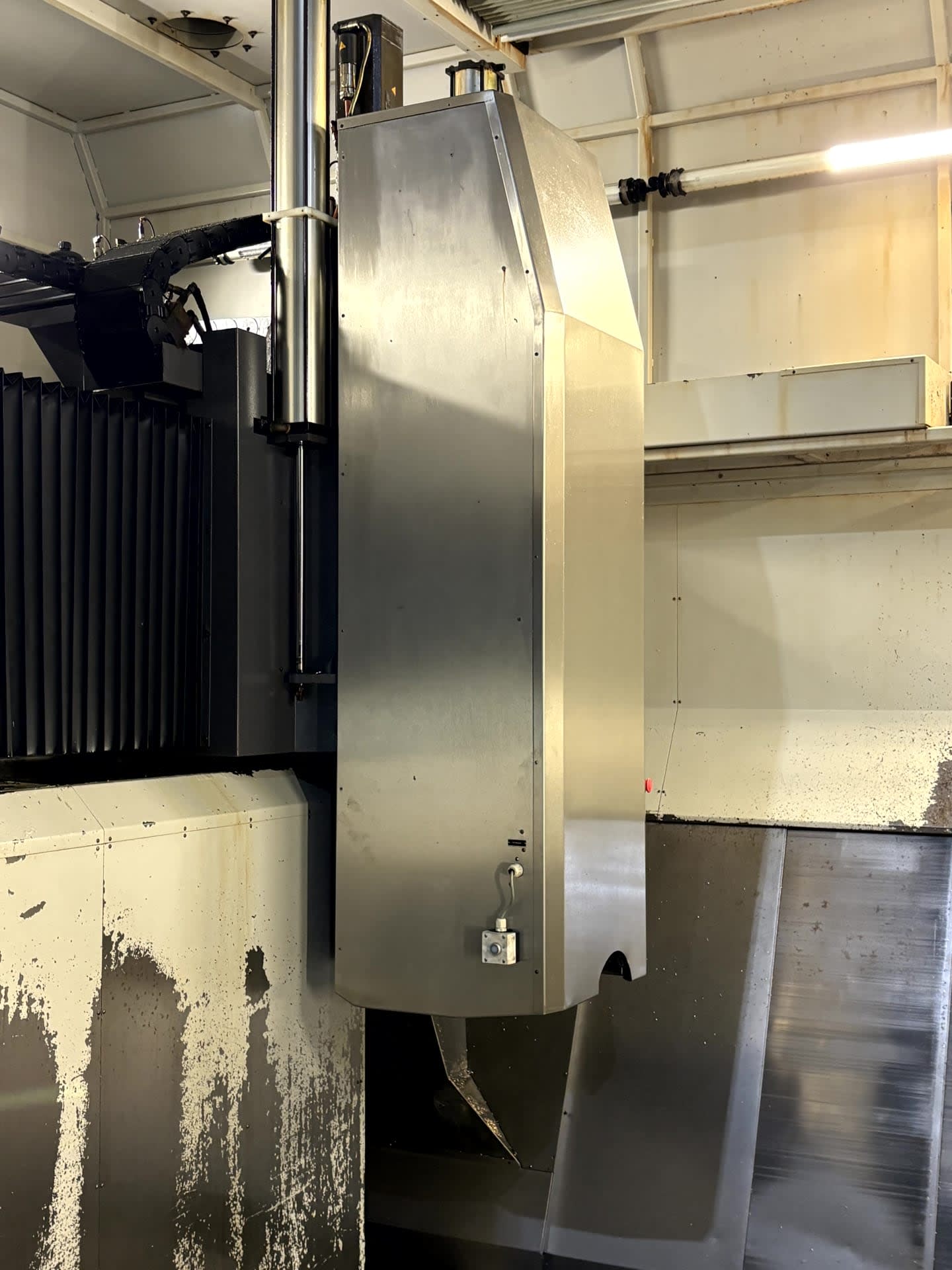

B-axis (swivel head) 90° freely interpolating

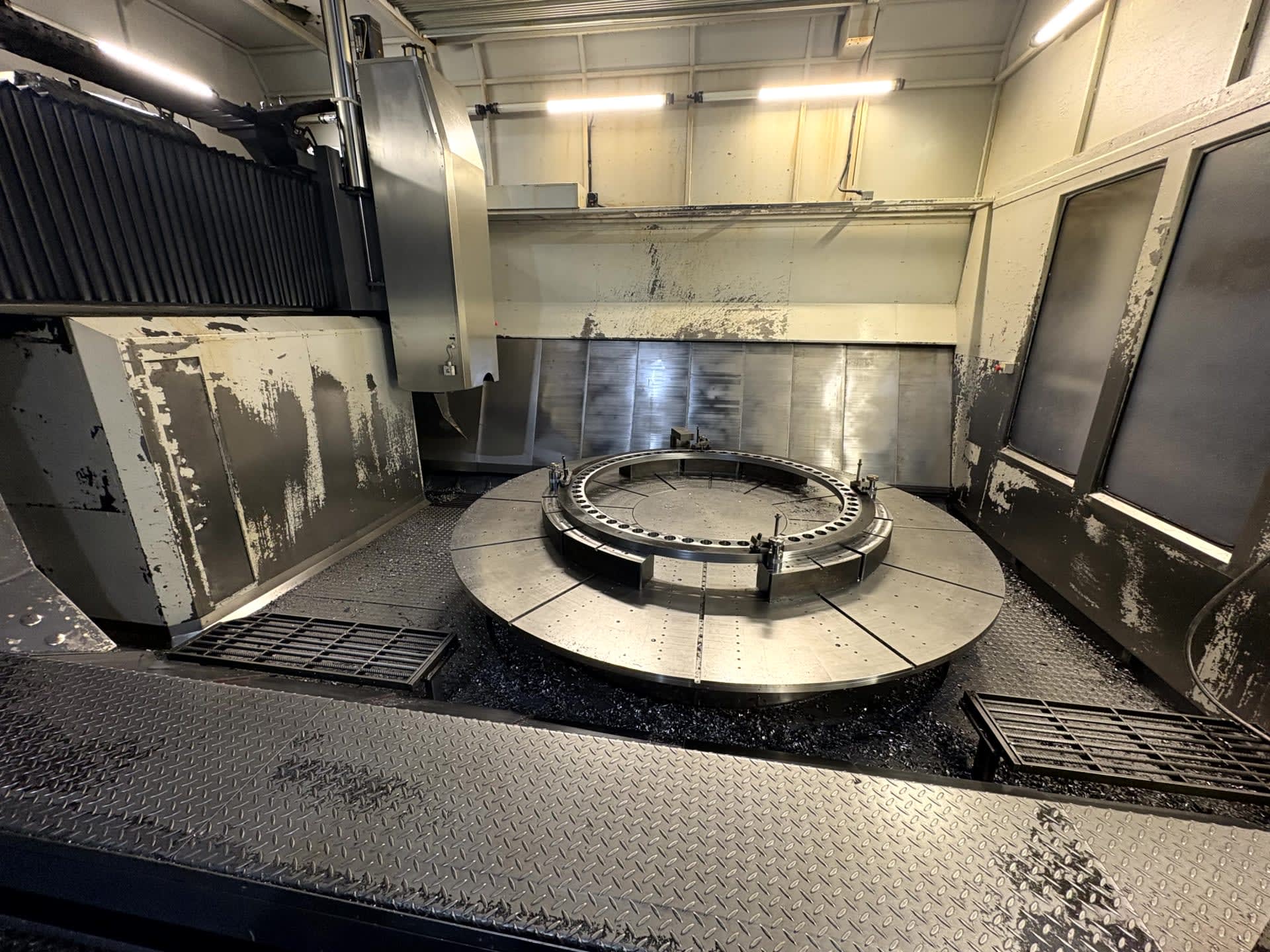

NC rotary table Ø 2,800 mm
Max. workpiece weight 15,000 kg
Spindle

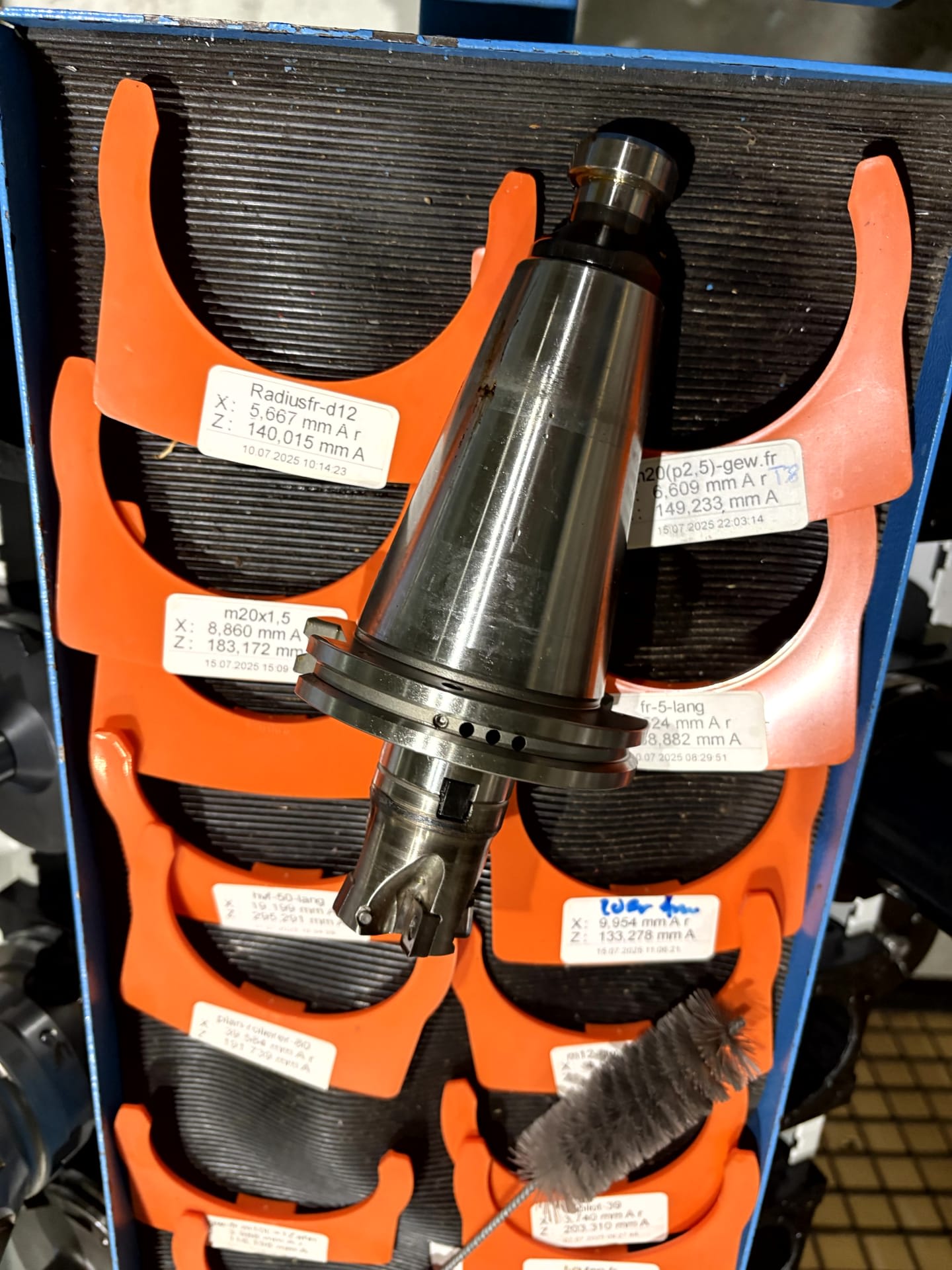

Tool holder SK 50
Spindle power 63 kW
Max. torque 200 Nm
Max. speed 6,000 min⁻¹
Feed
Rapid traverse X/Y/Z 30 / 30 / 25 m/min
Feed force 9,000 N
Tool magazine
Tool positions 20
Max. tool diameter 110 mm
With free adjacent positions 180 mm
Max. tool length 400 mm
Rotary Table
Clamping surface Ø 2,800 mm
Max. transport load 15,000 kg
Tangential moment 40,000 Nm
Tilting moment 90,000 Nm

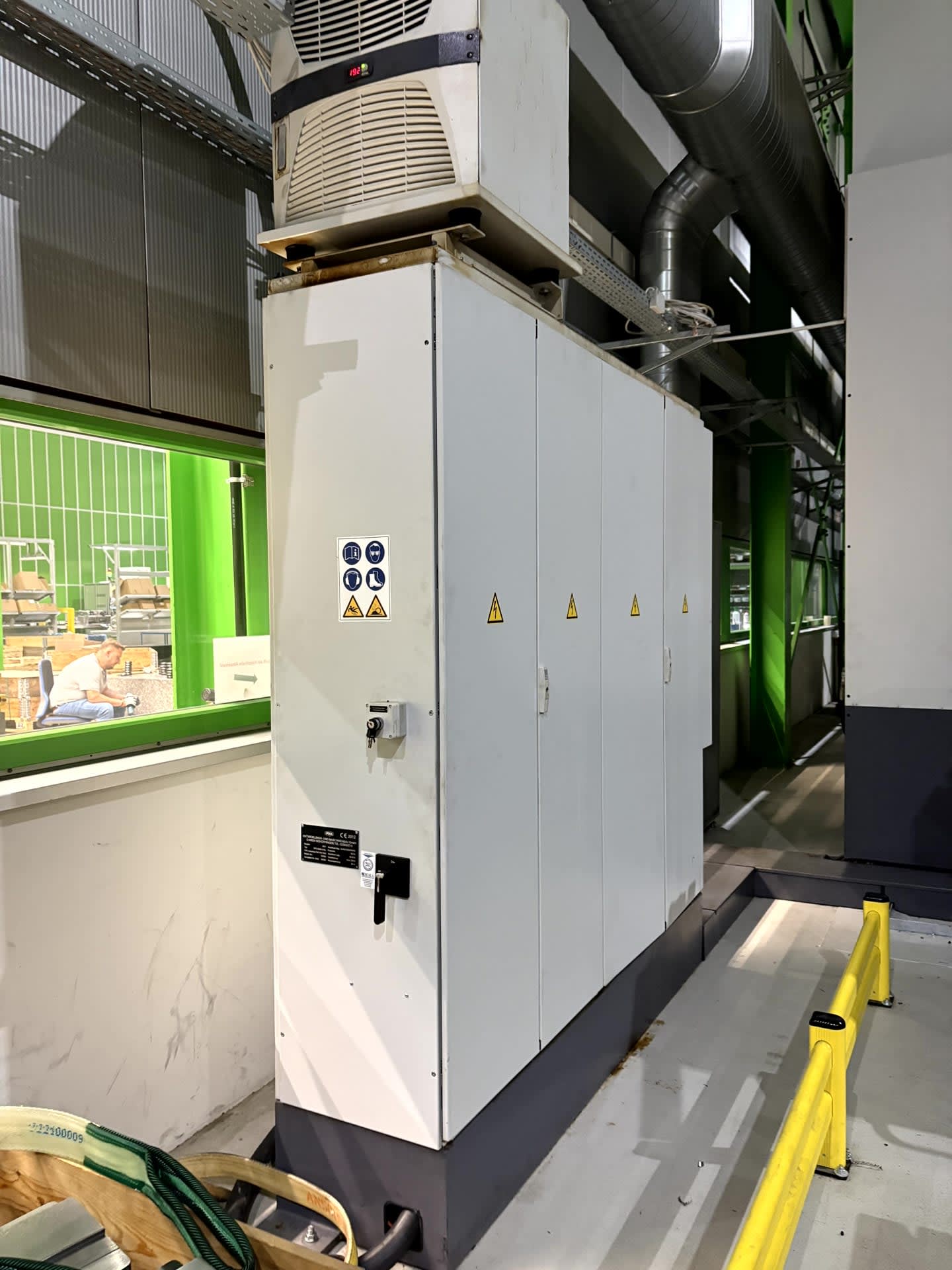

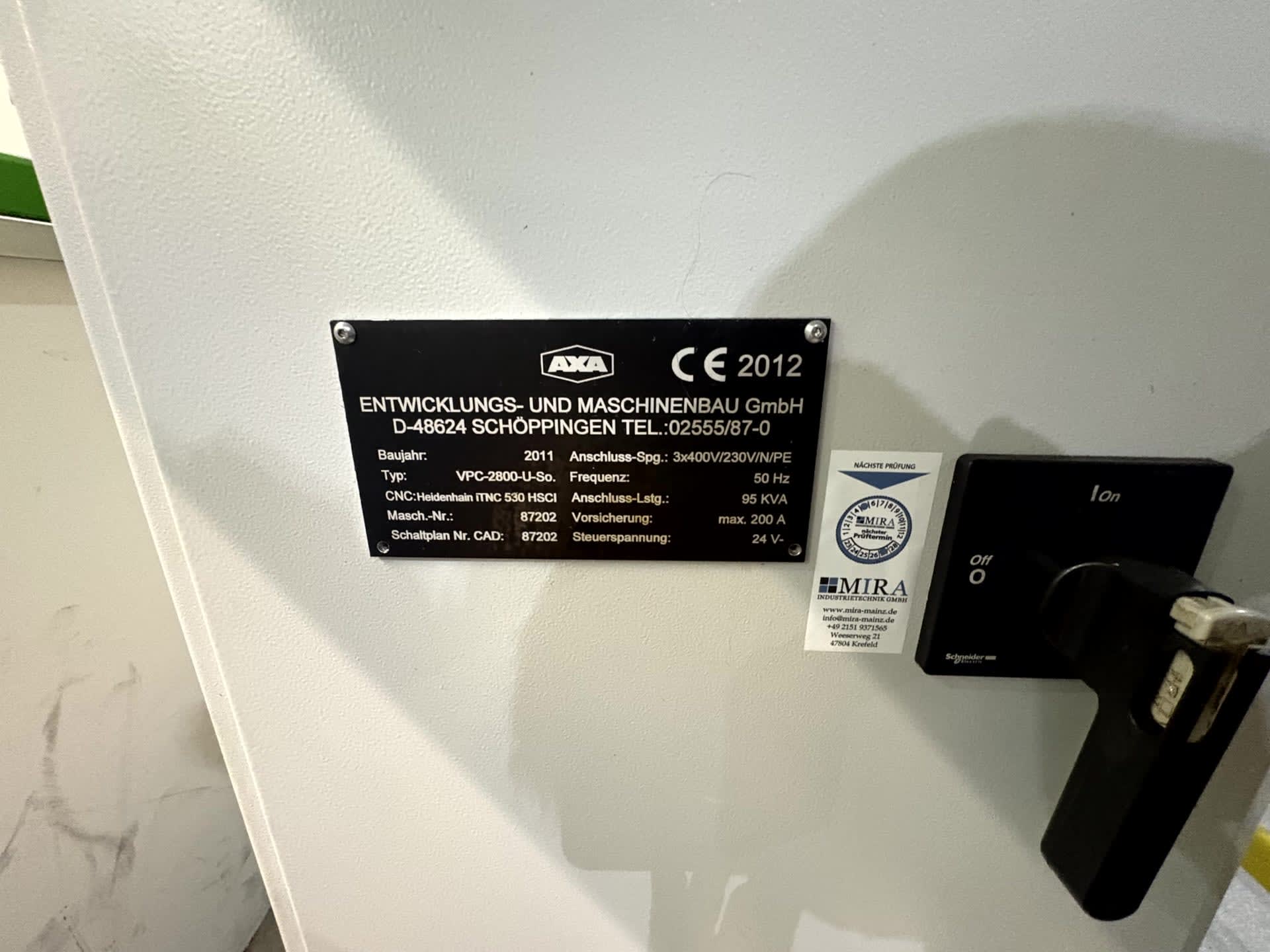

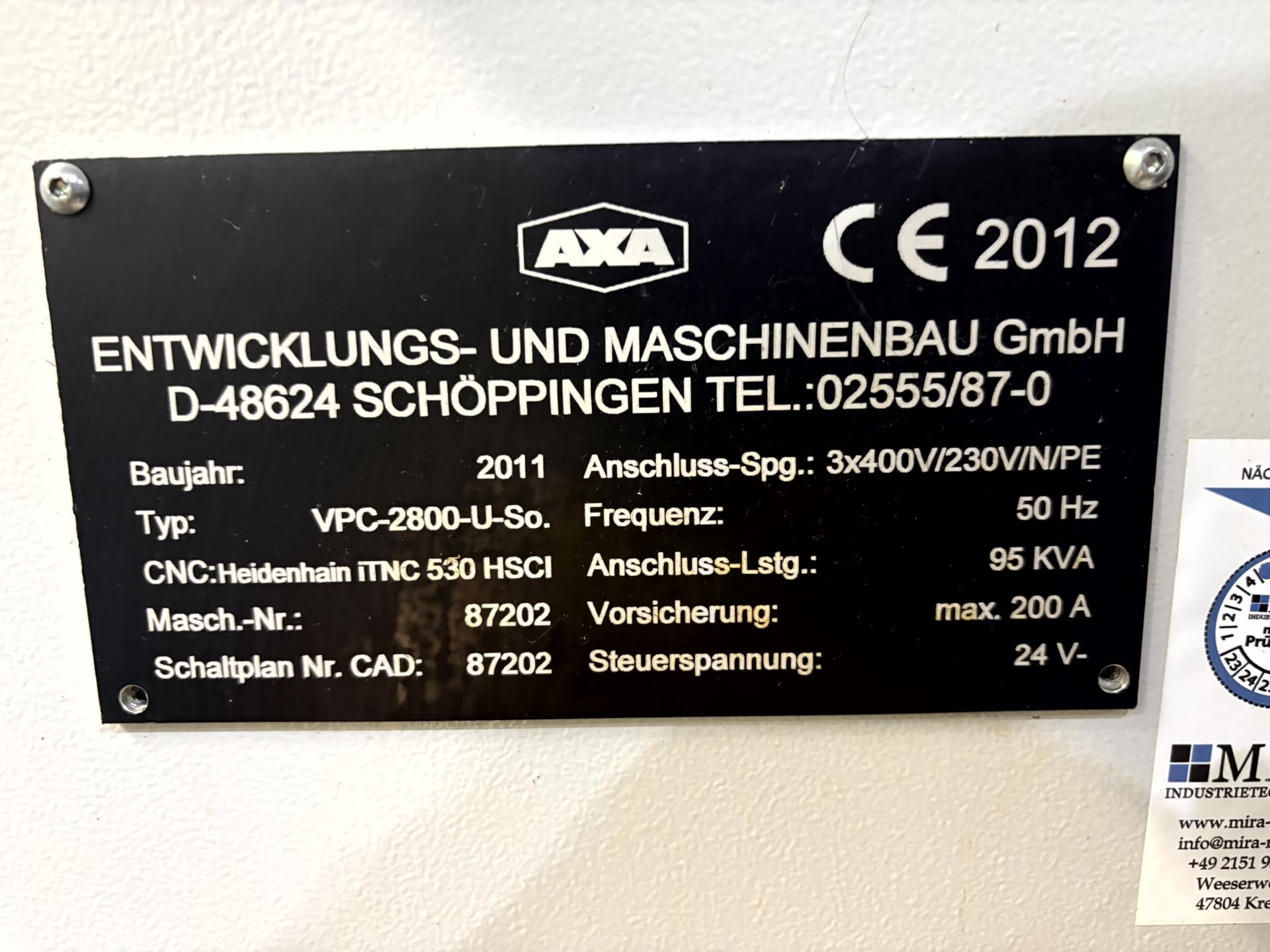

Electrical connection values 3 × 400 V / 50 Hz
Equipment

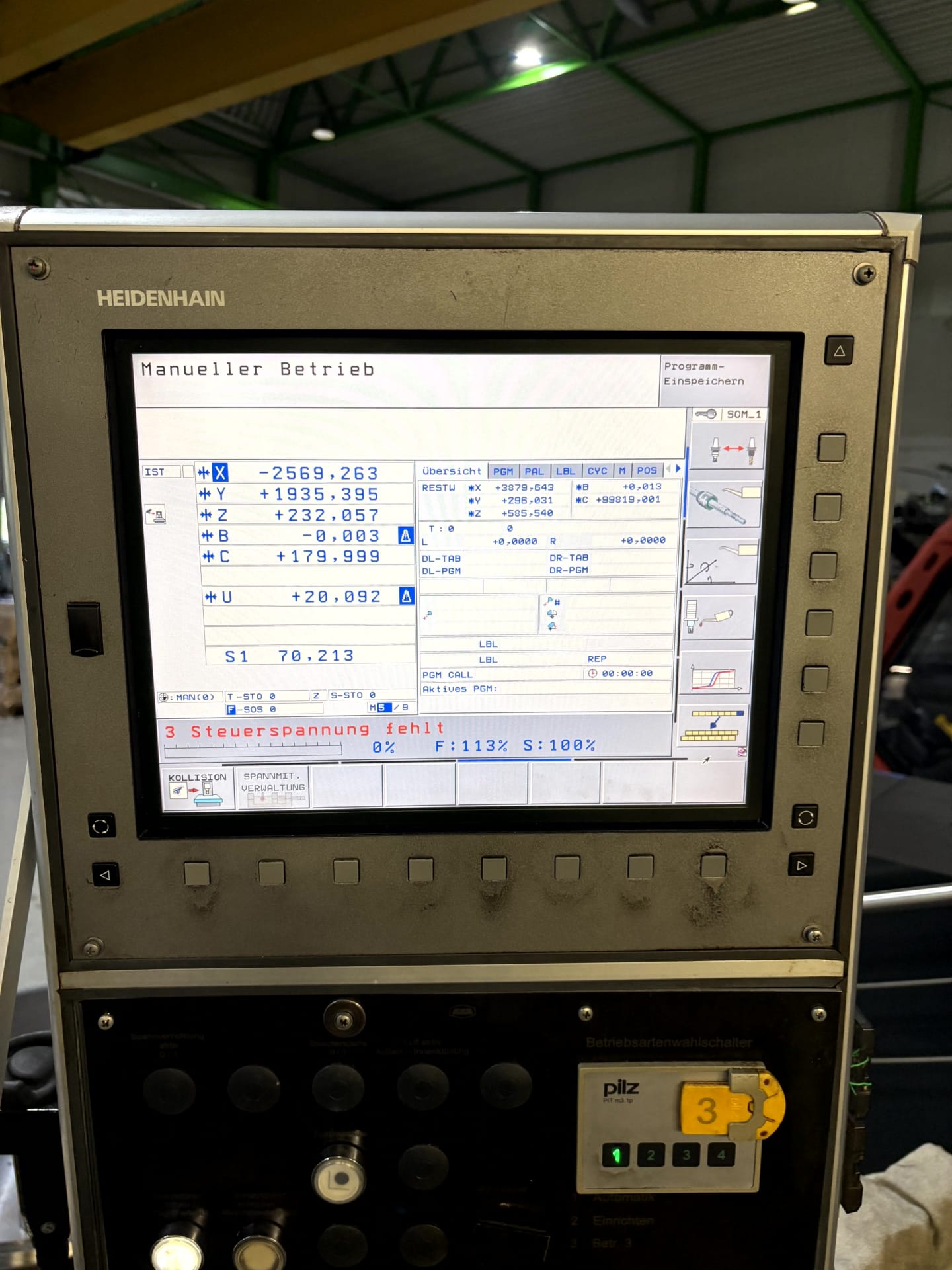

HEIDENHAIN iTNC 530 HSCI
NC rotary table Ø 2,800 mm
Freely interpolating swivel head
Portal design

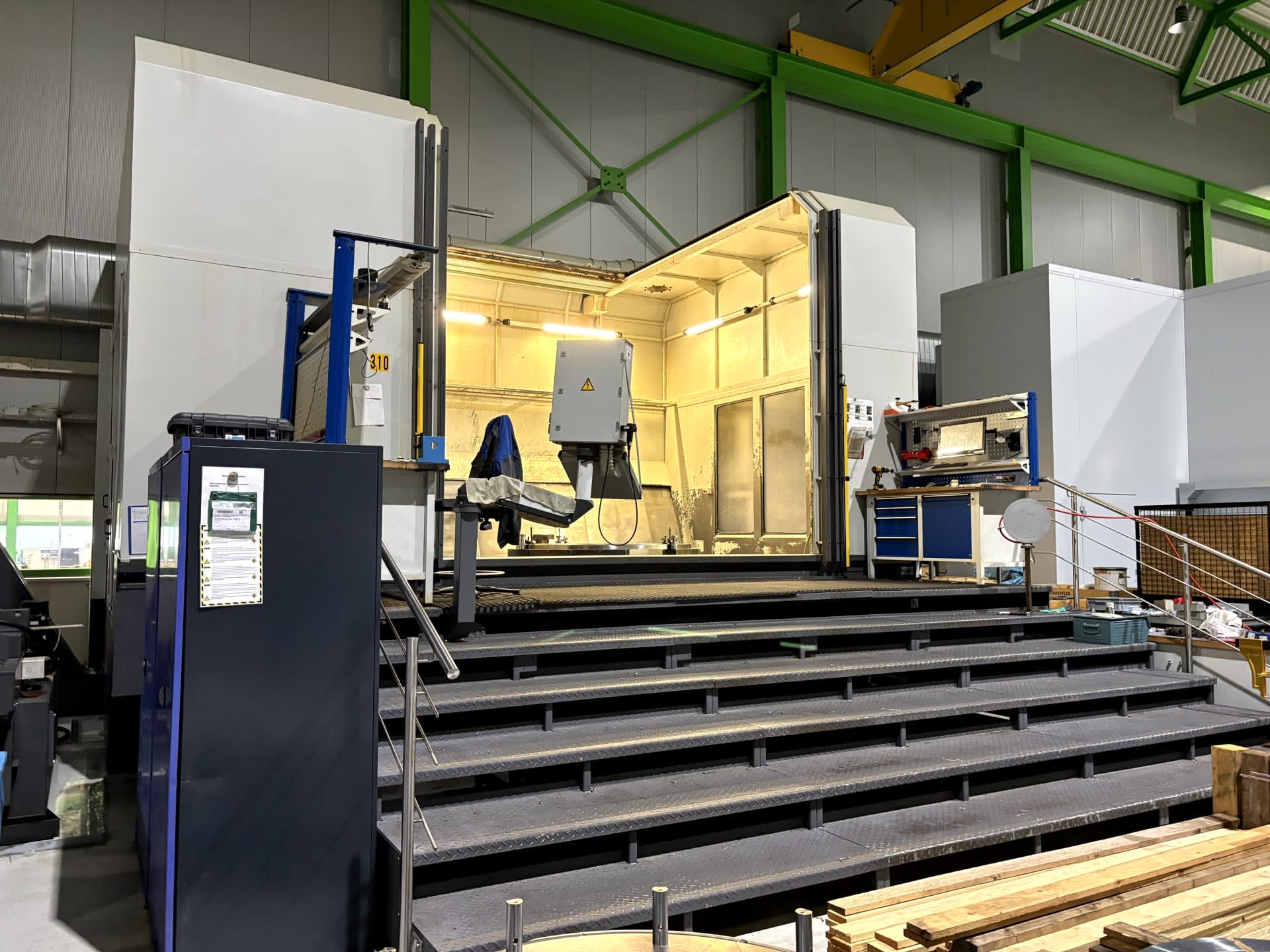

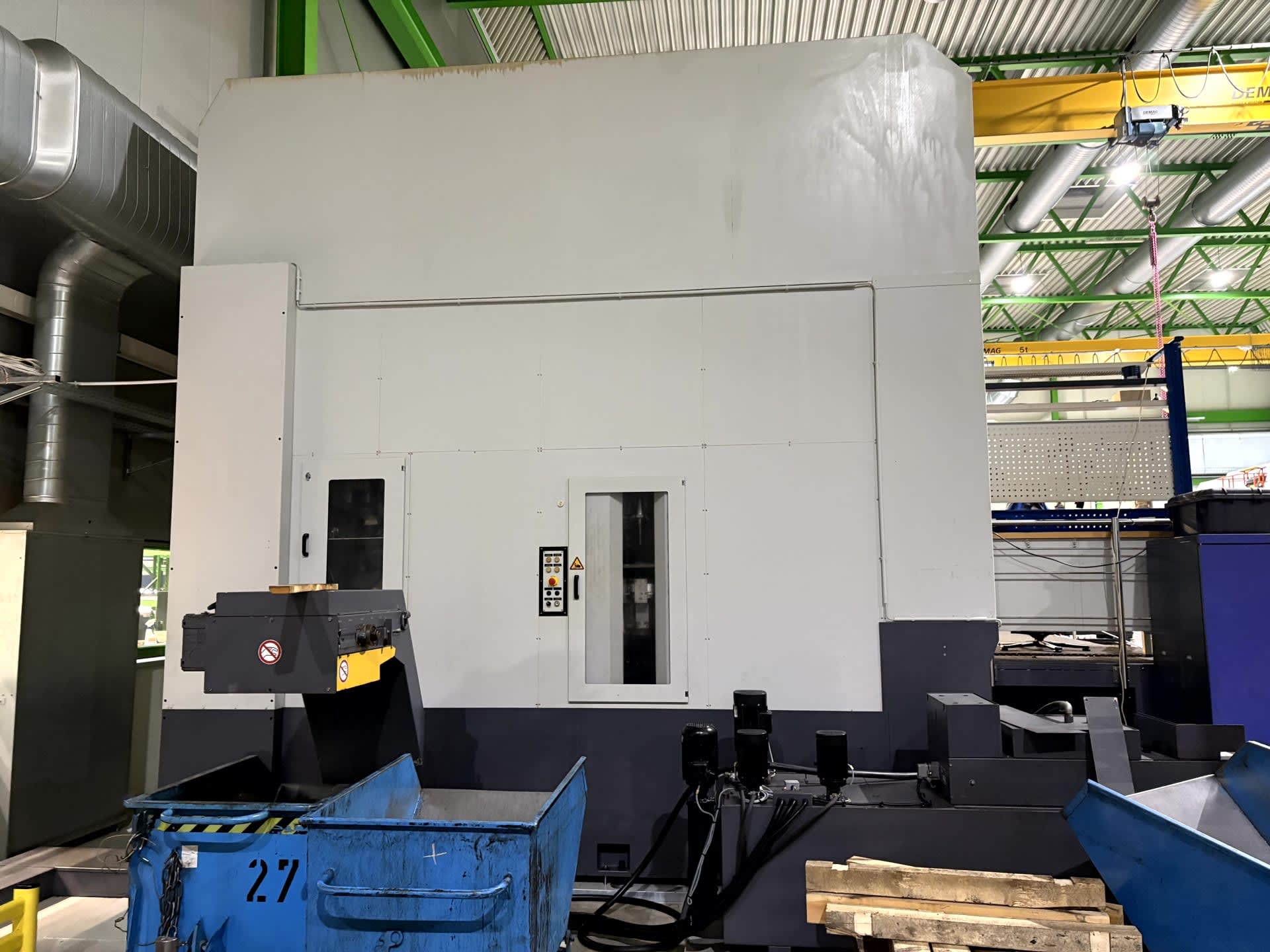

Full enclosure
Automatic central lubrication
Coolant system
Chip conveyor

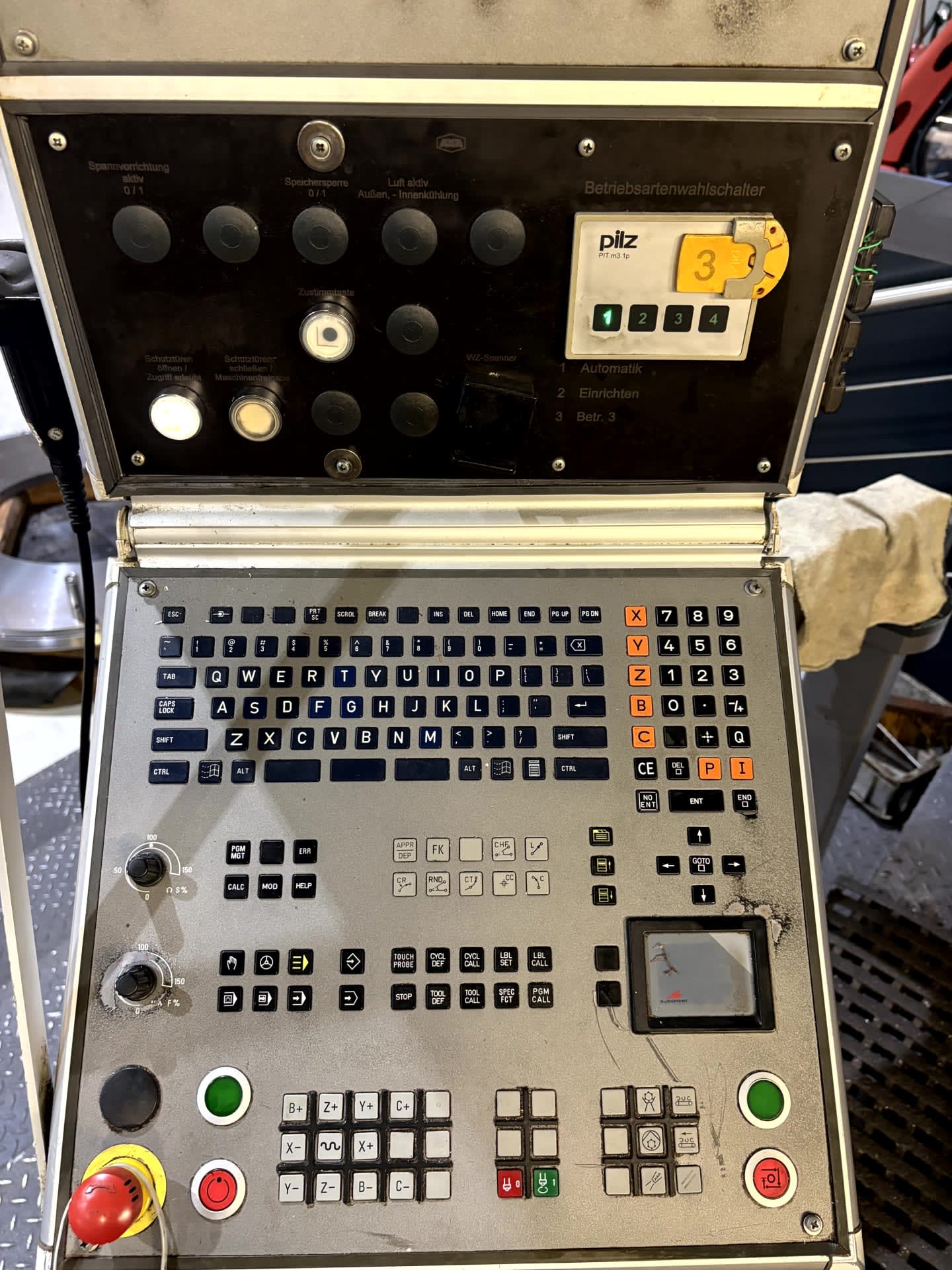

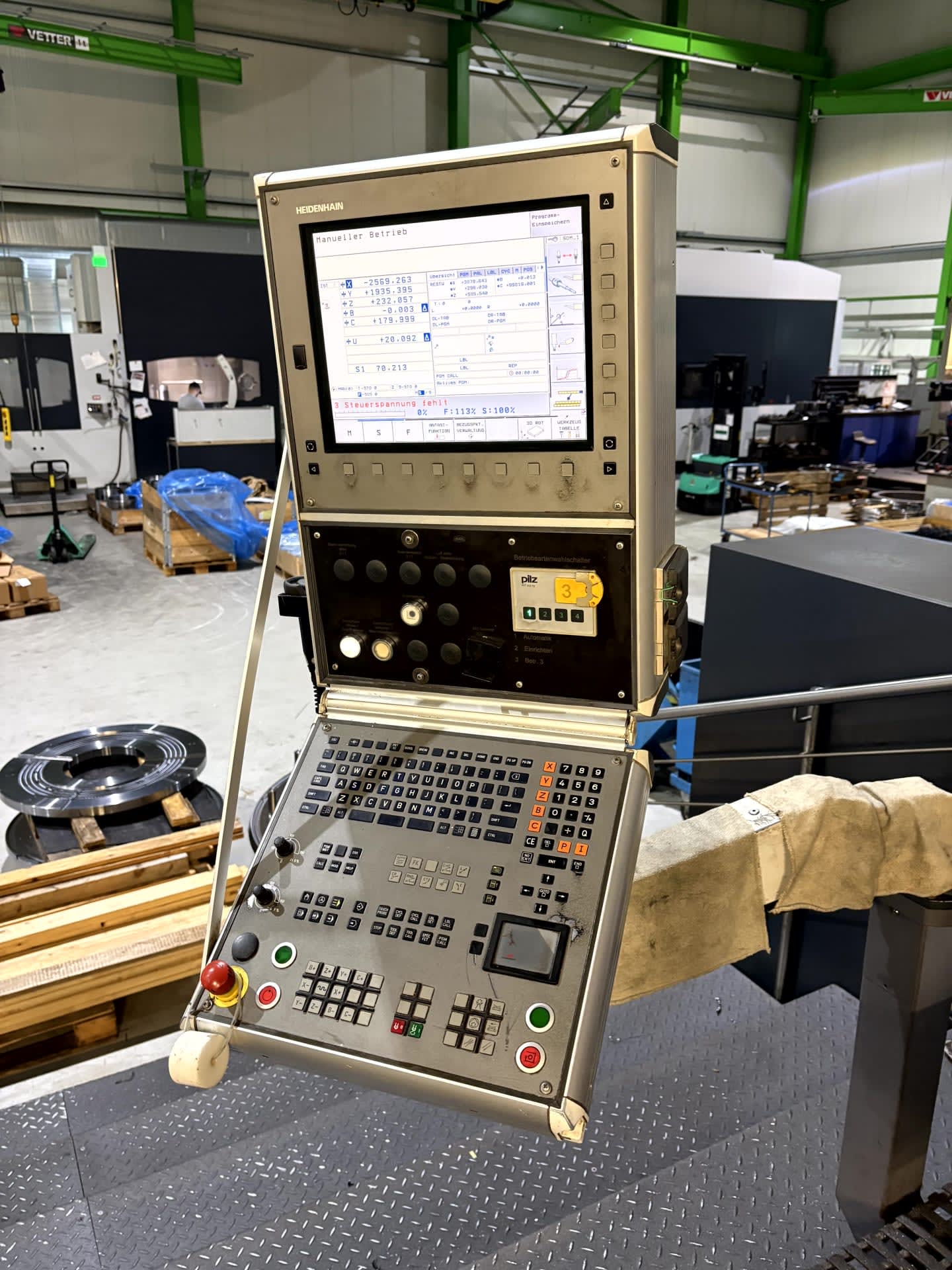

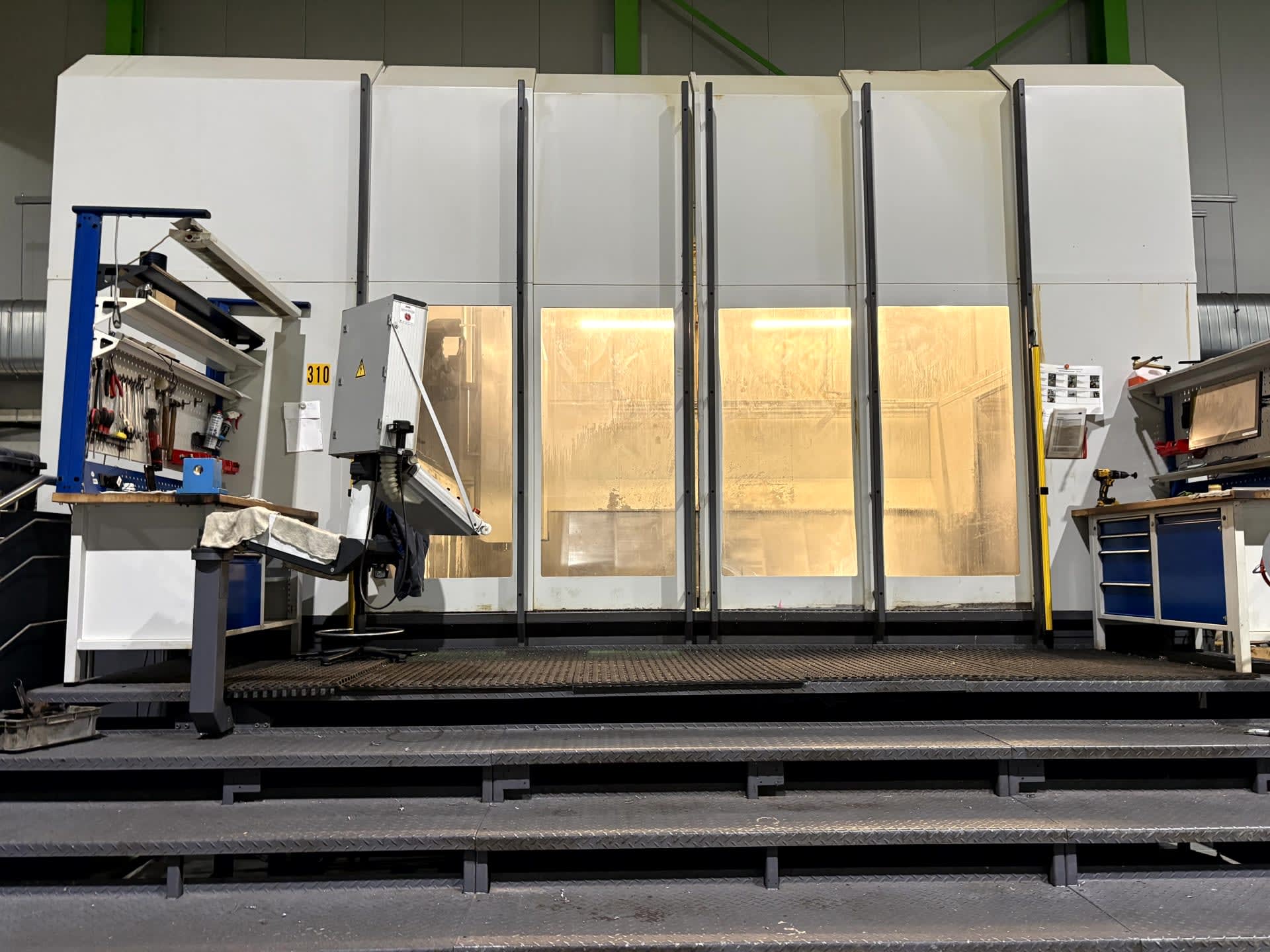

Control panel on swivel arm
- Transportation costs
- not included
- Terms of delivery
- EXW EX Works
- Terms of payment
- 100% prepayment before pick-up
Technical Specifications
Control: HEIDENHAIN iTNC 530 HSCI. Travel X/Y/Z: 3,900 / 2,940 / 1,100 mm. B-axis swivel head: 90°, freely interpolating. NC rotary table: Ø 2,800 mm, max. workpiece weight 15,000 kg. Spindle: SK 50 tool holder, 63 kW power, 200 Nm max. torque, 6,000 min⁻¹ max. speed. Rapid traverse X/Y/Z: 30/30/25 m/min. Tool magazine: 20 positions, max. tool diameter 110 mm (180 mm with free adjacent positions), max. length 400 mm.Equipment & Features
HEIDENHAIN iTNC 530 HSCI control, freely interpolating swivel head, full enclosure, automatic central lubrication, coolant system, chip conveyor, control panel on swivel arm, electrical connection 3×400V/50Hz.Ideal For
This used portal milling machine suits manufacturers and job shops producing large, heavy workpieces that need high rigidity and precision, such as machine bed and tool mould milling. It complements our broader range of portal milling machines and other 5-axis machining centres currently available. All machines are inspected before listing to confirm functional condition prior to export.
Transportation costs are not included in the used milling machine price; terms of delivery and payment are stated under "Additional information" in each listing. You should also budget for installation and commissioning at the new site. In most cases, the buyer is responsible for organizing the transport; upon request, ReMach can check whether transport can be arranged or supported. ReMach also helps with dismantling, loading and export paperwork.
Choose the control your operators already know and that is compatible with your existing programs and CAM post-processors. On European machines the most common controls are Heidenhain (TNC, conversational Klartext programming), Siemens SINUMERIK and FANUC. The control version determines the available functions, such as 5-axis cycles, and the availability of spare parts.
The five axes are three linear axes, X, Y and Z, plus two rotary axes, usually two of A, B or C depending on the machine design. In 3+2 machining the rotary axes tilt the part to the required angle before the linear axes cut; in simultaneous 5-axis machining all five move together for complex freeform surfaces. A swivel head suits large, heavy parts, while a swivel-rotary table limits part size and weight to the table.
Choose by the size, weight and shape of your parts. A vertical machining centre suits small and medium parts in series; a portal milling machine handles large, heavy parts such as moulds and machine beds; a bed-type milling machine, with its table on a fixed bed, offers the rigidity for long parts and heavy cutting. A 5-axis machine is for complex parts machined on several sides with few set-ups, while a horizontal boring mill suits large prismatic parts with precise bores on several faces.
A machining centre is a CNC milling machine with a tool magazine and an automatic tool changer. This lets it perform milling, drilling, tapping and boring in one set-up without manual tool changes. The number of magazine positions in the listing shows how many tools a part can use.
