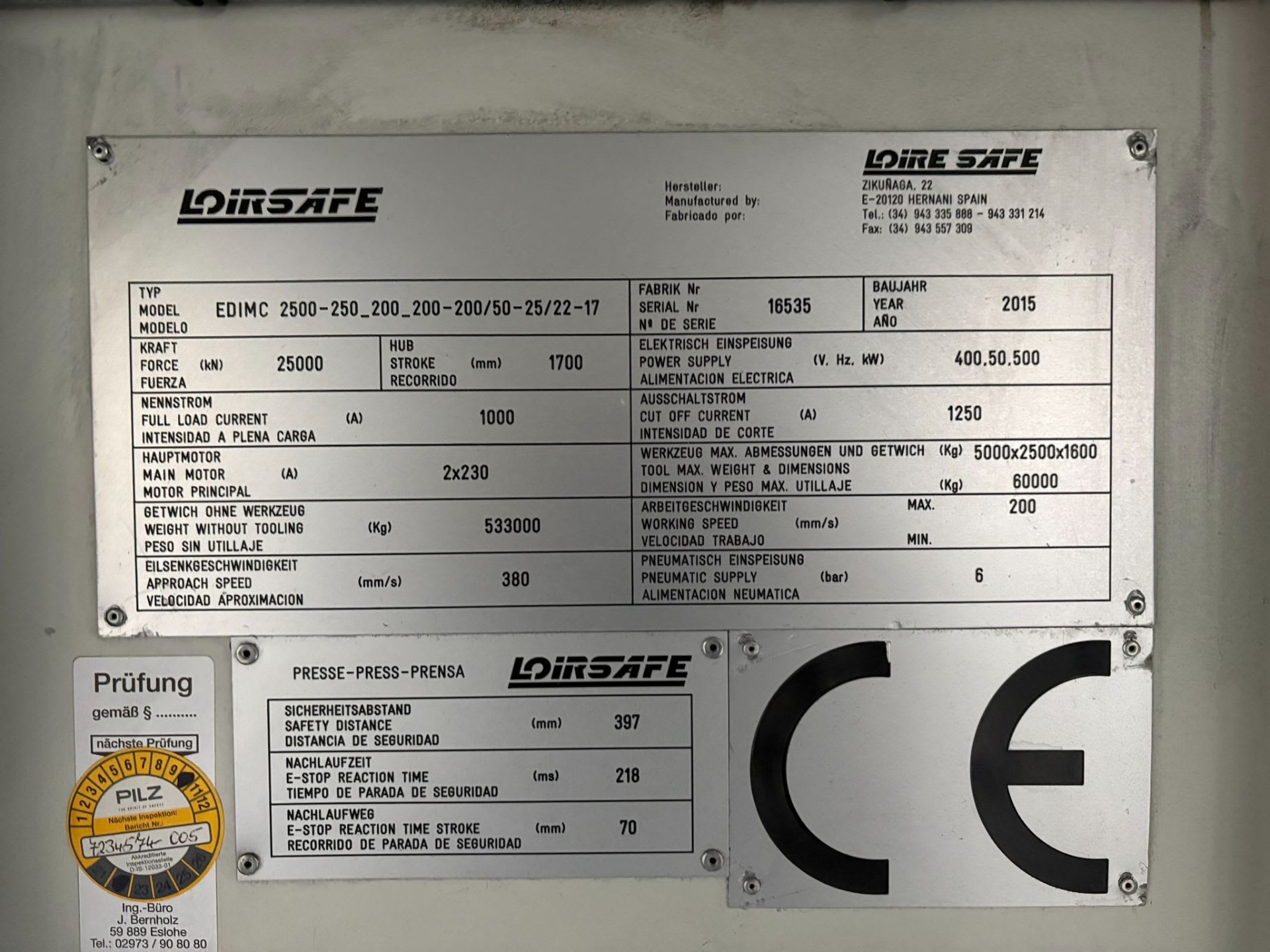

LOIRE SAFE EDIMC 2500-600-200/50-25/22-17 Hydraulic Press
- Storage Number
- 26007-46
- Machine type
- Hydraulic Presses
- Manufacturer
- LOIRE SAFE
- Type
- EDIMC 2500-600-200/50-25/22-17
- Year of construction
- 2015
- Location
- Laichingen, Germany
- Availability
- immediately
- Price
- This item is sold
- Dimensions (LxWxH) approx.
- 8700 x 4000 x 8000 mm
- Inlet height
- 2,200 mm
- Inlet width
- 2,500 mm
- Pressing force max.
- 2,500 t
- Table length
- 5,000 mm
- Weight approx.
- 530,000 kg

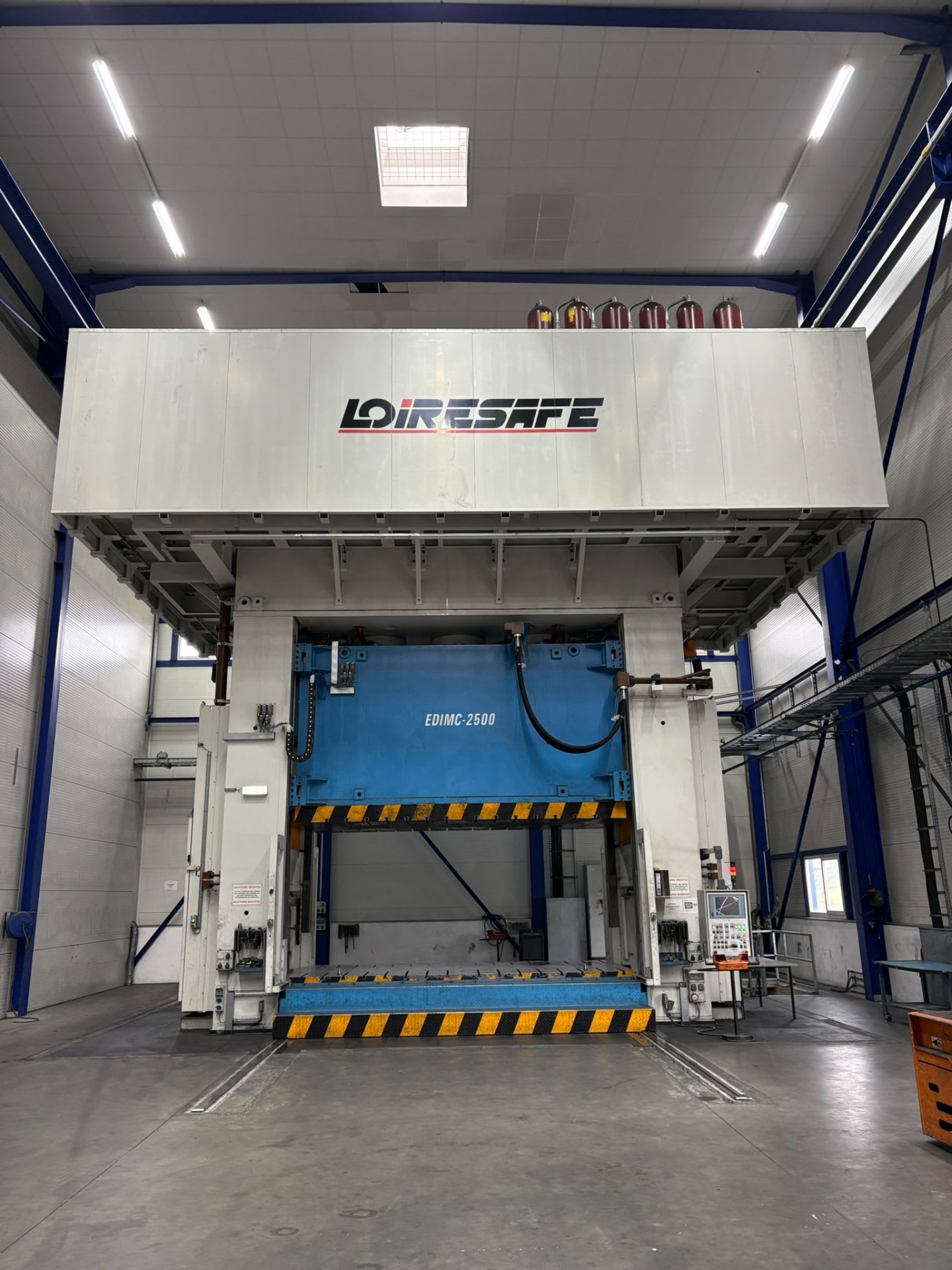

LOIRE SAFE Hydraulic Press – High-Performance System for Tooling and Heavy Forming Applications

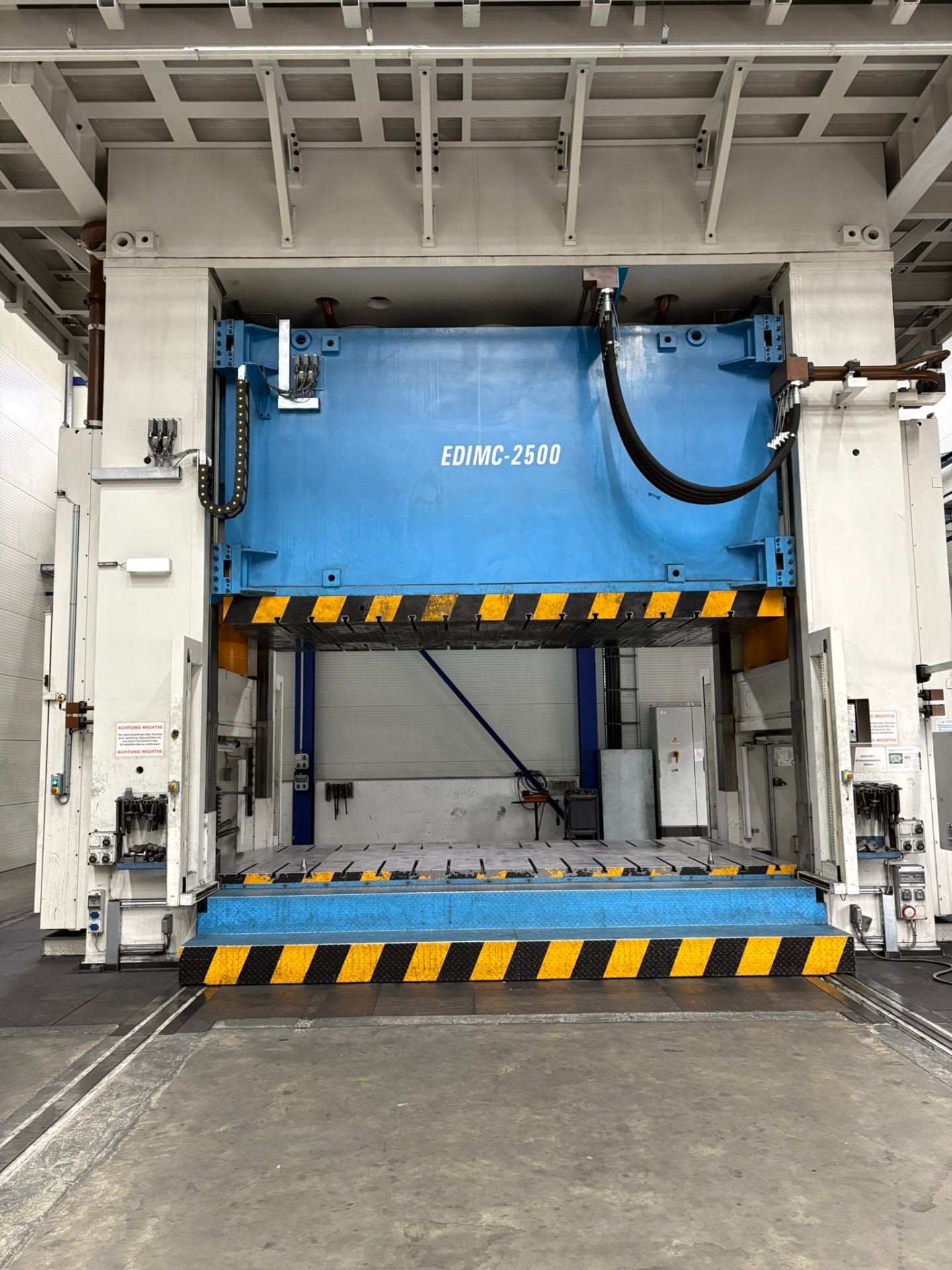

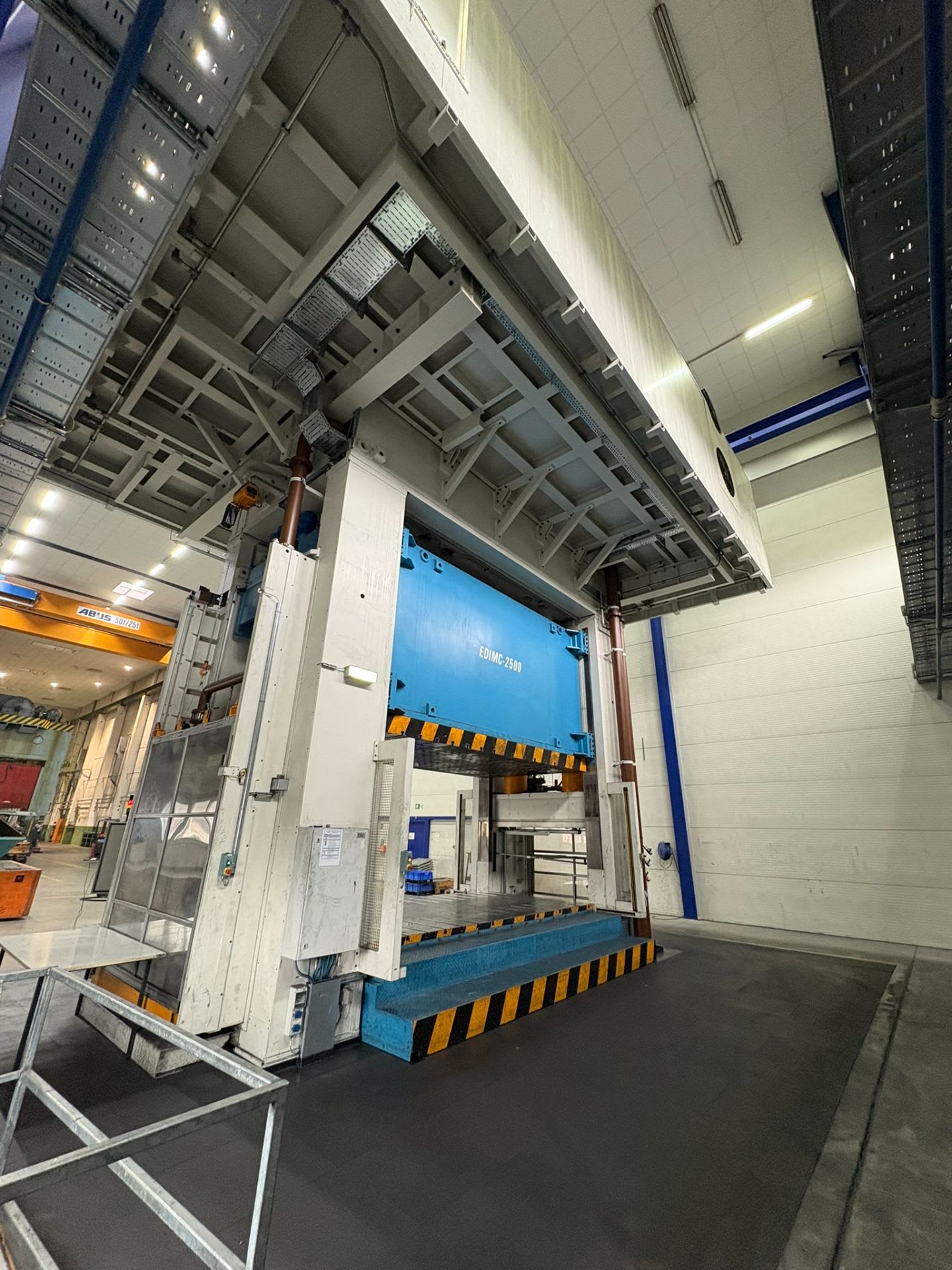

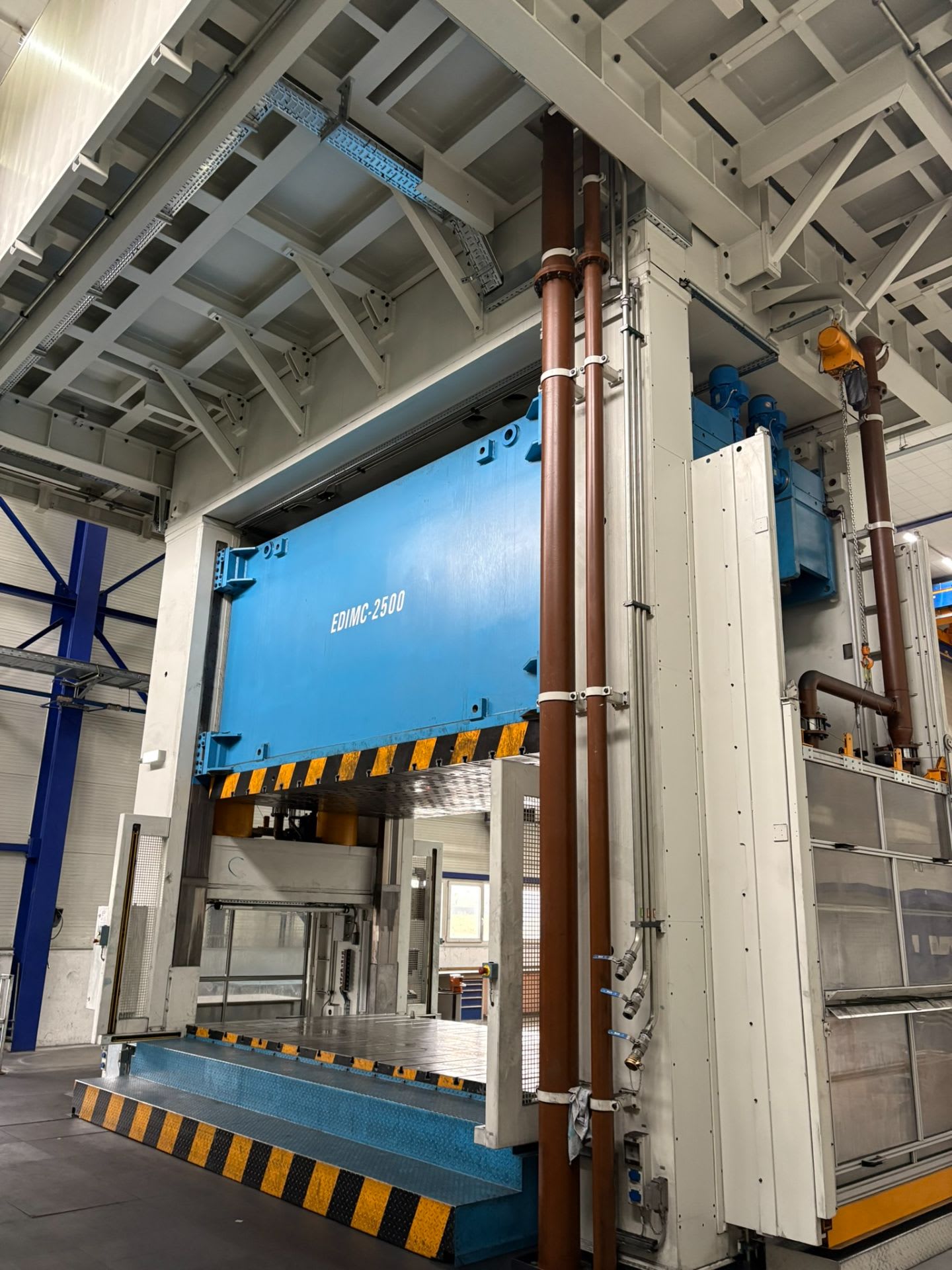

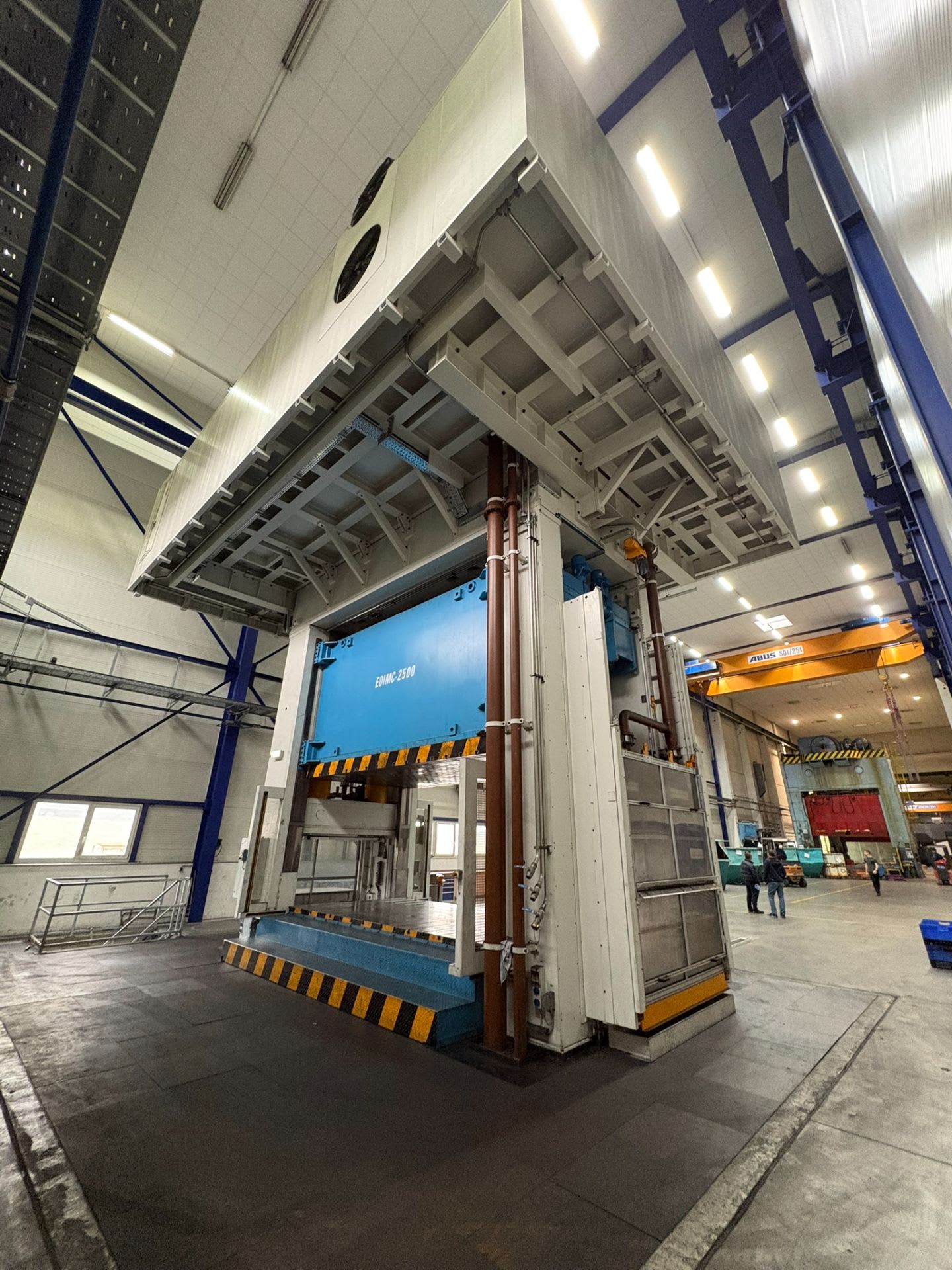

This high-performance hydraulic press, designed in a rigid 4-column portal frame construction, is ideally suited for demanding applications in toolmaking (tryout / spotting) as well as large-scale forming operations. The stress-relieved welded structure ensures maximum rigidity and long-term process stability.

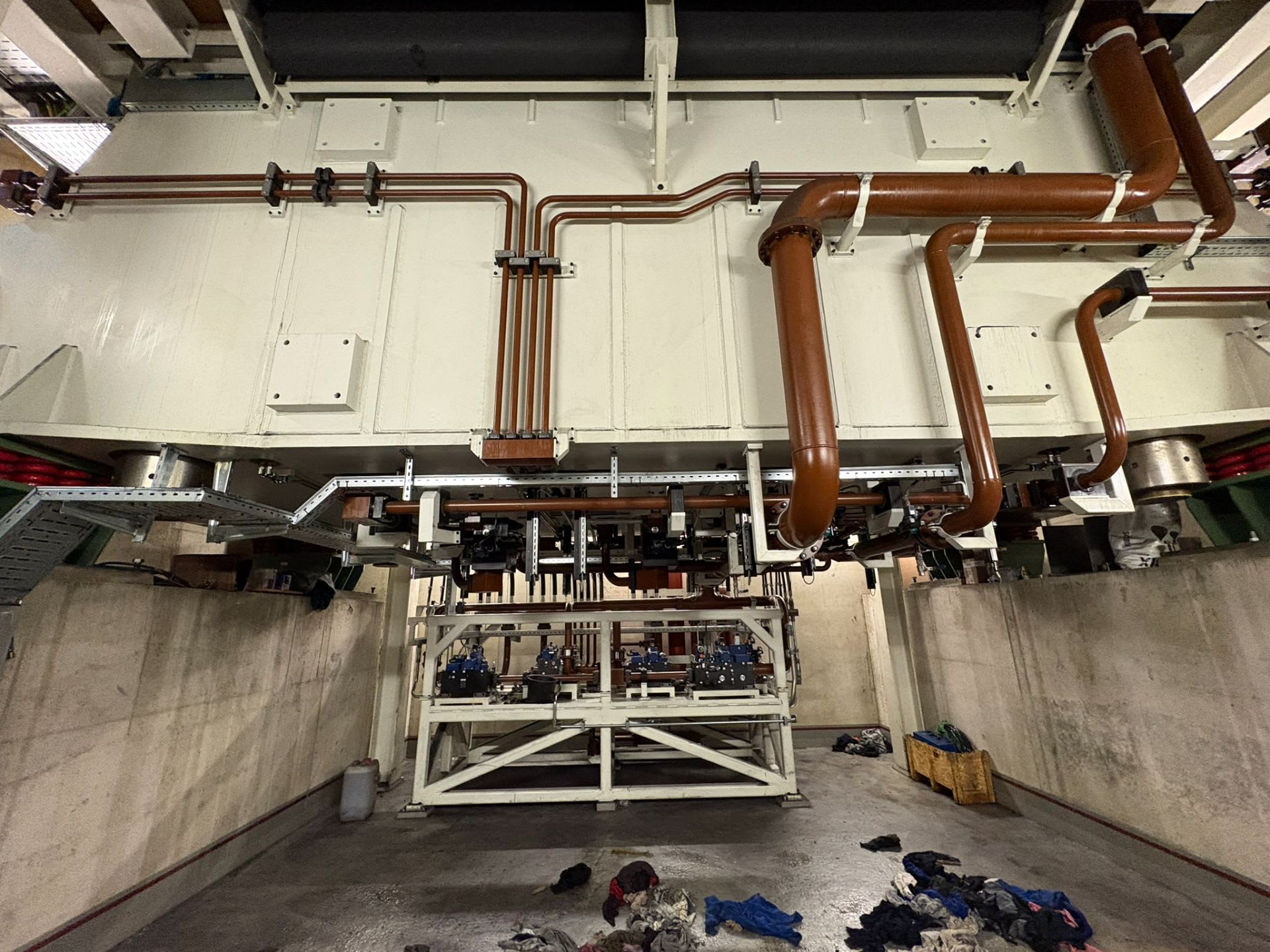

The machine is equipped with three main cylinders and a multi-cylinder parallel control system, achieving high repeatability in the range of ±0.1 mm. The powerful hydraulic system, based on Bosch Rexroth components, operates at a maximum working pressure of approx. 450 bar, delivering both precision and high pressing force.

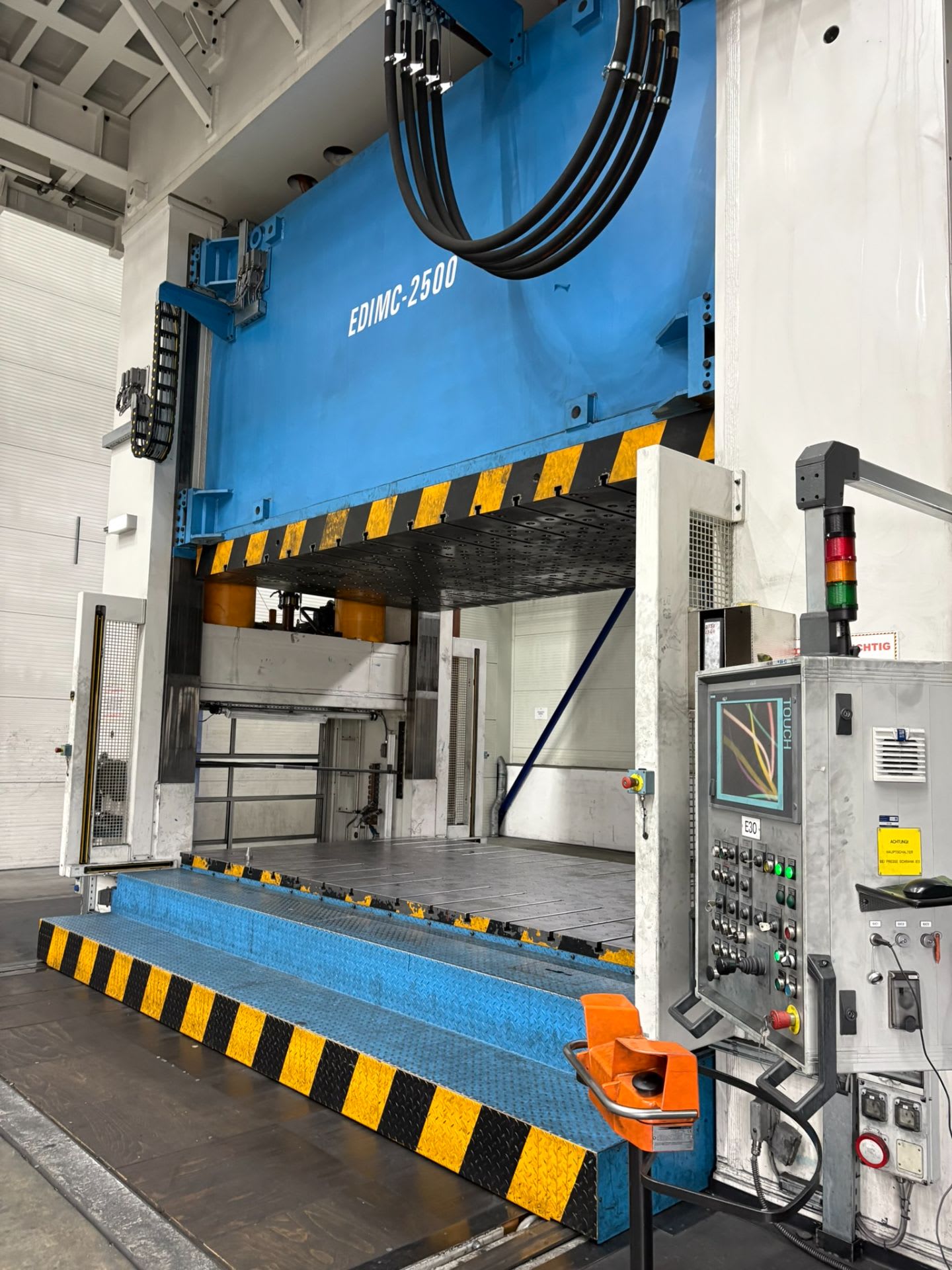

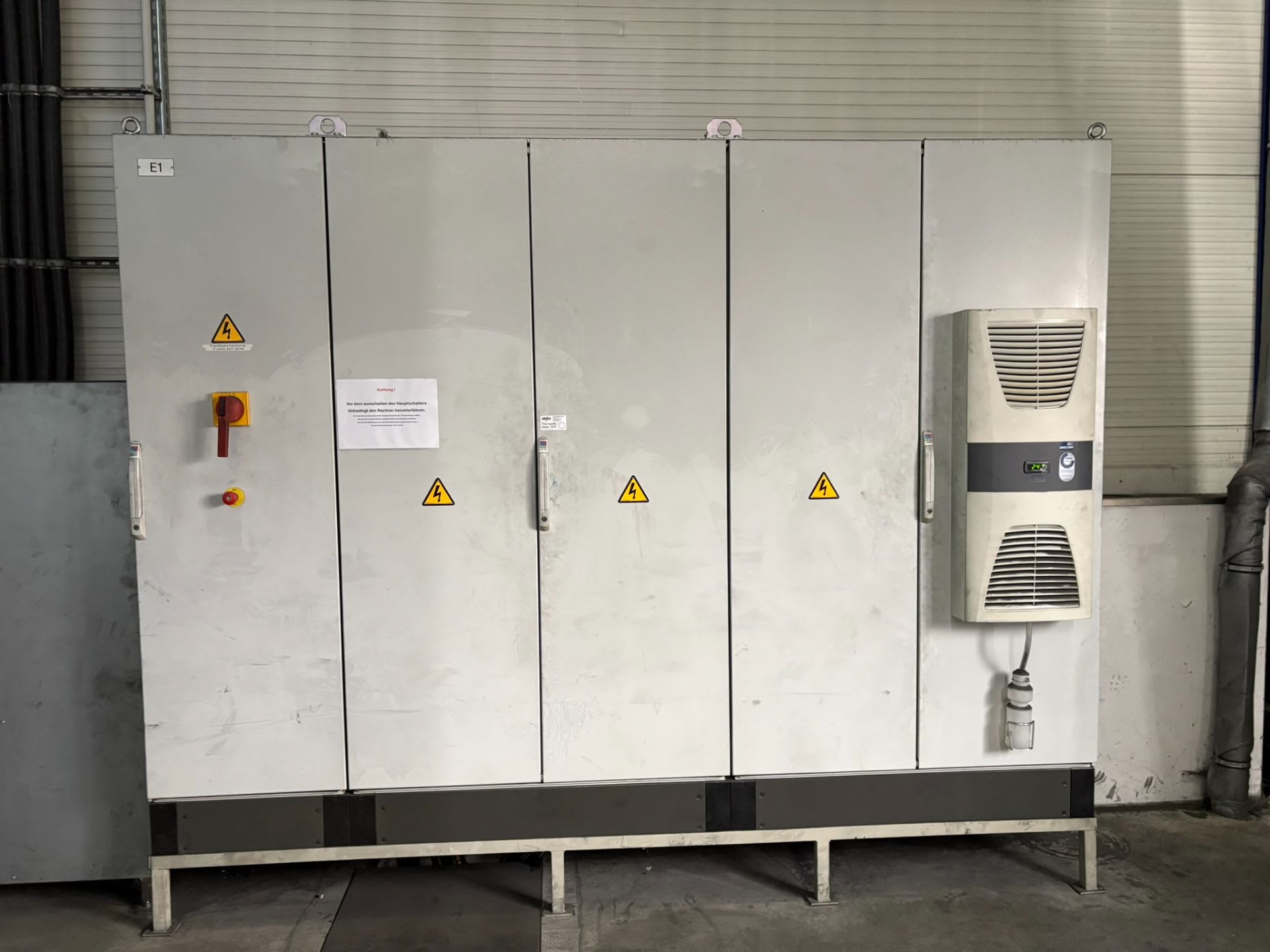

Control is handled via a Siemens S7-317F PLC combined with servo-controlled axes (Rexroth MLC) and visualization through Siemens WinCC. This setup enables fully programmable press cycles, storage of tool parameters, and user-friendly operation with integrated diagnostics and fault monitoring.
In terms of safety, the press is comprehensively equipped with front and rear light curtains (Category 4), ram parallelism monitoring, emergency stop with defined reaction time, and optional two-hand operation. The system is CE-compliant and meets modern safety standards.

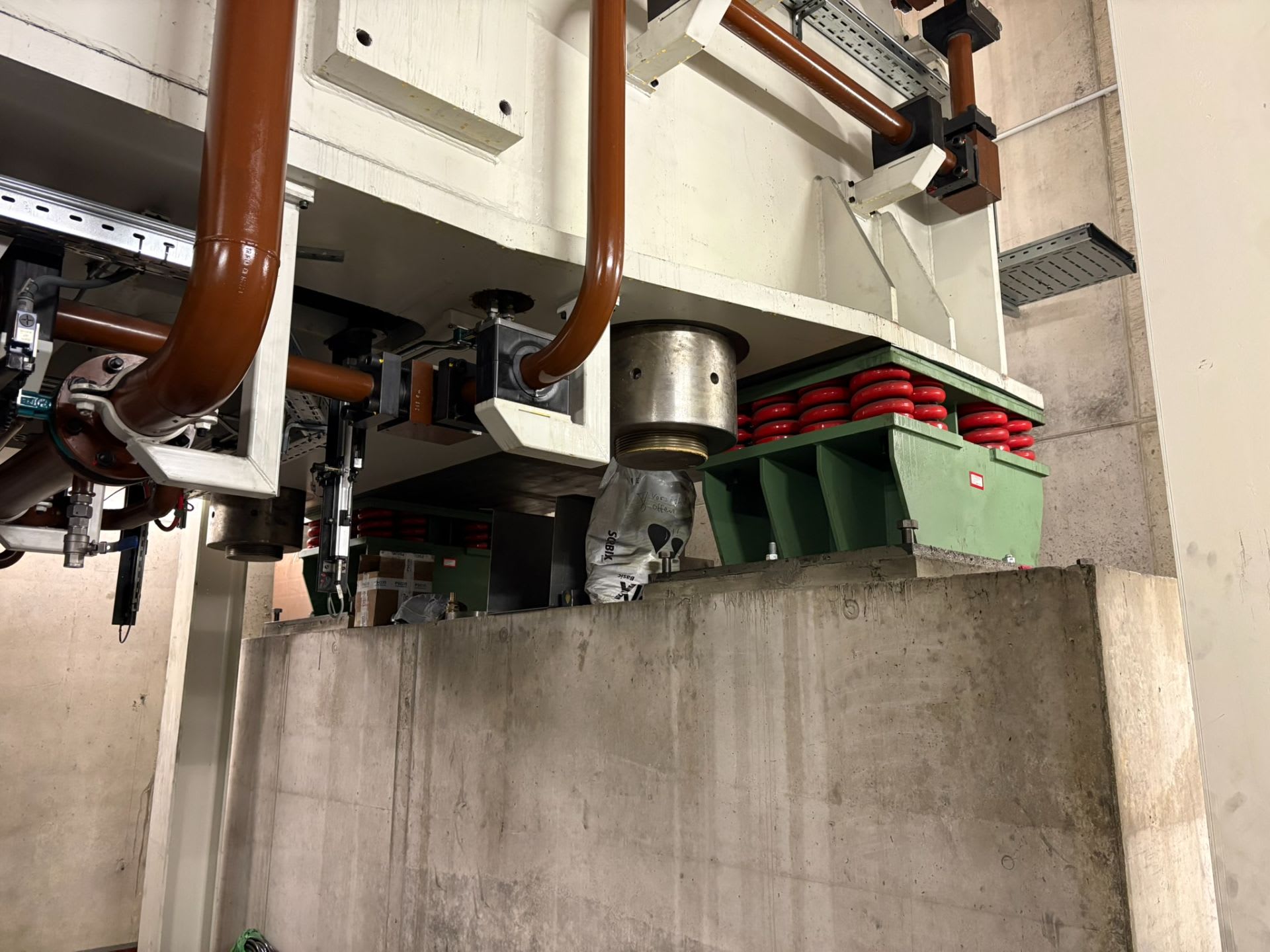

The equipment includes a hydraulic three-part die cushion, a hydraulic ram cushion, and a sliding table with approx. 4,000 mm stroke. Additional features include a DIN-standard pin field and integrated shock damping for demanding forming processes.
Toolmaking (tryout / spotting)
Heavy forming applications
Automotive industry
Straightening, bending and pressing of large components
- Transportation costs
- not included
- Terms of delivery
- From foundation
- Terms of payment
- 100% prepayment before pick-up
The price of a used press depends on the press type, press force, bed size, stroke, die cushion, control, year of manufacture and condition. Transportation costs are not included in the machine price; terms of delivery and payment are stated under "Additional information" in each listing. You should also budget for installation and commissioning at the new site. In most cases, the buyer is responsible for organizing the transport; upon request, ReMach can check whether transport can be arranged or supported. ReMach also helps with dismantling, loading and export paperwork.
Before restarting a used press, check all safety devices: light curtains or guards, interlocks, the emergency stop circuit and, on hydraulic presses, the safety valves. In the EU, the reference safety standard for presses is EN ISO 16092. Have an expert carry out a safety assessment before operating the press at the new site.
A press suits your die when its press force (in t or kN), bed size and die height all match the die. Also check the stroke, and a die cushion if the die is used for deep drawing. On mechanical presses, the number of strokes per minute determines output.
A workshop press has an H-frame or C-frame with manual or electric hydraulics and is used to press bearings and bushes and straighten parts in maintenance and repair. A production press has a bed and slide for mounting dies, stroke control, often a die cushion and safety systems for series production. For production use, choose by press force and die, not by force alone.
A hydraulic press uses a pump to push oil into a cylinder, and the pressing force equals oil pressure multiplied by piston area. It delivers full force over the entire stroke with adjustable stroke and speed, which makes it suitable for deep drawing, forming and die try-out. A mechanical (eccentric) press runs faster with a fixed stroke and reaches its nominal force near bottom dead centre, ideal for high-volume stamping; a try-out press is used to test and adjust dies before production.
