MIKROMAT 12V CNC Portal Milling Machine
Offer details
- Storage Number
- 26002-18
- Machine type
- Portal Milling Machines
- Manufacturer
- MIKROMAT
- Type
- 12V
- Year of construction
- 2002
- Location
- Laußig, Germany
- Availability
- immediately
- Price
- On Request
Technical details
- Dimensions (LxWxH) approx.
- 8500 x 7500 x 5100 mm
- Travel X-axis
- ≥ 2700 mm
- Travel Y-axis
- ≥ 2200 mm
- Travel Z-axis
- ≥ 1350 mm
- Weight approx.
- 60,000 kg
Description

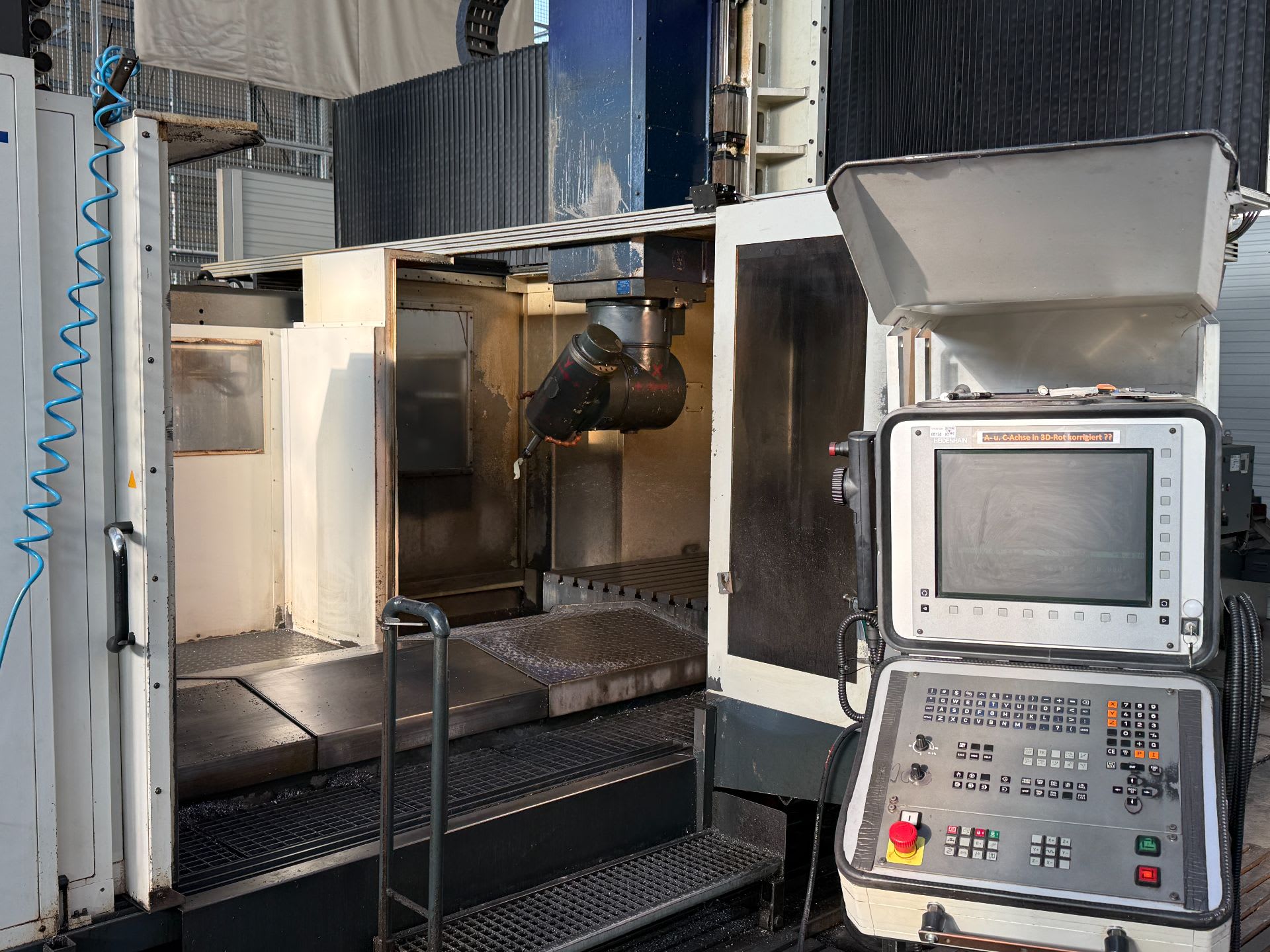

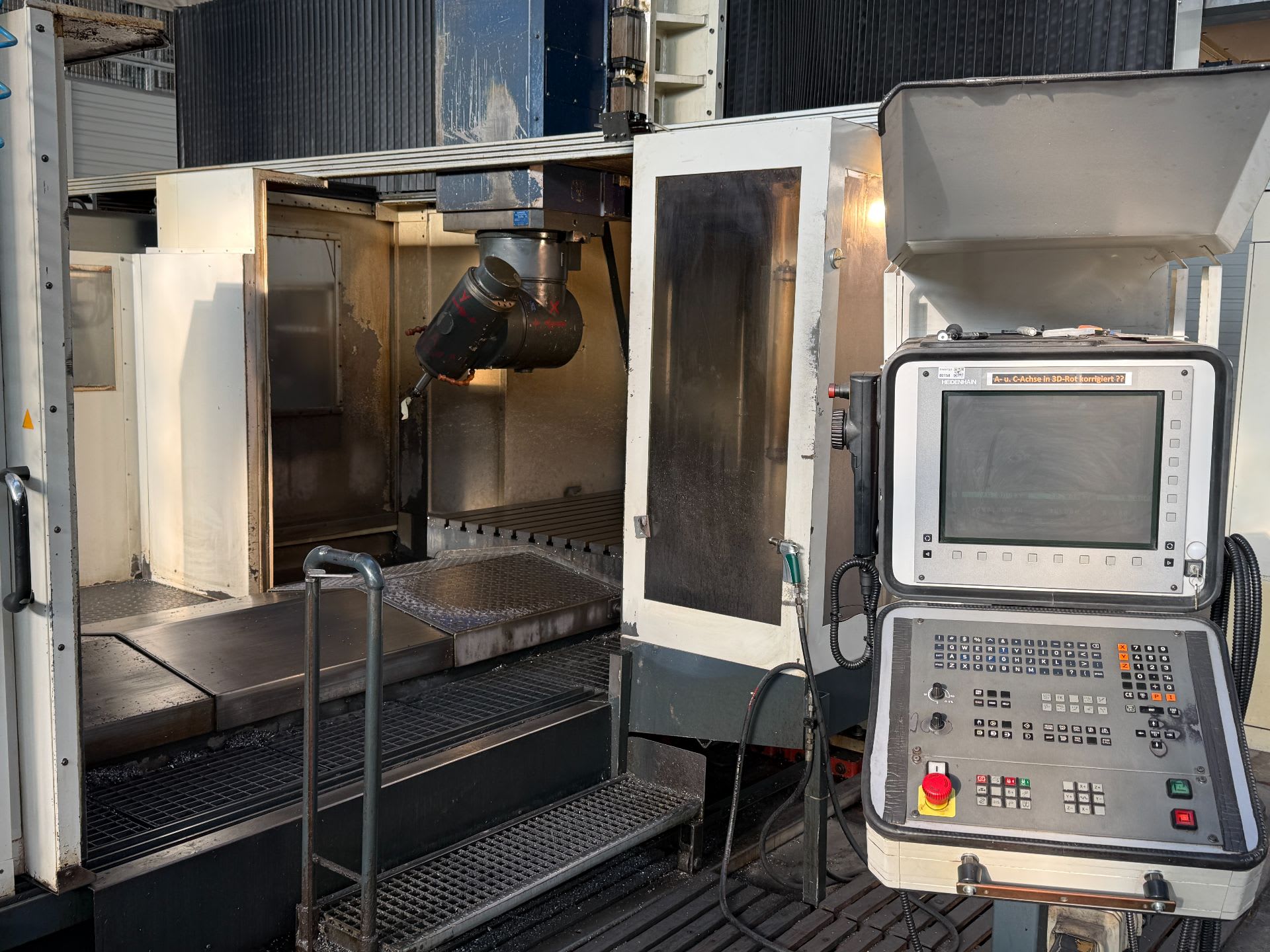

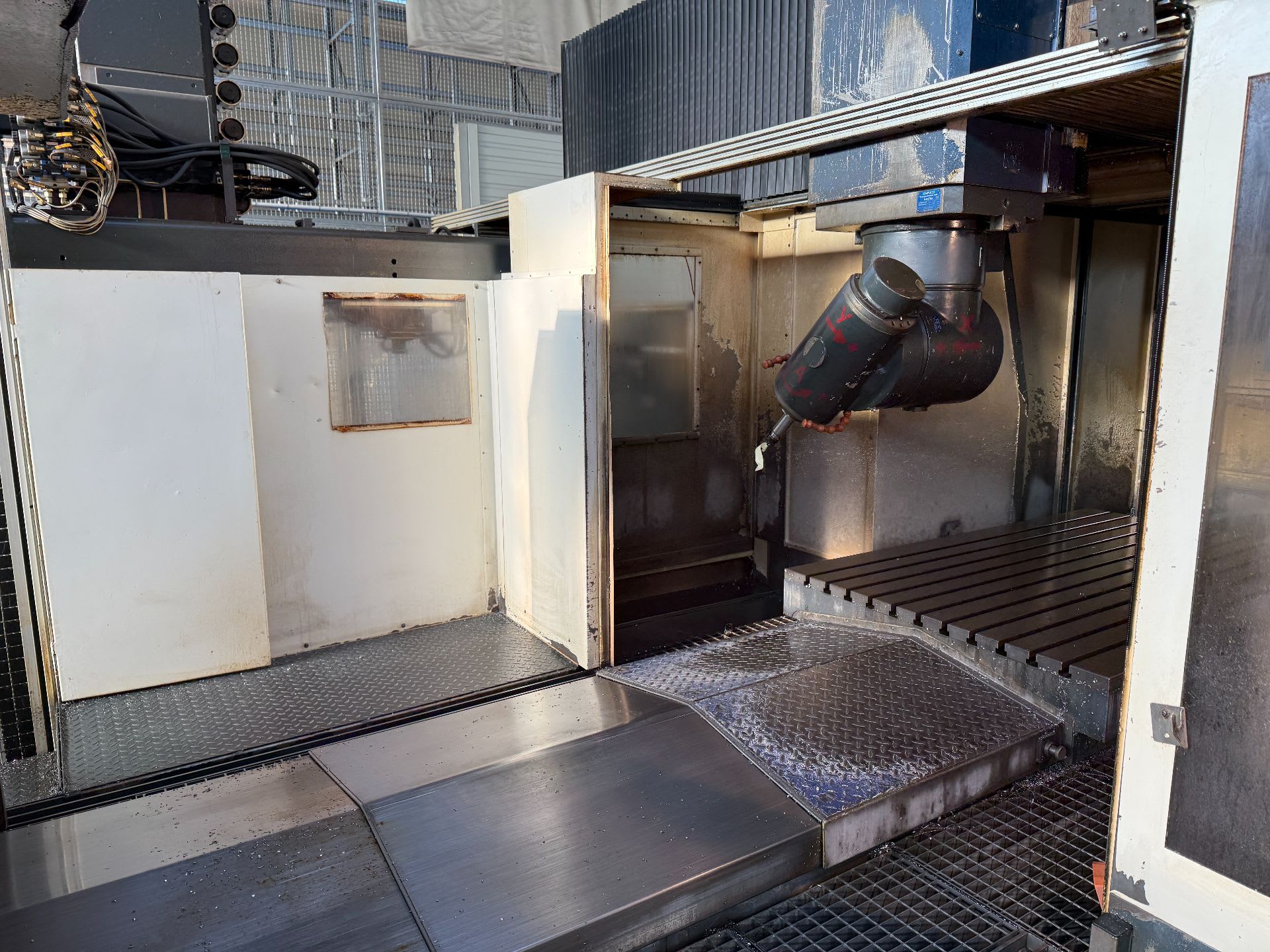

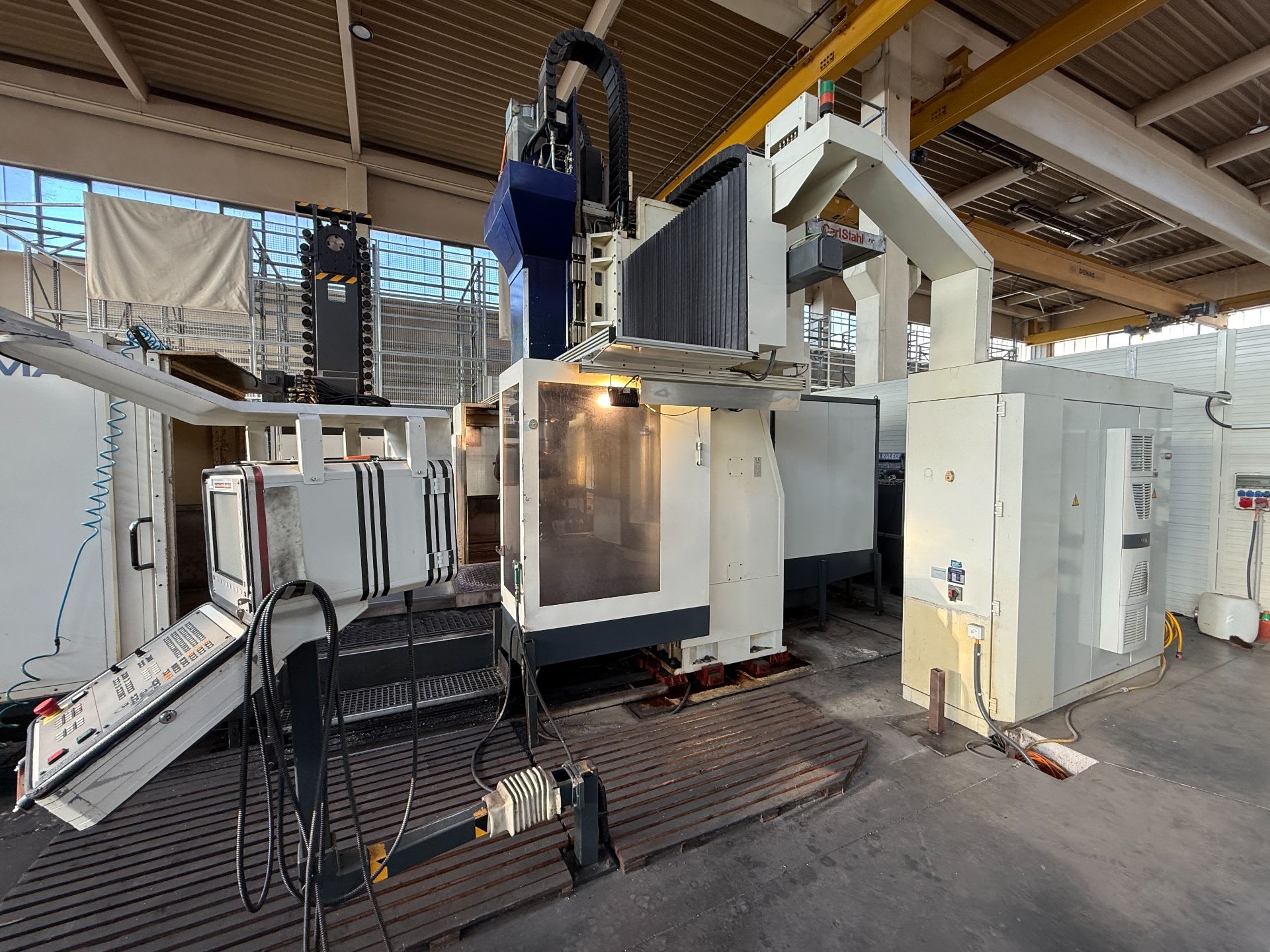

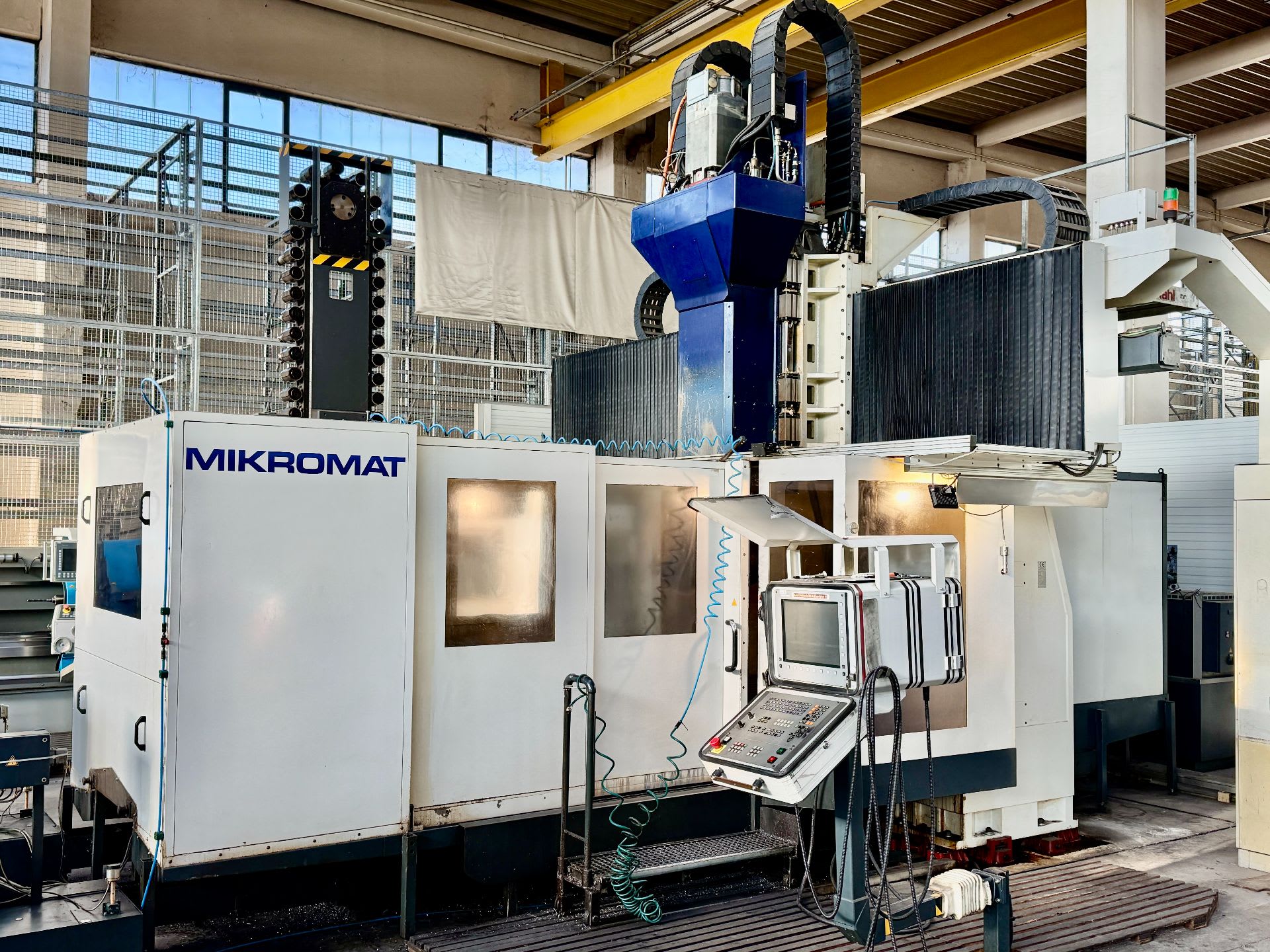

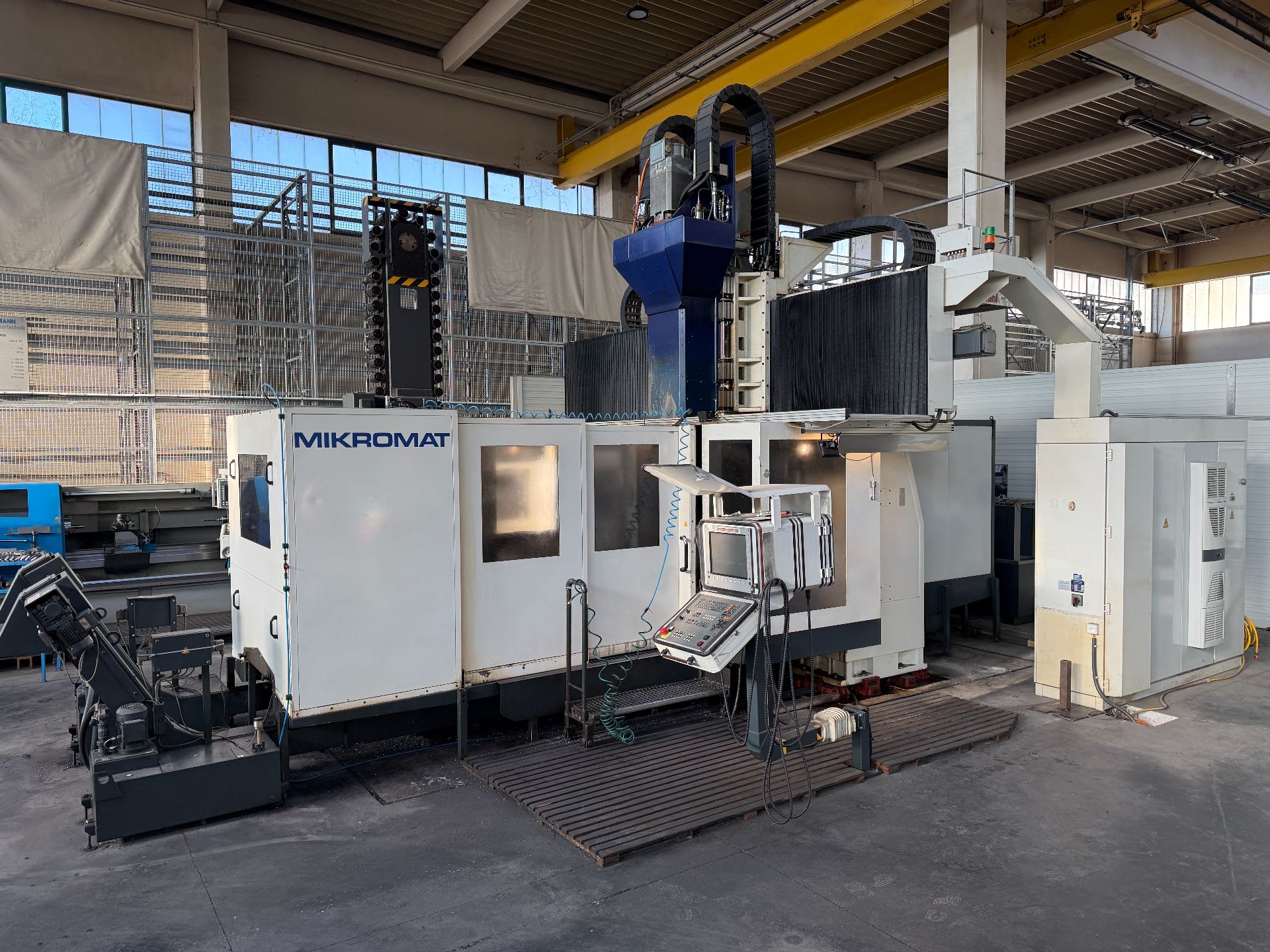

CNC Portal Milling Machine MIKROMAT 12V

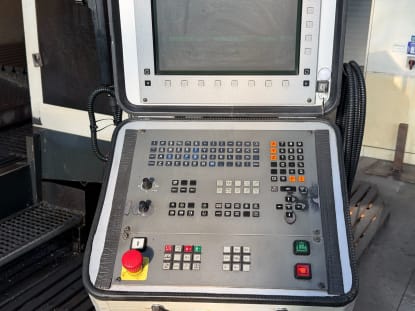

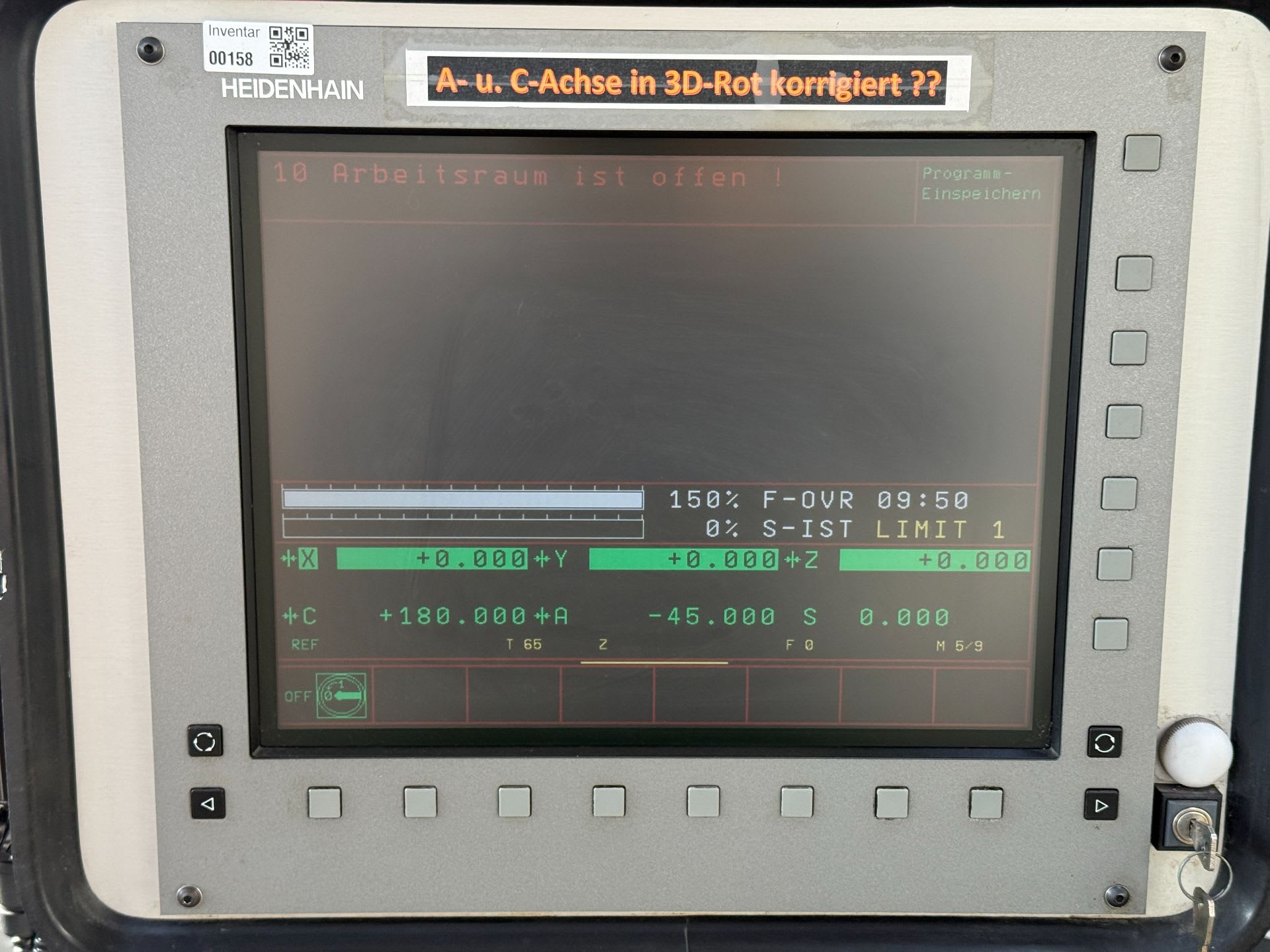

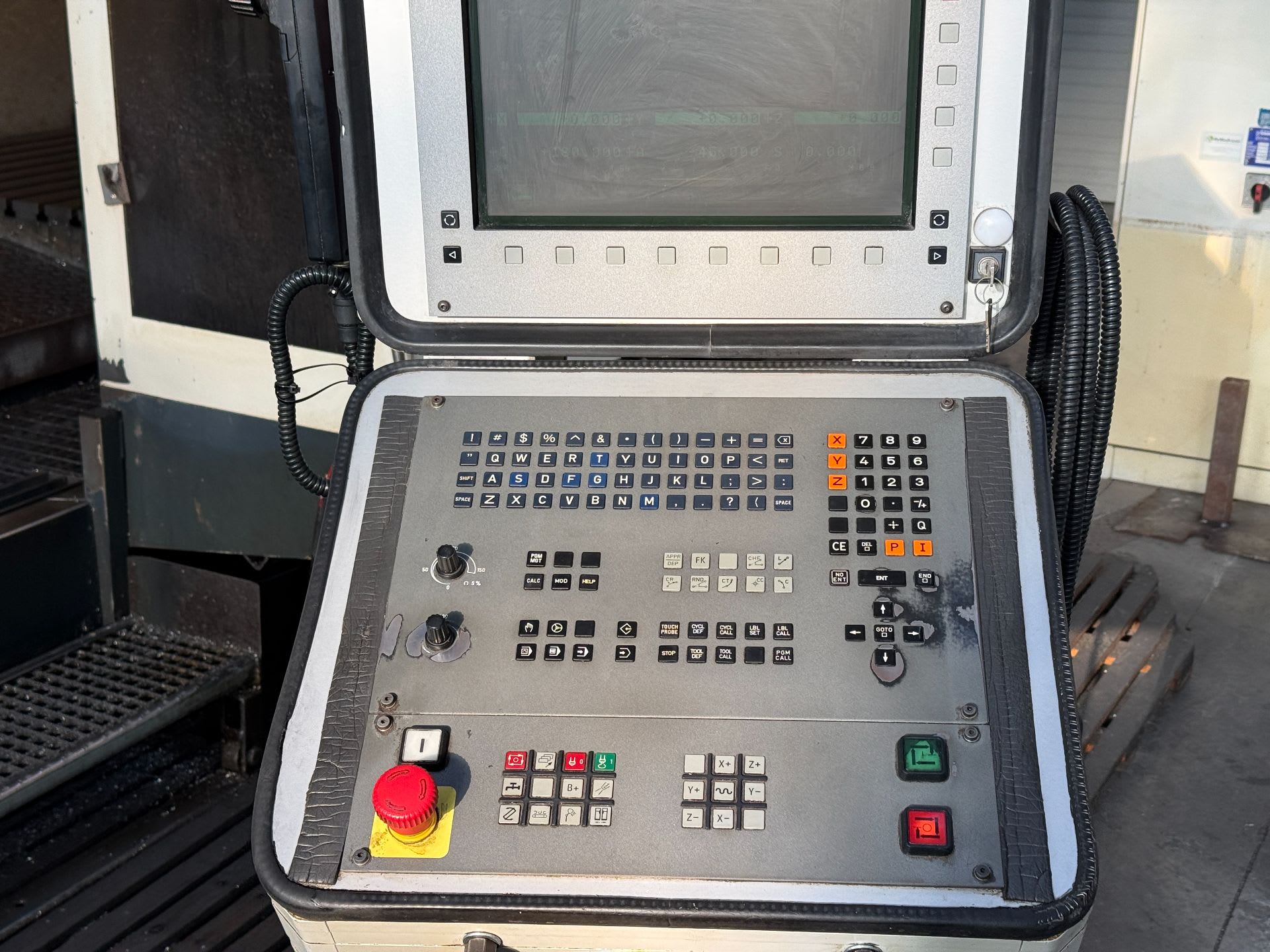

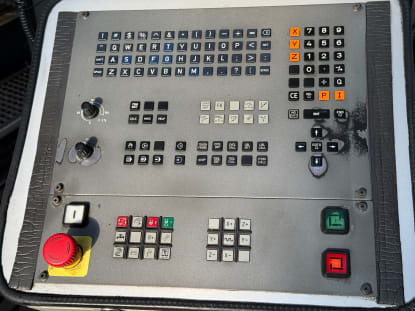

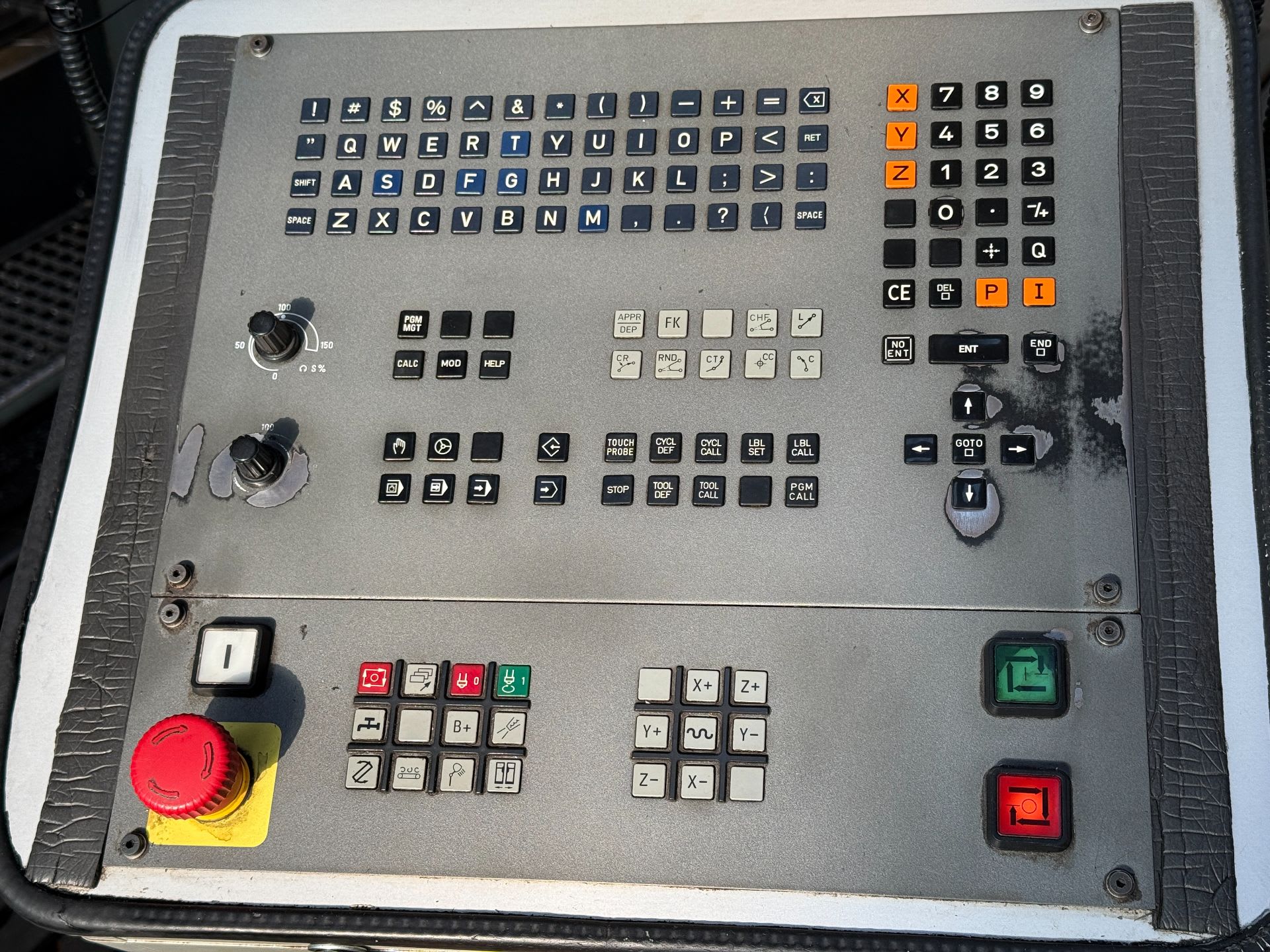

with HEIDENHAIN TNC 430 M CNC control

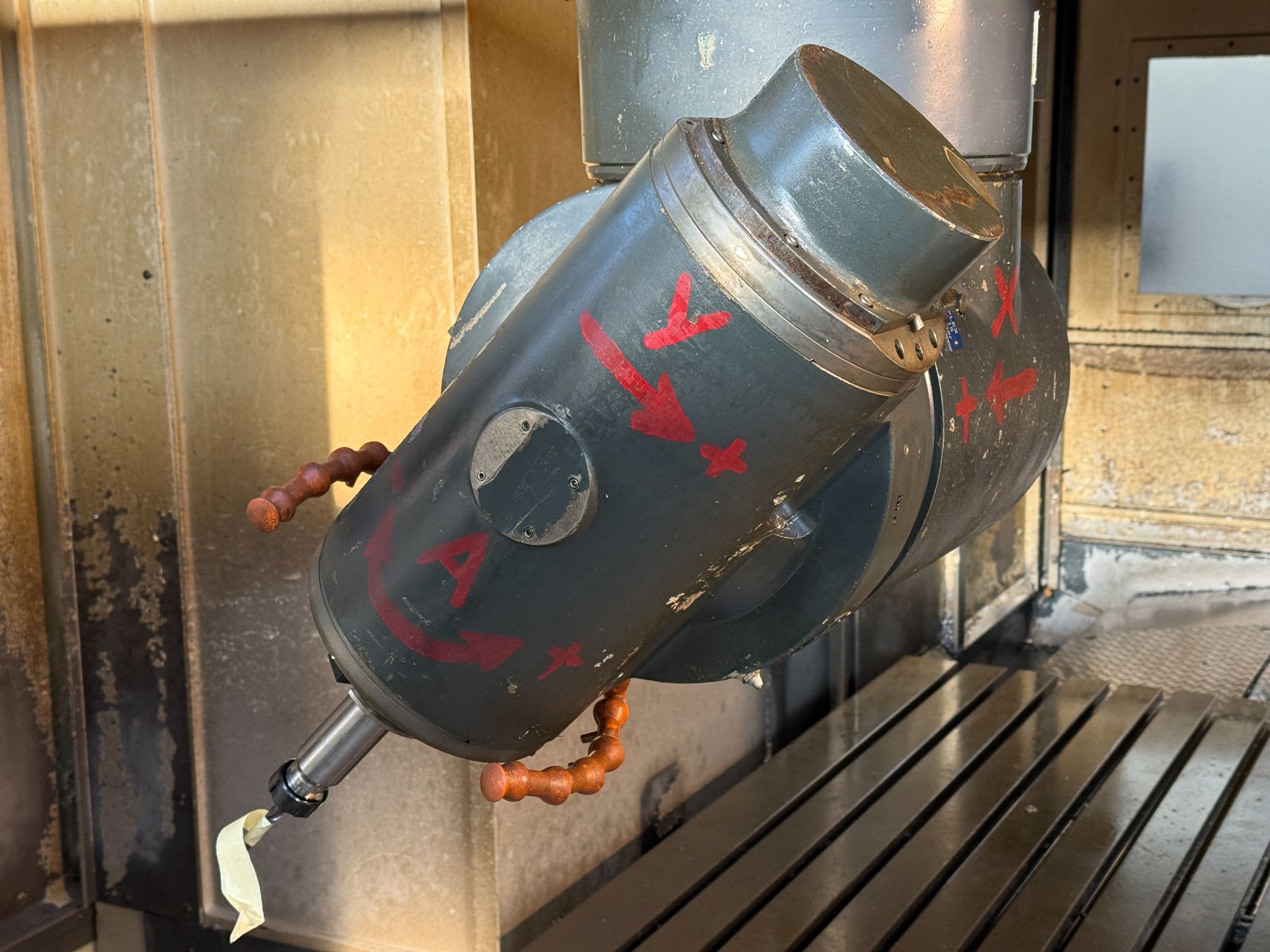

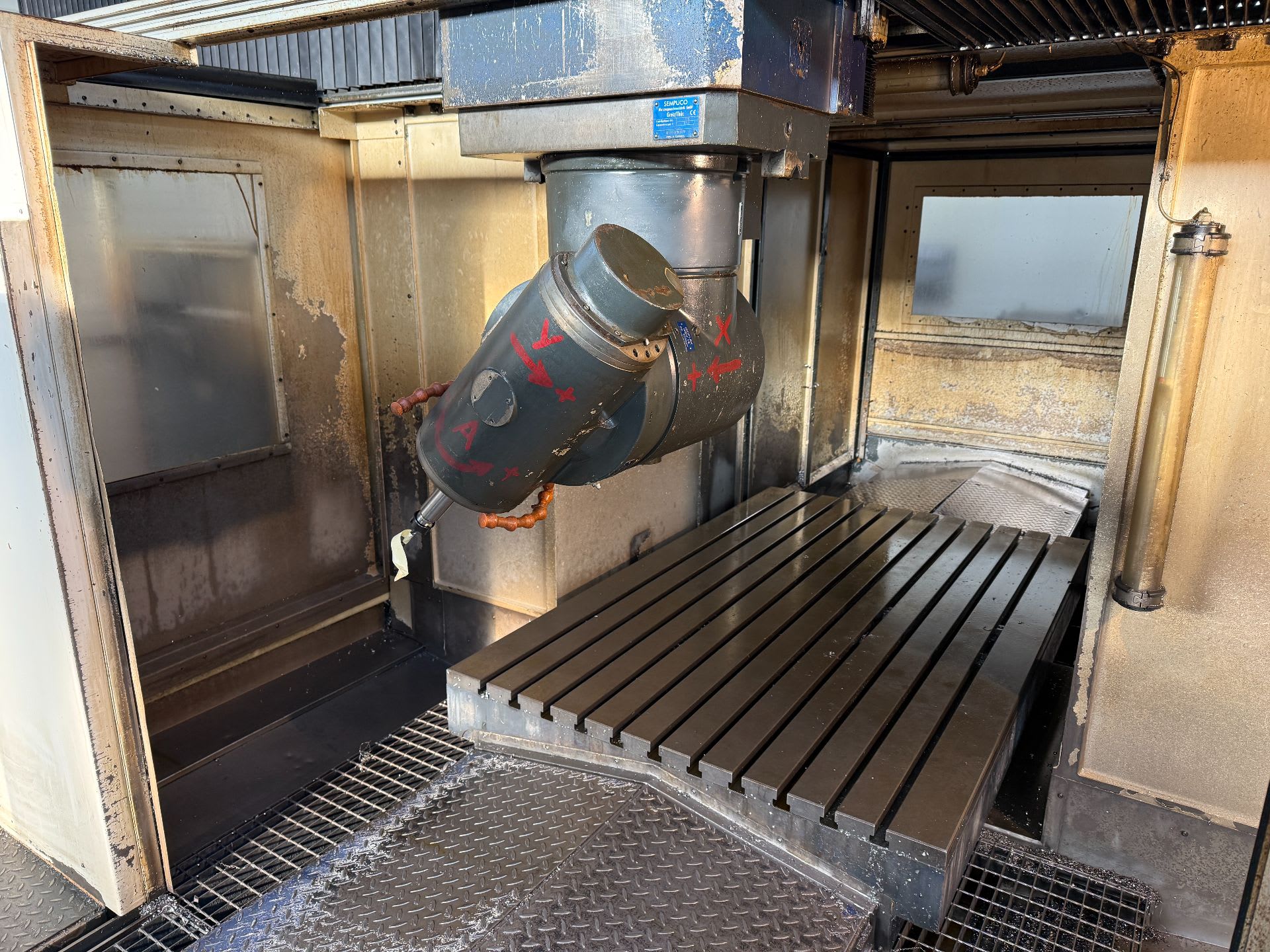

4 controlled axes X, Y, Z and a swivelling head B-axis
Technical Data
Travel X: approx. 2,700 mm

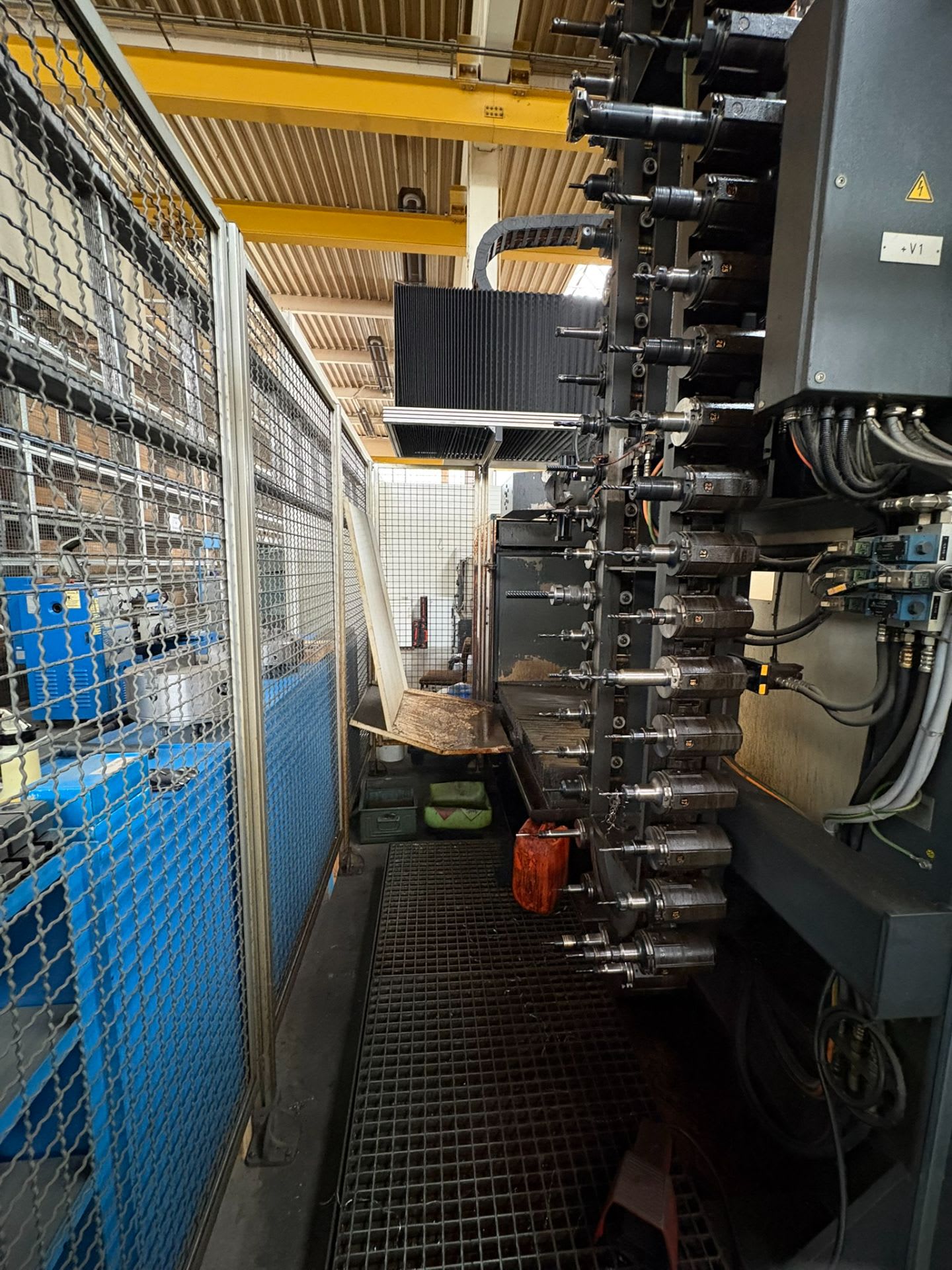

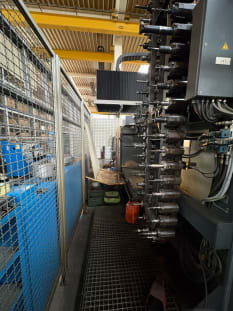

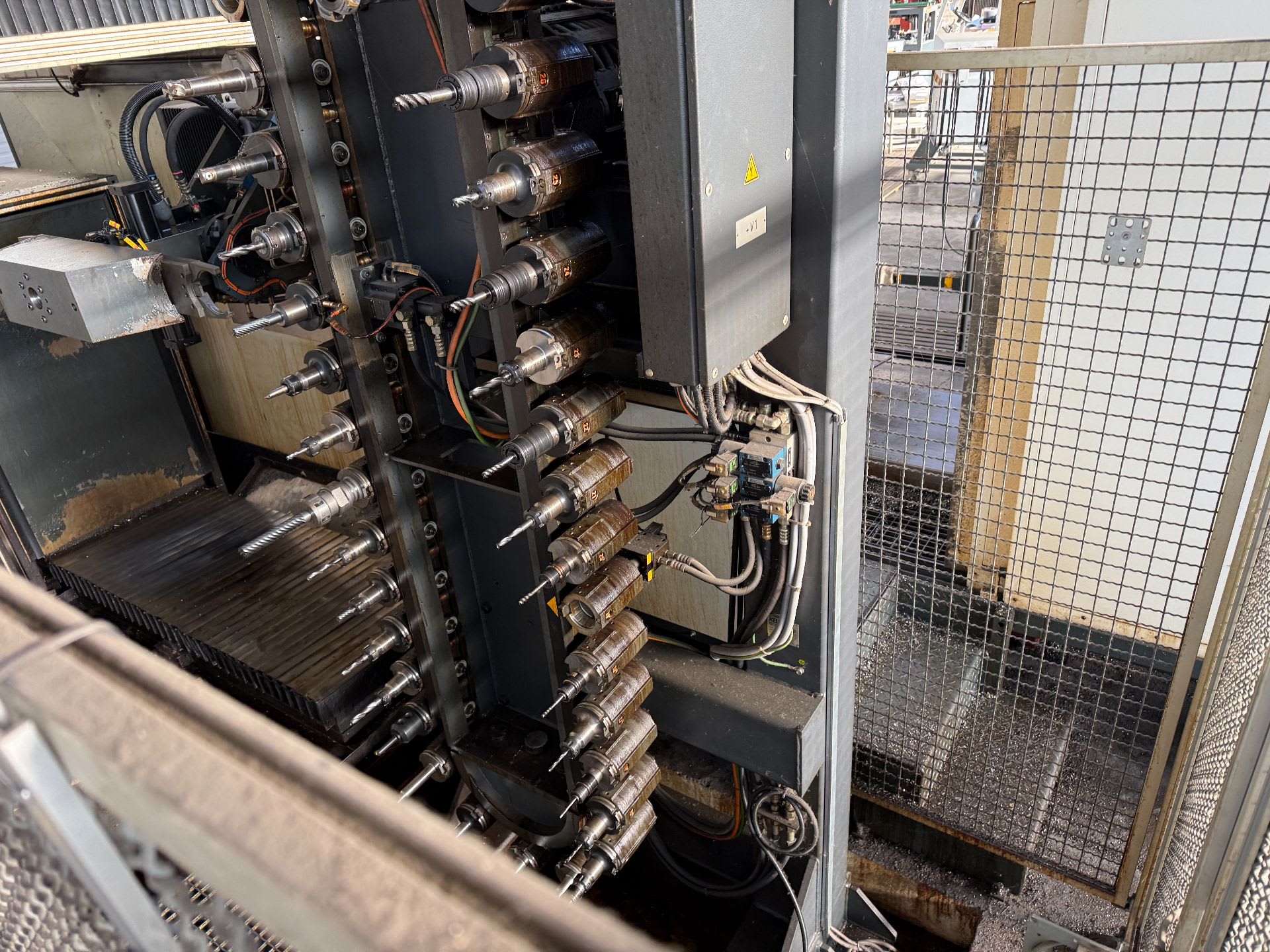

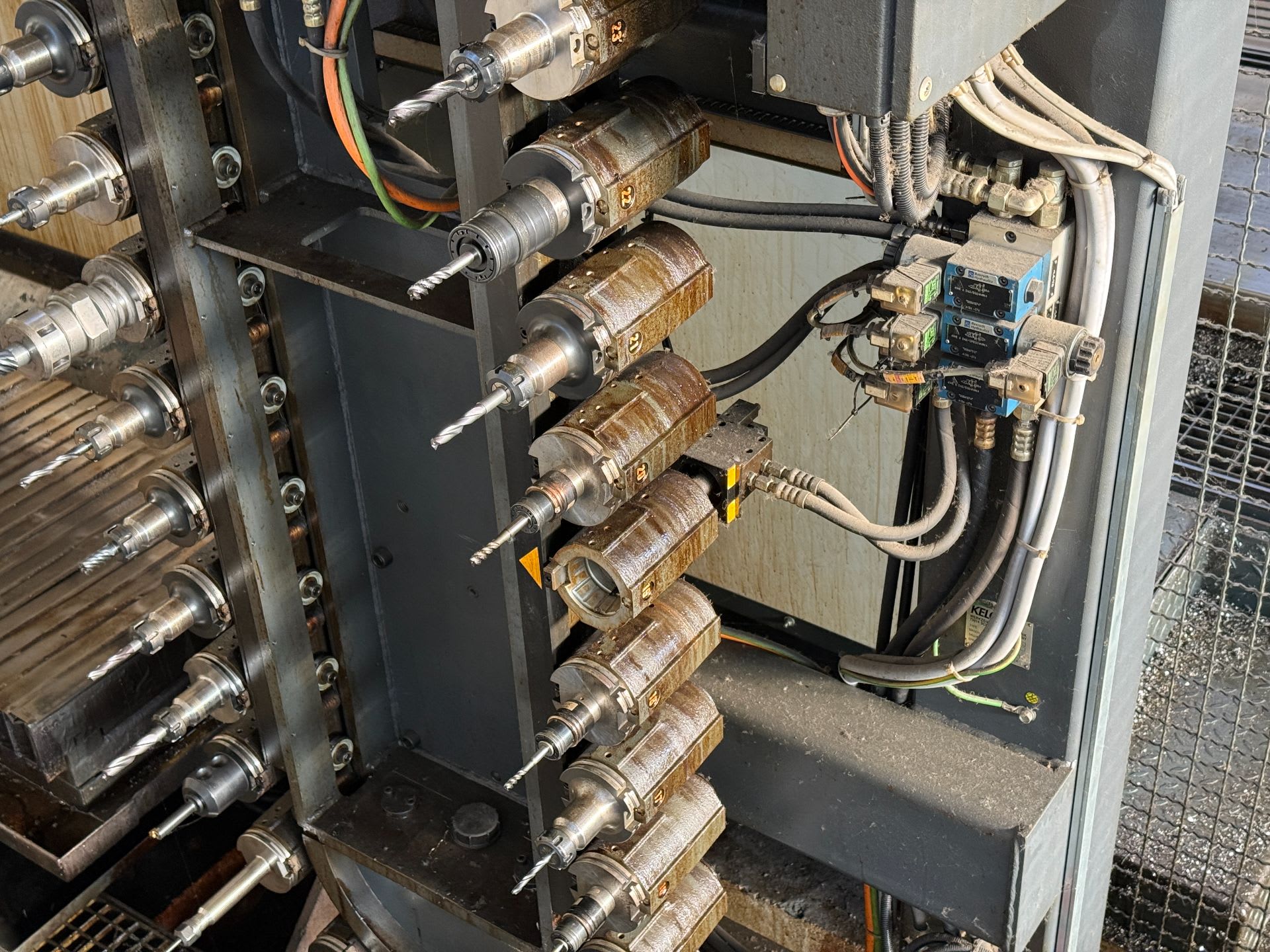

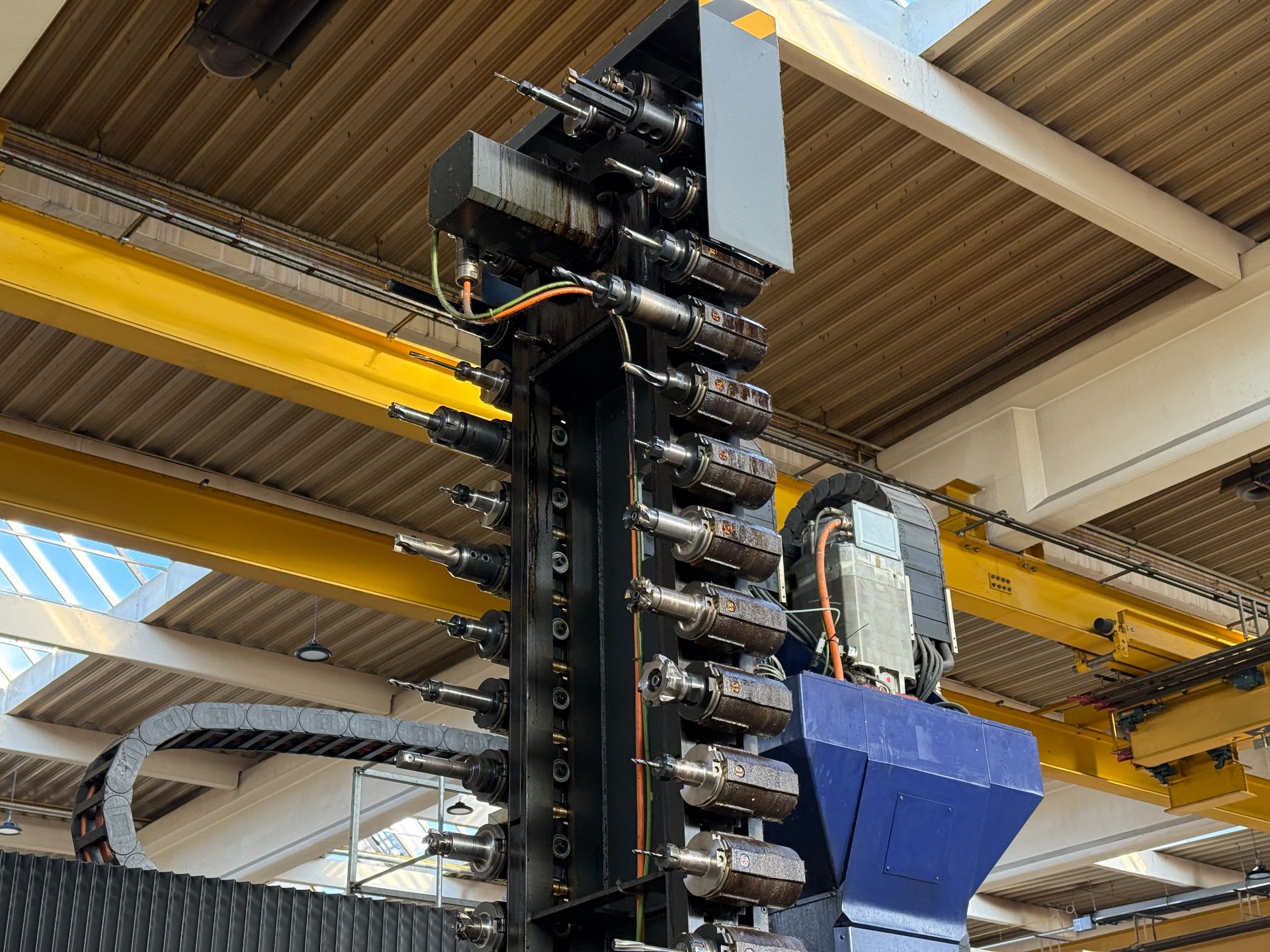

Travel Y: approx. 2,200 mm (+ additional travel for tool change 1,050 mm)
Travel Z: 300 – 1,350 mm
Portal clearance: approx. 1,400 mm width / 1,350 mm height
Spindle power: 37 kW
Max. power: up to 48 kW (S6)
Max. torque: up to 1,310 Nm
Speed range: up to approx. 4,200 rpm
Machine
Space requirement: approx. 8,500 × 7,500 × 5,020 mm

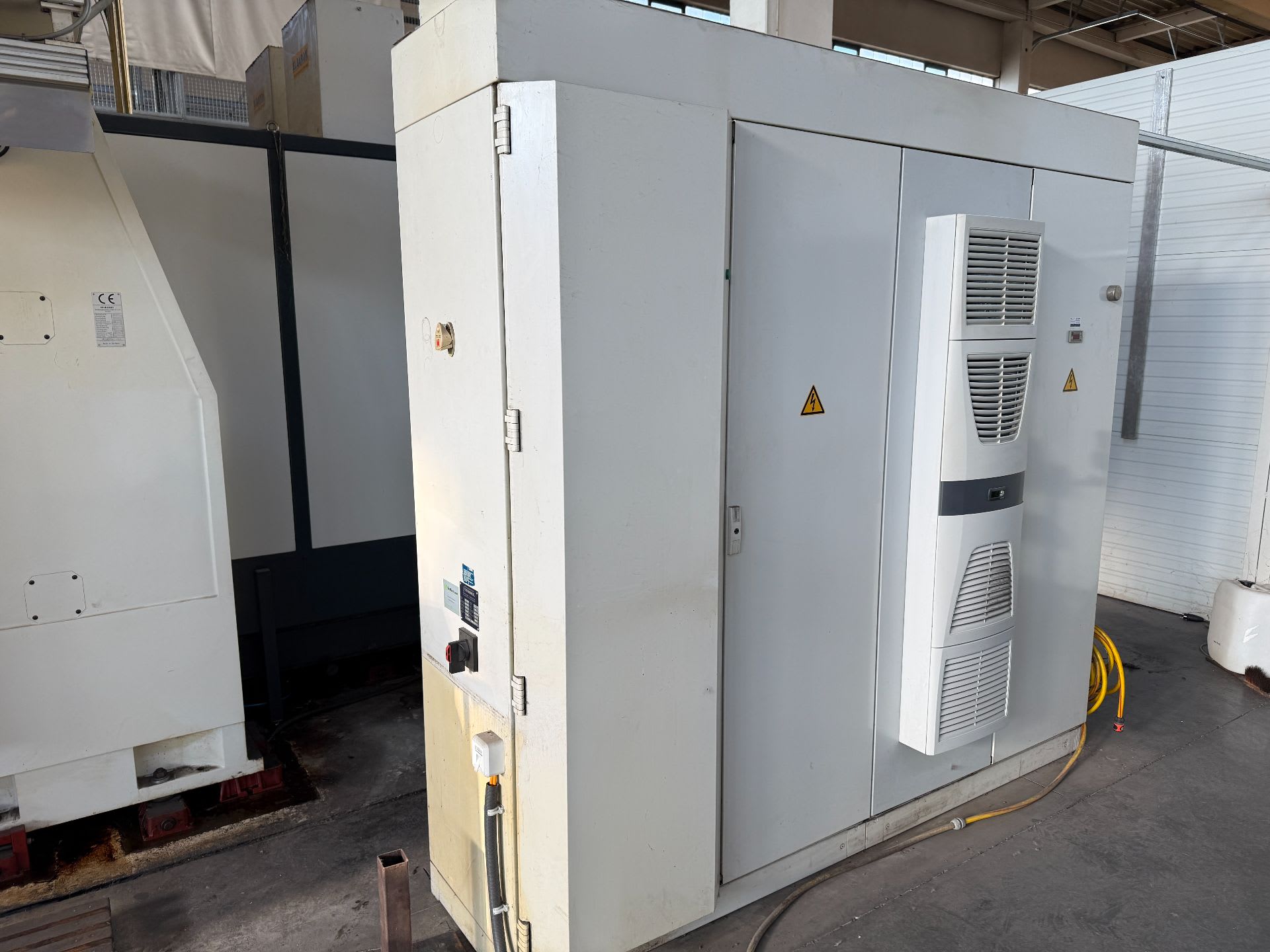

Power supply: 400 V / 50 Hz / 3 AC
Connected load: approx. 80 kW
Documentation plus accessories
