5-Axis Machining Center Deckel Maho DMU 80 monoBLOCK
Offer details
- Storage Number
- 26002-10
- Machine type
- Universal Machining Centres
- Manufacturer
- DECKEL MAHO
- Type
- DMU 80 monoBLOCK
- Year of construction
- 2007
- Location
- Laußig, Germany
- Availability
- immediately
- Price
- On Request
Technical details
- Control
- Heidenhain iTNC 530
- Dimensions (LxWxH) approx.
- 4000 x 3500 x 3000 mm
- Travel X-axis
- ≥ 980 mm
- Travel Y-axis
- ≥ 630 mm
- Weight approx.
- 14,000 kg
Description

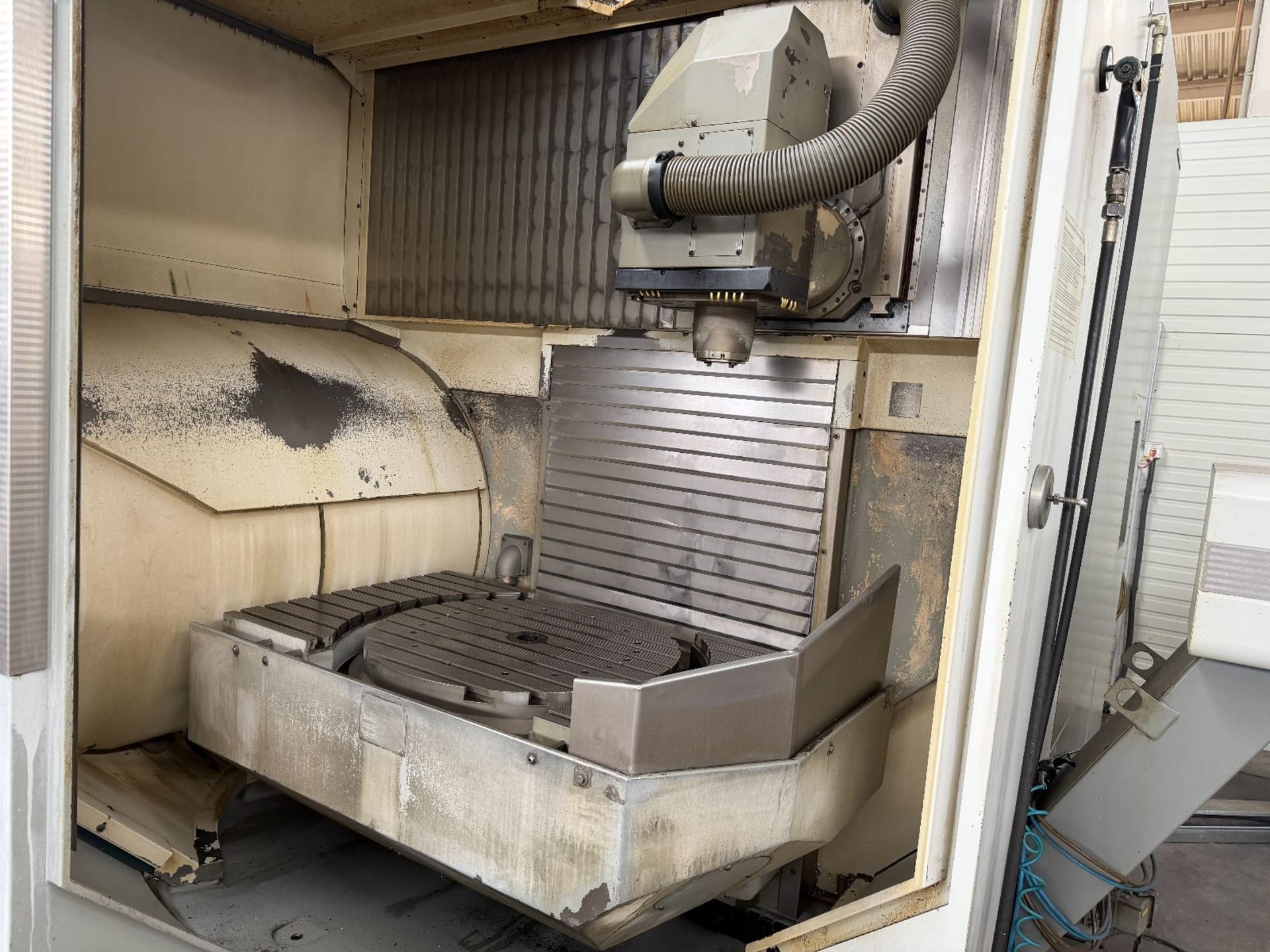

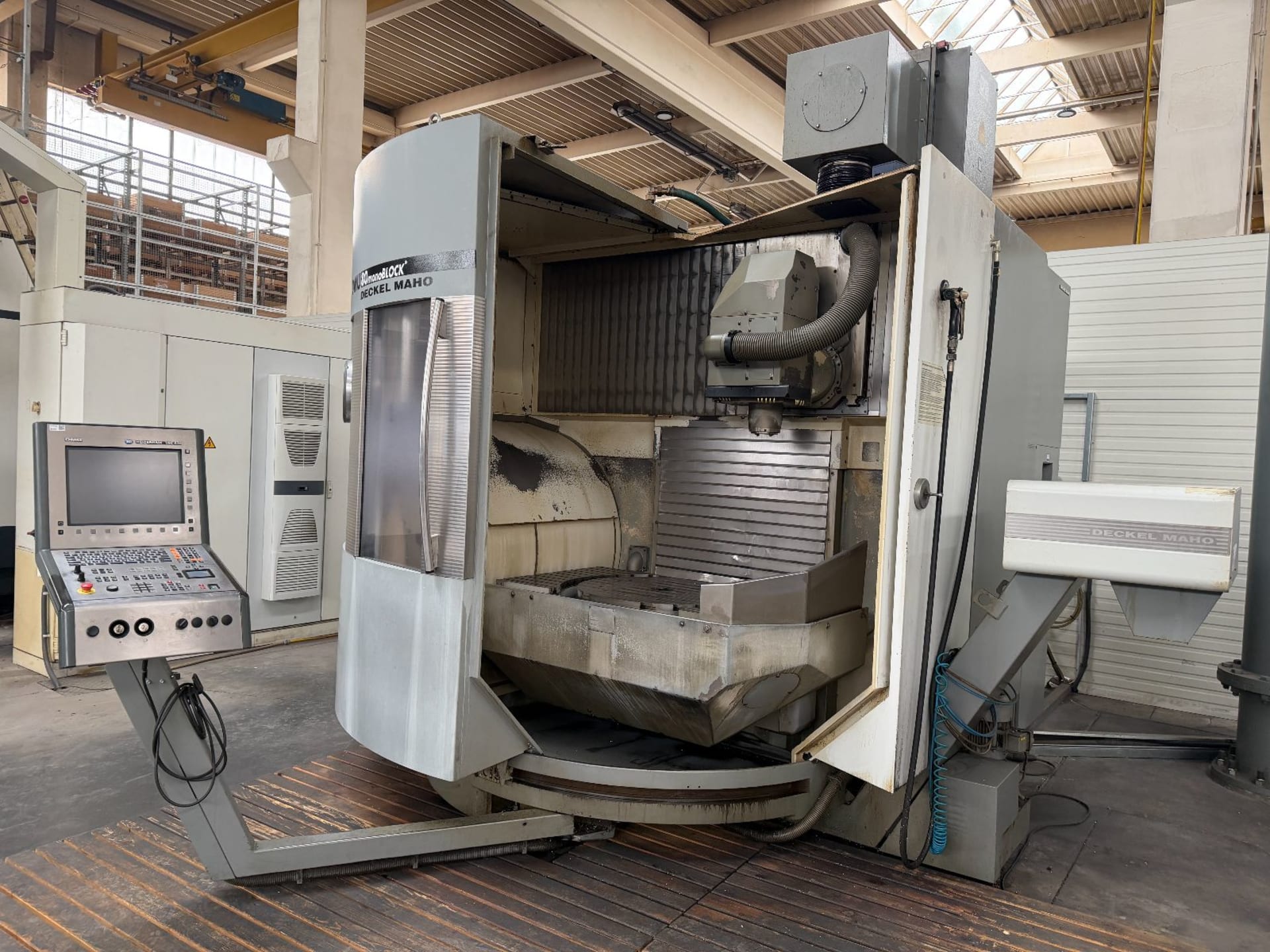

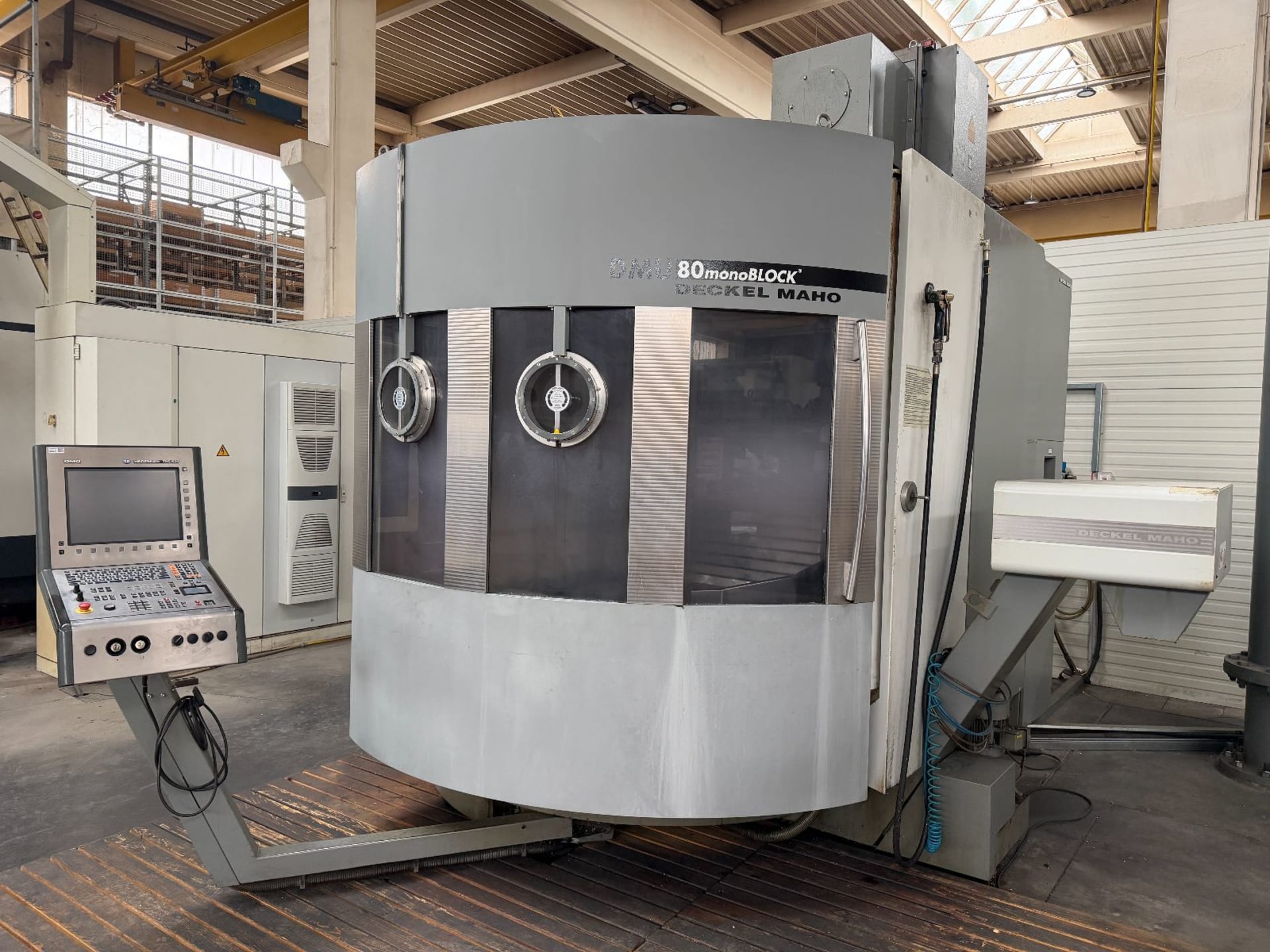

5-Axis Machining Center Deckel Maho DMU 80 monoBLOCK

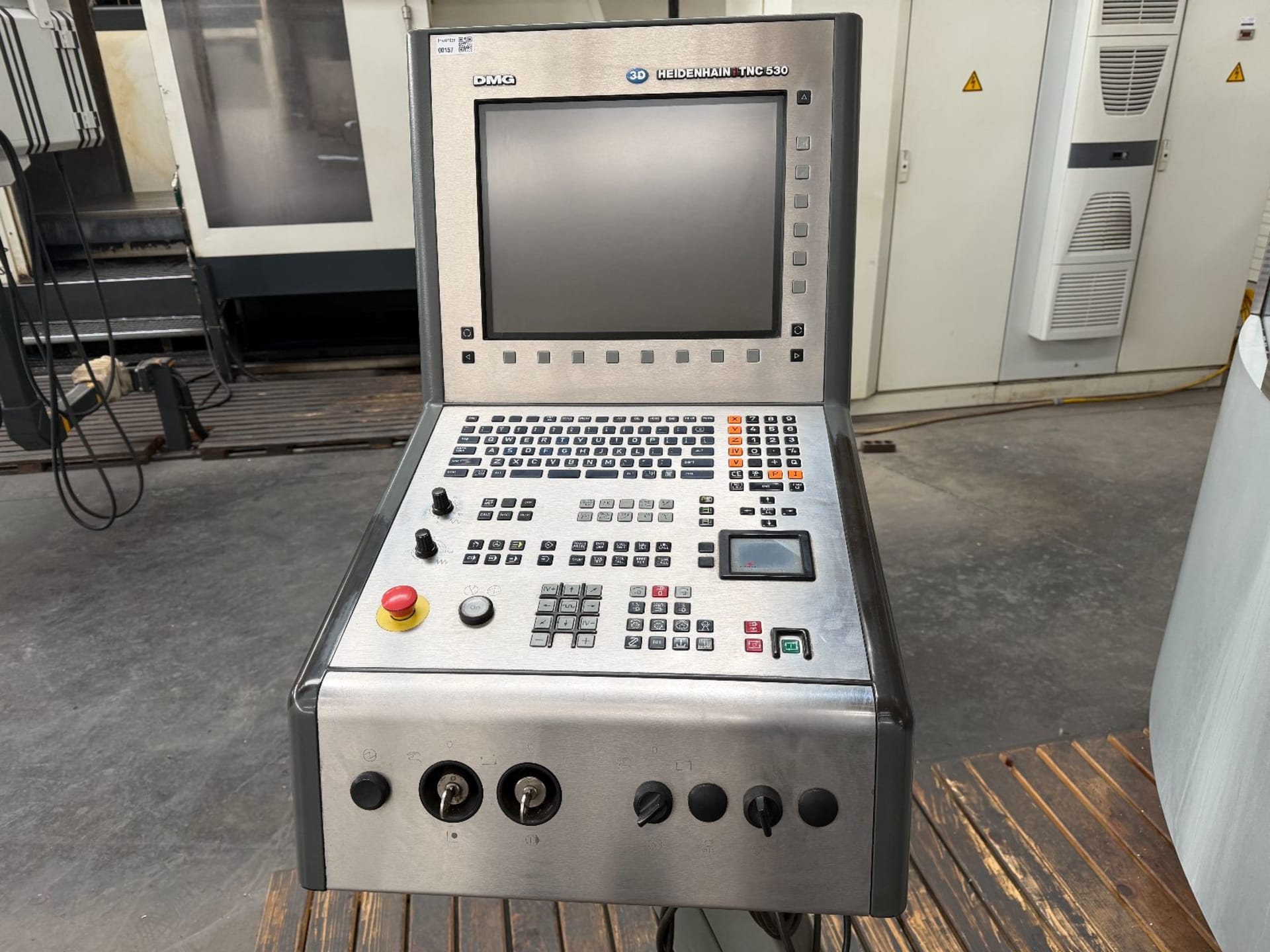

CNC: Heidenhain iTNC 530
Axis Travels
X-axis: 980 mm – 880 mm when using the B-axis
Y-axis: 630 mm
Z-axis: 630 mm
Rotary Axes

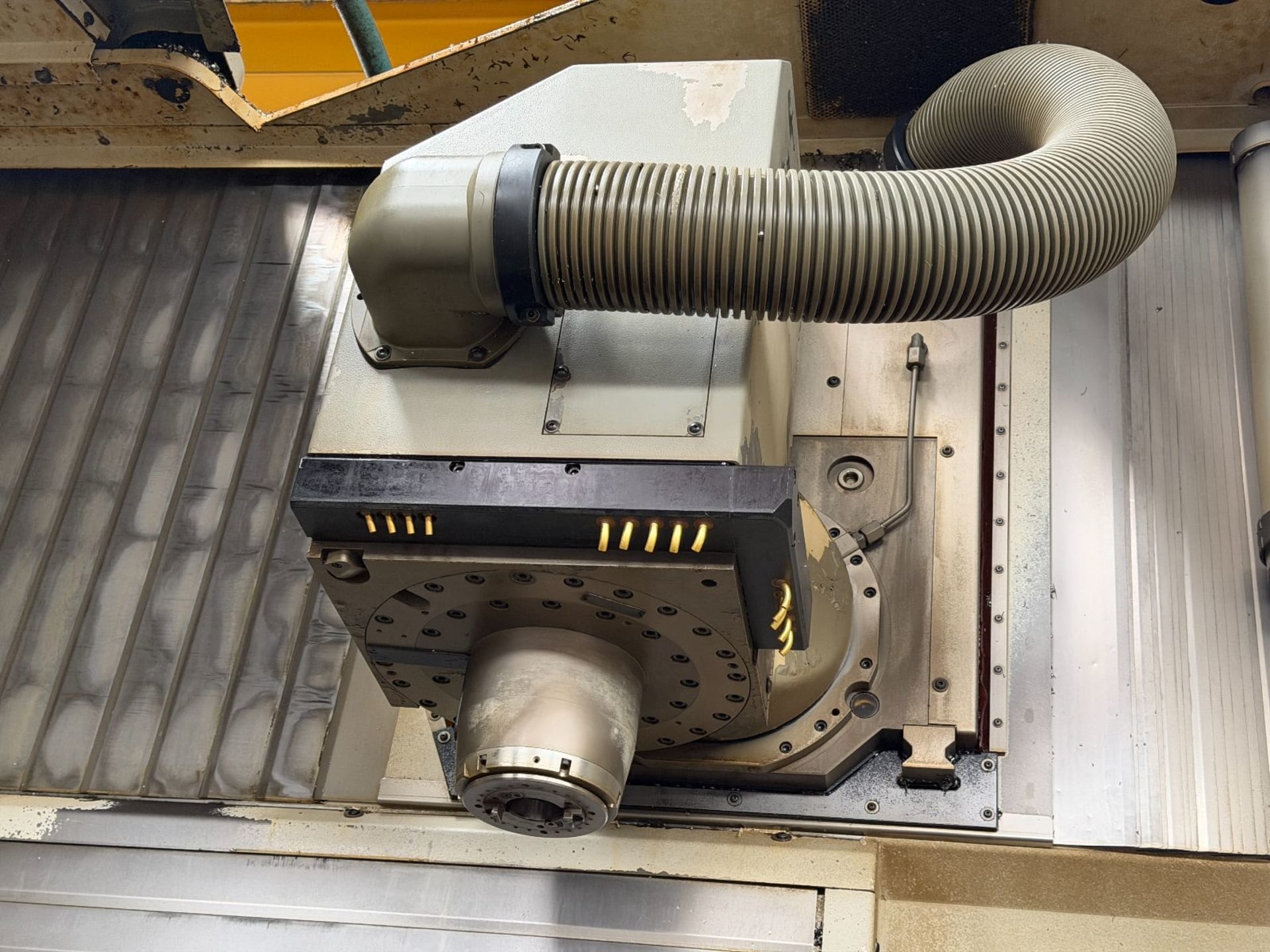

B-axis (NC swivel milling head)
Swivel range: −120° / +30°
Swivel torque: 2,200 Nm
Holding torque: 1,950 Nm
Hydraulic clamping: 3,600 Nm
C-axis (NC rotary table)
360° rotary table
Max. torque: 2,600 Nm
Holding torque: 2,900 Nm
Rapid traverse rotary axis: 30 rpm
Feed rate: 10,800 °/min

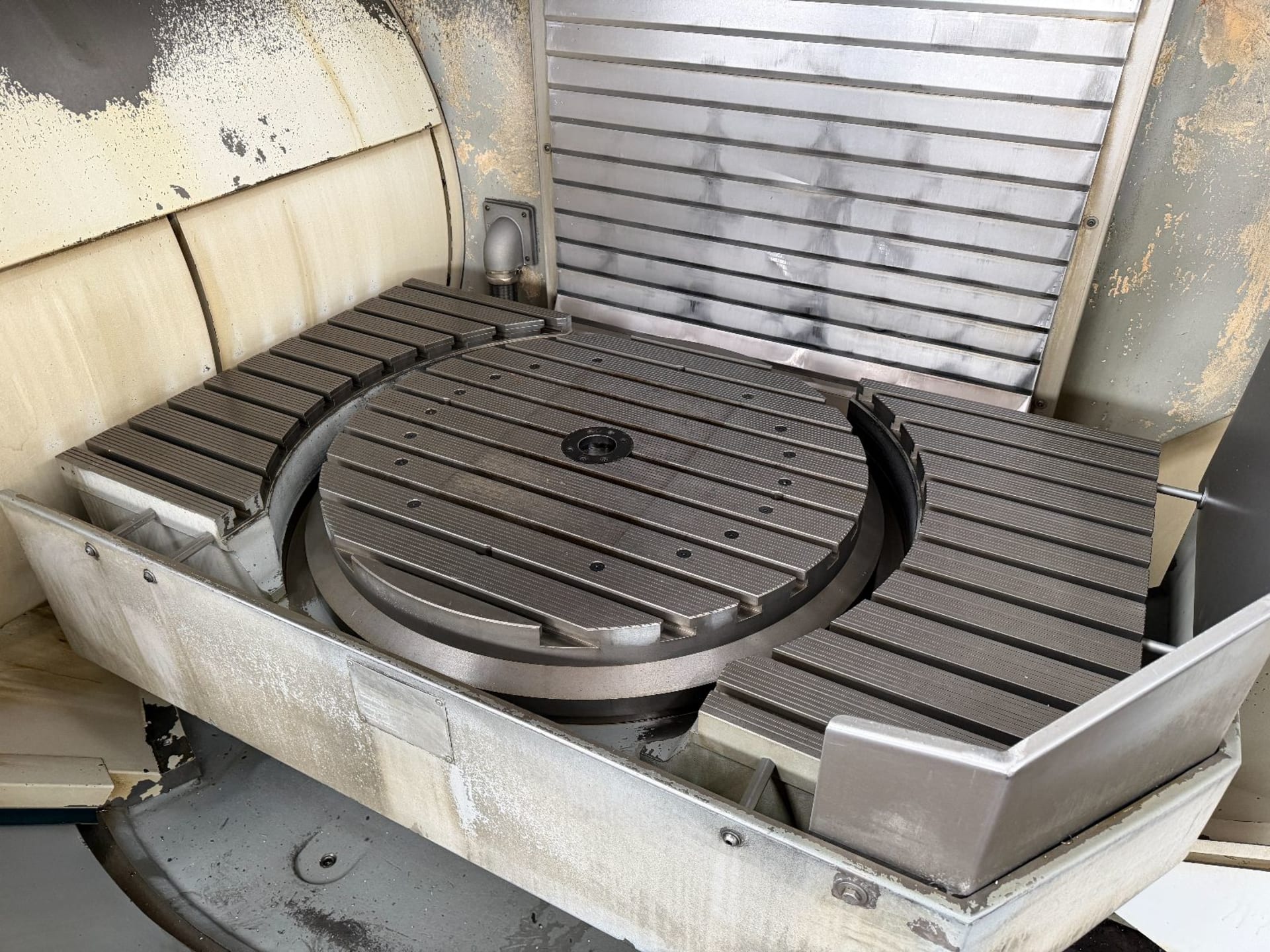

Working Table
NC rotary table integrated in the table
Table size: 1,250 × 700 mm
Rotary table diameter: 700 mm
11 T-slot spacing: 63 mm
Maximum table load
650 kg (center load)
Spindle
Tool interface: SK40 DIN 69871
Spindle speed
up to 10,000 rpm
Power
30 kW (40% duty cycle)
20 kW (100% duty cycle)
Torque285 Nm (40% duty cycle) 190 Nm (100% duty cycle)
Linear Guides
Roller guideways
Measuring System
Direct linear scales
Resolution 0.001 mm
Equipment
32-position tool magazine
Heidenhain infrared probing system TS 640
Production package with through-spindle coolant (IKZ) 20 bar
Paper band filter
Coolant system 600 liters
Chip conveyor (scraper type)
Documentation and milling / ISO tooling included.
Additional information
- Dismantling Costs
- €2,500 - optional
- Transportation costs
- not included
- Terms of delivery
- From foundation
- Terms of payment
- 100% prepayment before pick-up
Our Services
- Inspection & report
- Disassembly & installation
- Global logistics
- Customs & paperwork
- Sourcing & valuation
- Personal consultation
